Obtaining the Cluster ID

Obtaining Cluster ID Using APIs

You can obtain the cluster ID by calling the API for creating a cluster.

The API used to obtain a cluster ID is GET https://{Endpoint}/v1.0/{project_id}/clusters. Endpoint indicates the IAM endpoint, which can be obtained from the . For details about Project ID, see Obtaining Project ID. For details about interface authentication, see Authentication.

The following is an example response. The value of id under the specified clusters is the cluster ID.

{
  "clusters" : [ {
    "id" : "7d85f602-a948-4a30-afd4-e84f47471c15",
    "name" : "dws-1",
    "status" : "AVAILABLE",
    "version" : "1.2.0",
    "updated" : "2016-02-10T14:28:14Z",
    "created" : "2016-02-10T14:26:14Z",
    "port" : 8000,
    "endpoints" : [ {
      "connect_info" : "dws-1.cn-north-4.myhuaweicloud.com",
      "jdbc_url" : "jdbc:postgresql://dws-1.cn-north-4.myhuaweicloud.com/<YOUR_DATABASE_name>"
    } ],
    "nodes" : [ {
      "id" : "acaf62a4-41b3-4106-bf6b-2f669d88291e",
      "status" : "200"
    }, {
      "id" : "d32de51e-4fcd-4e5a-a9dc-bb903abb494b",
      "status" : "200"
    }, {
      "id" : "d71a4a25-c9bc-4ffd-9f4a-e422aef327f9",
      "status" : "200"
    } ],
    "tags" : [ {
      "key" : "key1",
      "value" : "value1"
    }, {
      "key" : "key2",
      "value" : "value2"
    } ],
    "user_name" : "dbadmin",
    "number_of_node" : 3,
    "recent_event" : 6,
    "availability_zone" : "cn-north-4b",
    "enterprise_project_id" : "0",
    "node_type" : "dws.d1.xlarge.ultrahigh",
    "vpc_id" : "85b20d7e-9eb7-4b2a-98f3-3c8843ea3574",
    "subnet_id" : "374eca02-cfc4-4de7-8ab5-dbebf7d9a720",
    "public_ip" : {
      "public_bind_type" : "auto_assign",
      "eip_id" : "85b20d7e-9eb7-4b2a-98f3-3c8843ea3574"
    },
    "public_endpoints" : [ {
      "public_connect_info" : "dws-1.cn-north-4.myhuaweicloud.com",
      "jdbc_url" : "jdbc:postgresql://dws-1.cn-north-4.myhuaweicloud.com/<YOUR_DATABASE_name>"
    } ],
    "action_progress" : {
      "SNAPSHOTTING" : "20%"
    },
    "sub_status" : "READONLY",
    "task_status" : "SNAPSHOTTING",
    "security_group_id" : "dc3ec145-9029-4b39-b5a3-ace5a01f772b"
  } ]
}

Obtaining Cluster ID from DWS Console

1. Log in to the DWS console.
2. In the navigation pane on the left, click Clusters.
3. In the cluster list, find the target cluster and click the cluster name. The Cluster Information page is displayed.
4. In the Basic Information area, view the cluster ID, as shown in the following figure.

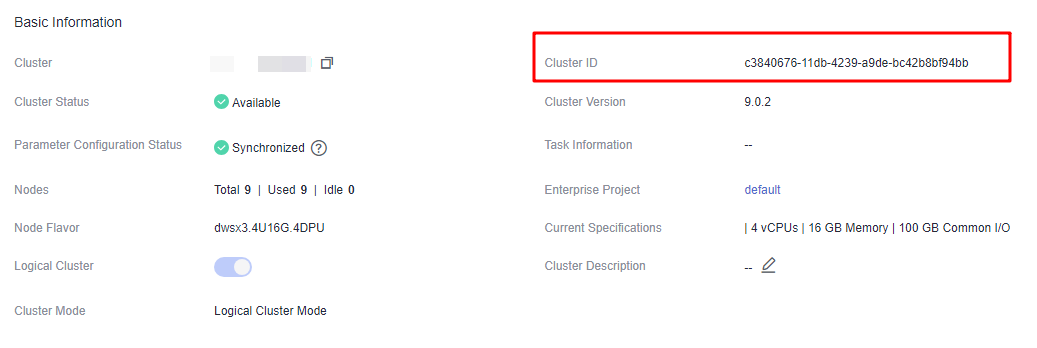

   Figure 1 Viewing the cluster ID
