页面数据总览来源

冷机调优大屏数据总览的页面数据如下：

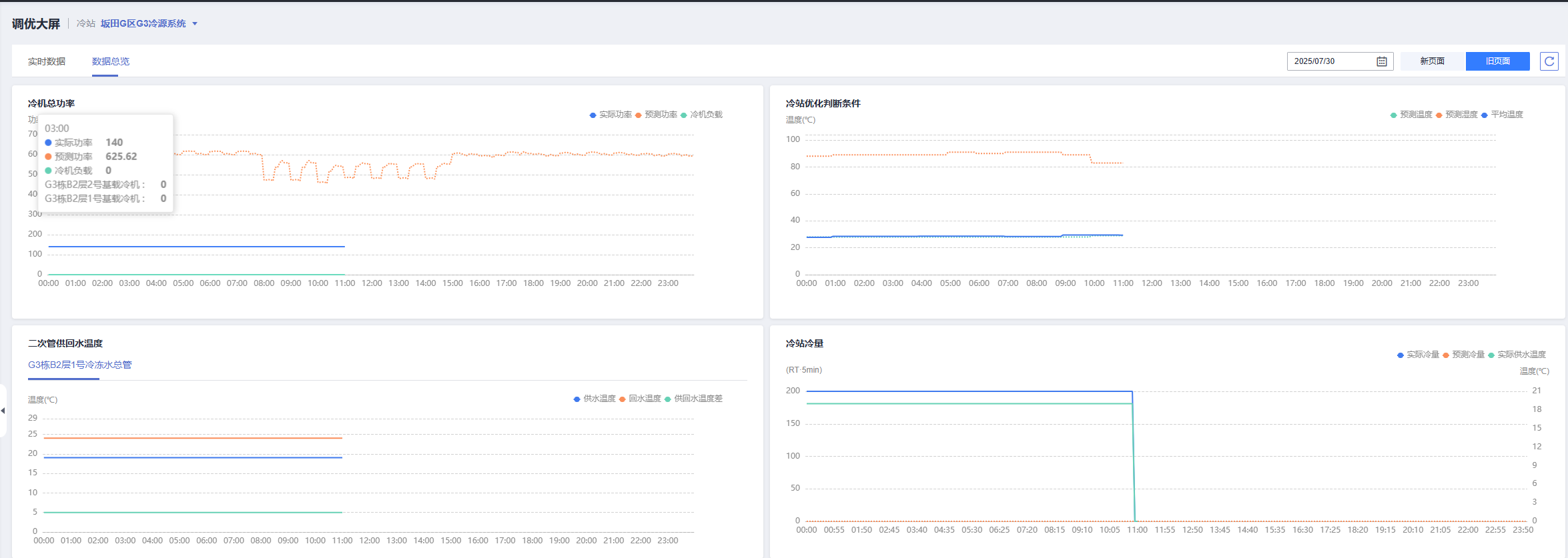

图1 数据总览页面

冷机总功率这个图上数据是通过调用“查询冷站的属性历史信息”这个接口获取，对应请求体如下：

{
    "end_time": "2025-07-30T15:59:59.000Z",
    "group_duration": "PT5M",
    "limit": 1000,
    "offset": 0,
    "properties_keys": [
        "chiller/sumActivePower",
        "inferenceResult5min/Power",
        "chiller/meanRunningLoad"
    ],
    "start_time": "2025-07-29T16:00:00.000Z"
}

响应结果如下，对应指标用红色字体标识出来了：

{
    "contents": [
        {
            "create_time": "2025-07-29T16:00:00.000Z",
            "properties": {
                "chiller/meanRunningLoad": 0,      ---冷机负载
                "chiller/sumActivePower": 140,     ---实际功率
                "inferenceResult5min/Power": 604.63  ---预测功率
            }
        },
        {
            "create_time": "2025-07-29T16:05:00.000Z",
            "properties": {
                "chiller/meanRunningLoad": 0,
                "chiller/sumActivePower": 140,
                "inferenceResult5min/Power": 604.63
            }
        }
    ],
    "site_id": "196a45737829249d1eb681c8"
}

冷站优化判断条件这个图上数据也是通过调用“查询冷站的属性历史信息”这个接口获取，对应请求体如下：

{
    "end_time": "2025-07-30T15:59:59.000Z",
    "limit": 1000,
    "offset": 0,
    "properties_keys": [
        "coolDownWaterMainPipe/supplyWaterTemp",
        "coolDownWaterMainPipe/returnWaterTemp",
        "weather/momentTemp",
        "weather/momentHumidity",
        "weather/meanTemp"
    ],
    "start_time": "2025-07-29T16:00:00.000Z"
}

响应结果如下，对应指标用红色字体标识出来了：

{
    "contents": [
        {
            "create_time": "2025-07-29T16:00:00.000Z",
            "properties": {
                "weather/meanTemp": 27.708333333333332,   ---平均温度
                "weather/momentHumidity": 88,    ---预测湿度
                "weather/momentTemp": 28    ---预测温度
            }
        },
        {
            "create_time": "2025-07-29T16:05:00.000Z",
            "properties": {
                "weather/meanTemp": 27.708333333333332,
                "weather/momentHumidity": 88,
                "weather/momentTemp": 28
            }
        }
    ],
    "site_id": "196a45737829249d1eb681c8"
}

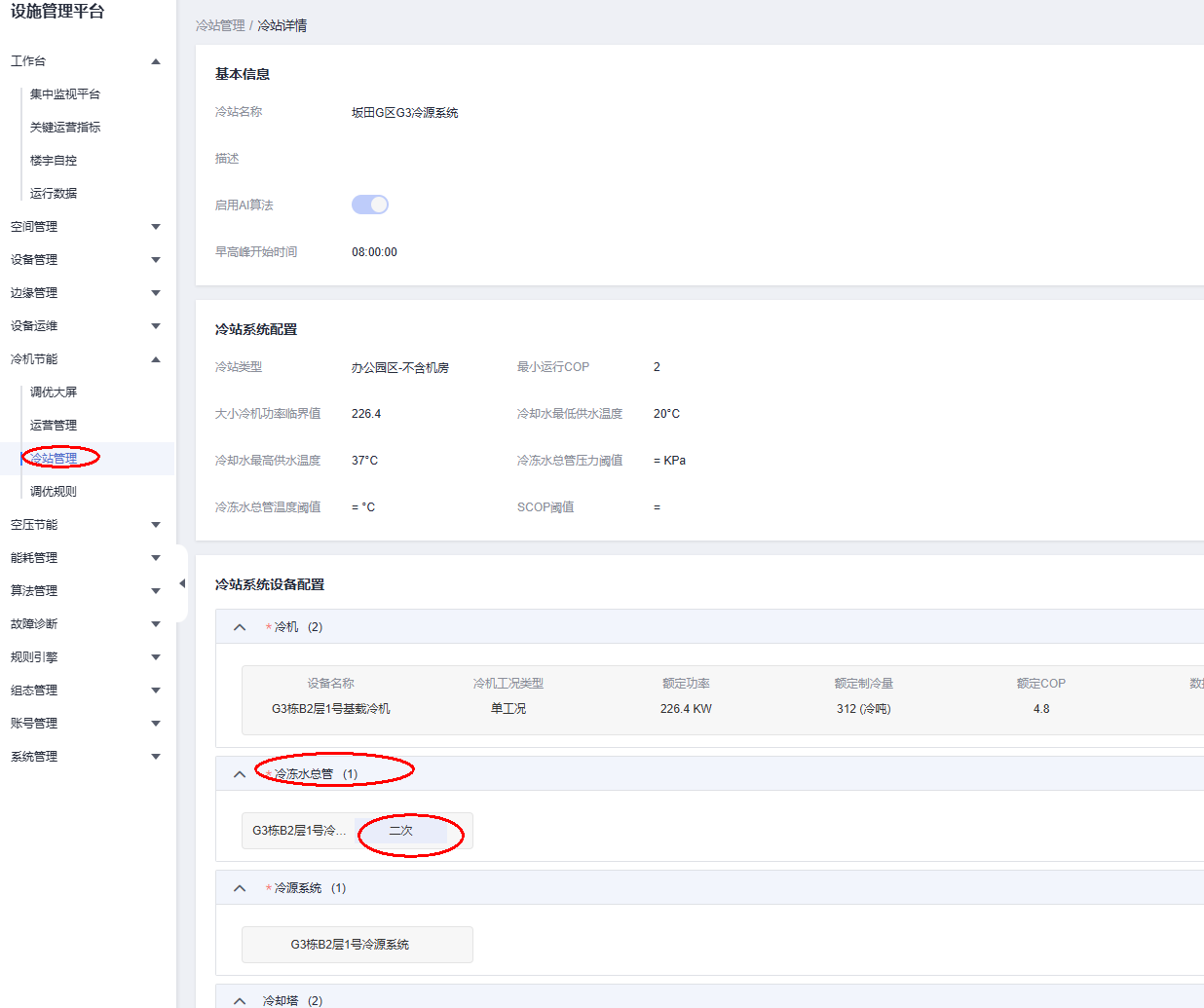

二次管供回水温度这个图上数据先去冷站管理那找到对应冷站，进入冷站详情页面找到如下图对应的二次冷冻水总管的设备对应的设备ID：

图2 二次冷冻水总管获取
点击放大

接着拿到这个二次冷冻水总管的设备对应的设备ID去调用“查询设备的属性历史信息聚合结果”接口，对应接口请求体如下：

{
    "end_time": "2025-07-30T15:59:59.000Z",
    "group_duration": "PT5M",
    "property_paths": [
        "InfoService/ChilledWaterSupplyTemp",
        "InfoService/ChilledWaterReturnTemp",
        "InfoService/SupplyAndReturnTempDiff"
    ],
    "start_time": "2025-07-29T16:00:00.000Z"
}

响应结果如下，对应指标用红色字体标识出来了：

{
    "property_info": [
        {
            "property_path": "InfoService/ChilledWaterSupplyTemp",   ---供水温度
            "values": [
                19,
                19
            ]
        },
        {
            "property_path": "InfoService/ChilledWaterReturnTemp",  ---回水温度
            "values": [
                24,
                24
            ]
        },
        {
            "property_path": "InfoService/SupplyAndReturnTempDiff",  ---供回水温度差
            "values": [
                5,
                5
            ]
        }
    ],
    "timestamps": [
        "2025-07-29T16:00:00.000Z",
        "2025-07-29T16:05:00.000Z"
    ]
}

冷站冷量这个图上数据也是通过调用“查询冷站的属性历史信息”这个接口获取，对应请求体如下：

{
    "end_time": "2025-07-30T15:59:59.000Z",
    "group_duration": "PT5M",
    "limit": 1000,
    "offset": 0,
    "properties_keys": [
        "chilledWaterMainPipe/totalCoolingCapacity",
        "chilledWaterMainPipe/firstSupplyWaterTemp",
        "inferenceResult5min/Cooling"
    ],
    "start_time": "2025-07-29T16:00:00.000Z"
}

响应结果如下，对应指标用红色字体标识出来了：

{
    "contents": [
        {
            "create_time": "2025-07-29T16:00:00.000Z",
            "properties": {
                "chilledWaterMainPipe/firstSupplyWaterTemp": 19,    ---实际供水温度
                "chilledWaterMainPipe/totalCoolingCapacity": 200,   ---实际冷量
                "inferenceResult5min/Cooling": 0.06    ---预测冷量
            }
        },
        {
            "create_time": "2025-07-29T16:05:00.000Z",
            "properties": {
                "chilledWaterMainPipe/firstSupplyWaterTemp": 19,
                "chilledWaterMainPipe/totalCoolingCapacity": 200,
                "inferenceResult5min/Cooling": 0.06
            }
        }
    ],
    "site_id": "196a45737829249d1eb681c8"
}
