页面数据总览来源

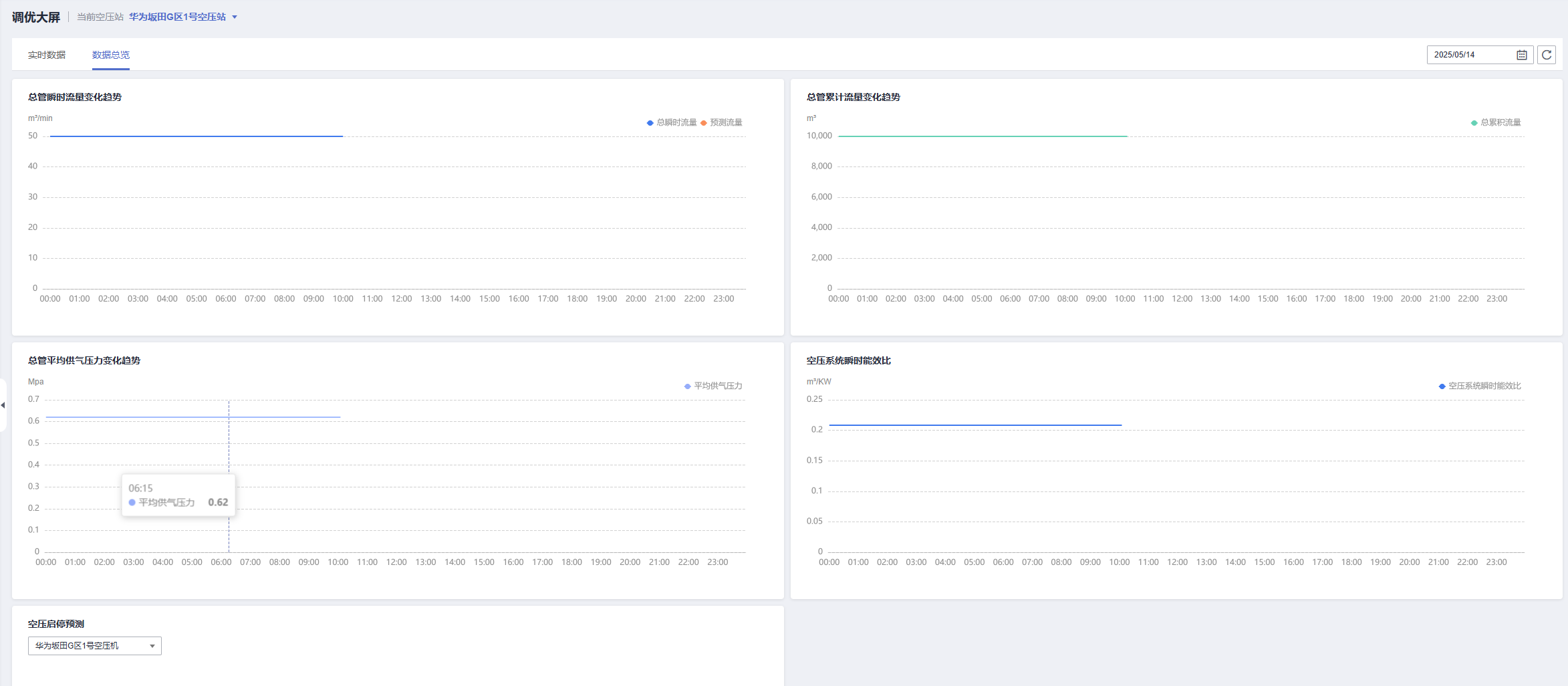

  1. 页面空压数据总览如下：
    图1 空压数据总览
  2. 总管瞬时流量变化趋势，是调“查询空压站的属性历史信息”接口获取的，举例说明接口请求体和返回结果如下：

    请求体：

    {
    {
        "end_time": "2025-05-14T15:59:59.000Z",
        "group_duration": "PT30M",
        "limit": 1000,
        "properties_keys": [
            "mainPipe/sumInstantaneousFlow"
        ],
        "start_time": "2025-05-13T16:00:00.000Z"
    }
}

    响应体：

    {
    "contents": [
        {
            "create_time": "2025-05-13T16:00:00.000Z",
            "properties": {
                "mainPipe/sumInstantaneousFlow": 50
            }
        },
        {
            "create_time": "2025-05-13T16:30:00.000Z",
            "properties": {
                "mainPipe/sumInstantaneousFlow": 50
            }
        },
        {
            "create_time": "2025-05-13T17:00:00.000Z",
            "properties": {
                "mainPipe/sumInstantaneousFlow": 50
            }
        }
    ],
    "site_id": "196618b55e1b070636c64409"
}
  3. 总管累计流量变化趋势，是调“查询空压站的属性历史信息”接口获取的，举例说明接口请求体和返回结果如下：

    请求体：

    {
    "end_time": "2025-05-14T15:59:59.000Z",
    "group_duration": "PT5M",
    "limit": 1000,
    "properties_keys": [
        "mainPipe/sumCumulativeFlow"
    ],
    "start_time": "2025-05-13T16:00:00.000Z"
}

    响应体：

    {
    "contents": [
        {
            "create_time": "2025-05-13T16:00:00.000Z",
            "properties": {
                "mainPipe/sumCumulativeFlow": 10000
            }
        },
        {
            "create_time": "2025-05-13T16:05:00.000Z",
            "properties": {
                "mainPipe/sumCumulativeFlow": 10000
            }
        },
        {
            "create_time": "2025-05-13T16:10:00.000Z",
            "properties": {
                "mainPipe/sumCumulativeFlow": 10000
            }
        }
    ],
    "site_id": "196618b55e1b070636c64409"
}
  4. 总管平均供气压力变化趋势，是调“查询空压站的属性历史信息”接口获取的，举例说明接口请求体和返回结果如下：

    请求体：

    {
    "end_time": "2025-05-14T15:59:59.000Z",
    "group_duration": "PT5M",
    "limit": 1000,
    "properties_keys": [
        "mainPipe/meanExhaustPressure"
    ],
    "start_time": "2025-05-13T16:00:00.000Z"
}

    响应体：

    {
    "contents": [
        {
            "create_time": "2025-05-13T16:00:00.000Z",
            "properties": {
                "mainPipe/meanExhaustPressure": 0.62
            }
        },
        {
            "create_time": "2025-05-13T16:05:00.000Z",
            "properties": {
                "mainPipe/meanExhaustPressure": 0.62
            }
        },
        {
            "create_time": "2025-05-13T16:10:00.000Z",
            "properties": {
                "mainPipe/meanExhaustPressure": 0.62
            }
        }
    ],
    "site_id": "196618b55e1b070636c64409"
}
  5. 空压系统瞬时能效比，是调“查询空压站的属性历史信息”接口获取的，举例说明接口请求体和返回结果如下：

    请求体：

    {
    "end_time": "2025-05-14T15:59:59.000Z",
    "group_duration": "PT5M",
    "limit": 1000,
    "properties_keys": [
        "compressorSys/systemCOP"
    ],
    "start_time": "2025-05-13T16:00:00.000Z"
}

    响应体：

    {
    "contents": [
        {
            "create_time": "2025-05-13T16:00:00.000Z",
            "properties": {
                "compressorSys/systemCOP": 0.20833333333333334
            }
        },
        {
            "create_time": "2025-05-13T16:05:00.000Z",
            "properties": {
                "compressorSys/systemCOP": 0.20833333333333334
            }
        },
        {
            "create_time": "2025-05-13T16:10:00.000Z",
            "properties": {
                "compressorSys/systemCOP": 0.20833333333333334
            }
        }
    ],
    "site_id": "196618b55e1b070636c64409"
}
