使用构建任务制作SonarQube工具镜像

此时的目录结构如下图。

1. 删除第二行的“USER build”。
2. 从第二行开始写入如下内容：

   # Define build arguments and set default values
   # SonarQube Server version
   ARG SONARQUBE_VERSION=25.4.0.105899
   # SonarScanner CLI version
   ARG SONAR_SCANNER_VERSION=7.2.0.5079
   # JDK version required for SonarQube runtime
   ARG SONAR_JDK_VERSION=17.0.1
   # Node.js version required for SonarQube (optional, required only for JavaScript/TypeScript/CSS scanning scenarios)
   ARG SONAR_NODE_VERSION=20.19.6
   # JDK version required for compiling user code (optional, required only for Java compilation scanning scenarios)
   ARG COMPILE_JDK_VERSION=21.0.1
   # Maven version required for compiling user code (optional, required only for Java compilation scanning scenarios)
   ARG COMPILE_MAVEN_VERSION=3.9.12
   # Print versions
   RUN echo "Version of SonarQube Server: $SONARQUBE_VERSION" \
     && echo "Version of SonarScanner CLI: $SONAR_SCANNER_VERSION" \
     && echo "Version of JDK for SonarQube : $SONAR_JDK_VERSION" \
     && echo "Version of Node.js for SonarQube: $SONAR_NODE_VERSION" \
     && echo "Version of JDK for compiling code: $COMPILE_JDK_VERSION" \
     && echo "Version of Maven for compiling code: $COMPILE_MAVEN_VERSION"
   # Download tools & extract & rename
   RUN mkdir -p /usr/local/tools/sonarqubecustom
   RUN cd /usr/local/tools/sonarqubecustom \
     && curl -fSL https://binaries.sonarsource.com/Distribution/sonarqube/sonarqube-${SONARQUBE_VERSION}.zip -o sonarqube_webservice.zip \
     && unzip -q sonarqube_webservice.zip \
     && mv sonarqube-${SONARQUBE_VERSION} sonarqube_webservice \
     && rm -f sonarqube_webservice.zip
   RUN cd /usr/local/tools/sonarqubecustom \
     && curl -fSL https://binaries.sonarsource.com/Distribution/sonar-scanner-cli/sonar-scanner-cli-${SONAR_SCANNER_VERSION}-linux-x64.zip -o sonarqube.zip \
     && unzip -q sonarqube.zip \
     && mv sonar-scanner-${SONAR_SCANNER_VERSION}-linux-x64 sonarqube \
     && rm -f sonarqube.zip
   RUN cd /usr/local/tools/sonarqubecustom \
     && curl -fSL https://mirrors.huaweicloud.com/openjdk/${SONAR_JDK_VERSION}/openjdk-${SONAR_JDK_VERSION}_linux-x64_bin.tar.gz -o jdk.tar.gz\
     && tar -xzf jdk.tar.gz \
     && mv jdk-${SONAR_JDK_VERSION} jdk \
     && rm -f jdk.tar.gz
   # Node.js (optional, required only for JavaScript/TypeScript/CSS scanning scenarios, used in conjunction with lines 11)
   RUN cd /usr/local/tools/sonarqubecustom \
     && curl -fSL https://nodejs.org/dist/v${SONAR_NODE_VERSION}/node-v${SONAR_NODE_VERSION}-linux-x64.tar.xz -o nodejs.tar.xz \
     && tar -xf nodejs.tar.xz \
     && mv node-v${SONAR_NODE_VERSION}-linux-x64 nodejs \
     && rm -f nodejs.tar.xz
   #  Download compilation dependencies & extract & rename (optional, required only for Java compilation scanning scenarios, used in conjunction with lines 13 and 15)
   RUN cd /usr/local/ \
     && curl -fSL https://mirrors.huaweicloud.com/openjdk/${COMPILE_JDK_VERSION}/openjdk-${COMPILE_JDK_VERSION}_linux-x64_bin.tar.gz -o compile_jdk.tar.gz \
     && tar -xzf compile_jdk.tar.gz \
     && mv jdk-${COMPILE_JDK_VERSION} compile_jdk \
     && rm -f compile_jdk.tar.gz
   RUN cd /usr/local/ \
     && curl -fSL https://dlcdn.apache.org/maven/maven-3/${COMPILE_MAVEN_VERSION}/binaries/apache-maven-${COMPILE_MAVEN_VERSION}-bin.tar.gz -o maven.tar.gz \
     && tar -xzf maven.tar.gz \
     && mv apache-maven-${COMPILE_MAVEN_VERSION} maven \
     && rm -f maven.tar.gz
   # Configure compilation environment (optional, required only for Java compilation scanning scenarios, used in conjunction with lines 13 and 15)
   ENV JAVA_HOME=/usr/local/compile_jdk
   ENV MAVEN_HOME=/usr/local/maven
   ENV PATH=$MAVEN_HOME/bin:$JAVA_HOME/bin:$PATH

3. 将上述操作更新完毕的Dockefile文件内容复制写入代码仓根目录的“Dockerfile”文件中。

---
version: 2.0
steps:
  BUILD:
    - build_image:
        inputs:
          organization: ${ORGANIZATION}
          image_name: ${IMAGE_NAME}
          image_tag: ${IMAGE_TAG}
          dockerfile_path: ./Dockerfile
          build_args:
            - name: SONAR_USER_NAME
              value: ${SONAR_USER_NAME}
            - name: SONAR_USER_PASSWORD
              value: ${SONAR_USER_PASSWORD}
            - name: SONARQUBE_VERSION
              value: ${SONARQUBE_VERSION}
            - name: SONAR_SCANNER_VERSION
              value: ${SONAR_SCANNER_VERSION}
            - name: SONAR_JDK_VERSION
              value: ${SONAR_JDK_VERSION}
            - name: SONAR_NODE_VERSION
              value: ${SONAR_NODE_VERSION}
            - name: COMPILE_JDK_VERSION
              value: ${COMPILE_JDK_VERSION}
            - name: COMPILE_MAVEN_VERSION
              value: ${COMPILE_MAVEN_VERSION}
    - swr:
        image: ${SWR_PATH}/${ORGANIZATION}/${IMAGE_NAME}:${IMAGE_TAG}
        inputs:
          command: sh ./excute_py.sh
    - upload_artifact:
        inputs:
          path: ./output/*

#!/bin/bash
set -ex
# Generate Excel for sonarqube rules
# Configure yum repository
cp -a /etc/yum.repos.d/CentOS-Base.repo /etc/yum.repos.d/CentOS-Base.repo.bak
cat >/etc/yum.repos.d/CentOS-Base.repo << 'EOF'
[base]
name=CentOS-$releasever - Base - mirrors.huaweicloud.com
baseurl=https://mirrors.huaweicloud.com/centos/$releasever/os/$basearch/
#mirrorlist=https://mirrorlist.centos.org/?release=$releasever&arch=$basearch&repo=os
gpgcheck=1
gpgkey=https://mirrors.huaweicloud.com/centos/RPM-GPG-KEY-CentOS-7

#released updates
[updates]
name=CentOS-$releasever - Updates - mirrors.huaweicloud.com
baseurl=https://mirrors.huaweicloud.com/centos/$releasever/updates/$basearch/
#mirrorlist=https://mirrorlist.centos.org/?release=$releasever&arch=$basearch&repo=updates
gpgcheck=1
gpgkey=https://mirrors.huaweicloud.com/centos/RPM-GPG-KEY-CentOS-7

#additional packages that may be useful
[extras]
name=CentOS-$releasever - Extras - mirrors.huaweicloud.com
baseurl=https://mirrors.huaweicloud.com/centos/$releasever/extras/$basearch/
#mirrorlist=https://mirrorlist.centos.org/?release=$releasever&arch=$basearch&repo=extras
gpgcheck=1
gpgkey=https://mirrors.huaweicloud.com/centos/RPM-GPG-KEY-CentOS-7

#additional packages that extend functionality of existing packages
[centosplus]
name=CentOS-$releasever - Plus - mirrors.huaweicloud.com
baseurl=https://mirrors.huaweicloud.com/centos/$releasever/centosplus/$basearch/
#mirrorlist=https://mirrorlist.centos.org/?release=$releasever&arch=$basearch&repo=centosplus
gpgcheck=1
enabled=0
gpgkey=https://mirrors.huaweicloud.com/centos/RPM-GPG-KEY-CentOS-7
EOF
yum clean all
yum makecache
# Configure Python script execution environment
yum install -y python3
python3 -m pip install requests openpyxl
yum install -y glibc-common
localedef -c -f UTF-8 -i en_US en_US.UTF-8
export LANG=en_US.UTF-8
export LC_ALL=en_US.UTF-8
# Create non-root user and start SonarQube Server
useradd sonar && chown -R sonar:sonar /usr/local/tools/sonarqubecustom/sonarqube_webservice
su sonar -c "/usr/local/tools/sonarqubecustom/sonarqube_webservice/bin/linux-x86-64/sonar.sh start"
until curl -sf http://localhost:9000/api/system/status | grep -q '"status":"UP"'; do
  echo "wait to up"
  sleep 5
done
# Execute Python script to generate Excel
python3 ./generate_excel.py

import requests
import json
import uuid
import openpyxl
import os
import re
USER_NAME = os.getenv("SONAR_USER_NAME")  # SonarQube Server username
USER_PASSWORD = os.getenv("SONAR_USER_PASSWORD")  # SonarQube Server password
SONARQUBE_URL = "http://localhost:9000"  # SonarQube Server address
RULE_SEARCH_API = f"{SONARQUBE_URL}/api/rules/search"
LANGUAGE_LIST_API = f"{SONARQUBE_URL}/api/languages/list"
GENERATE_TOKEN_API = f"{SONARQUBE_URL}/api/user_tokens/generate"
REVOKE_TOKEN_API = f"{SONARQUBE_URL}/api/user_tokens/revoke"
EN_EXCEL_PATH = "output/sonarqube_rules_en.xlsx"  # Excel for English interface import
CN_EXCEL_PATH = "output/sonarqube_rules_cn.xlsx"  # Excel for Chinese interface import
SONAR_CODEARTS_LANGUAGE_MAP = {
    "cs": "C#",
    "css": "CSS",
    "go": "GO",
    "web": "HTML",
    "java": "JAVA",
    "ts": "TYPESCRIPT",
    "js": "JAVASCRIPT",
    "python": "PYTHON",
    "php": "PHP",
    "py": "PYTHON",
    "kotlin": "KOTLIN",
    "rust": "RUST",
    "scala": "SCALA",
    "terraform": "TERRAFORM",
    "plsqlopen": "SQL"
}
CN_SONAR_CODEARTS_SEVERITY_MAP = {
    "BLOCKER": "致命",
    "CRITICAL": "严重",
    "MAJOR": "一般",
    "MINOR": "一般",
    "INFO": "提示"
}
EN_SONAR_CODEARTS_SEVERITY_MAP = {
    "BLOCKER": "critical",
    "CRITICAL": "major",
    "MAJOR": "minor",
    "MINOR": "minor",
    "INFO": "suggestion"
}
# CodeArts Check whitelist validation for rule names and Rule Ids
NAME_REGEX = r'^[\u4e00-\u9fa5a-zA-Z0-9\s.\-_~\'“”‘’"\(\)#\[\]@<>*+,:!=/\\$?{}`|&;%]+$'
name_pattern = re.compile(NAME_REGEX)
RULE_KEY_REGEX = r'^[A-Za-z0-9_\.\-\:]+$'
rule_key_pattern = re.compile(RULE_KEY_REGEX)
EN_HEADERS = ["name", "nameCn", "language", "isSupportPersonal", "isSupportVersion", "isSupportIDE", "severity",
              "criterion_type", "toolRule_name", "toolName", "good_example_cn", "good_example_en", "bad_example_cn",
              "bad_example_en", "recommend_cn", "recommend_en", "comments_cn", "comments_en", "options"]
CN_HEADERS = ["规则英文名称", "规则中文名称", "语言", "门禁级", "版本级", "IDE级", "告警严重级别", "规则类型",
              "工具规则名称", "检查工具", "正确示例（中文）", "正确示例（英文）", "错误示例（中文）", "错误示例（英文）",
              "修改建议（中文）", "修改建议（英文）", "规则描述（中文）", "规则描述（英文）", "选项"]
# Generate a random temporary token
def generate_sonar_token(sonar_token_name):
    try:
        # Send a POST request
        response = requests.post(
            GENERATE_TOKEN_API,
            auth=(USER_NAME, USER_PASSWORD),
            data={
                "name": sonar_token_name
            }
        )
        if response.status_code == 200:
            try:
                # Try to parse JSON data
                data = response.json()
                print("Token generation successful!")
                return data.get("token")
            except json.JSONDecodeError as e:
                print(f"Error parsing token generation JSON: {e}")
                return ""
        else:
            print(f"Token generation request failed, status code: {response.status_code}")
            return ""
    except requests.exceptions.RequestException as e:
        print(f"Token generation request error: {e}")
        return ""
# Delete the generated temporary token
def revoke_token(sonar_token_name):
    try:
        # Send a POST request
        response = requests.post(
            REVOKE_TOKEN_API,
            auth=(USER_NAME, USER_PASSWORD),
            data={
                "name": sonar_token_name
            }
        )
        if response.status_code != 204:
            print("Token deletion failed!")
            print(f"Token deletion request failed, status code: {response.status_code}")
    except requests.exceptions.RequestException as e:
        print(f"Token deletion request error: {e}")
    print("Token deletion successful!")
# Get all rule information
def get_rule_json(sonar_token, language):
    # === Initial pagination parameters ===
    page = 1
    page_size = 500  # Maximum 500 per page (SonarQube maximum)
    data = []
    rules = []
    get_whole_rule = False
    while not get_whole_rule:
        params = {
            "languages": language,  # Specify language
            "p": page,  # Current page number
            "ps": page_size  # Number of items per page
        }
        try:
            # Send a GET request
            response = requests.get(RULE_SEARCH_API, params=params, auth=(sonar_token, ""))
            if response.status_code == 200:
                try:
                    # Try to parse JSON data
                    data = response.json()
                except json.JSONDecodeError as e:
                    print(f"Error parsing {language} language rules JSON: {e}")
            else:
                print(f"Getting {language} rules failed, status code: {response.status_code}")
        except requests.exceptions.RequestException as e:
            print(f"Error getting {language} rules: {e}")
        if not data.get("rules"):
            get_whole_rule = True
        rules += data.get("rules")
        page += 1
    print(f"Parsing {language} rules successful!")
    return rules
def generate_rules_excel(is_international, rules_list, headers, output_path):
    print("Exporting rules to Excel...")
    excel = openpyxl.Workbook()
    sheet_active = excel.active
    sheet_active.title = "Sheet1"
    sheet = excel["Sheet1"]
    sheet.append(headers)
    for rule_info_dict in rules_list:
        description = ""
        recommendation = ""
        rule_key = rule_info_dict.get("key")
        rule_id = rule_key.split(":")[1]
        name = rule_info_dict.get("name")
        severity = rule_info_dict.get("severity")
        is_template = rule_info_dict.get("isTemplate")
        params = rule_info_dict.get("params")
        option = ""
        if is_template:
            rule_key = rule_key.replace(".", "_") + "_userdefine_template"
            option = option + "sonar_template_key:" + rule_id + ";"
        if params:
            for param in params:
                option = option + param.get("key") + ":" + \
                         (param.get("defaultValue") if param.get("defaultValue") is not None else "") + ";"
        if option:
            option = option[0: len(option) - 1]
        if not rule_key_pattern.match(rule_key):
            print("SonarQube " + rule_info_dict.get("lang") + " language RuleId violation: " + rule_key)
        if not name_pattern.match(name):
            print("SonarQube " + rule_info_dict.get("lang") + " language rule name violation: " + name)
        for content in rule_info_dict.get("descriptionSections"):
            if content.get("key") == "root_cause" or content.get("key") == "default" \
                    or content.get("key") == "assess_the_problem":
                description = description + content.get("content")
            elif content.get("key") == "introduction":
                description = content.get("content") + description
            elif content.get("key") == "how_to_fix":
                recommendation = recommendation + content.get("content")
        language = SONAR_CODEARTS_LANGUAGE_MAP.get(rule_info_dict.get("lang"))
        if is_international:
            information = [name, name, language if language is not None else rule_info_dict.get("lang").upper(),
                           "yes", "yes", "no", EN_SONAR_CODEARTS_SEVERITY_MAP.get(severity), "common", rule_key,
                           "sonarqubecustom", "N/A", "N/A", "N/A", "N/A", recommendation if recommendation else "N/A",
                           recommendation if recommendation else "N/A", description if description else "N/A",
                           description if description else "N/A", option]
        else:
            information = [name, name, language if language is not None else rule_info_dict.get("lang").upper(),
                           "是", "是", "否", CN_SONAR_CODEARTS_SEVERITY_MAP.get(severity), "通用类（非编程规范）", rule_key,
                           "sonarqubecustom", "无", "无", "无", "无", recommendation if recommendation else "无",
                           recommendation if recommendation else "无", description if description else "无",
                           description if description else "无", option]
        sheet.append(information)
    if not os.path.exists("output"):
        os.mkdir("output")
    excel.save(filename=output_path)
    print("Rules Excel generated successfully!")
# Get all languages from SonarQube Server
def get_language_list(sonar_token):
    language_list = []
    languages = []
    try:
        # Send a GET request
        response = requests.get(LANGUAGE_LIST_API, auth=(sonar_token, ""))
        if response.status_code == 200:
            try:
                # Try to parse JSON data
                languages = response.json().get("languages")
                print("Language list retrieved successfully")
            except json.JSONDecodeError as e:
                print(f"Error parsing language list JSON: {e}")
        else:
            print(f"Getting language list failed, status code: {response.status_code}")
    except requests.exceptions.RequestException as e:
        print(f"Error getting language list: {e}")
    for language in languages:
        language_list.append(language.get("key"))
    return language_list
if __name__ == "__main__":
    token_name = str((uuid.uuid1()))
    token = generate_sonar_token(token_name)
    if not token:
        raise Exception("Token generation failed")
    sonar_languages = get_language_list(token)
    if not sonar_languages:
        raise Exception("Language list retrieval failed")
    rules = []
    for sonar_language in sonar_languages:
        rules_info = get_rule_json(token, sonar_language)
        if not rules_info:
            print(sonar_language + " language rules retrieval failed")
        rules += rules_info
    revoke_token(token_name)
    generate_rules_excel(False, rules, CN_HEADERS, CN_EXCEL_PATH)
    generate_rules_excel(True, rules, EN_HEADERS, EN_EXCEL_PATH)

注意：创建任务时不要修改build.yml文件。

全部配置完后如下图：

注意：

• 若对参数开启了“运行时设置”开关，在运行前还可以修改参数值，需再次单击“确定”开始执行。

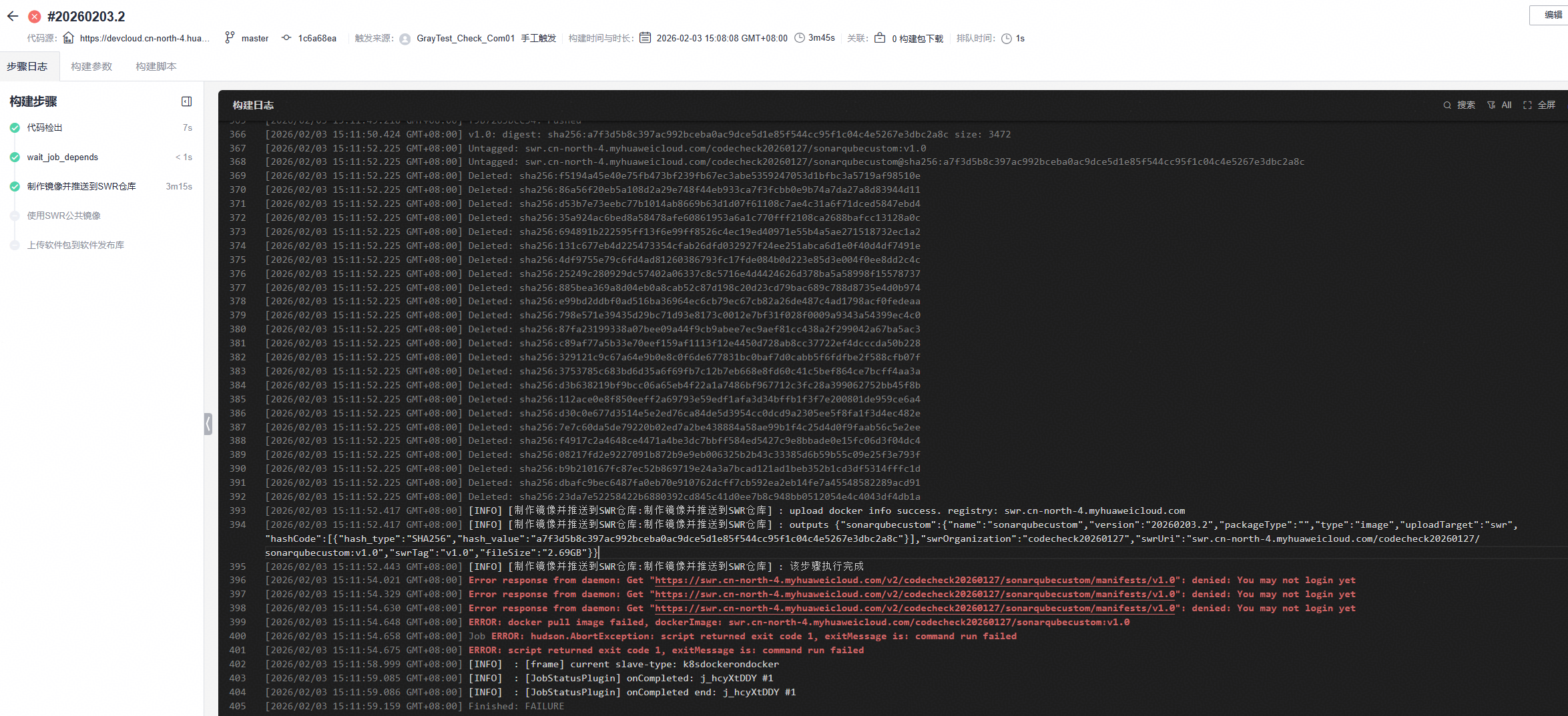

• 若用户设置的“IMAGE_NAME”值不是已有的镜像名称而是新建的名称，那么第一次执行会失败，原因是第一次上传的镜像默认为私有镜像，导致镜像无法拉取，如下图。

此时需要将镜像设置为公开镜像。参考使用SWR公共镜像将镜像设置为“公开”。设置为公开镜像后重新执行一遍构建任务。
