根据条件查询所有场景ID(API名称:queryTaskPictureByCondition)

功能介绍

按照作业对象ID、作业对象名称、作业对象编码、作业类型名称、采集开始时间、采集结束时间筛选获取场景ID。

相关API

接口名称

调用说明

获取Token

调用该接口获取到Token,再调用其他接口时,需要在请求消息头中添加“Authorization”,其值即为Token。

调用流程

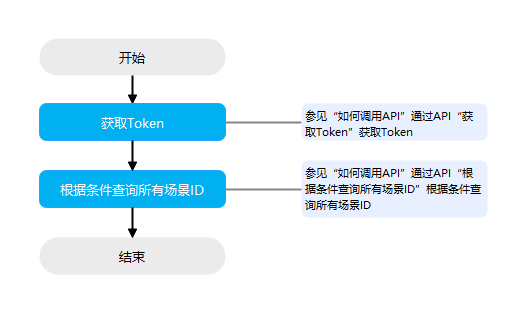

图1 根据条件查询所有场景ID流程

URL

请求方式

HTTPS地址

服务架构

消息体类型

POST

https://isdp+域名/openapi/v1/pictureAndLike/queryTaskPictureByCondition

OpenAPI

application/json

请求头

KEY

VALUE

是否必填

描述

Content-Type

application/json

Authorization

bearer ${access_token}

bearer +“ ”+5.2.1中获取的access_token的值

请求参数

参数

类型

是否必填

描述

signSiteId

Int

作业对象ID

signSiteName

String

作业对象名称

signSiteCode

String

作业对象编码

signSiteType

String

作业类型

startDate

String

采集开始时间,格式yyyy-MM-dd

endDate

String

采集结束时间,格式yyyy-MM-dd

pageStart

Int

当前页码,从0开始

pageSize

Int

每页数量,默认15条,最多100条

响应参数

参数

类型

描述

stateCode

String

响应状态码:

  • 0-成功
  • 其他-失败

errorMessage

String

响应描述

result

Object

响应结果内容data、分页数据

result出参:

参数

类型

描述

pos

int

当前页,从0开始

total_count

int

总数量

data

List<Object>

响应结果内容data

data出参:

参数

类型

描述

sceneId

Long

场景id

sceneName

String

场景名称

mediaCollectionSum

Long

采集的图片和视频总数

likesCollectionSum

Long

点赞的图片和视频总数

taskCollections

List<Object>

List

TaskCollections出参:

参数

类型

描述

sceneTaskId

Long

任务id

taskName

String

任务名称

mediaCollectionSum

Long

采集的图片和视频总数

likesCollectionSum

Long

点赞的图片和视频总数

procedureCollections

List<Object>

List

subTaskCollections

List<Object>

List

subTaskCollections出参:

参数

类型

描述

subTaskId

Long

子任务ID

subTaskName

String

子任务名称

mediaCollectionSum

Long

采集的图片和视频总数

likesCollectionSum

Long

点赞的图片和视频总数

procedureCollections

List<Object>

List

procedureCollections出参:

参数

类型

描述

procedureId

Long

工序ID

procedureName

String

工序名称

mediaCollectionSum

Long

采集的图片和视频总数

likesCollectionSum

Long

点赞的图片和视频总数

subTaskCollections

List<Object>

List

请求示例

{
    "startDate":"2020-01-01",
    "endDate":"2022-10-13"
}

响应示例

{
    "stateCode": "0",
    "errorMessage": "成功",
    "result": {
        "pos": 0,
        "totalCount": 2,
        "data": [
            {
                "sceneName": "维护作业test",
                "sceneId": 22191,
                "mediaCollectionSum": 1,
                "taskCollections": [
                    {
                        "subTaskCollections": [
                            {
                                "subTaskName": "",
                                "procedureCollections": [
                                    {
                                        "procedureName": "",
                                        "mediaCollectionSum": 1,
                                        "LabelCountsList": [
                                            {
                                                "labelCollectionSum": 0,
                                                "labelName": "AI训练"
                                            },
                                            {
                                                "labelCollectionSum": 0,
                                                "labelName": "学习案例"
                                            }
                                        ],
                                        "likesCollectionSum": 0,
                                        "procedureId": ""
                                    }
                                ],
                                "mediaCollectionSum": 1,
                                "LabelCountsList": [
                                    {
                                        "labelCollectionSum": 0,
                                        "labelName": "AI训练"
                                    },
                                    {
                                        "labelCollectionSum": 0,
                                        "labelName": "学习案例"
                                    }
                                ],
                                "likesCollectionSum": 0,
                                "subTaskId": ""
                            }
                        ],
                        "sceneTaskId": 186025,
                        "procedureCollections": [
                            {
                                "procedureName": "",
                                "mediaCollectionSum": 1,
                                "LabelCountsList": [
                                    {
                                        "labelCollectionSum": 0,
                                        "labelName": "AI训练"
                                    },
                                    {
                                        "labelCollectionSum": 0,
                                        "labelName": "学习案例"
                                    }
                                ],
                                "likesCollectionSum": 0,
                                "procedureId": ""
                            }
                        ],
                        "mediaCollectionSum": 1,
                        "taskName": "维护作业test",
                        "LabelCountsList": [
                            {
                                "labelCollectionSum": 0,
                                "labelName": "AI训练"
                            },
                            {
                                "labelCollectionSum": 0,
                                "labelName": "学习案例"
                            }
                        ],
                        "likesCollectionSum": 0
                    }
                ],
                "LabelCountsList": [
                    {
                        "labelCollectionSum": 0,
                        "labelName": "AI训练"
                    },
                    {
                        "labelCollectionSum": 0,
                        "labelName": "学习案例"
                    }
                ],
                "likesCollectionSum": 0
            },
            {
                "sceneName": "一般抢修",
                "sceneId": 22196,
                "mediaCollectionSum": 1,
                "taskCollections": [
                    {
                        "subTaskCollections": [
                            {
                                "subTaskName": "",
                                "procedureCollections": [
                                    {
                                        "procedureName": "",
                                        "mediaCollectionSum": 1,
                                        "LabelCountsList": [
                                            {
                                                "labelCollectionSum": 0,
                                                "labelName": "AI训练"
                                            },
                                            {
                                                "labelCollectionSum": 0,
                                                "labelName": "学习案例"
                                            }
                                        ],
                                        "likesCollectionSum": 0,
                                        "procedureId": ""
                                    }
                                ],
                                "mediaCollectionSum": 1,
                                "LabelCountsList": [
                                    {
                                        "labelCollectionSum": 0,
                                        "labelName": "AI训练"
                                    },
                                    {
                                        "labelCollectionSum": 0,
                                        "labelName": "学习案例"
                                    }
                                ],
                                "likesCollectionSum": 0,
                                "subTaskId": ""
                            }
                        ],
                        "sceneTaskId": 185986,
                        "procedureCollections": [
                            {
                                "procedureName": "",
                                "mediaCollectionSum": 1,
                                "LabelCountsList": [
                                    {
                                        "labelCollectionSum": 0,
                                        "labelName": "AI训练"
                                    },
                                    {
                                        "labelCollectionSum": 0,
                                        "labelName": "学习案例"
                                    }
                                ],
                                "likesCollectionSum": 0,
                                "procedureId": ""
                            }
                        ],
                        "mediaCollectionSum": 1,
                        "taskName": "抢修任务20221012",
                        "LabelCountsList": [
                            {
                                "labelCollectionSum": 0,
                                "labelName": "AI训练"
                            },
                            {
                                "labelCollectionSum": 0,
                                "labelName": "学习案例"
                            }
                        ],
                        "likesCollectionSum": 0
                    }
                ],
                "LabelCountsList": [
                    {
                        "labelCollectionSum": 0,
                        "labelName": "AI训练"
                    },
                    {
                        "labelCollectionSum": 0,
                        "labelName": "学习案例"
                    }
                ],
                "likesCollectionSum": 0
            }
        ],
        "header": null
    }
}

状态码

状态码请参见状态码

错误码

错误码请参见错误码
