查询条目采集结果（API名称：findTaskCollectinfo）
功能介绍
该接口用于查询ISDP+对应租户下的质量检查任务对应的采集条目上的图片、现场设备数量、设备信息等。
相关接口
|
接口名称 |
调用说明 |
|---|---|
|
调用该接口获取到Token，再调用其他接口时，需要在请求消息头中添加“Authorization”，其值即为Token。 |
调用流程

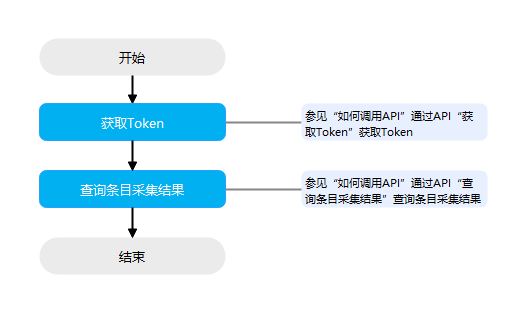

图1 查询条目采集结果流程
URL
|
请求方式 |
HTTPS地址 |
服务架构 |
消息体类型 |
|---|---|---|---|
|
POST |
https://isdp+域名/openapi/v1/OpenTask/findTaskCollectinfo |
OpenAPI |
application/json |
请求头
|
KEY |
VALUE |
是否必填 |
描述 |
|---|---|---|---|
|
Content-Type |
application/json |
是 |
无 |
|
Authorization |
bearer ${access_token} |
是 |
bearer +“ ”+5.2.1中获取的access_token的值 |
请求参数
|
参数 |
类型 |
是否必填 |
描述 |
|---|---|---|---|
|
customerTaskId |
List<String> |
否 |
客户任务id，一次最多500 |
|
taskId |
List< Long > |
否 |
任务id，一次最多500 |
|
projectNo |
String |
否 |
项目编码 |
|
signSiteCode |
List<String> |
否 |
作业对象编码，一次最多500 |
|
updateBeginDate |
String |
否 |
任务修改开始时间：YYYY-MM-DD |
|
updateEndDate |
String |
否 |
任务修改结束时间：YYYY-MM-DD |
|
completeBeginDate |
String |
否 |
任务完成开始时间：YYYY-MM-DD |
|
completeEndDate |
String |
否 |
任务完成结束时间：YYYY-MM-DD |
|
status |
int |
否 |
任务状态：
|
|
PageStart |
int |
是 |
数据起始行 |
|
PageSize |
int |
是 |
分页大小 |
|
includeDelete |
int |
否 |
是否包含删除数据1：包含；0或者空：不包含 |
|
sceneTaskIdList |
List<Long> |
否 |
任务ID集合 |
响应参数
|
参数 |
类型 |
描述 |
|---|---|---|
|
stateCode |
String |
响应状态码：
|
|
errorMessage |
String |
响应描述 |
|
pos |
Int |
当前页，从0开始 |
|
total_count |
Int |
总数 |
|
result |
Object |
响应结果内容data |
result属性：
|
参数 |
类型 |
描述 |
|---|---|---|
|
Data |
List |
还回数据List，每条数据，是任务对应的检查的数据。 |
|
taskId |
Long |
检查单ID。 |
|
sceneTaskId |
Long |
任务ID。 |
|
templateId |
Long |
模板ID。 |
|
kcp |
List |
模板下的kcp。 |
|
item |
List |
kcp下的item，如果isNa为Y，整个item无需采集。 |
|
outPutMessages |
List |
item下的输出项信息。 |
|
collectDatas |
List |
输出项下的采集信息。 |
|
totalItemCnt |
int |
总条目数 |
|
committedItemCnt |
int |
已提交条目数（可能为空） |
|
handledItemCnt |
int |
已审核条目数（可能为空） |
|
rejectedItemCnt |
int |
已驳回条目数（可能为空） |
|
toBeReviewed |
int |
待审核条目数（可能为空） |
|
deleteInfo |
Map |
任务删除信息对象（可能为空） |
|
deleteInfo.sceneTaskId |
Long |
任务ID |
|
deleteInfo.deleteFlag |
int |
删除标识0：未删除；1：已删除 |
|
deleteInfo. deleteReason |
String |
删除原因 |
data出参：
|
参数 |
类型 |
描述 |
|---|---|---|
|
projectNo |
String |
项目编码 |
|
customerTaskId |
String |
客户任务id |
|
taskId |
Long |
任务id |
|
taskName |
String |
任务名称 |
|
signSiteId |
String |
作业对象id |
|
signSiteCode |
String |
作业对象编码 |
|
signSiteName |
String |
作业对象名称 |
|
signInDate |
Date |
签到时间 |
|
completeDate |
Date |
任务完成时间（任务完成时才有） |
|
partner |
String |
供应商名称 |
|
partnerContacter |
String |
供应商负责人 |
|
assignedUserName |
String |
执行人名称 |
|
firstCommitter |
String |
首次提交人名字 |
|
firstSupplierName |
String |
首次提交人单位 |
|
firstSubmitTime |
Date |
首次提交时间 |
|
lastCommitter |
String |
最后一次提交人名字 |
|
lastSubmitTime |
String |
最后一次提交人单位 |
|
lastSubmitTime |
Date |
最后一次提交时间 |
|
reviewBeginDate |
Date |
首次评审时间 |
|
reviewEndDate |
Date |
最后评审时间 |
|
kcps |
List<Object> |
任务kcp列表 |
kcps出参：
|
参数 |
类型 |
描述 |
|---|---|---|
|
kcpId |
Long |
kcp id |
|
kcpName |
String |
kcp 名称 |
|
items |
List<Object> |
任务kcp列表 |
items出参：
|
参数 |
类型 |
描述 |
|---|---|---|
|
itemId |
Long |
条目id |
|
itemName |
String |
条目名称 |
|
itemGuide |
String |
条目指导 |
|
itemStandard |
String |
条目标准 |
|
isQualification |
Int |
是否人脸资质校验：
|
|
qualificationType |
Int |
资质类别：
|
|
outPutMessages |
List<Object> |
输出项列表 |
outPutMessages出参：
|
参数 |
类型 |
描述 |
|---|---|---|
|
outPutName |
String |
输出项名字 |
|
outPutId |
Long |
输出项id |
|
outPutType |
Int |
输出项类型：1-枚举；2- 文本；3-图片/视频；4-多枚举；5-整数；6-小数；7-日期；9-条码；10-NA；11-GPS；13-图片；14-视频；15-时间；16-文件 |
|
isNecessary |
Int |
是否必填：
|
|
collectDatas |
List<Object> |
数据采集列表 |
collectDatas出参：
|
参数 |
类型 |
描述 |
|---|---|---|
|
outPutId |
Long |
输出项id |
|
content |
String |
采集内容，如果是3-视频、13-图片、16-文件，则采集内容就是文件id |
|
creationDate |
Date |
图片创建时间 |
|
identifies |
List<Object> |
资质采集列表 |
identifies出参：
|
参数 |
类型 |
描述 |
|---|---|---|
|
taskId |
Long |
任务id |
|
outPutId |
Long |
输出项id |
|
identifyAccount |
String |
人脸识别到的账号 |
|
creationDate |
Date |
人脸识别的时间，资质条目才涉及 |
|
personQualification |
String |
人脸识别到的账号对应的资质 |
请求示例
{
"customerTaskId": ["123456","23456"],
"taskId":[123456,23456],
"projectNo ": "123-my project",
"signSiteCode": ["my-signSiteCode"],
"updateBeginDate ": "2020-09-01",
"updateEndDate ": "2020-09-09"
}响应示例
{
"stateCode": "0",
"errorMessage": null,
"result": {
"data": [
{
"projectNo": "0813-xiaoXX编码",
"customerTaskId": null,
"taskId": 203742,
"taskName": "0813-xiaoXX编码-0813-xiaoXX-XX区-0813-xiaoXX位置-0813-xiaoXX位置-XX代表处-dddd33",
"signSiteId": 420421,
"signSiteCode": "0813-xiaoXX作业对象",
"signSiteName": "0813-xiaoXX作业对象",
"templateId": 4148,
"templateCode": "QC202XXXXXXXXXXXXX",
"templateName": "巡检-xiaoXX0804",
"version": "1.0",
"updateDate": "2020-08-27T08:30:51.000+00:00",
"createDate": "2020-08-26T07:04:20.000+00:00",
"planStartTime": null,
"planEndTime": "2020-08-28T16:00:00.000+00:00",
"partner": "XX供应商",
"status": 2,
"statusCollection": 3,
"statusApprove": 4,
"firstCommitter": null,
"firstSupplierName": null,
"firstSubmitDate": null,
"lastcommitter": "刘XX",
"lastSubmitDate": null,
"reviewEndDate": "2020-08-27T08:30:51.000+00:00",
"reviewBeginDate": "2020-08-26T07:20:58.000+00:00",
"kcps": [
{
"kcpId": 4243,
"kcpName": "验证kcp1",
"templateId": 4148,
"items": [
{
"itemId": 6165,
"kcpId": 4243,
"itemName": "验证含有自检自检问题+图片样例图",
"itemGuide": "",
"itemStandard": "",
"qualificationType": 1,
"outPutMessages": [
{
"itemId": 6165,
"outPutId": 12886,
"outPutName": "图片01",
"outPutType": 13,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12886,
"itemId": 6165,
"taskId": 203742,
"content": "38330",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12886,
"itemId": 6165,
"taskId": 203742,
"content": "38331",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12886,
"itemId": 6165,
"taskId": 203742,
"content": "38332",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12886,
"itemId": 6165,
"taskId": 203742,
"content": "38333",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12886,
"itemId": 6165,
"taskId": 203742,
"content": "38335",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12886,
"itemId": 6165,
"taskId": 203742,
"content": "38334",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12886,
"itemId": 6165,
"taskId": 203742,
"content": "38336",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12886,
"itemId": 6165,
"taskId": 203742,
"content": "38337",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12886,
"itemId": 6165,
"taskId": 203742,
"content": "38338",
"contentType": 13,
"identifies": [],
},
],
},
{
"itemId": 6165,
"outPutId": 12887,
"outPutName": "图片03",
"outPutType": 13,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12887,
"itemId": 6165,
"taskId": 203742,
"content": "38349",
"contentType": 13,
"identifies": [],
}
],
},
{
"itemId": 6165,
"outPutId": 12888,
"outPutName": "图片02",
"outPutType": 13,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12888,
"itemId": 6165,
"taskId": 203742,
"content": "38350",
"contentType": 13,
"identifies": [],
}
],
},
{
"itemId": 6165,
"outPutId": 12889,
"outPutName": "文本",
"outPutType": 2,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12889,
"itemId": 6165,
"taskId": 203742,
"content": "验证文档生成",
"contentType": 2,
"identifies": [],
}
],
},
{
"itemId": 6165,
"outPutId": 12890,
"outPutName": "整数",
"outPutType": 5,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12890,
"itemId": 6165,
"taskId": 203742,
"content": "55",
"contentType": 5,
"identifies": [],
}
],
},
{
"itemId": 6165,
"outPutId": 12891,
"outPutName": "小数",
"outPutType": 6,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12891,
"itemId": 6165,
"taskId": 203742,
"content": "6.789",
"contentType": 6,
"identifies": [],
}
],
},
],
},
{
"itemId": 6166,
"kcpId": 4243,
"itemName": "所有输出项",
"itemGuide": "",
"itemStandard": "",
"qualificationType": 1,
"outPutMessages": [
{
"itemId": 6166,
"outPutId": 12892,
"outPutName": "图片",
"outPutType": 13,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12892,
"itemId": 6166,
"taskId": 203742,
"content": "38353",
"contentType": 13,
"identifies": [],
}
],
},
{
"itemId": 6166,
"outPutId": 12893,
"outPutName": "视频",
"outPutType": 14,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12893,
"itemId": 6166,
"taskId": 203742,
"content": "38355",
"contentType": 3,
"identifies": [],
}
],
},
{
"itemId": 6166,
"outPutId": 12894,
"outPutName": "图片/视频",
"outPutType": 3,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12894,
"itemId": 6166,
"taskId": 203742,
"content": "38358",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12894,
"itemId": 6166,
"taskId": 203742,
"content": "38357",
"contentType": 3,
"identifies": [],
},
],
},
{
"itemId": 6166,
"outPutId": 12895,
"outPutName": "文本-含有默认必填",
"outPutType": 2,
"isNecessary": 1,
"collectDatas": [
{
"outputId": 12895,
"itemId": 6166,
"taskId": 203742,
"content": "含有默认值-生0813-xiaoXX位置0813-xiaoXX位置0813-xiaoXX位置0813-xiaoXX位置成文档",
"contentType": 2,
"identifies": [],
}
],
},
{
"itemId": 6166,
"outPutId": 12896,
"outPutName": "整数",
"outPutType": 5,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12896,
"itemId": 6166,
"taskId": 203742,
"content": "888",
"contentType": 5,
"identifies": [],
}
],
},
{
"itemId": 6166,
"outPutId": 12897,
"outPutName": "小数",
"outPutType": 6,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12897,
"itemId": 6166,
"taskId": 203742,
"content": "5.55",
"contentType": 6,
"identifies": [],
}
],
},
{
"itemId": 6166,
"outPutId": 12898,
"outPutName": "枚举",
"outPutType": 1,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12898,
"itemId": 6166,
"taskId": 203742,
"content": "789",
"contentType": 1,
"identifies": [],
}
],
},
{
"itemId": 6166,
"outPutId": 12899,
"outPutName": "多枚举",
"outPutType": 4,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12899,
"itemId": 6166,
"taskId": 203742,
"content": "123;PPP",
"contentType": 4,
"identifies": [],
}
],
},
{
"itemId": 6166,
"outPutId": 12900,
"outPutName": "GPS",
"outPutType": 11,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12900,
"itemId": 6166,
"taskId": 203742,
"content": "174.2359685456526,11.2256965546",
"contentType": 11,
"identifies": [],
}
],
},
{
"itemId": 6166,
"outPutId": 12901,
"outPutName": "条码",
"outPutType": 9,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12901,
"itemId": 6166,
"taskId": 203742,
"content": "2020011509",
"contentType": 9,
"identifies": [],
}
],
},
{
"itemId": 6166,
"outPutId": 12902,
"outPutName": "条码_photo",
"outPutType": 13,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12902,
"itemId": 6166,
"taskId": 203742,
"content": "38360",
"contentType": 13,
"identifies": [],
}
],
},
{
"itemId": 6166,
"outPutId": 12903,
"outPutName": "日期",
"outPutType": 7,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12903,
"itemId": 6166,
"taskId": 203742,
"content": "2020-08-28",
"contentType": 7,
"identifies": [],
}
],
},
{
"itemId": 6166,
"outPutId": 12904,
"outPutName": "文件",
"outPutType": 16,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12904,
"itemId": 6166,
"taskId": 203742,
"content": "38361",
"contentType": 16,
"identifies": [],
}
],
},
{
"itemId": 6166,
"outPutId": 12905,
"outPutName": "时间",
"outPutType": 15,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12905,
"itemId": 6166,
"taskId": 203742,
"content": "2020-08-26 16:35:25",
"contentType": 15,
"identifies": [],
}
],
},
],
},
],
},
{
"kcpId": 4244,
"kcpName": "验证 kcp2",
"templateId": 4148,
"items": [
{
"itemId": 6167,
"kcpId": 4244,
"itemName": "含有智能对象-荧光服人，安全帽",
"itemGuide": "",
"itemStandard": "",
"qualificationType": 1,
"outPutMessages": [
{
"itemId": 6167,
"outPutId": 12906,
"outPutName": "图片01",
"outPutType": 13,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12906,
"itemId": 6167,
"taskId": 203742,
"content": "38362",
"contentType": 13,
"identifies": [],
}
],
},
{
"itemId": 6167,
"outPutId": 12907,
"outPutName": "图片02",
"outPutType": 13,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12907,
"itemId": 6167,
"taskId": 203742,
"content": "38363",
"contentType": 13,
"identifies": [],
}
],
},
],
},
{
"itemId": 6168,
"kcpId": 4244,
"itemName": "作业人员资质，电工+塔工",
"itemGuide": "",
"itemStandard": "",
"qualificationType": 1,
"outPutMessages": [
{
"itemId": 6168,
"outPutId": 12908,
"outPutName": "要求的资质",
"outPutType": 2,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12908,
"itemId": 6168,
"taskId": 203742,
"content": "塔工证;电工证",
"contentType": 2,
"identifies": [],
}
],
},
{
"itemId": 6168,
"outPutId": 12909,
"outPutName": "采集的账号和资质",
"outPutType": 2,
"isNecessary": 0,
"collectDatas": [],
},
{
"itemId": 6168,
"outPutId": 12910,
"outPutName": "资质校验结果",
"outPutType": 2,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12910,
"itemId": 6168,
"taskId": 203742,
"content": "N(塔工证;电工证)",
"contentType": 2,
"identifies": [],
}
],
},
{
"itemId": 6168,
"outPutId": 12911,
"outPutName": "文本",
"outPutType": 2,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12911,
"itemId": 6168,
"taskId": 203742,
"content": "手机端采集",
"contentType": 2,
"identifies": [],
}
],
},
],
},
],
},
{
"kcpId": 4245,
"kcpName": "验证kcp3",
"templateId": 4148,
"items": [
{
"itemId": 6169,
"kcpId": 4245,
"itemName": "验证含有必填非必填",
"itemGuide": "",
"itemStandard": "",
"qualificationType": 1,
"outPutMessages": [
{
"itemId": 6169,
"outPutId": 12912,
"outPutName": "日期-必填",
"outPutType": 7,
"isNecessary": 1,
"collectDatas": [
{
"outputId": 12912,
"itemId": 6169,
"taskId": 203742,
"content": "2020-08-26",
"contentType": 7,
"identifies": [],
}
],
},
{
"itemId": 6169,
"outPutId": 12913,
"outPutName": "文本-必填",
"outPutType": 2,
"isNecessary": 1,
"collectDatas": [
{
"outputId": 12913,
"itemId": 6169,
"taskId": 203742,
"content": "文本-*必填报告生成",
"contentType": 2,
"identifies": [],
}
],
},
{
"itemId": 6169,
"outPutId": 12914,
"outPutName": "图片-非",
"outPutType": 13,
"isNecessary": 0,
"collectDatas": [
{
"outputId": 12914,
"itemId": 6169,
"taskId": 203742,
"content": "38364",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12914,
"itemId": 6169,
"taskId": 203742,
"content": "38366",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12914,
"itemId": 6169,
"taskId": 203742,
"content": "38365",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12914,
"itemId": 6169,
"taskId": 203742,
"content": "38368",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12914,
"itemId": 6169,
"taskId": 203742,
"content": "38369",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12914,
"itemId": 6169,
"taskId": 203742,
"content": "38367",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12914,
"itemId": 6169,
"taskId": 203742,
"content": "38372",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12914,
"itemId": 6169,
"taskId": 203742,
"content": "38373",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12914,
"itemId": 6169,
"taskId": 203742,
"content": "38371",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12914,
"itemId": 6169,
"taskId": 203742,
"content": "38374",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12914,
"itemId": 6169,
"taskId": 203742,
"content": "38370",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12914,
"itemId": 6169,
"taskId": 203742,
"content": "38375",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12914,
"itemId": 6169,
"taskId": 203742,
"content": "38376",
"contentType": 13,
"identifies": [],
},
{
"outputId": 12914,
"itemId": 6169,
"taskId": 203742,
"content": "38377",
"contentType": 13,
"identifies": [],
},
],
},
],
}
],
},
],
}
],
"pos": 0,
"total_count": 1,
},
}状态码
状态码请参见状态码。
错误码
错误码请参见错误码。
父主题： 作业标准管理
