节点跨AZ时云硬盘自动拓扑（csi-disk-topology）
应用现状

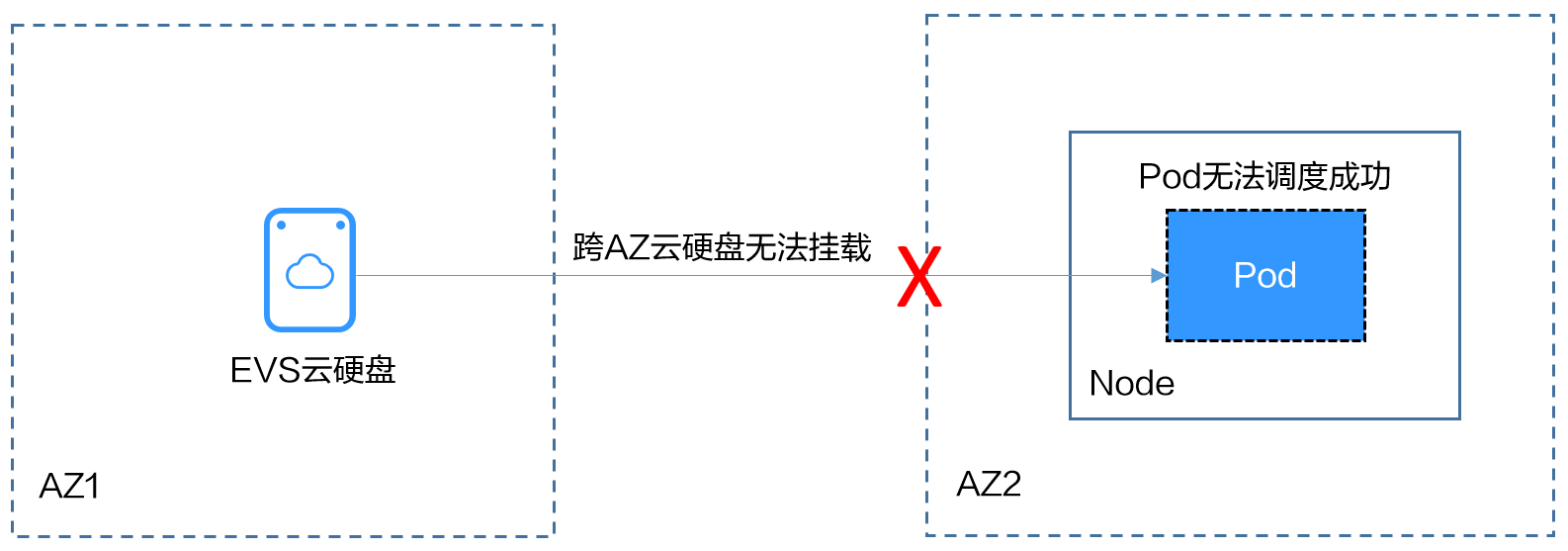

云硬盘使用在使用时无法实现跨AZ挂载，即AZ1的云硬盘无法挂载到AZ2的节点上。有状态工作负载调度时，如果使用csi-disk存储类，会立即创建PVC和PV（创建PV会同时创建云硬盘），然后PVC绑定PV。但是当集群节点位于多AZ下时，PVC创建的云硬盘可能会与Pod调度到的节点不在同一个AZ，导致Pod无法调度成功。
解决方案

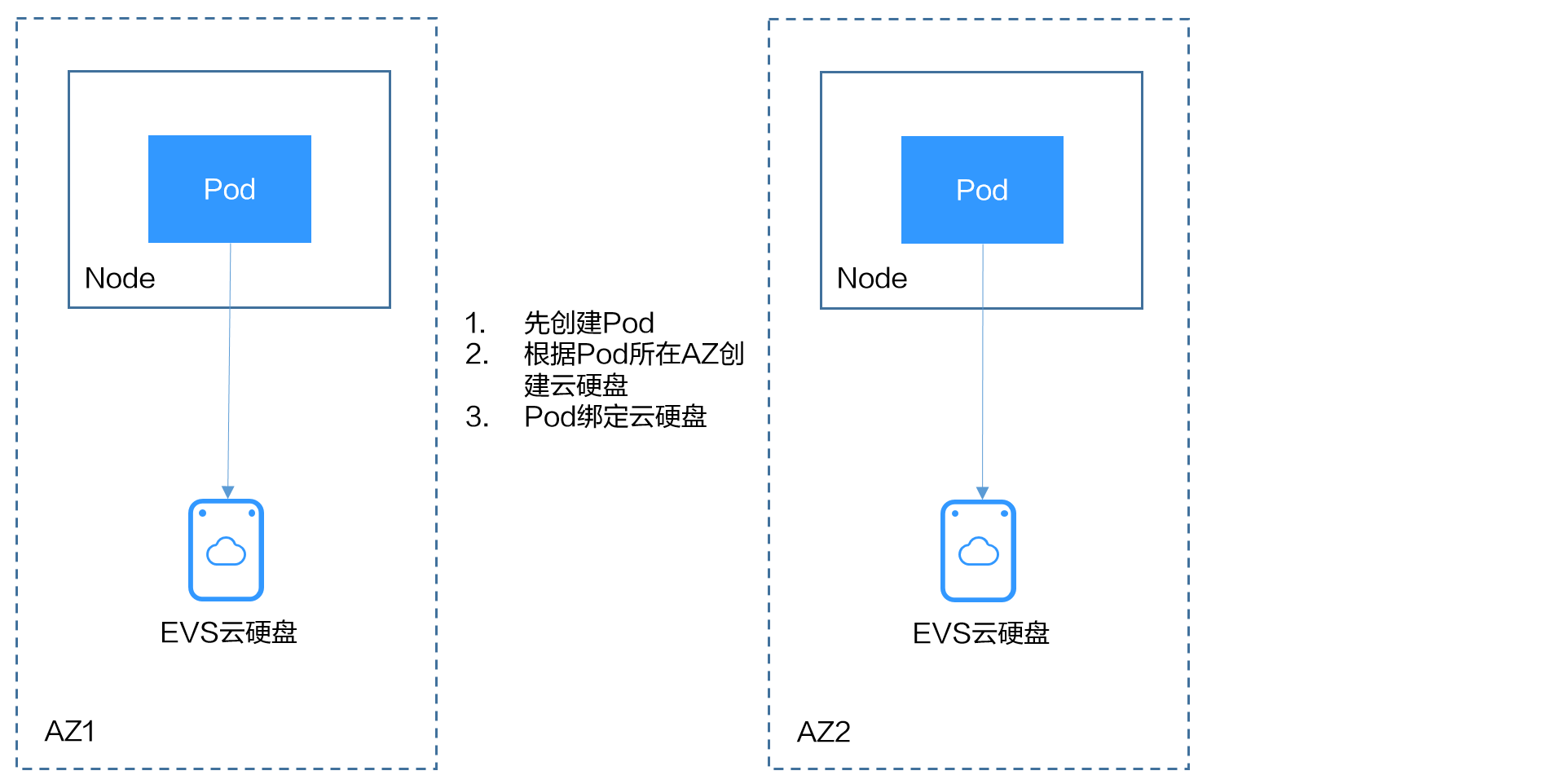

CCE提供了名为csi-disk-topology的StorageClass，也叫延迟绑定的云硬盘存储类型。使用csi-disk-topology创建PVC时，不会立即创建PV，而是等Pod先调度，然后根据Pod调度到节点的AZ信息再创建PV，在Pod所在节点同一个AZ创建云硬盘，这样确保云硬盘能够挂载，从而确保Pod调度成功。
节点多AZ情况下使用csi-disk导致Pod调度失败
创建一个3节点的集群，3个节点在不同AZ下。
使用csi-disk创建一个有状态应用，观察该应用的创建情况。
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: nginx
spec:
serviceName: nginx # headless service的名称
replicas: 4
selector:
matchLabels:
app: nginx
template:
metadata:
labels:
app: nginx
spec:
containers:
- name: container-0
image: nginx:alpine
resources:
limits:
cpu: 600m
memory: 200Mi
requests:
cpu: 600m
memory: 200Mi
volumeMounts: # Pod挂载的存储
- name: data
mountPath: /usr/share/nginx/html # 存储挂载到/usr/share/nginx/html
imagePullSecrets:
- name: default-secret
volumeClaimTemplates:
- metadata:
name: data
annotations:
everest.io/disk-volume-type: SAS
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
storageClassName: csi-disk
有状态应用使用如下Headless Service。
apiVersion: v1
kind: Service # 对象类型为Service
metadata:
name: nginx
labels:
app: nginx
spec:
ports:
- name: nginx # Pod间通信的端口名称
port: 80 # Pod间通信的端口号
selector:
app: nginx # 选择标签为app:nginx的Pod
clusterIP: None # 必须设置为None，表示Headless Service
创建后查看PVC和Pod状态，如下所示，可以看到PVC都已经创建并绑定成功，而有一个Pod处于Pending状态。
# kubectl get pvc -owide
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE VOLUMEMODE
data-nginx-0 Bound pvc-04e25985-fc93-4254-92a1-1085ce19d31e 1Gi RWO csi-disk 64s Filesystem
data-nginx-1 Bound pvc-0ae6336b-a2ea-4ddc-8f63-cfc5f9efe189 1Gi RWO csi-disk 47s Filesystem
data-nginx-2 Bound pvc-aa46f452-cc5b-4dbd-825a-da68c858720d 1Gi RWO csi-disk 30s Filesystem
data-nginx-3 Bound pvc-3d60e532-ff31-42df-9e78-015cacb18a0b 1Gi RWO csi-disk 14s Filesystem
# kubectl get pod -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
nginx-0 1/1 Running 0 2m25s 172.16.0.12 192.168.0.121 <none> <none>
nginx-1 1/1 Running 0 2m8s 172.16.0.136 192.168.0.211 <none> <none>
nginx-2 1/1 Running 0 111s 172.16.1.7 192.168.0.240 <none> <none>
nginx-3 0/1 Pending 0 95s <none> <none> <none> <none>
查看这个Pod的事件信息，可以发现调度失败，没有一个可用的节点，其中两个节点是因为没有足够的CPU，一个是因为创建的云硬盘不是节点所在的可用区，Pod无法使用该云硬盘。
# kubectl describe pod nginx-3
Name: nginx-3
...
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Warning FailedScheduling 111s default-scheduler 0/3 nodes are available: 3 pod has unbound immediate PersistentVolumeClaims.
Warning FailedScheduling 111s default-scheduler 0/3 nodes are available: 3 pod has unbound immediate PersistentVolumeClaims.
Warning FailedScheduling 28s default-scheduler 0/3 nodes are available: 1 node(s) had volume node affinity conflict, 2 Insufficient cpu.
查看PVC创建的云硬盘所在的可用区，发现data-nginx-3是在可用区1，而此时可用区1的节点没有资源，只有可用区3的节点有CPU资源，导致无法调度。由此可见PVC先绑定PV创建云硬盘会导致问题。
延迟绑定的云硬盘StorageClass
在集群中查看StorageClass，可以看到csi-disk-topology的绑定模式为WaitForFirstConsumer，表示等有Pod使用这个PVC时再创建PV并绑定，也就是根据Pod的信息创建PV以及底层存储资源。
# kubectl get storageclass
NAME PROVISIONER RECLAIMPOLICY VOLUMEBINDINGMODE ALLOWVOLUMEEXPANSION AGE
csi-disk everest-csi-provisioner Delete Immediate true 156m
csi-disk-topology everest-csi-provisioner Delete WaitForFirstConsumer true 156m
csi-nas everest-csi-provisioner Delete Immediate true 156m
csi-obs everest-csi-provisioner Delete Immediate false 156m
如上内容中VOLUMEBINDINGMODE列是在1.19版本集群中查看到的，1.17和1.15版本不显示这一列。
从csi-disk-topology的详情中也能看到绑定模式。
# kubectl describe sc csi-disk-topology
Name: csi-disk-topology
IsDefaultClass: No
Annotations: <none>
Provisioner: everest-csi-provisioner
Parameters: csi.storage.k8s.io/csi-driver-name=disk.csi.everest.io,csi.storage.k8s.io/fstype=ext4,everest.io/disk-volume-type=SAS,everest.io/passthrough=true
AllowVolumeExpansion: True
MountOptions: <none>
ReclaimPolicy: Delete
VolumeBindingMode: WaitForFirstConsumer
Events: <none>
下面创建csi-disk和csi-disk-topology两种类型的PVC，观察两者之间的区别。
- csi-disk
apiVersion: v1 kind: PersistentVolumeClaim metadata: name: disk annotations: everest.io/disk-volume-type: SAS spec: accessModes: - ReadWriteOnce resources: requests: storage: 10Gi storageClassName: csi-disk # StorageClass - csi-disk-topology
apiVersion: v1 kind: PersistentVolumeClaim metadata: name: topology annotations: everest.io/disk-volume-type: SAS spec: accessModes: - ReadWriteOnce resources: requests: storage: 10Gi storageClassName: csi-disk-topology # StorageClass
创建并查看，如下所示，可以发现csi-disk已经是Bound也就是绑定状态，而csi-disk-topology是Pending状态。
# kubectl create -f pvc1.yaml persistentvolumeclaim/disk created # kubectl create -f pvc2.yaml persistentvolumeclaim/topology created # kubectl get pvc NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE disk Bound pvc-88d96508-d246-422e-91f0-8caf414001fc 10Gi RWO csi-disk 18s topology Pending csi-disk-topology 2s
查看topology PVC的详情，可以在事件中看到“waiting for first consumer to be created before binding”，意思是等使用PVC的消费者也就是Pod创建后再绑定。
# kubectl describe pvc topology Name: topology Namespace: default StorageClass: csi-disk-topology Status: Pending Volume: Labels: <none> Annotations: everest.io/disk-volume-type: SAS Finalizers: [kubernetes.io/pvc-protection] Capacity: Access Modes: VolumeMode: Filesystem Used By: <none> Events: Type Reason Age From Message ---- ------ ---- ---- ------- Normal WaitForFirstConsumer 5s (x3 over 30s) persistentvolume-controller waiting for first consumer to be created before binding
创建工作负载使用该PVC，其中申明PVC名称的地方填写topology，如下所示。
apiVersion: apps/v1
kind: Deployment
metadata:
name: nginx-deployment
spec:
selector:
matchLabels:
app: nginx
replicas: 1
template:
metadata:
labels:
app: nginx
spec:
containers:
- image: nginx:alpine
name: container-0
volumeMounts:
- mountPath: /tmp # 挂载路径
name: topology-example
restartPolicy: Always
volumes:
- name: topology-example
persistentVolumeClaim:
claimName: topology # PVC的名称
创建完成后查看PVC的详情，可以看到此时已经绑定成功。
# kubectl describe pvc topology Name: topology Namespace: default StorageClass: csi-disk-topology Status: Bound .... Used By: nginx-deployment-fcd9fd98b-x6tbs Events: Type Reason Age From Message ---- ------ ---- ---- ------- Normal WaitForFirstConsumer 84s (x26 over 7m34s) persistentvolume-controller waiting for first consumer to be created before binding Normal Provisioning 54s everest-csi-provisioner_everest-csi-controller-7965dc48c4-5k799_2a6b513e-f01f-4e77-af21-6d7f8d4dbc98 External provisioner is provisioning volume for claim "default/topology" Normal ProvisioningSucceeded 52s everest-csi-provisioner_everest-csi-controller-7965dc48c4-5k799_2a6b513e-f01f-4e77-af21-6d7f8d4dbc98 Successfully provisioned volume pvc-9a89ea12-4708-4c71-8ec5-97981da032c9
节点多AZ情况下使用csi-disk-topology
下面使用csi-disk-topology创建有状态应用，将上面应用改为使用csi-disk-topology。
volumeClaimTemplates:
- metadata:
name: data
annotations:
everest.io/disk-volume-type: SAS
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
storageClassName: csi-disk-topology
创建后查看PVC和Pod状态，如下所示，可以看到PVC和Pod都能创建成功，nginx-3这个Pod是创建在可用区3这个节点上。
# kubectl get pvc -owide NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE VOLUMEMODE data-nginx-0 Bound pvc-43802cec-cf78-4876-bcca-e041618f2470 1Gi RWO csi-disk-topology 55s Filesystem data-nginx-1 Bound pvc-fc942a73-45d3-476b-95d4-1eb94bf19f1f 1Gi RWO csi-disk-topology 39s Filesystem data-nginx-2 Bound pvc-d219f4b7-e7cb-4832-a3ae-01ad689e364e 1Gi RWO csi-disk-topology 22s Filesystem data-nginx-3 Bound pvc-b54a61e1-1c0f-42b1-9951-410ebd326a4d 1Gi RWO csi-disk-topology 9s Filesystem # kubectl get pod -owide NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES nginx-0 1/1 Running 0 65s 172.16.1.8 192.168.0.240 <none> <none> nginx-1 1/1 Running 0 49s 172.16.0.13 192.168.0.121 <none> <none> nginx-2 1/1 Running 0 32s 172.16.0.137 192.168.0.211 <none> <none> nginx-3 1/1 Running 0 19s 172.16.1.9 192.168.0.240 <none> <none>
