Generating an Active Session Profile
Scenarios
You can collect and download active session profiles (ASPs) on the GaussDB console.
Constraints
The DB engine version of GaussDB instances must be V2.0-3.300 or later, and the kernel version must be 503.2 or later. For details about how to query the version, see Checking the DB Engine and Kernel Engine Version of a GaussDB Instance.
Precautions
- After ASP Generation is enabled, ASP data is sampled every second.
- If ASP Generation is disabled, there may be no data available when the data source is set to template-collected data for SQL diagnosis and slow SQL data collection.
- The default collection period is the latest 2 hours and the maximum length is two days.
- The collected ASP reports are retained for three days by default.
Procedure
- Log in to the management console.
- Click
in the upper left corner and select the desired region and project.
- Click
in the upper left corner of the page and choose .
- On the Instances page, click the name of the target instance to go to the Basic Information page.
- In the navigation pane, choose Diagnostics and Optimization > Performance Reports. Then, click the Active Session Profile tab.
- Select the collection period and click Generate ASP.

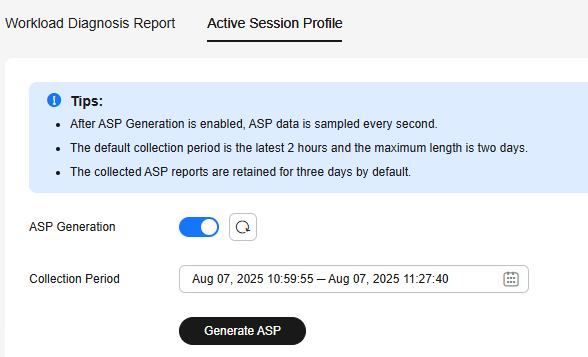

Figure 1 Generating an ASP
- Refresh the instance later and view the collection result.
- If the collection is successful, click Download ASP to obtain the ASP of the specified period.
- If the collection failed, contact Huawei Cloud customer service.
