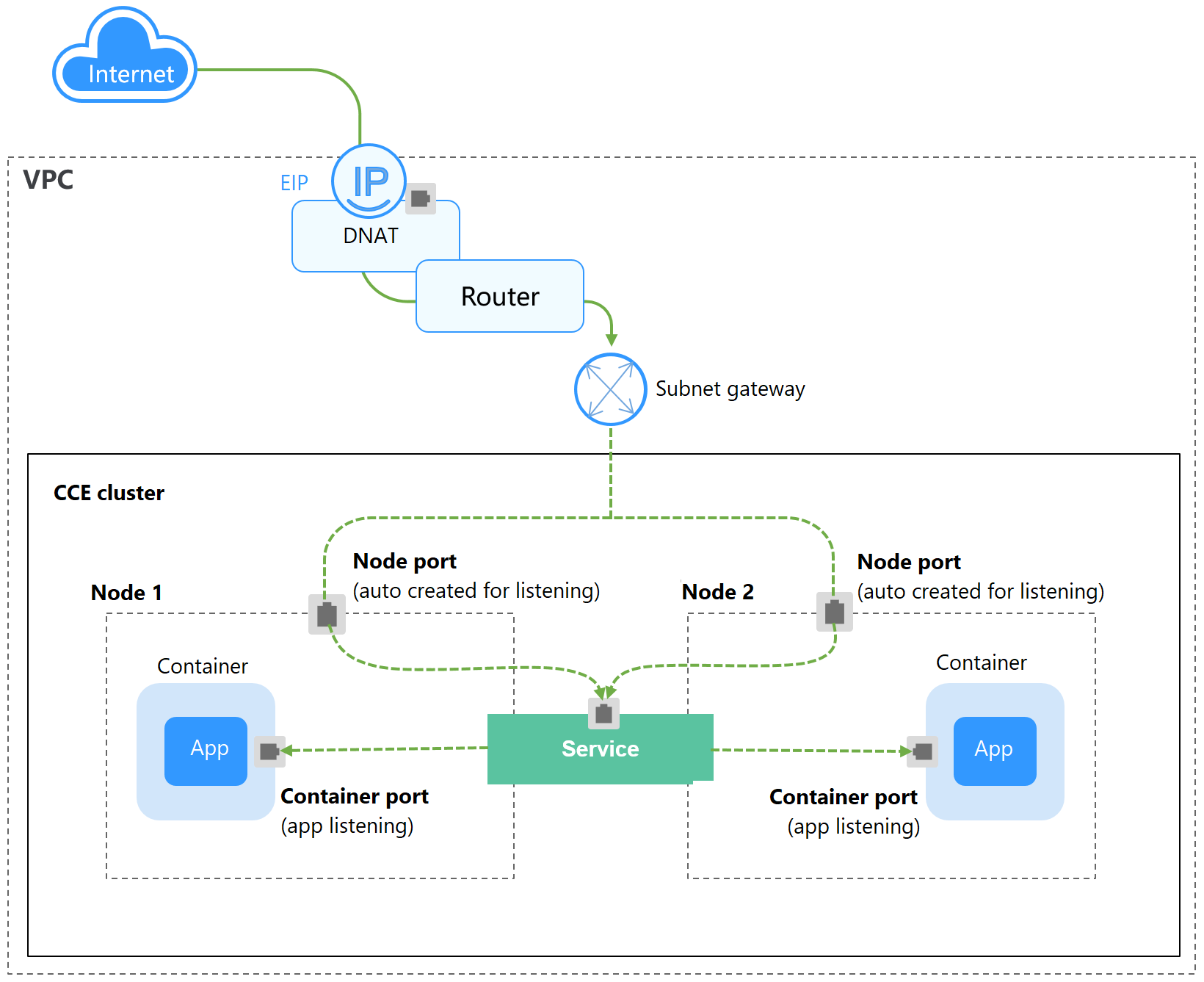

DNAT

1. Log in to the CCE console and click the cluster name to access the cluster console.
2. In the navigation pane, choose Services & Ingresses. In the upper right corner, click Create Service.
3. Configure DNAT gateway parameters.

   Parameter	Description
   Service Name	Enter a name, which be can be the same as the workload name.
   Service Type	Select DNAT.
   Namespace	Select the namespace that the workload belongs to.
   Service Affinity	Whether to route external traffic to a local node or a cluster-wide endpoint. For details, see Service Affinity (externalTrafficPolicy). Cluster-level: The IP addresses and ports of all nodes in a cluster can access the workload associated with the Service. However, accessing the Service may result in a performance decrease due to route redirection, and the client's source IP address may not be obtainable. Node-level: Only the IP address and port of the node where the workload is located can access the workload associated with the Service. Accessing the Service will not result in a performance decrease due to route redirection, and the client's source IP address can be obtained.
   Selector	The Service will be associated with the workload pods based on the label and direct traffic to the pods with this label. You can add a key and value for the pod label and click Confirm. You can also click Reference Workload Label to use the label of an existing workload. In the dialog box displayed, select a workload and click OK.

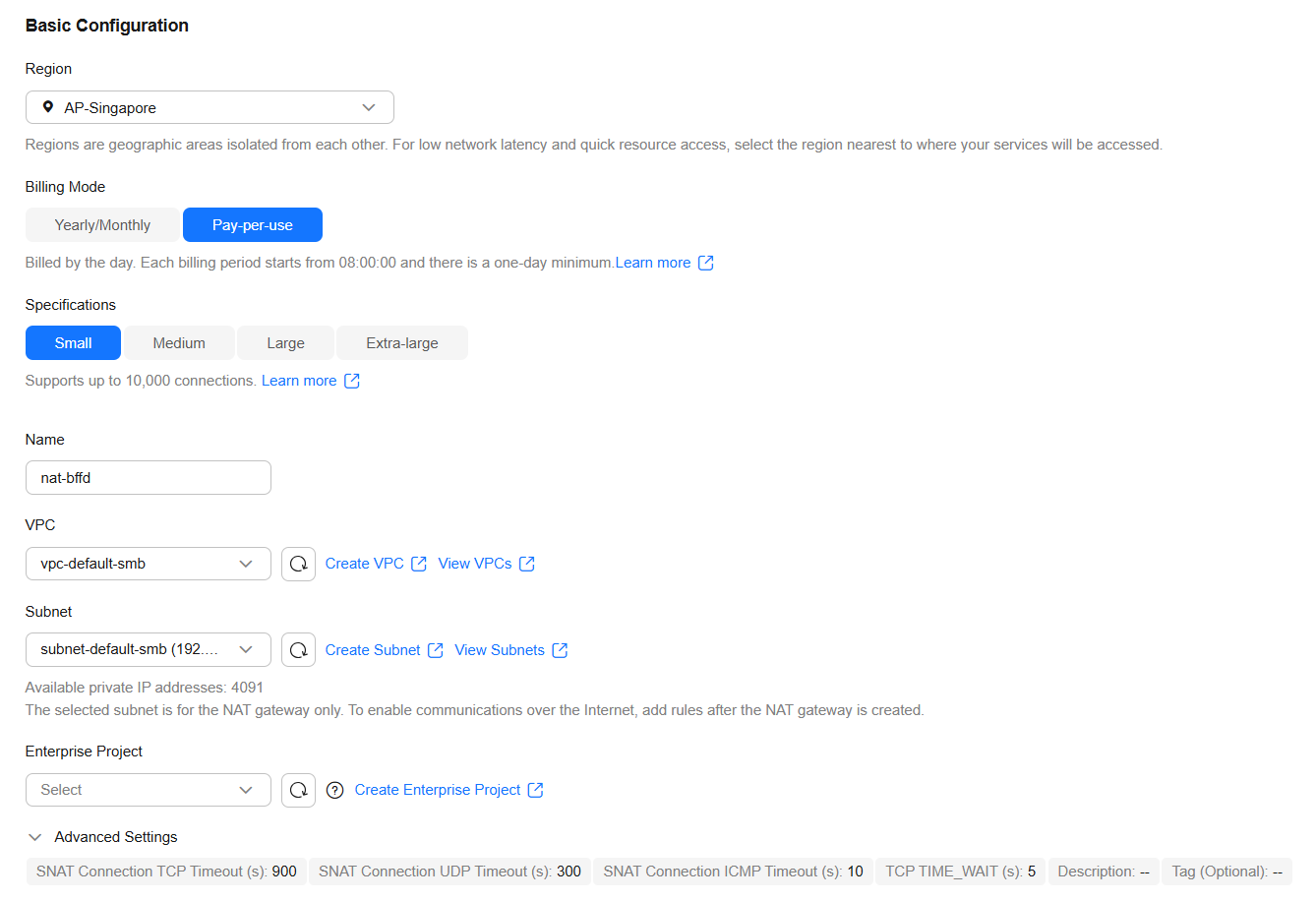

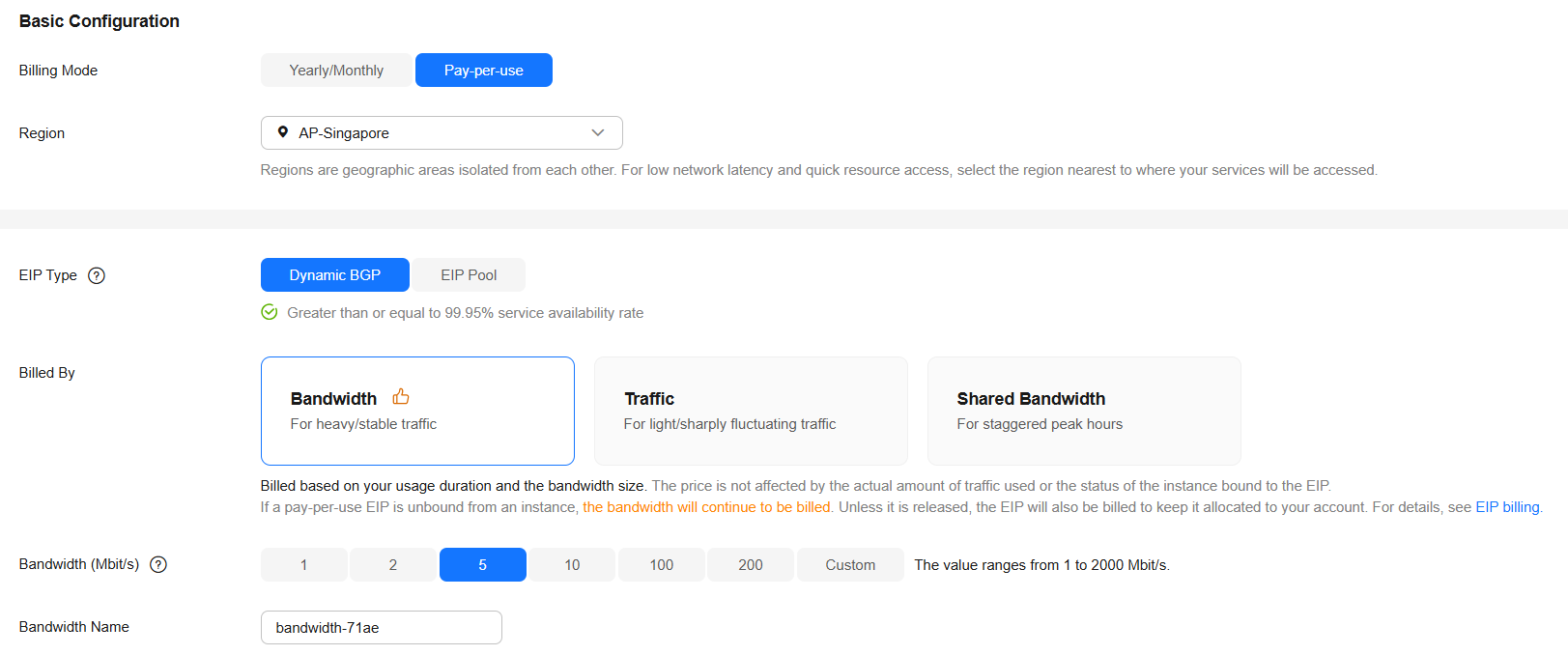

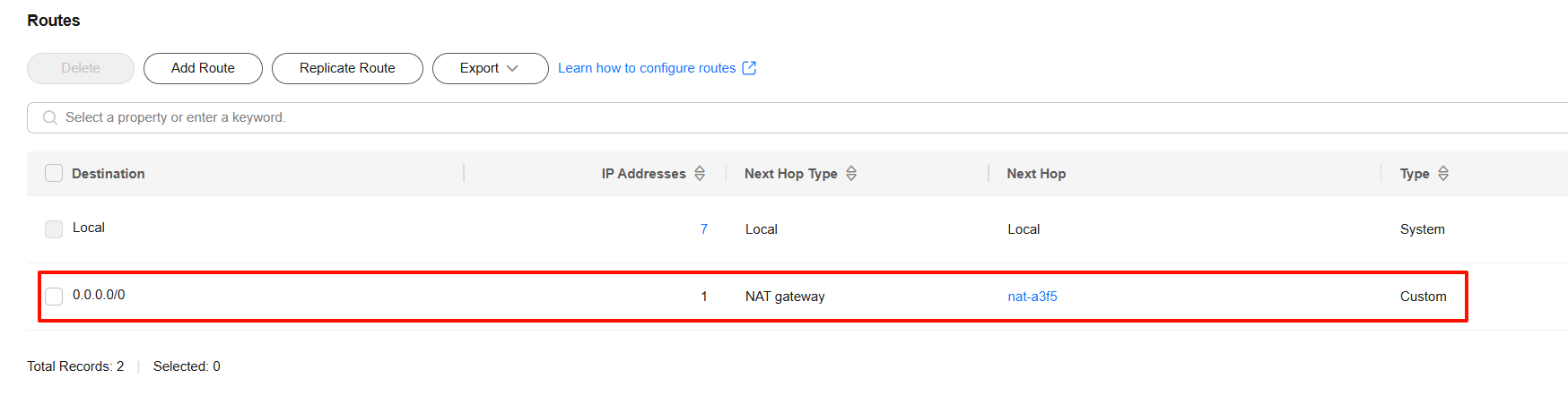

   DNAT	Select the DNAT gateway and EIP purchased in Preparations: Creating a NAT Gateway and an EIP.
   Port	Protocol: the protocol supported by the Service. Container Port: the listening port of the service containers. The port ranges from 1 to 65535. You need to determine the port based on the container image. For example, the default port of Nginx is 80, and the default port of MySQL is 3306. Service Port: the port used to access the DNAT Service. You can customize the port as required. The port ranges from 1 to 65535.

4. Click OK.



You can configure Service access when creating a workload using kubectl. This section uses an Nginx workload as an example to describe how to implement intra-cluster access using kubectl.

1. Use kubectl to access the cluster. For details, see Accessing a Cluster Using kubectl.
2. Create and edit the nginx-deployment.yaml file to configure the sample workload. For details, see Creating a Deployment. nginx-deployment.yaml is an example file name. You can rename it as needed.

   vi nginx-deployment.yaml

   File content:

   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: nginx
   spec:
     replicas: 1
     selector:
       matchLabels:
         app: nginx
     template:
       metadata:
         labels:
           app: nginx
       spec:
         containers:
         - image: nginx:latest
           name: nginx
         imagePullSecrets:
         - name: default-secret

3. Create and edit the nginx-nat-svc.yaml file to configure Service parameters. nginx-nat-svc.yaml is an example file name. You can rename it as needed.

   vi nginx-nodeport-svc.yaml

   File content:

   apiVersion: v1
   kind: Service
   metadata:
     name: nginx-nat
     annotations:
       kubernetes.io/elb.class: dnat
       kubernetes.io/natgateway.id: e4a1cfcf-29df-4ab8-a4ea-c05dc860f554
   spec:
     loadBalancerIP: 10.78.42.242
     ports:
     - name: service0
       port: 80
       protocol: TCP
       targetPort: 80
     selector:
       app: nginx
     type: LoadBalancer

   Table 1 Key parameters

   Parameter	Mandatory	Type	Description
   kubernetes.io/elb.class	Yes	String	This parameter is set to dnat, which is used to access the NAT Gateway service and add DNAT rules.
   kubernetes.io/natgateway.id	Yes	String	ID of a NAT gateway. How to obtain: On the management console, click Service List and choose Networking > NAT Gateway. Click the name of the target NAT gateway to access its details page. On the Basic Information tab, find and copy the ID.
   loadBalancerIP	Yes	String	Enter the EIP associated with the NAT gateway.
   port	Yes	Integer	The port used to access the DNAT Service. You can customize the port as required. The port ranges from 1 to 65535.
   targetPort	Yes	String	The listening port of the service containers. The port ranges from 1 to 65535. You need to determine the port based on the container image. For example, the default port of Nginx is 80, and the default port of MySQL is 3306.
   type	Yes	String	NAT gateway service type must be set to LoadBalancer.

4. Create a workload.

   kubectl create -f nginx-deployment.yaml

   If information similar to the following is displayed, the workload has been created:

   deployment/nginx created

   Check the created workload.

   kubectl get pod

   If information similar to the following is displayed, the workload is running:

   NAME                     READY     STATUS             RESTARTS   AGE
   nginx-2601814895-znhbr   1/1       Running            0          15s

5. Create the Service.

   kubectl create -f nginx-nat-svc.yaml

   If information similar to the following is displayed, the Service is being created:

   service/nginx-nat created

   Check the created Service.

   kubectl get svc

   If information similar to the following is displayed, the Service has been created:

   NAME         TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)        AGE
   kubernetes   ClusterIP   10.247.0.1       <none>        443/TCP        3d
   nginx-nat    LoadBalancer 10.247.226.2  **.**.**.**   80:30589/TCP  5s

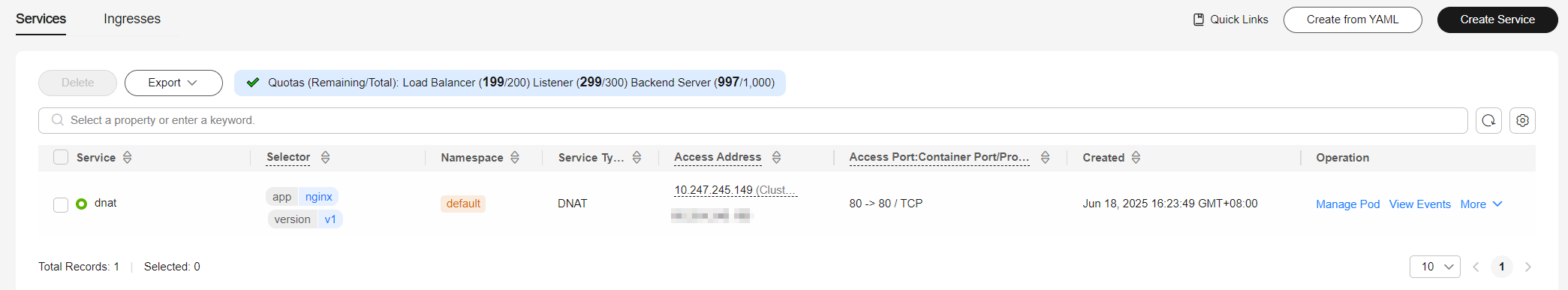

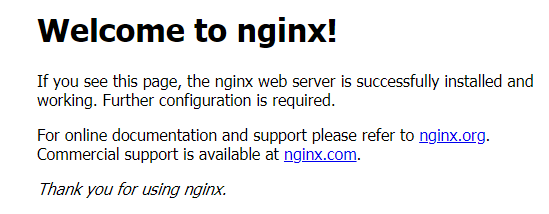

6. Enter the URL, which is in the format of <EIP>:<port>, in the address bar of a browser.
