FLV Video Player

FLV video player is a type of media widget used to play videos in Flash Video (FLV) format.

On the large screen design page, drag the FLV video player widget from All > Media to the blank area of the canvas, as shown in Figure 1.

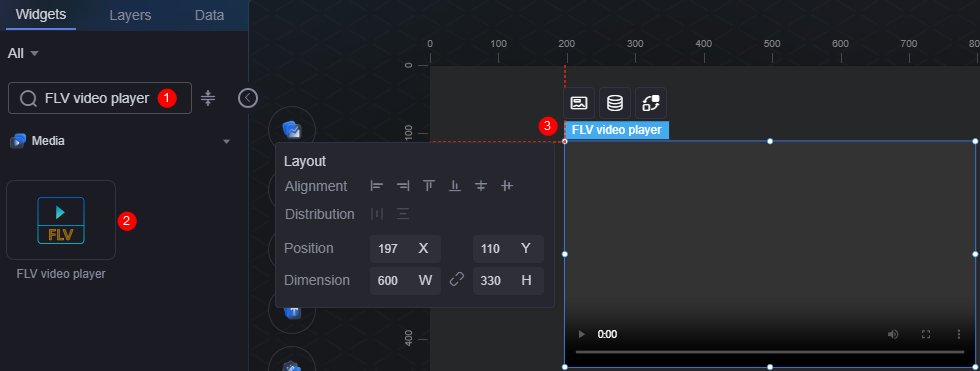

Figure 1 FLV video player widget
Figure 2 Margin style

Card

A card wraps a media widget. A widget consists of card elements (card background, effects and card border) and video elements.

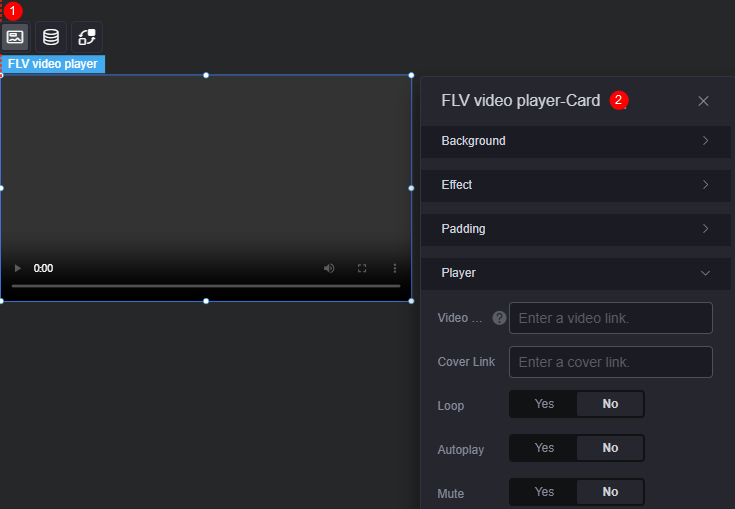

Figure 3 FLV video player card
  • Background
    • Background color: Background color of the widget card.
    • Border: Border of the widget card. Options: no border, full border, and corner border. For full border and corner border, you can set the line type and rounded corners of the outer border of the widget.
    • Style: Image display style. The options are normal, center, stretch, and tiled.
    • Choose image: Use a local image as the widget background. Directories and subdirectories can be added to facilitate image management by category. JPG, JPEG, PNG, or GIF images are recommended. The size of each image cannot exceed 50 MB.
  • Special effect: Widget highlighted status. Displayed by default or on page load.
  • Padding: distance between the chart in the widget and the four sides (top, bottom, left, and right) of the widget (see Figure 2). The default value is 0, indicating that the chart spreads across the widget.
  • Player settings
    • Video URL: Video URL. Only video sources in H.264 (video) and AAC/MP3 (audio) formats are supported.
    • URL of the cover image: URL of the video cover image.
    • Cycle playback or not: Whether to enable the cycle playback.
    • Auto play or not: Whether to automatically play a video after a page is opened.
    • Mute or not: Whether to mute a video. After the video is muted, the volume cannot be adjusted during video playback.

Data

In the data settings, you can set the data source of the FLV video player widget. For more information, see Data Access.

Interaction

In the interaction settings, you can configure interactions between the FLV video player widget and other widgets or pages. For details, see Interaction Configuration.
