Enabling Log Access

Scenario

SecMaster can access logs of Huawei Cloud services with your authorization, services such as Web Application Firewall (WAF), Host Security Server (HSS), and Object Storage Service (OBS). After you authorize the access, you can manage logs centrally and search and analyze all collected logs. For details, see Cloud Service Log Access Supported by SecMaster.

For the first workspace in each region, most types of logs recommended by SecMaster will be automatically loaded. For non-first workspaces, you need to configure log data access manually.

You are advised to enable access to asset details, asset alerts, baseline inspection results, vulnerability data, and logs in one workspace. This will make it easier for centralized security operations and association analysis.

This topic describes how to access logs and view where logs are stored.

Limitations and Constraints

  • It takes about 10 minutes for the log access settings to take effect.
  • You can integrate CFW log data into SecMaster in just a few clicks. For newly purchased CFW, if you enable log integration for CFW on SecMaster, CFW logs will be integrated into SecMaster the next day.

Integrating Cloud Service Logs

  1. Log in to the SecMaster console.
  2. Click in the upper left corner of the management console and select a region or project.
  3. Click in the upper left corner of the page and choose Security & Compliance > SecMaster.
  4. In the navigation pane on the left, choose Workspaces > Management. In the workspace list, click the name of the target workspace.

    Figure 1 Workspace management page

  5. In the navigation pane on the left, choose Log Audit > Cloud Service Access.

    Figure 2 Cloud Service Access

  6. On the Cloud Service Access page, configure log integration. Enable log integration based on the cloud services you have enabled in the current region.

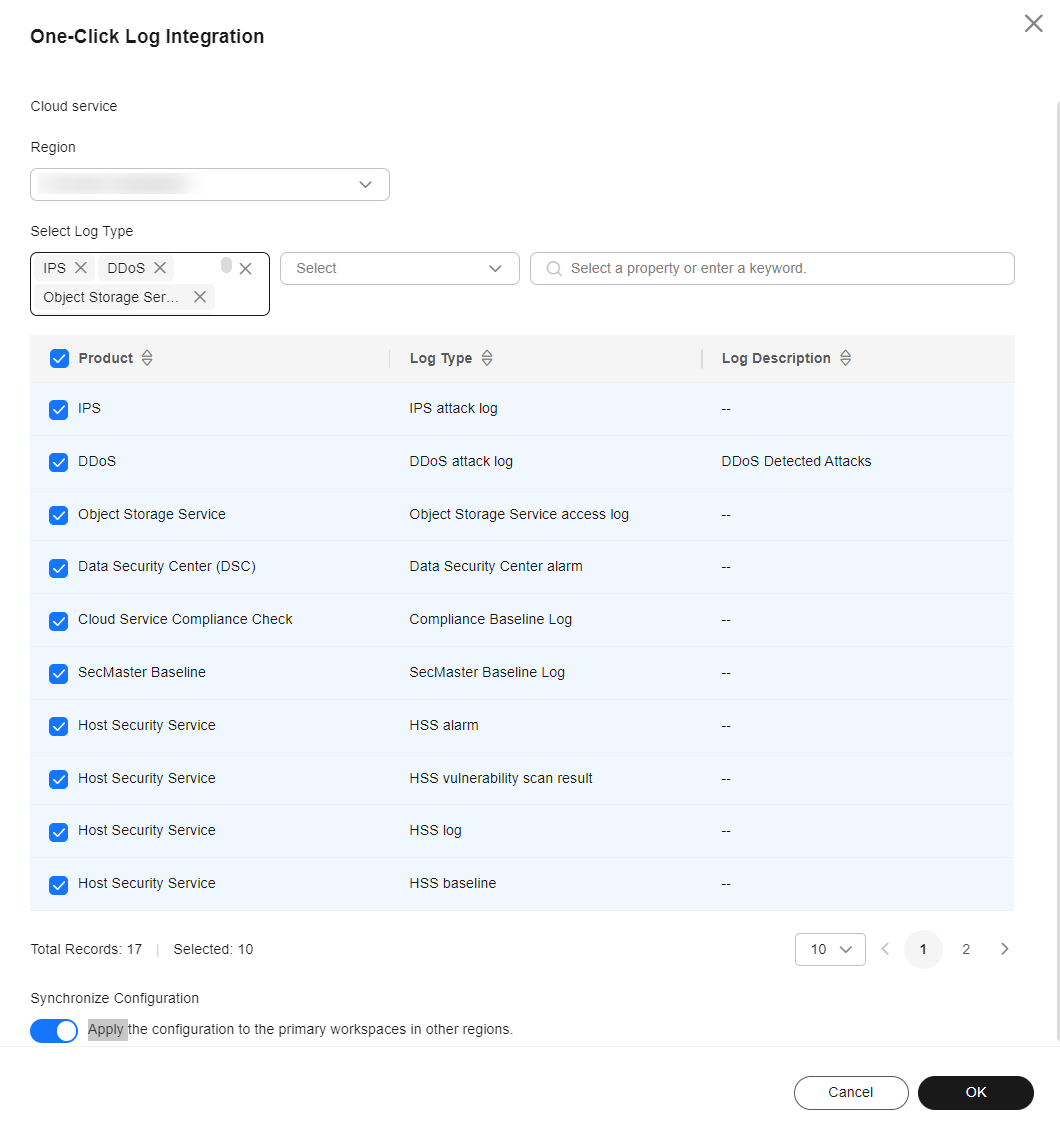

    Enable one-click log integration of multiple cloud service products: Click One-Click Log Integration. On the One-Click Log Integration page, select the data source region from the Region drop-down list and select the cloud service log types you need to integrate. After completing the configuration, click OK.

    Figure 3 Log integration settings page

  7. Enable log integration of a cloud service product: click Settings in the Operation column of the cloud service product.

    On the settings page, enable log types of products based on your needs.

    Table 1 Parameters on the log integration settings page

    Parameter

    Description

    Log Type

    Log type.

    Enable Log Integration

    Whether to enable log integration. If this button is toggled on, logs will be integrated into SecMaster.

    Auto Alert Conversion

    In the Auto Alert Conversion column, click to enable the function. After that, if cloud service logs meet certain alert rules, SecMaster will automatically convert them into alerts. Those alerts will be displayed on the Alerts page.

    Lifecycle

    Log retention duration after integration.

    Log Status

    Log integration status.

    • Succeeded: Logs have been integrated and the integration is successful.
    • Integration pending: Logs have not been integrated.
    • Failed: Logs failed to be integrated.

    Last Active

    Last log integration time.

    Operation

    You can Edit the lifecycle of the log type, in days. Lifecycle indicates the retention duration of integrated logs.

    If the account has been managed by an operation account, you can modify the log lifecycle only in the primary workspace of the operation account. For details, see Creating Multi-Account Management.

  8. After completing log integration, check the log access status of cloud service products on the Log Audit > Cloud Service Access page.

    It takes about 10 minutes for the log access settings to take effect. After the access is complete, a default data space and pipeline are created.

Viewing Logs and Storage Locations

After log integration, choose Security Analysis > Security Data Tables and view integrated logs.

  1. In the navigation pane on the left, choose Log Audit > Security Data.
  2. In the data space navigation tree on the left, click a data space name to show the pipeline list. Click a pipeline name. On the page displayed on the right, you can search the pipeline data.

    You can view the integrated logs on the pipeline data query page.

Related Operations

  • Canceling data access
    1. On the Cloud Service Access page, click Settings in the Operation column of the target cloud service product.
    2. On the Settings page, click in the Enable Log Integration column to disable log integration for the cloud service.
  • Editing the data access lifecycle
    1. On the Cloud Service Access page, click Settings in the Operation column of the target cloud service product.
    2. On the Settings page, click Edit in the Operation column of the target log type.
    3. On the displayed page, modify the Lifecycle configuration.
    4. Click OK.
  • Disabling Auto Alert Conversion
    1. On the Cloud Service Access page, click Settings in the Operation column of the target cloud service product.
    2. On the Settings page, click in the Auto Alert Conversion column to disable alert mapping.
