Developing a Batch Processing Single-Task SQL Job

Prerequisites

• A job has been created. For details, see Creating a Job.
• You have locked the job. Otherwise, you must click Lock so that you can develop the job. A job you create or import is locked by you by default. For details, see the lock function.

Developing an SQL Script

1. Log in to the DataArts Studio console by following the instructions in Accessing the DataArts Studio Instance Console.
2. On the DataArts Studio console, locate a workspace and click DataArts Factory.
3. In the left navigation pane of DataArts Factory, choose Development > Develop Job.
4. In the job directory, double-click the name of a single-task job to access the job development page.
5. On the right of the SQL editor, click Basic Info to configure basic information, properties, and advanced settings of the job. Table 1 lists the basic information, Table 2 lists the properties, and Table 3 lists the advanced settings.

   Table 1 Basic job information

   Parameter	Description
   Owner	An owner configured during job creation is automatically matched. This parameter value can be modified.
   Job Agency	This parameter is available when Scheduling Identities is set to Yes. After an agency is configured, the job interacts with other services as an agency during job execution.
   Priority	Priority configured during job creation is automatically matched. This parameter value can be modified.
   Execution Timeout	Timeout of the job instance. If this parameter is set to 0 or is not set, this parameter does not take effect. If the notification function is enabled for the job and the execution time of the job instance exceeds the preset value, the system sends a specified notification, and the job keeps running.
   Exclude Waiting Time from Instance Timeout Duration	Whether to exclude the wait time from the instance execution timeout duration If you select this option, the time to wait before an instance starts running is excluded from the timeout duration. You can modify this setting on the Default Configuration page. If you do not select this option, the time to wait before an instance starts running is included in the timeout duration.
   Custom Parameter	Set the name and value of the parameter.
   Job Tag	Configure job tags to manage jobs by category. Click Add to add a tag to the job. You can also select a tag configured in Managing Job Tags.

   Table 2 Attributes of a batch processing single-task SQL job

   Property	Description
   DLI SQL properties
   DLI Data Directory	Select the DLI data directory. Default DLI data directory dli Metadata catalog that has been created in LakeFormation associated with DLI.
   Database Name	Select a database. If you select the default DLI data directory dli, select a DLI database and tables. If you select a metadata catalog that has been created in LakeFormation associated with DLI, select a LakeFormation database and tables.
   Queue Name	The queue set in the SQL script is selected by default. You can change another one. You can create a resource queue using either of the following methods: Click . On the displayed Queue Management page of DLI, create a resource queue. Go to the DLI console to create a resource queue.
   Record Dirty Data	Click to specify whether to record dirty data. If you select , dirty data will be recorded. If you do not select , dirty data will not be recorded.
   DLI Environmental Variable	The environment variable must start with hoodie., dli.sql., dli.ext., dli.jobs., spark.sql., or spark.scheduler.pool. If the environment variable is dli.sql.autoBroadcastJoinThreshold, the value must be an integer. If the environment variable is dli.sql.shuffle.partitions, the value must be a positive integer. If the key of the environment variable is dli.sql.shuffle.partitions or dli.sql.autoBroadcastJoinThreshold, the environment variable cannot contain the greater than (>) or less than (<) sign. If a parameter with the same name is configured in both a job and a script, the parameter value configured in the job will overwrite that configured in the script. NOTE: When you run a DLI SQL script or test a DLI SQL single-task job in non-scheduling scenarios, the following parameters are enabled by default: spark.sql.adaptive.enabled: Adaptive Query Execution (AQE) is enabled so that Spark can dynamically optimize the query execution plan based on the characteristics of the data being processed and improve the performance by reducing the amount of data to be processed. spark.sql.adaptive.join.enabled: AQE is enabled for join operations. The optimal join algorithm is selected based on the data being processed to improve performance. spark.sql.adaptive.skewedJoin.enabled: AQE is enabled for skewed join operations. Skewed data can be automatically detected and the join algorithm is optimized accordingly to improve performance. spark.sql.mergeSmallFiles.enabled: Merging of small files is enabled. Small files can be merged into large ones, improving performance and shortening the processing time. In addition, fewer files need to be read from remote storage, and more local files can be used. If you do not want to use these functions, you can set the values of the preceding parameters to false.
   DWS SQL properties
   Data Connection	Select a data connection.
   Database	Select a database.
   Dirty Data Table	Name of the dirty data table defined in the SQL script. The dirty data attributes cannot be edited. They are automatically recommended by the SQL script content.
   Matching Rule	Enter a Java regular expression used to match the DWS SQL result. For example, if the expression is (?<=\()(-*\d+?)(?=,) and the SQL result is (1,"error message"), then the matched result is "1".
   Failure Matching Value	If the matched content equals the set value, the node fails to be executed.
   RDS SQL properties
   Data Connection	Select a data connection.
   Database	Select a database.
   Spark SQL properties
   MRS Job Name	MRS job name. The system automatically sets this parameter based on the job name. If the MRS job name is not set and the direct connection mode is selected, the node name can contain only letters, digits, hyphens (-), and underscores (_). A maximum of 64 characters are allowed, and Chinese characters are not allowed. NOTE: If you select an MRS API data connection, you cannot set the job name.
   Data Connection	Select a data connection.
   MRS Resource Queue	Select a created MRS resource queue. NOTE: Select a queue you configured in the queue permissions of DataArts Security. If you set multiple resource queues for this node, the resource queue you select here has the highest priority.
   Database	Select a database. If you select an MRS API connection, you cannot select a database.
   Program Parameter	Set program parameters. The following is an example: Set Parameter to --queue and Value to default_cr, indicating that a specified queue of the MRS cluster is configured. You can also go to the MRS console, click the name of the MRS cluster and then the Jobs tab, locate the job, click More in the Operation column, and select View Details to view the job details. NOTE: Configure optimization parameters such as threads, memory, and vCPUs for the job to optimize resource usage and improve job execution performance. This configuration is unavailable if a Spark proxy connection is used. Spark SQL jobs with a single operator and using a connection of the MRS API type support program parameters.
   Hive SQL properties
   MRS Job Name	MRS job name. The system automatically sets this parameter based on the job name. If the MRS job name is not set and the direct connection mode is selected, the node name can contain only letters, digits, hyphens (-), and underscores (_). A maximum of 64 characters are allowed, and Chinese characters are not allowed.
   Data Connection	Select a data connection.
   Database	Select a database.
   MRS Resource Queue	Select a created MRS resource queue.
   Program Parameter	Set program parameters. The following is an example: Set Parameter to --hiveconf and Value to mapreduce.job.queuename=default_cr, indicating that a specified queue of the MRS cluster is configured. You can also go to the MRS console, click the name of the MRS cluster and then the Jobs tab, locate the job, click More in the Operation column, and select View Details to view the job details. NOTE: Configure optimization parameters such as threads, memory, and vCPUs for the job to optimize resource usage and improve job execution performance. This configuration is unavailable if a Hive proxy connection is used. Hive SQL jobs with a single operator and using a connection of the MRS API type support program parameters.
   Doris SQL properties
   Data Connection	Select a data connection.
   Database	Select a database.

   Table 3 Advanced parameters

   Parameter	Mandatory	Description
   Node Status Polling Interval (s)	Yes	How often the system checks whether the node execution is complete. The value ranges from 1 to 60 seconds. During the node execution, the system checks whether the node execution is complete at the configured interval.
   Max. Node Execution Duration	Yes	Execution timeout interval for the node. If retry is configured and the execution is not complete within the timeout interval, the node will be executed again.
   Retry upon Failure	Yes	Whether to re-execute a node if it fails to be executed. Yes: The node will be re-executed, and the following parameters must be configured: Retry upon Timeout Maximum Retries Retry Interval (seconds) No: The node will not be re-executed. This is the default value. NOTE: If retry is configured for a job node and the timeout duration is configured, the system allows you to retry a node when the node execution times out. If a node is not re-executed when it fails upon timeout, you can go to the Default Configuration page to modify this policy. Retry upon Timeout is displayed only when Retry upon Failure is set to Yes.
   Policy for Handling Subsequent Nodes If the Current node Fails	Yes	Policy for handling subsequent nodes if the current node fails End the current job execution plan: Execution of the current job will stop, and the job instance status will become Failed. If the job is scheduled periodically, subsequent periodic scheduling will run properly. Ignore the failure and set the job execution result to success: The failure of the current node will be ignored. The job instance status will become Successful. If the job is scheduled periodically, subsequent periodic scheduling will run properly.

6. Enter one or more SQL statements in the SQL editor.


   • SQL statements are separated by semicolons (;). If semicolons are used in other places but not used to separate SQL statements, escape them with backslashes (\). The following is an example:

     select 1;
     select * from a where b="dsfa\;";  --example 1\;example 2.

   • RDS SQL does not support the begin ... commit transaction syntax. If necessary, use the start transaction ... commit transaction syntax.
   • The script cannot be larger than 16 MB.
   • The system date obtained by using an SQL statement is different from that obtained by using the database tool. The query result is stored in the database in the YYYY-MM-DD format, but the query result displayed on the page is in the converted format.
   • When a user submits a Spark SQL script to MRS, the script is submitted to the tenant queue bound to the user by default. The bound queue is the queue corresponding to tenant role of the user. If there are multiple queues, the system preferentially selects a queue based on the queue priorities. To set a fixed queue for the user to submit scripts, log in to FusionInsight Manager, choose Tenant Resources > Dynamic Resource Plan, and click the Global User Policy tab. For details, see Managing Global User Policies.
   To facilitate script development, DataArts Factory provides the following capabilities:

   • The script editor supports the following shortcut keys, which improve the script development efficiency:
     • F8: Run a script.
     • F9: Stop running a script.
     • Ctrl + /: Comment out or uncomment the line or code block at the cursor.
     • Ctrl +Z: Cancel
     • Ctrl + F: Search
     • Ctrl + Shift + R: Replace
     • Ctrl + X: Cut
     • Ctrl + S: Save a script.
     • Alt + mouse dragging: Select columns to edit a block.
     • Ctrl + mouse click: Select multiple lines to edit or indent them together.
     • Shift + Ctrl + K: Delete the current line.
     • Ctrl + → (or ←): Move the cursor rightwards (or leftwards) by word.
     • Ctrl + Home or Ctrl + End: Navigate to the beginning or end of the current file.
     • Home or End: Navigate to the beginning or end of the current line.
     • Ctrl + Shift + L: Double-click all the same character strings and add cursors to them to implement batch modification.
     • Ctrl + D: Delete a line.
     • Shift + Ctrl + U: Unlock a script.
     • Ctrl + Alt + K: Select the word where the cursor resides.
     • Ctrl + B: Format
     • Ctrl + Shift + Z: Redo
     • Ctrl + Enter: Execute the selected line or content.
     • Ctrl + Alt + F: Flag
     • Ctrl + Shift + K: Search for the previous one.
     • Ctrl + K: Search for the next one.
     • Ctrl + Backspace: Delete the word to the left of the cursor.
     • Ctrl + Delete: Delete the word to the right of the cursor.
     • Alt + Backspace: Delete all content from the beginning of the line to the cursor.
     • Alt + Delete: Delete all content from the cursor to the end of the line.
     • Alt + Shift-Left: Select all content from the beginning of the line to the cursor.
     • Alt + Shift-Right: Select all content from the cursor to the end of the line.
   • System functions

     To view the functions supported by this type of data connection, click System Functions on the right of the editor. You can double-click a function to the editor to use it.

   • Script parameters

     Enter script parameters in the SQL statement and click Parameter Setup in the right pane of the editor and then click Update from Script. You can also directly configure parameters and constants for the job script.

     In the following script example, str1 indicates the parameter name. It can contain only letters, digits, hyphens (-), underscores (_), greater-than signs (>), and less-than signs (<), and can contain a maximum of 16 characters. The parameter name must be unique.

     select ${str1} from data;

   • Visualized reading of data tables to generate SQL statements

     Click Data Tables on the right of the editor to display all the tables in the current database or schema. You can select tables and columns and click Generate SQL Statement in the lower right corner to generate an SQL statement, which you need to manually format.

7. (Optional) In the upper part of the editor, click Format to format SQL statements.
8. In the upper part of the editor, click Execute. If you need to execute some SQL statements separately, select the SQL statements first. After executing the SQL statements, view the execution history and result of the script in the lower part of the editor.


   • You can click View Log to view logs of the job.
   • You can control display of the script execution history by setting Script Execution History in Default Configuration to Myself or All users.
9. Above the editor, click Save to save the job.

Configuring job parameters

Click Parameter Setup on the right of the editor and set the parameters described in Table 4.

Click the Parameter Preview tab and configure the parameters listed in Table 5.

In Parameter Preview, if a job parameter has a syntax error, the system displays a message.

If a parameter depends on the data generated during job execution, such data cannot be simulated and displayed in Parameter Preview.

Monitoring Quality

Single-task Data Migration and real-time jobs cannot be associated with quality jobs.

Two execution modes are available: parallel and serial. Click the Quality Monitoring tab on the right of the canvas to expand the slide-out panel and configure the parameters listed in Table 6.

Data Table

You can view tables of Hive SQL, Spark SQL, DLI SQL, Doris SQL, RDS SQL, and DWS SQLsingle-task batch processing jobs. On the Data Tables slide-out panel, you can select a table name to view the column names, field types, and descriptions in the table.

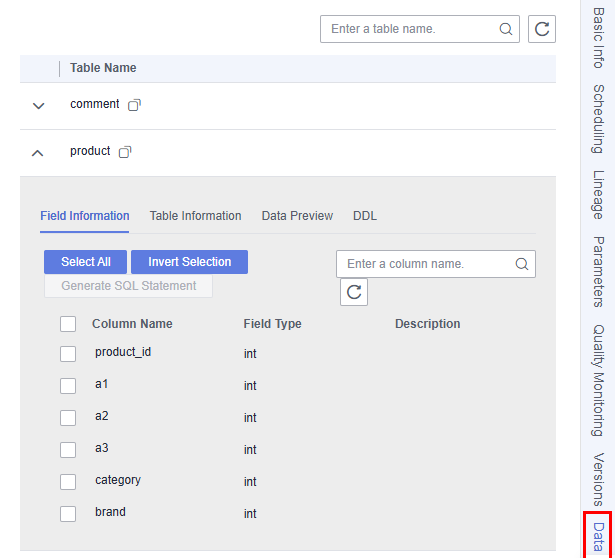

Figure 1 Viewing a data table

Testing and Saving the Job

After configuring the job, perform the following operations:

1. Click to execute the job.


   You can view the run logs of the job by clicking View Log.

2. After the job is executed, click to save the job configuration.

   After the job is saved, a version is automatically generated and displayed in Versions. The version can be rolled back. If you save a job multiple times within a minute, only one version is recorded. If the intermediate data is important, you can click Save new version to save and add a version.

Downloading or Dumping Script Execution Results

Example of Using Quotation Characters and Escape Characters

• Usage of quotation characters and escape characters:
  • Quotation character: used to identify and separate fields. The default value is double quotation marks (").
  • Escape character: If special characters, such as quotation marks, need to be included in the exported results, they can be represented using escape characters (backslash \). The default value is a backslash (\).
    1. To prevent the content of a field from being split when there is a third quotation character between two quotation characters, add an escape character before the third quotation character.
    2. If there is already an escape character in the data content, add another escape character before the existing one to avoid the original character being used as an escape character.
• Example:



  You can leave Quotation Character and Escape Character empty.



  If you leave them empty, the downloaded .csv file contains two rows in Excel.



  If you specify both of them, for example, enter double quotation marks ("), the downloaded file is as follows.
