Viewing Monitoring Metrics

Cloud Eye monitors the running status of your graphs. You can view the monitoring metrics of GES on the Cloud Eye management console.

It takes a period of time for transmitting and displaying monitoring data. The GES status displayed in the Cloud Eye monitoring data is the status obtained 5 to 10 minutes before. You can view the monitored data of a graph 5 to 10 minutes after it is created.

Prerequisites

The created graph is running properly.
The graph has been properly running for at least 10 minutes. For a newly created graph, you need to wait for a while before viewing its monitoring metrics.
You can view monitoring data of graphs in the running, importing, exporting, and clearing states. The monitoring metrics can be viewed after the real-time service starts or recovers.

Viewing Metrics

Log in to the GES management console.
In the navigation pane, choose Graph Management. In the Operation column, choose More > View Metrics. The Cloud Eye management console is displayed.
On the monitoring page for GES, you can view the figures of all monitoring metrics.

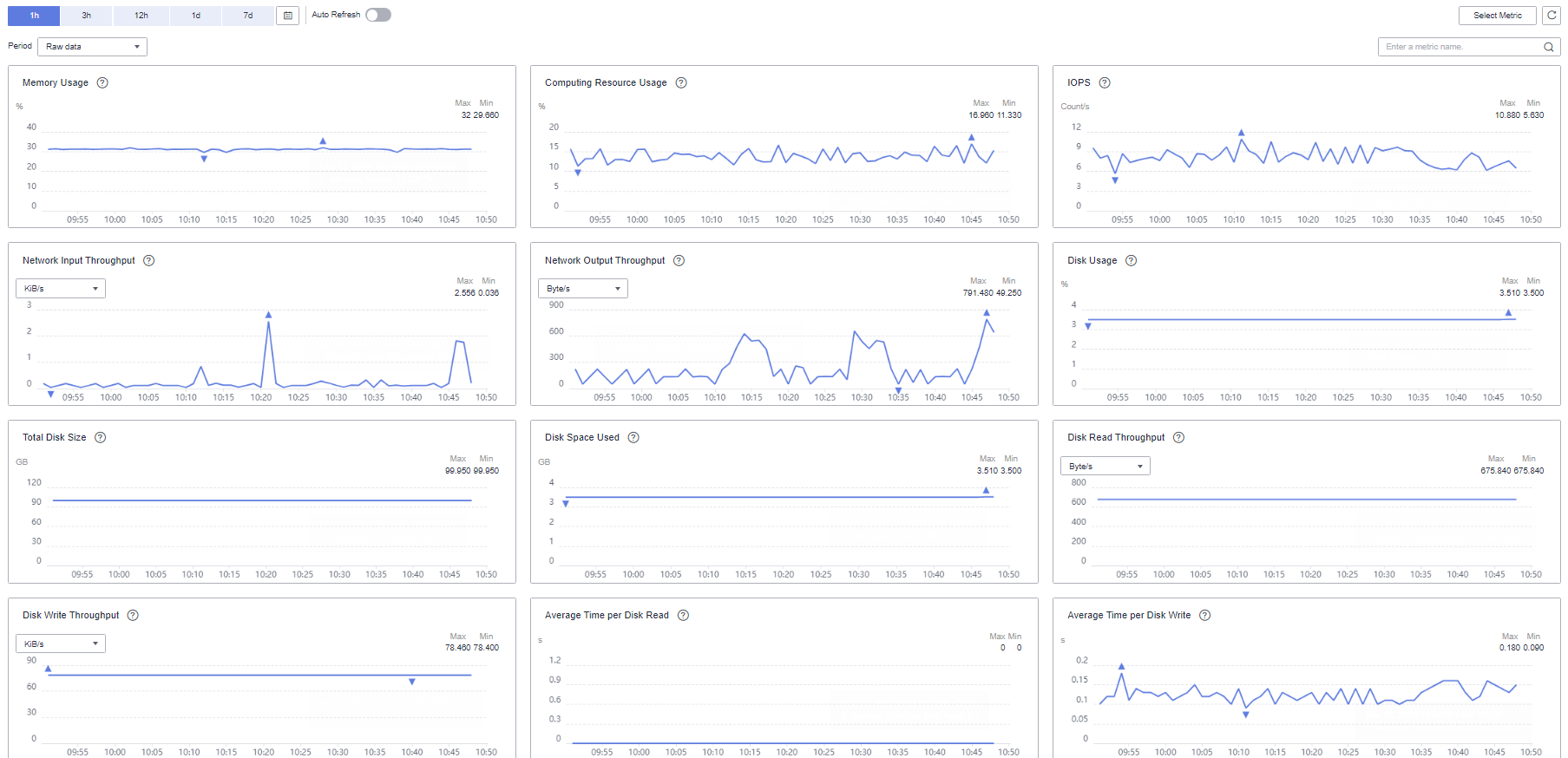

Figure 1 Viewing monitoring metrics
The system allows you to select a fixed time range or use automatic refresh.
1. Fixed time ranges include 1h, 3h, 12h.
2. The automatic refresh interval is 60s, which is the user monitoring period.

Metrics

This chapter describes metrics reported by GES to Cloud Eye as well as their namespaces, lists, and dimensions. You can use the management console and APIs provided by Cloud Eye to query the metric and alarm information generated for GES.

The namespace of the metrics reported by GES to Cloud Eye is SYS.GES.

**Table 1** GES metrics
Metric ID	Metric	Description	Value Range	Monitored Object	Monitoring Period (Original Metric)
ges001_vertex_util	Vertex Capacity Usage	Capacity usage of vertices in a graph instance. The value is the ratio of the number of used vertices to the total vertex capacity. Unit: %	0-100 Value type: Float	GES instance	1 minute
ges002_edge_util	Edge Capacity Usage	Capacity usage of edges in a graph instance. The value is the ratio of the number of used edges to the total edge capacity. Unit: %	0-100 Value type: Float	GES instance	1 minute
ges003_average_import_rate	Average Import Rate	Average rate of importing vertices or edges to a graph instance Unit: count/s	0-400000 Value type: Float	GES instance	1 minute
ges004_request_count	Request Quantity	Number of requests received by a graph instance Unit: count	≥ 0 Value type: Int	GES instance	1 minute
ges005_average_response_time	Average Response Time	Average response time of requests received by a graph instance Unit: ms	≥ 0 Value type: Int	GES instance	1 minute
ges006_min_response_time	Minimum Response Time	Minimum response time of requests received by a graph instance Unit: ms	≥ 0 Value type: Int	GES instance	1 minute
ges007_max_response_time	Maximum Response Time	Maximum response time of requests received by a graph instance Unit: ms	≥ 0 Value type: Int	GES instance	1 minute
ges008_read_task_pending_queue_size	Length of the Waiting Queue for Read Tasks	Length of the waiting queue for read requests received by a graph instance. This metric is used to view the number of read requests waiting in the queue. Unit: count	≥ 0 Value type: Int	GES instance	1 minute
ges009_read_task_pending_max_time	Maximum Waiting Duration of Read Tasks	Maximum waiting duration of read requests received by a graph instance Unit: ms	≥ 0 Value type: Int	GES instance	1 minute
ges010_pending_max_time_ read_task_type	Type of the Read Task That Waits the Longest	Type of the read request that waits the longest in a graph instance. Refer to Table 3 to find the corresponding task name.	≥ 1 Value type: Int	GES instance	1 minute
ges011_read_task_running_queue_size	Length of the Running Queue for Read Tasks	Length of the running queue for read requests received by a graph instance. This metric is used to view the number of running read requests. Unit: count	≥ 0 Value type: Int	GES instance	1 minute
ges012_read_task_running_max_time	Maximum Running Duration of Read Tasks	Maximum running duration of read requests received by a graph instance Unit: ms	≥ 0 Value type: Int	GES instance	1 minute
ges013_running_max_time_ read_task_type	Type of the Read Task That Runs the Longest	Type of the read request that runs the longest in a graph instance. You can find the corresponding task name in GES documentation.	≥ 1 Value type: Int	GES instance	1 minute
ges014_write_task_pending_queue_size	Length of the Waiting Queue for Write Tasks	Length of the waiting queue for write requests received by a graph instance. This metric is used to view the number of write requests waiting in the queue. Unit: count	≥ 0 Value type: Int	GES instance	1 minute
ges015_write_task_pending_max_time	Maximum Waiting Duration of Write Tasks	Maximum waiting duration of write requests received by a graph instance Unit: ms	≥ 0 Value type: Int	GES instance	1 minute
ges016_pending_max_time_ write_task_type	Type of the Write Task That Waits the Longest	Type of the write request that waits the longest in a graph instance. Refer to Table 3 to find the corresponding task name.	≥ 1 Value type: Int	GES instance	1 minute
ges017_write_task_running_queue_size	Length of the Running Queue for Write Tasks	Length of the running queue for write requests received by a graph instance. This metric is used to view the number of running write requests. Unit: count	≥ 0 Value type: Int	GES instance	1 minute
ges018_write_task_running_max_time	Maximum Running Duration of Write Tasks	Maximum running duration of write requests received by a graph instance Unit: ms	≥ 0 Value type: Int	GES instance	1 minute
ges019 _running_max_time_ write_task_type	Type of the Write Task That Runs the Longest	Type of the write request that runs the longest in a graph instance. You can find the corresponding task name in GES documentation.	≥ 1 Value type: Int	GES instance	1 minute
ges020_computer_resource_usage	Computing Resource Usage	Computing resource usage of each graph instance Unit: %	0-100 Value type: Float	GES instance	1 minute
ges021_memory_usage	Memory Usage	Memory usage of each graph instance Unit: %	0-100 Value type: Float	GES instance	1 minute
ges022_iops	IOPS	Number of I/O requests processed by each graph instance per second Unit: count/s	≥ 0 Value type: Int	GES instance	1 minute
ges023_bytes_in	Network Input Throughput	Data input to each graph instance per second over the network Unit: byte/s	≥ 0 Value type: Float	GES instance	1 minute
ges024_bytes_out	Network Output Throughput	Data sent to the network per second from each graph instance Unit: byte/s	≥ 0 Value type: Float	GES instance	1 minute
ges025_disk_usage	Disk Usage	Disk usage of each graph instance Unit: %	0-100 Value type: Float	GES instance	1 minute
ges026_disk_total_size	Total Disk Size	Total data disk space of each graph instance Unit: GB	≥ 0 Value type: Float	GES instance	1 minute
ges027_disk_used_size	Disk Space Used	Used data disk space of each graph instance Unit: GB	≥ 0 Value type: Float	GES instance	1 minute
ges028_disk_read_throughput	Disk Read Throughput	Data volume read from the disk in a graph instance per second Unit: byte/s	≥ 0 Value type: Float	GES instance	1 minute
ges029_disk_write_throughput	Disk Write Throughput	Data volume written to the disk in a graph instance per second Unit: byte/s	≥ 0 Value type: Float	GES instance	1 minute
ges030_avg_disk_sec_per_read	Average Time per Disk Read	Average time used each time when the disk of a graph instance reads data Unit: second	≥ 0 Value type: Float	GES instance	1 minute
ges031_avg_disk_sec_per_write	Average Time per Disk Write	Average time used each time when data is written to the disk of a graph instance Unit: second	GES instance	GES instance	1 minute
ges032_avg_disk_queue_length	Average Disk Queue Length	Average I/O queue length of the disk in a graph instance Unit: count	≥ 0 Value type: Int	GES instance	1 minute

Dimensions

**Table 2** Dimensions
Key	Value
instance_id	GES instance

Mapping Between Task Types and Names

**Table 3** Mapping table
Type	Name
100	Querying a vertex
101	Creating a vertex
102	Deleting a vertex
103	Modifying a vertex property
104	Adding a vertex label
105	Deleting a vertex label
200	Querying an edge
201	Creating an edge
202	Deleting an edge
203	Modifying an edge property
300	Querying schema details
301	Adding a Label
302	Modifying a Label
303	Querying a Label
304	Modifying a property
400	Querying graph details
401	Clearing graphs
402	Incrementally importing graph data online
403	Creating graphs
405	Deleting graphs
406	Exporting graphs
407	filtered_khop
408	Querying path details
409	Incrementally importing graph data offline
500	Creating a graph backup
501	Restoring a graph from a backup
601	Creating an index.
602	Querying an index
603	Updating an index
604	Deleting an index
700	Running the algorithm
800	Querying an asynchronous task
