IP Address ACL

You can add the IP addresses that are allowed or not allowed to play content to the whitelist or blacklist. CDN allows or rejects the playback requests based on the whitelist or blacklist.

Notes

  • This function is optional and is disabled by default.
  • Whitelisting and blacklisting cannot be used simultaneously.
  • A maximum of 100 IP addresses can be added to a whitelist or blacklist.
  • If the stream push protocol of an ingest domain name is SRT, the configuration page of URL validation and ACL will be invisible. If you want to enable URL validation for an SRT ingest domain name, you can configure CIDR IP Whitelist and Primary Input Decryption Parameters (with Decryption enabled) when creating a channel. For details, see Creating a Channel.

Prerequisites

Procedure

  1. Log in to the Live console.
  2. In the navigation pane, choose Domains.
  3. Click Manage in the Operation column of the desired streaming domain name.

    Set Subservice Type of the domain name to Media Live.

  4. In the navigation pane, choose Basic Settings > Access Control.
  5. Click Edit on the right of IP ACL. The IP ACL dialog box is displayed.
  6. Toggle on the Status switch to configure related parameters, as shown in Figure 1.

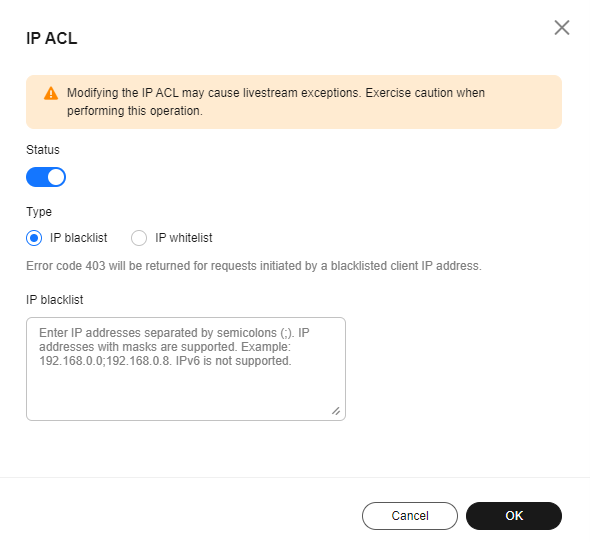

    Figure 1 Configuring an IP address ACL

  7. Select IP blacklist or IP whitelist for Type, and enter an IP address or IP address range. IPv6 is not supported.
  8. Click OK.
