Setting the Properties of the Text Combination Widget

This widget combines fields in the current form in a certain format.

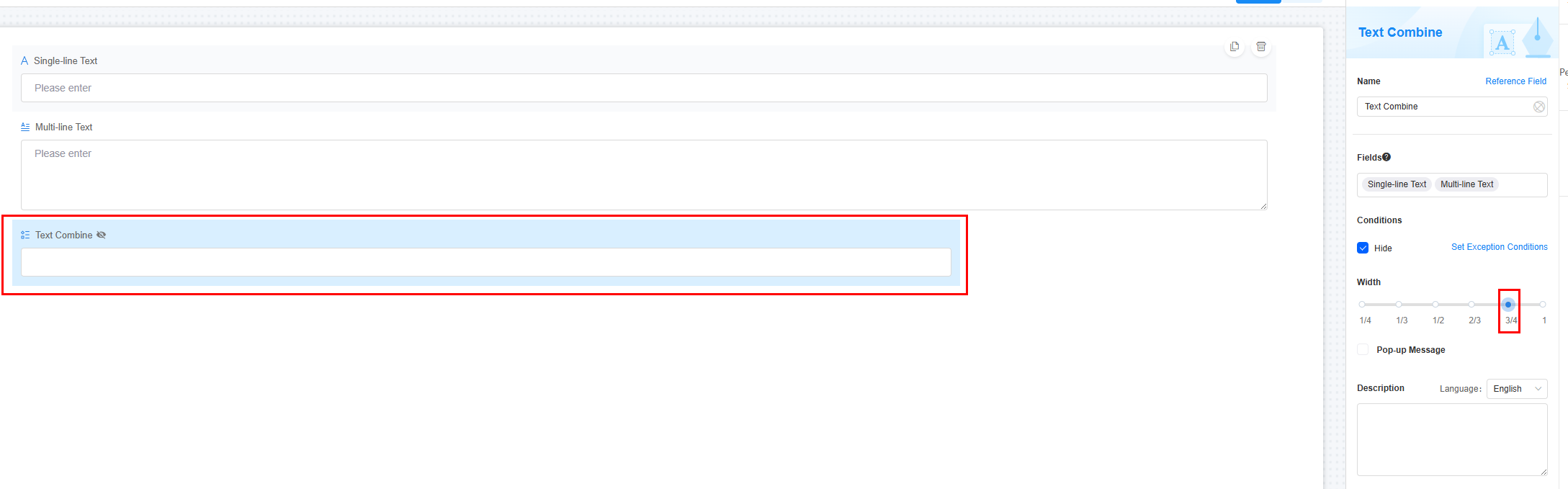

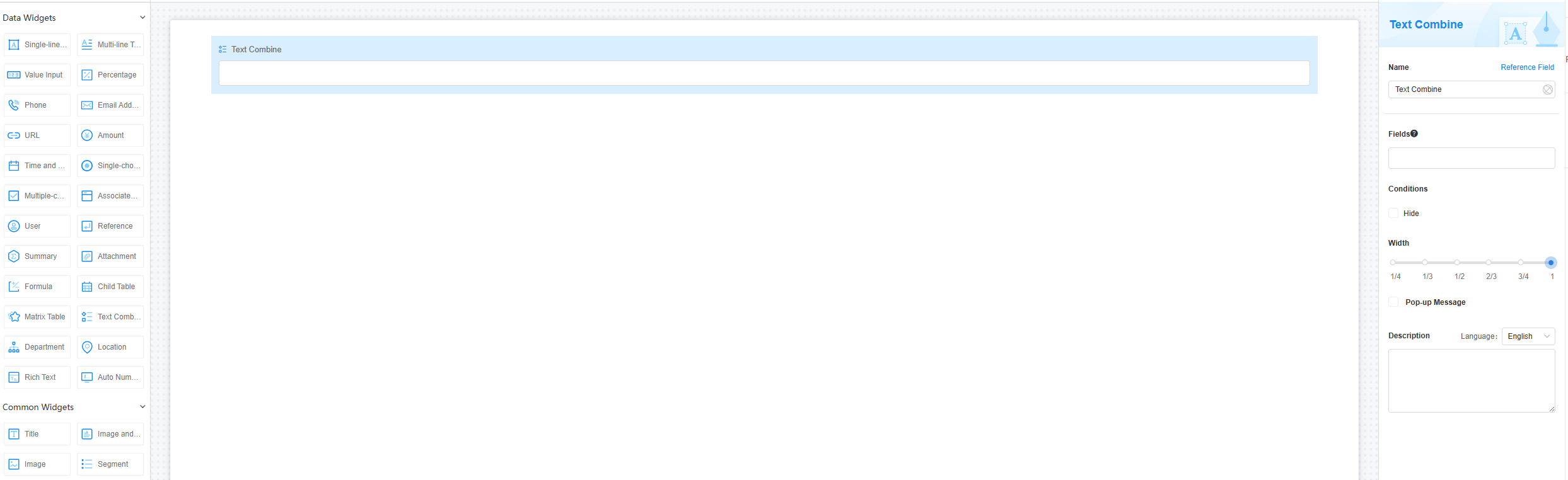

Figure 1 Text combination widget

Name

Set the field name shown to users. Click to set Chinese and English names. Click Reference Field to copy another field's value to this field name.

Figure 2 Setting the field name (Chinese and English)

Fields

Select a field to combine. The total number of fields and separators must not exceed 10.

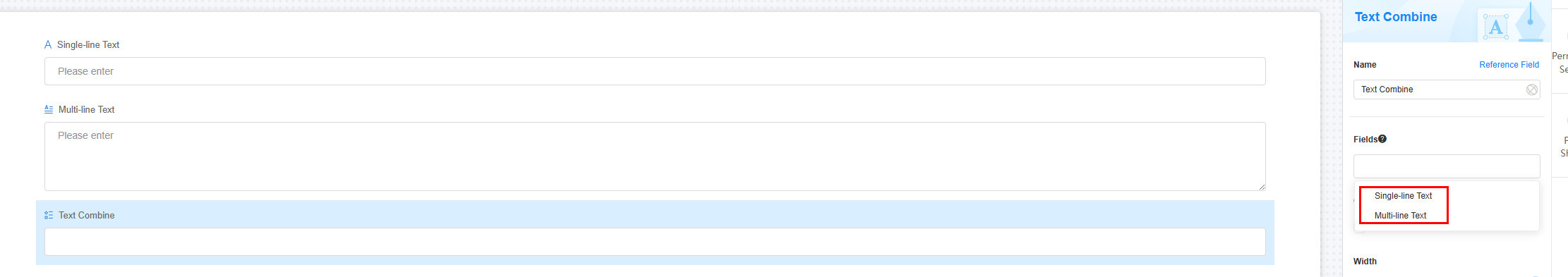

Figure 3 Fields

Conditions

In some cases, you may need to collect fields that users do not need to see or enter manually. These fields can be automatically generated based on field associations and automated tasks. To hide them, check the Hide option.

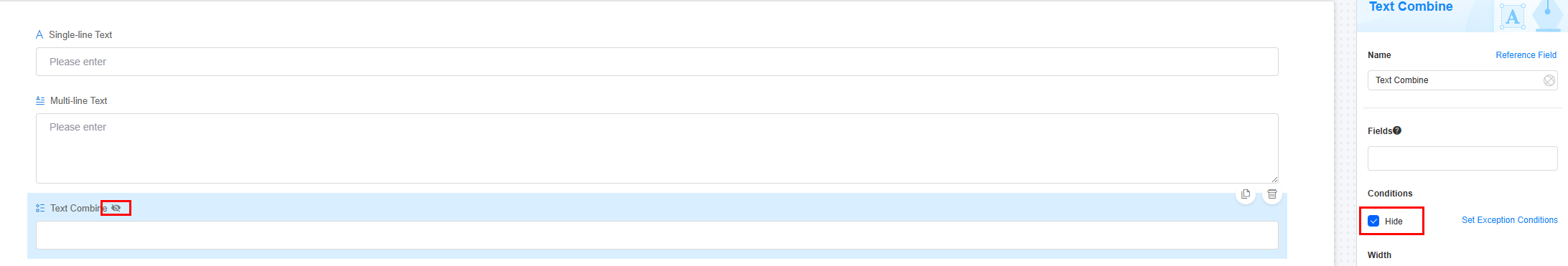

Figure 4 Hiding a field

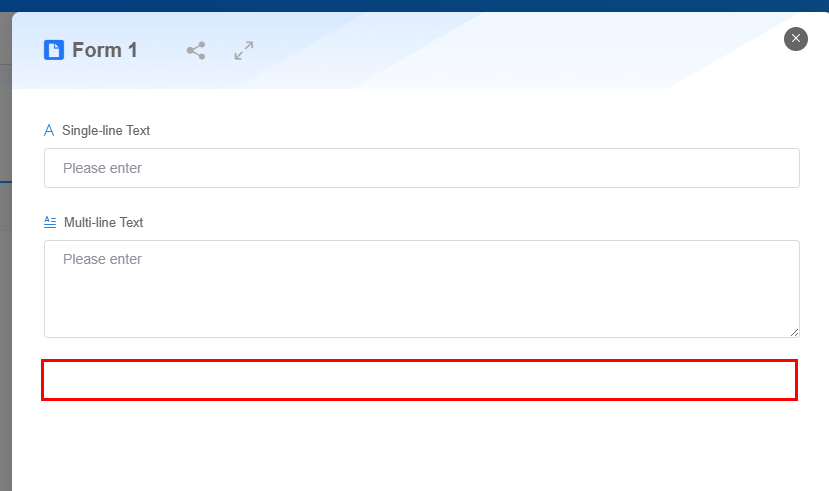

Figure 5 Effect

Width

Width: Widget width as a ratio of the page width. Set the widget width to make the page look better and more professional.

Figure 6 Setting the widget width

Pop-up Message

If a field is unclear, add a Pop-up Message to explain it. This helps users and makes things easier.

After setting, a question mark icon appears next to the field. When filling in the form, click the question mark icon to see the message.

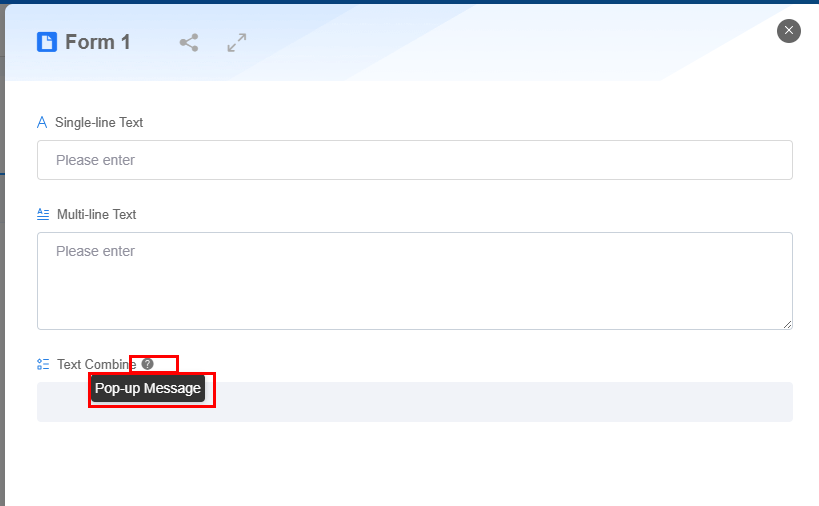

Figure 7 Effect

Description

Set the widget description. Include its functions, use cases, and tips. This helps users understand it better and makes the form clearer.

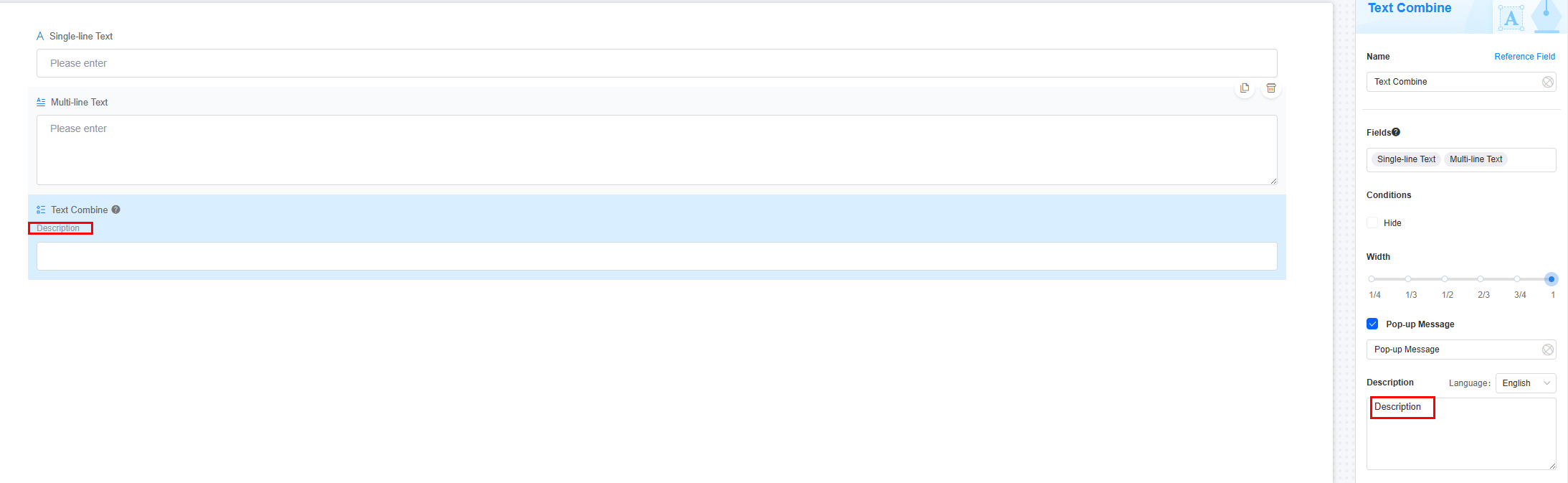

Figure 8 Effect
Parent Topic: Setting Form Widget Properties
