Signing an Image

Scenarios

You can use keys created in Data Encryption Workshop (DEW) to sign images. This will ensure image consistency during distribution and deployment and prevent man-in-the-middle (MITM) attacks or unauthorized image use and updates. An image can be automatically signed based on a policy after it is pushed. Before signing images, create an asymmetric key in Data Encryption Workshop (DEW). Then, create a signature rule, and set parameters. Images will be manually or automatically signed based on the rule.

Constraints

• Only V1.23 and later clusters are supported.
• Only key algorithms listed in Table 1 can be used.
• A repository can have a maximum of 100,000 image tags and a maximum of 300 image tags can be signed per minute. After the verification plug-in is installed, the signatures of a maximum of 300 image tags can be verified per minute.

Prerequisites

You have purchased a repository.

You have purchased a CCE cluster.

Creating an Asymmetric Key

1. Log in to the DEW console.
2. In the navigation pane, choose Key Management Service. Click Create Key in the upper right corner.

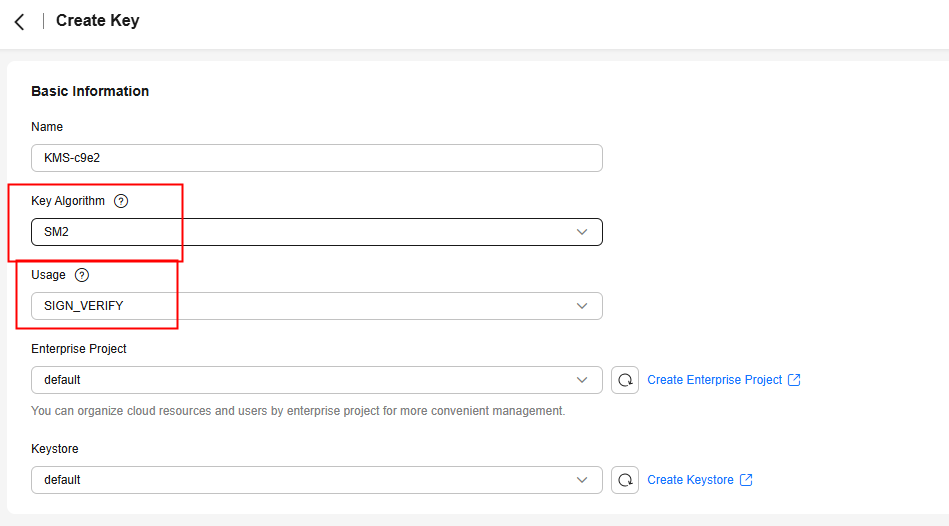

3. In the displayed dialog box, configure the parameters and click OK.

   Asymmetric key algorithms are required by image signatures. So, select an ECC or SM2 algorithm for Key Algorithm and SIGN_VERIFY for Usage. For details, see Table 1. Configure other parameters based on site requirements. For details, see Creating a Key.



   Table 1 Key algorithms supported by SWR

   Key	Algorithm	Specifications	Description	Used For
   Asymmetric	ECC	EC_P256 ECDSA_SHA_256 EC_P384 ECDSA_SHA_384	NIST Elliptic Curve Cryptography (ECC)	Creating digital signatures
   Asymmetric	SM2	SM2	SM2 asymmetric key	Encrypting and decrypting a small amount of data, or creating digital signatures

Creating a Signing Policy

1. Log in to the SWR console. In the upper left corner, switch to your region. Click a repository name to go to its details page.
2. In the navigation pane, choose Image Signature.
3. Click Create Signing Policy in the upper right corner.
4. In the displayed dialog box, configure the parameters.

   Table 2 Parameter description

   Parameter	Description	Example
   Name	Policy name.	SignatureRule
   Namespace	Select the namespace where the image is.	library
   Application Scope	Image: Image name. By default, a regular expression is used to match images. Alternatively, you can click to select images. The regular expression can be nginx-* or {repo1, repo2}. *: matches any field that does not contain the path separator /. **: matches any field that contains the path separator /. ?: matches any single character except /. {option 1, option 2, ...}: matches any of the options. Tag: image tag. A regular expression is used.	nginx-*: matches images starting with nginx-.
   Signing Method	Select KMS.	KMS
   Signature Key	Select the key created in Creating an Asymmetric Key. Note the following: If the algorithm is not supported, it cannot be selected. If the key usage is not SIGN_VERIFY, the key cannot be selected. If the key status is not Enabled, the key cannot be selected.	key1
   Trigger Mode	Manual: You need to manually trigger image signing. Event + manual: When a new image is pushed to a repository and the image matches the regular expression, image signing will be triggered.	Event + manual
   Description	Enter a description for the policy.	-

   Figure 1 Creating a signing policy


5. Click OK.

Verifying Image Signing

Log in to the SWR console. In the navigation pane, choose Enterprise Edition. Click a repository name to go to its details page. Choose Image Signature. Create a signing policy and execute it. After the execution is successful, go to the Image Repositories page. Click the signed image. The attachment in the Artifacts area is the signature file of the image.
