Access Logs

Service meshes collect access logs of all proxies on the data plane and allow users to query the collected access logs. This section describes how to query the collected access logs.

Access logging needs to be enabled for service meshes. For details about how to enable this option, see Enabling a Service Mesh.

Procedure

  1. Log in to the UCS console. In the navigation pane, choose Service Meshes.
  2. Click the name of the target service mesh to go to its details page.
  3. In the navigation pane, choose Monitoring Center > Access Logs. The access log details page is displayed.

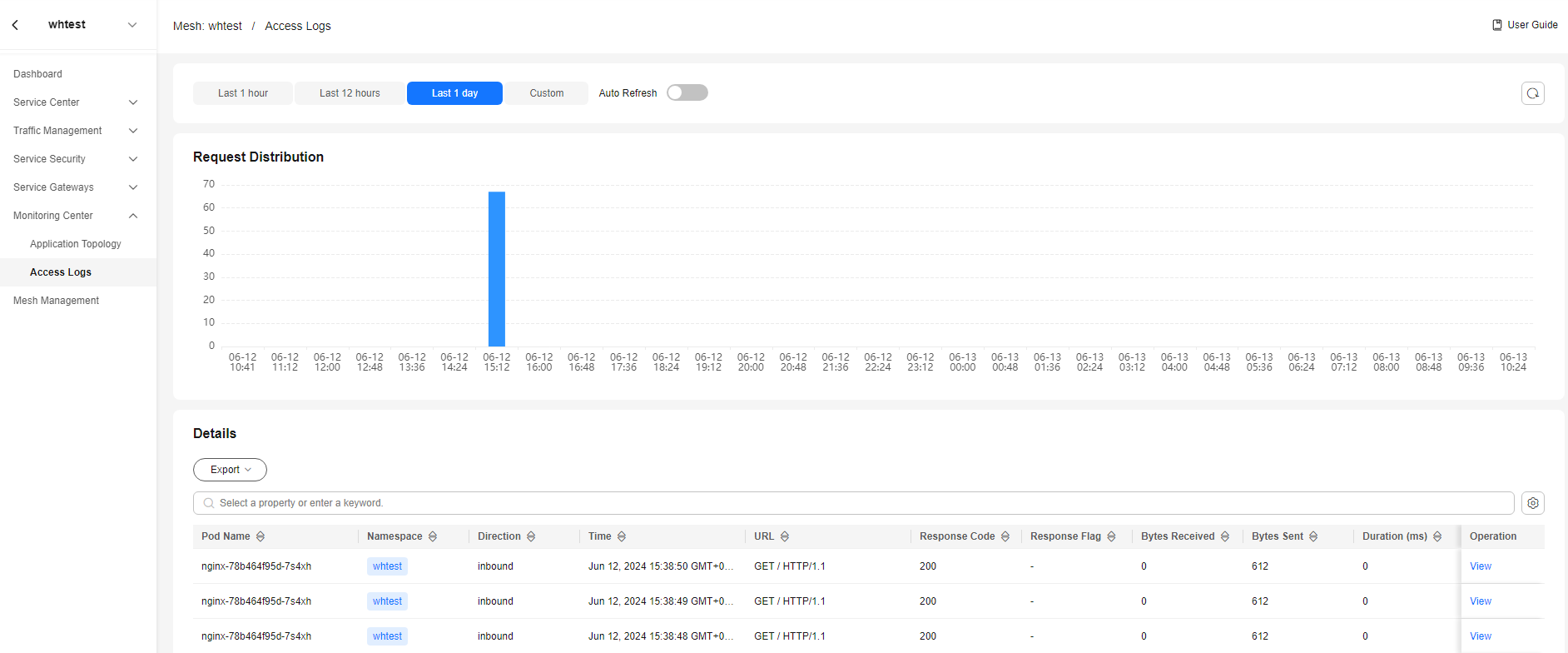

  4. In Request Distribution, click the distribution time button to view the number of requests at different time.

    You cannot set a query time range longer than 31 days.

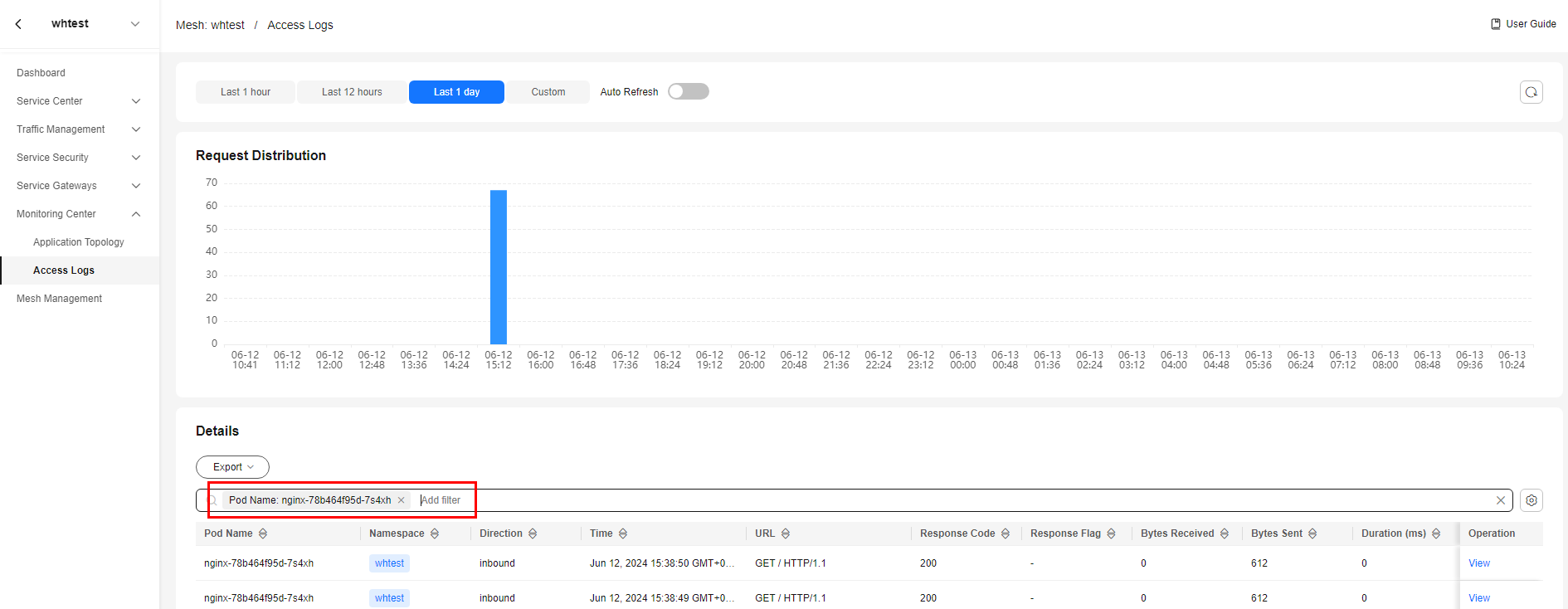

  5. In Details, you can search for access logs by attribute type, for example, instance name.

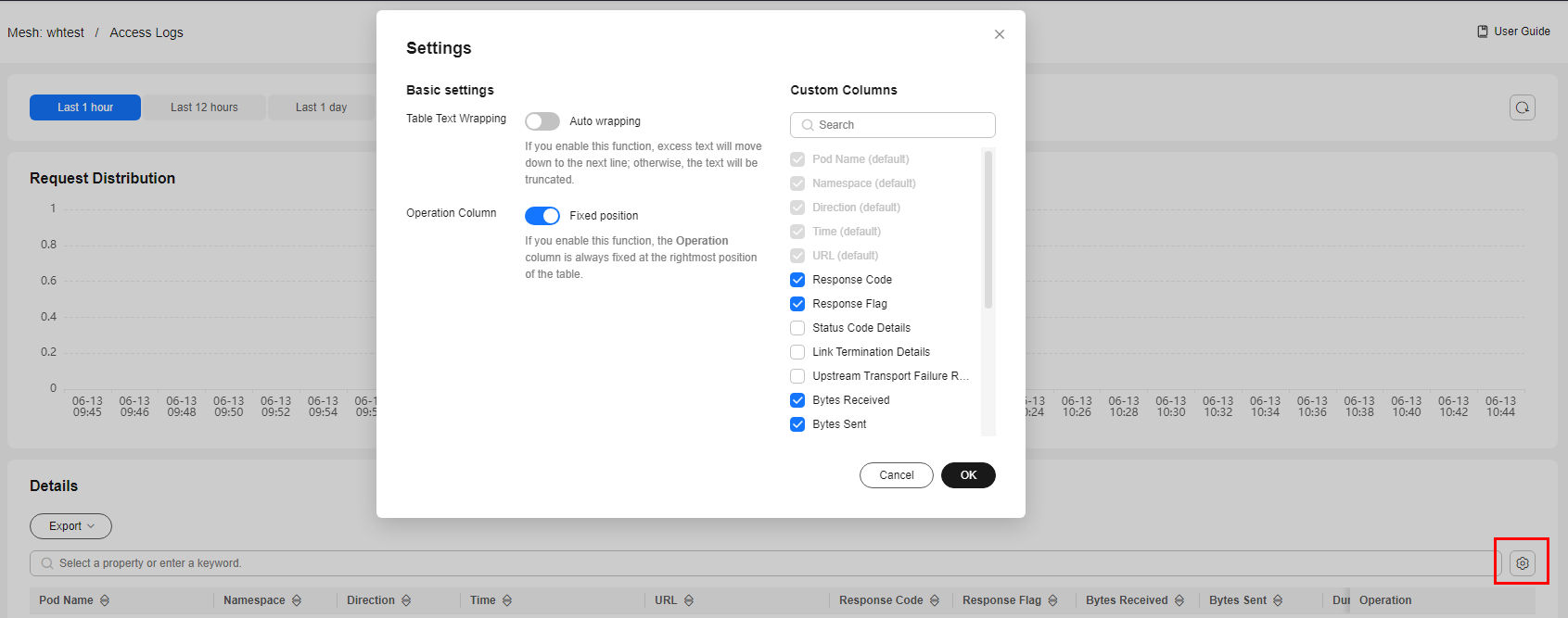

  6. In Details, click the setting button next to the text box. Add custom columns and click OK.

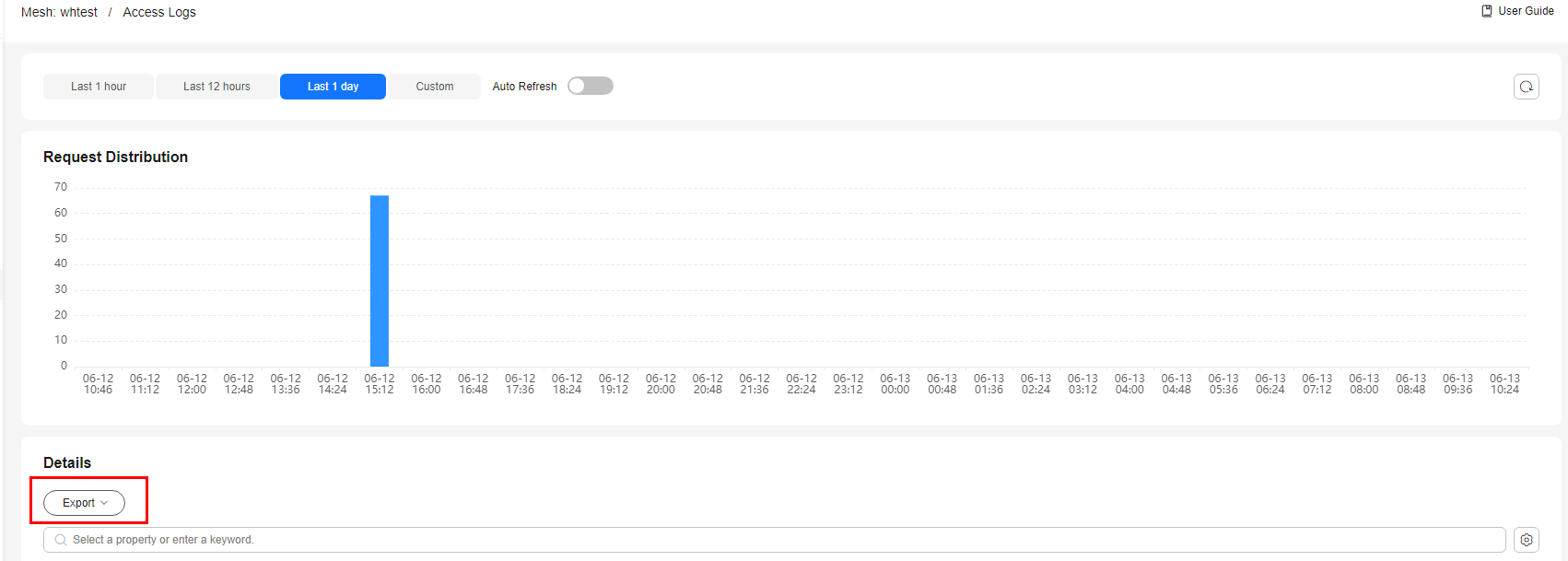

  7. In Details, click Export to export access log details to your local PC.
