Viewing Details About a Standard Dedicated Resource Pool

Updated on 2024-12-26 GMT+08:00

Resource Pool Details Page

  • Log in to the ModelArts console. In the navigation pane on the left, choose AI Dedicated Resource Pools > Elastic Clusters.
  • You can search for the resource pools by name, ID, resource pool status, node status, resource pool type, and creation time.
  • In the resource pool list, click a resource pool to go to its details page and view its information.
    • If there are multiple ModelArts Standard resource pools, click in the upper left corner of the details page of one resource pool to switch between resource pools.
    • For a pay-per-use standard resource pool: On the details page, click More in the upper right corner to scale in/out, delete a resource pool, change the billing mode to yearly/monthly, and perform other operations. Operations that can be performed vary depending on resource pools.
    • For a yearly/monthly standard resource pool: On the details page, click More in the upper right corner to perform operations such as scale-out, unsubscription, renewal, auto-renewal enabling or modification, driver upgrade, and job type setting. Operations that can be performed vary depending on resource pools.
    • In the Network area of Basic Information, you can click the number of resource pools associated to view associated resource pools. You can view the number of available IP addresses on the network.
    • In the extended information area, you can view the monitoring information, jobs, nodes, specifications, tags, and events. For details, see the following section.

Viewing Jobs in a Resource Pool

On the resource pool details page, click Jobs. You can view all jobs running in the resource pool. If a job is queuing, you can view its queuing position.

NOTE:

Only training jobs can be viewed.

Viewing Resource Pool Events

On the resource pool details page, click Events. You can view all events of the resource pool. The cause of an event is PoolStatusChange or PoolResourcesStatusChange.

In the event list, click on the right of Event Type to filter events.

  • When a resource pool starts to be created or becomes abnormal, the resource pool status changes and the change will be recorded as an event.
  • When the number of nodes that are available or abnormal or in the process of being created or deleted changes, the resource pool node status changes and the change will be recorded as an event.
Figure 1 Events

Viewing Resource Pool Nodes

On the resource pool details page, click Nodes. You can view all nodes in the resource pool and the resource usage of each node. Hover the cursor over the node to obtain the node name and resource ID. You can use the resource ID to obtain the bills or query the billing information of yearly/monthly resources in the Billing Center.

Some resources are reserved for cluster components. Therefore, CPUs (Available/Total) does not indicate the number of physical resources on the node. It only displays the number of resources that can be used by services. CPU cores are metered in milicores, and 1,000 milicores equal 1 physical core.

You can delete, unsubscribe from, reset, or restart nodes in batches, or enable or disable HA redundancy for nodes in batches, as shown in the following figure. For details, see Rectifying a Faulty Node in a Standard Dedicated Resource Pool. You can add, edit, and delete resource tags for nodes in batches. You can renew yearly/monthly nodes and enable or modify auto-renewal for them in batches..

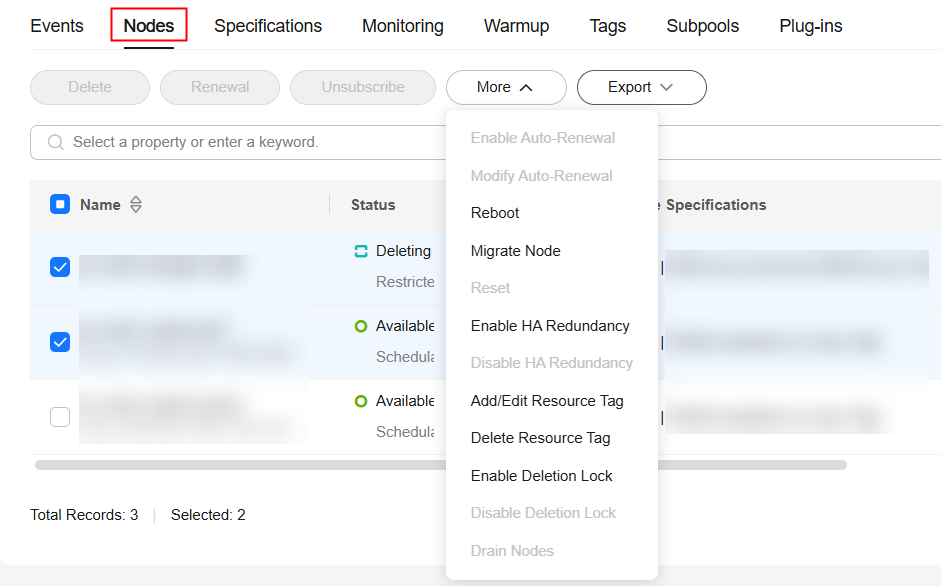

Figure 2 Performing operations on nodes in batches

To delete, replace, rectify, reset, restart, authorize, run the job list, enable HA redundancy, and disable HA redundancy for a single node, locate the target node in the list and click the button in the Operation column. For details, see Rectifying a Faulty Node in a Standard Dedicated Resource Pool. You can also edit resource tags.

Figure 3 Operations on a single node

In the node search box, you can search for nodes by node name, node status, HA redundancy, batch, driver version, driver status, IP address, and resource tag.

You can export the node information of a standard resource pool to an Excel file. Select the node names, click Export > Export All Data to XLSX or Export > Export Part Data to XLSX above the node list, and click in the browser to view the exported Excel files.

On the node list page, click to customize the information displayed in the node list.

Viewing Resource Pool Specifications

On the resource pool details page, click Specifications. You can view the resource specifications used by the resource pool and the number of resources corresponding to the specifications, and adjust the container engine space.

Figure 4 Viewing resource pool specifications

Viewing Resource Pool Monitoring Information

On the resource pool details page, click Monitoring. The resource usage including used CPUs, memory usage, and available disk capacity of the resource pool is displayed. If AI accelerators are used in the resource pool, the GPU and NPU monitoring information is also displayed.

Figure 5 Viewing monitoring metrics
Table 1 Monitoring metrics

Parameter

Description

Unit

Value Range

CPU usage

CPU usage of a measured object

%

0%–100%

Memory usage

Percentage of the used physical memory to the total physical memory

%

0%–100%

Used GPUs

Percentage of the used GPU memory to the total GPU memory

%

0%–100%

Used GPU memory

Percentage of the used GPU memory to the total GPU memory

%

0%–100%

Used NPUs

Percentage of the used NPU memory to the total NPU memory

%

0%–100%

Used NPU Memory

Percentage of the used GPU memory to the total GPU memory

%

0%–100%

Available Disk Capacity (GB)

Available disk capacity of a measured object

MB

≥0

Disk Capacity (GB)

Total disk capacity of a monitored object

MB

≥0

Disk Usage

Disk usage of the monitored object

%

0%–100%

GPU/NPU Fragments

Fragments are generated during resource scheduling. As a result, some cards are idle but cannot be used by multi-card tasks. For tasks with different numbers of cards, fragments vary according to the distribution of occupied cards and vary with time. The table lists only the status at the current time.

/

/

Resource pool tag management

You can add tags to a resource pool for quick search.

On the resource pool details page, click Tags. You can view, search for, add, modify, and delete tags of a resource pool.

NOTE:

You can add up to 20 tags.

Checking the Disk Specifications of a Resource Pool

On the resource pool details page, choose More > Scaling in the upper right corner. On the displayed page, you can view the disk type, size, quantity, write mode, container engine space, and mount path of the system disk, container disk, and data disk.
