Viewing Component Running Metrics

After a component is created and deployed, you can go to its Metric Monitoring Graphs page to view the statistics of component running metrics.

Prerequisites

You have created and deployed a component. For details, see Creating and Deploying a Component.

Procedure

  1. Log in to ServiceStage.
  2. Use either of the following methods to go to the Metric Monitoring Graphs page.

    • On the Application Management page, click the application to which the component belongs, click the target component in Component List, and choose O&M Configurations > Monitoring Overview in the left navigation pane.
    • On the Component Management page, click the target component and choose O&M Configurations > Monitoring Overview in the left navigation pane.

  3. On the Metric Monitoring Graphs page, view the statistics of component running metrics in the last hour at an interval of 1 minute.

    • Click on the component running metric page for which you want to suspend statistics collection.
    • Click on the component running metric page to continue collecting statistics on the running metric.

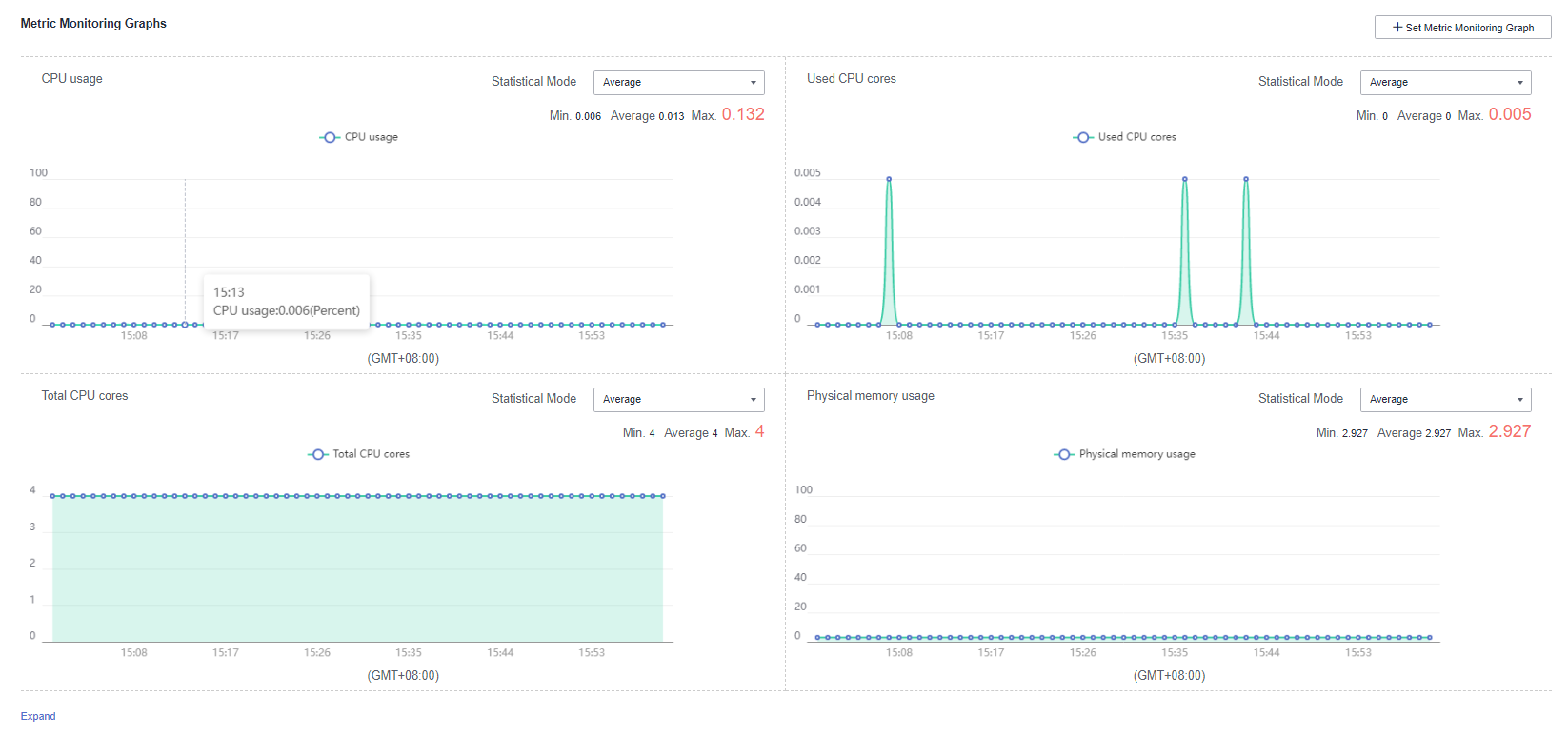

      Figure 1 Metric graph
