ALM-43020 Non-Heap Memory Usage of the IndexServer2x Process Exceeds the Threshold

Description

The system checks the IndexServer2x process status every 30 seconds. The alarm is generated when the non-heap memory usage of the IndexServer2x process exceeds the threshold (95% of the maximum memory).

In MRS 3.3.0-LTS and later versions, the Spark2x component is renamed Spark, and the role names in the component are also changed. For example, IndexServer2x is changed to IndexServer. Refer to the descriptions and operations related to the component name and role names in the document based on your MRS version.

Attribute

Alarm ID

Severity

Auto Clear

43020

Major

Yes

Parameters

Parameter

Description

Source

Specifies the cluster for which the alarm is generated.

ServiceName

Specifies the service for which the alarm is generated.

RoleName

Specifies the role for which the alarm is generated.

HostName

Specifies the host for which the alarm is generated.

Trigger Condition

Specifies the threshold for triggering the alarm.

Impact on the System

If the available IndexServer2x process non-heap memory is insufficient, a memory overflow occurs and the service breaks down.

Possible Causes

The non-heap memory of the IndexServer2x process is overused or the non-heap memory is inappropriately allocated.

Procedure

Check non-heap memory usage.

  1. On FusionInsight Manager, choose O&M > Alarm > Alarms. In the displayed alarm list, choose the alarm for which the ID is 43020, and check the RoleName in Location and confirm the IP address of HostName.
  2. On FusionInsight Manager, choose Cluster > Name of the desired cluster > Services > Spark2x > Instance. Click the IndexServer2x that reported the alarm to go to the Dashboard page. Click the drop-down list in the upper right corner of the chart area, and choose Customize > Memory > IndexServer2x Memory Usage Statistics > OK. Check whether the non-heap memory used by the IndexServer2x process reaches the maximum non-heap memory threshold (95% by default).

    • If the threshold is reached, go to 3.
    • If the threshold is not reached, go to 7.

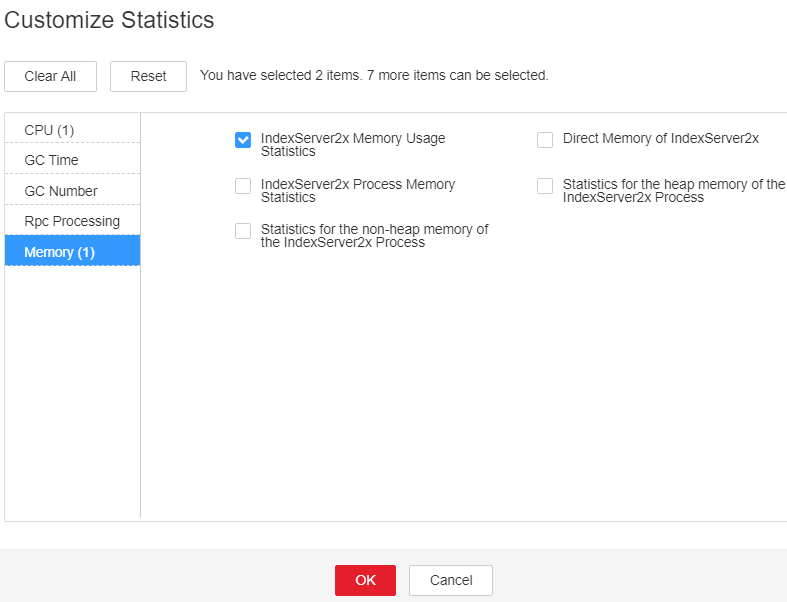

    Figure 1 IndexServer2x Memory Usage Statistics

  3. On FusionInsight Manager, choose Cluster > Name of the desired cluster > Services > Spark2x > Instance. Click the IndexServer2x that reported the alarm to go to the Dashboard page. Click the drop-down list in the upper right corner of the chart area, and choose Customize > Memory > Statistics for the non-heap memory of the IndexServer2x Process > OK. Based on the alarm generation time, check the values of the used non-heap memory of the IndexServer2x process in the corresponding period and obtain the maximum value.

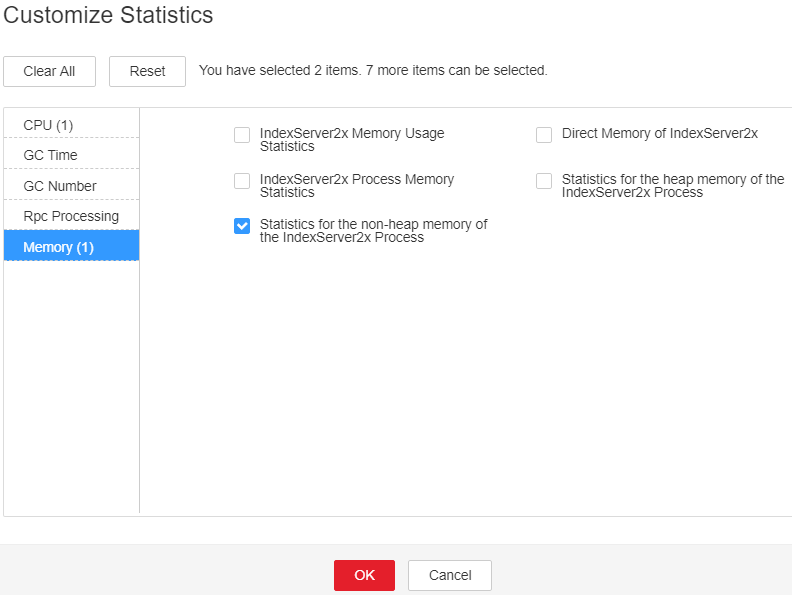

    Figure 2 Statistics for the non-heap memory of the IndexServer2x Process

  4. On FusionInsight Manager, choose Cluster > Name of the desired cluster > Services > Spark2x > Configurations > All Configurations > IndexServer2x> Tuning. You can change the value of XX:MaxMetaspaceSize in the spark.driver.extraJavaOptions parameter based on the ratio of the maximum non-heap memory used by the IndexServer2x process to the threshold specified by IndexServer2x Non-Heap Memory Usage Statistics (IndexServer2x) in the alarm period.

    On FusionInsight Manager, you can choose O&M > Alarm > Thresholds > Name of the desired cluster > Spark2x > Memory > IndexServer2x Non-Heap Memory Usage Statistics (IndexServer2x) to view the threshold.

  5. Restart all IndexServer2x instances.
  6. After 10 minutes, check whether the alarm is cleared.

    • If the alarm is cleared, no further action is required.
    • If the alarm is not cleared, go to 7.

Collect fault information.

  1. On FusionInsight Manager, choose O&M > Log > Download.
  2. Expand the Service drop-down list, and select Spark2x for the target cluster.
  3. Click in the upper right corner, and set Start Date and End Date for log collection to 10 minutes ahead of and after the alarm generation time respectively. Then, click Download.
  4. Contact the O&M personnel and provide the collected logs.

Alarm Clearing

After the fault is rectified, the system automatically clears this alarm.

Reference

None
