ALM-14014 NameNode GC Time Exceeds the Threshold

Updated at: Mar 25, 2021 GMT+08:00

Description

The system checks the garbage collection (GC) duration of the NameNode process every 60 seconds. This alarm is generated when the GC duration exceeds the threshold (12 seconds by default).

This alarm is cleared when the GC duration is less than the threshold.

Attribute

Alarm ID

Alarm Severity

Automatically Cleared

14014

Major

Yes

Parameters

Name

Meaning

Source

Specifies the cluster for which the alarm is generated.

ServiceName

Specifies the service for which the alarm is generated.

RoleName

Specifies the role for which the alarm is generated.

HostName

Specifies the host for which the alarm is generated.

Trigger Condition

Specifies the threshold triggering the alarm. If the current indicator value exceeds this threshold, the alarm is generated.

Impact on the System

A long GC duration of the NameNode process may interrupt the services.

Possible Causes

The heap memory of the NameNode instance is overused or the heap memory is inappropriately allocated. As a result, GCs occur frequently.

Procedure

Check the GC duration.

  1. On the FusionInsight Manager portal, choose O&M > Alarm > Alarms. On the displayed interface, click the drop-down button of ALM-14014 NameNode GC Time Exceeds the Threshold, check the IP address of the instance for which the alarm is generated in Location.

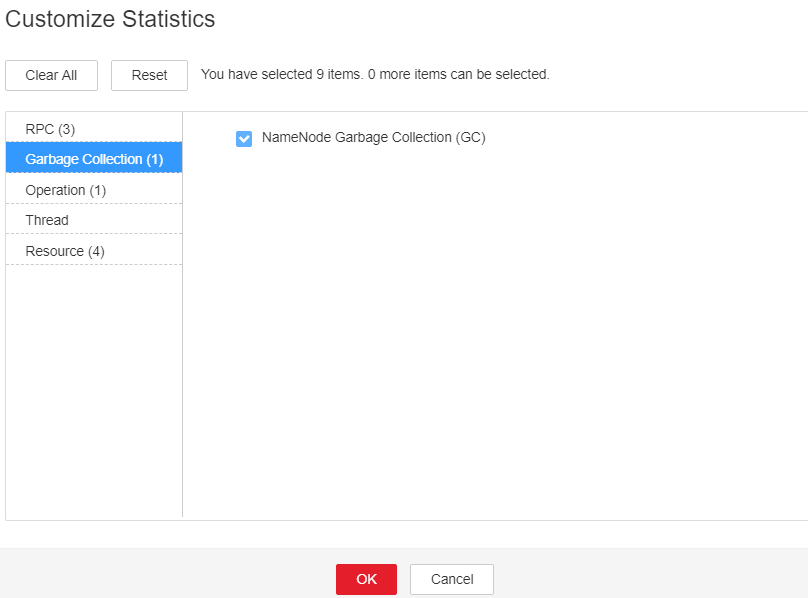

  2. On the FusionInsight Manager portal, choose Cluster > Name of the desired cluster > Services > HDFS > Instance > NameNode (IP address for which the alarm is generated). Click the drop-down menu in the upper right corner of Chart, choose Customize > Garbage Collection, and select NameNode Garbage Collection (GC) to check the GC duration statistics of the NameNode process collected every minute.
  3. Check whether the GC duration of the NameNode process collected every minute exceeds the threshold (12 seconds by default).

    • If yes, go to 4.
    • If no, go to 7.

  4. On the FusionInsight Manager portal, choose Cluster > Name of the desired cluster > Services > HDFS > Configurations > All Configurations > NameNode > System to increase the value of GC_OPTS parameter as required.

    The recommended mapping between the number of HDFS file objects (filesystem objects = files + blocks) and the JVM parameters configured for NameNode is as follows:

    • If the number of file objects reaches 10,000,000, you are advised to set the JVM parameters as follows: -Xms6G -Xmx6G -XX:NewSize=512M -XX:MaxNewSize=512M
    • If the number of file objects reaches 20,000,000, you are advised to set the JVM parameters as follows: -Xms12G -Xmx12G -XX:NewSize=1G -XX:MaxNewSize=1G
    • If the number of file objects reaches 50,000,000, you are advised to set the JVM parameters as follows: -Xms32G -Xmx32G -XX:NewSize=3G -XX:MaxNewSize=3G
    • If the number of file objects reaches 100,000,000, you are advised to set the JVM parameters as follows: -Xms64G -Xmx64G -XX:NewSize=6G -XX:MaxNewSize=6G
    • If the number of file objects reaches 200,000,000, you are advised to set the JVM parameters as follows: -Xms96G -Xmx96G -XX:NewSize=9G -XX:MaxNewSize=9G
    • If the number of file objects reaches 300,000,000, you are advised to set the JVM parameters as follows: -Xms164G -Xmx164G -XX:NewSize=12G -XX:MaxNewSize=12G

  5. Save the configuration and restart the NameNode instance.
  6. Check whether the alarm is cleared.

    • If yes, no further action is required.
    • If no, go to 7.

Collect fault information.

  1. On the FusionInsight Manager portal, choose O&M > Log > Download.
  2. Select NameNode in the required cluster from the Service.
  3. Click in the upper right corner, and set Start Date and End Date for log collection to 10 minutes ahead of and after the alarm generation time, respectively. Then, click Download.
  4. Contact the O&M personnel and send the collected logs.

Alarm Clearing

After the fault is rectified, the system automatically clears this alarm.

Related Information

None
