Managing Remote Backup Servers

Constraints

Servers that are protected by the HSS WTP edition can perform application WTP-related operations.

Prerequisites

The following servers can be used as remote backup servers:

Huawei Cloud Linux servers whose Server Status is Running and Agent Status is Online

• The remote backup function can be used when the Linux backup server is connected to your cloud server. To ensure a proper backup, you are advised to select a backup server on the same intranet as your cloud server.
• You are advised to use intranet servers least exposed to attacks as the remote backup servers.

Adding a Remote Backup Server

1. Log in to the management console.
2. In the upper left corner of the page, select a region, click , and choose Security & Compliance > Host Security Service.
   Figure 1 Accessing HSS


3. In the displayed dialog box, click Try the new edition to switch to the HSS (New) console.


   • Currently, HSS is available in the following regions: CN South-Guangzhou, CN-Hong Kong, AP-Bangkok, and AP-Singapore.
   • On the HSS (New) console, you can click Back to Old Console in the upper left corner to switch to the HSS (Old) console.

4. Choose Prevention > Web Tamper Protection, click Configure Protection.


   If your servers are managed by enterprise projects, you can select an enterprise project to view or operate the asset and scan information.

   Figure 2 Entering the page for protected directory settings


5. Click Settings under Protected Directory Settings.
   Figure 3 Page for setting a protected directory


6. Click Manage Remote Backup. In the dialog box that is displayed, click Add Backup Server. For details, see Table 1.

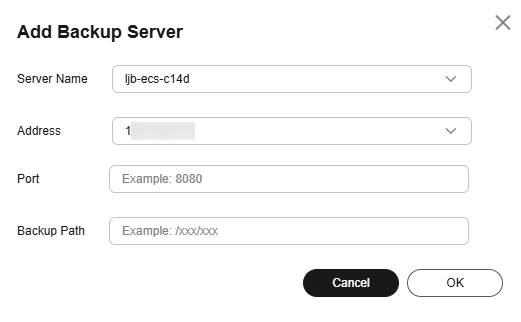

   Figure 4 Adding a remote backup server

   Figure 5 Configuring the backup server


   Table 1 Backup server parameters

   Parameter	Description
   Address	This address is the private network address of the Huawei Cloud server.
   Port	Ensure that the port is not blocked by any security group or firewall or occupied.
   Backup Path	Path of remote backup files. If the protected directories of multiple servers are backed up to the same remote backup server, the data will be stored in separate folders named after agent IDs. Assume the protected directories of the two servers are/hss01 and hss02, and the agent IDs of the two servers are f1fdbabc-6cdc-43af-acab-e4e6f086625f and f2ddbabc-6cdc-43af-abcd-e4e6f086626f, and the remote backup path is /hss01. The corresponding backup paths are /hss01/f1fdbabc-6cdc-43af-acab-e4e6f086625f and /hss01/f2ddbabc-6cdc-43af-abcd-e4e6f086626f. If WTP is enabled for the remote backup server, do not set the remote backup path to any directories protected by WTP. Otherwise, remote backup will fail.

7. Click OK.

Enabling remote backup

1. Log in to the management console.
2. In the upper left corner of the page, select a region, click , and choose Security & Compliance > Host Security Service.
   Figure 6 Accessing HSS


3. In the displayed dialog box, click Try the new edition to switch to the HSS (New) console.


   • Currently, HSS is available in the following regions: CN South-Guangzhou, CN-Hong Kong, AP-Bangkok, and AP-Singapore.
   • On the HSS (New) console, you can click Back to Old Console in the upper left corner to switch to the HSS (Old) console.

4. Choose Prevention > Web Tamper Protection, click Configure Protection.


   If your servers are managed by enterprise projects, you can select an enterprise project to view or operate the asset and scan information.

   Figure 7 Entering the page for protected directory settings


5. Click Settings under Protected Directory Settings.
   Figure 8 Page for setting a protected directory


6. Click Enable Remote Backup and select a remote backup server.

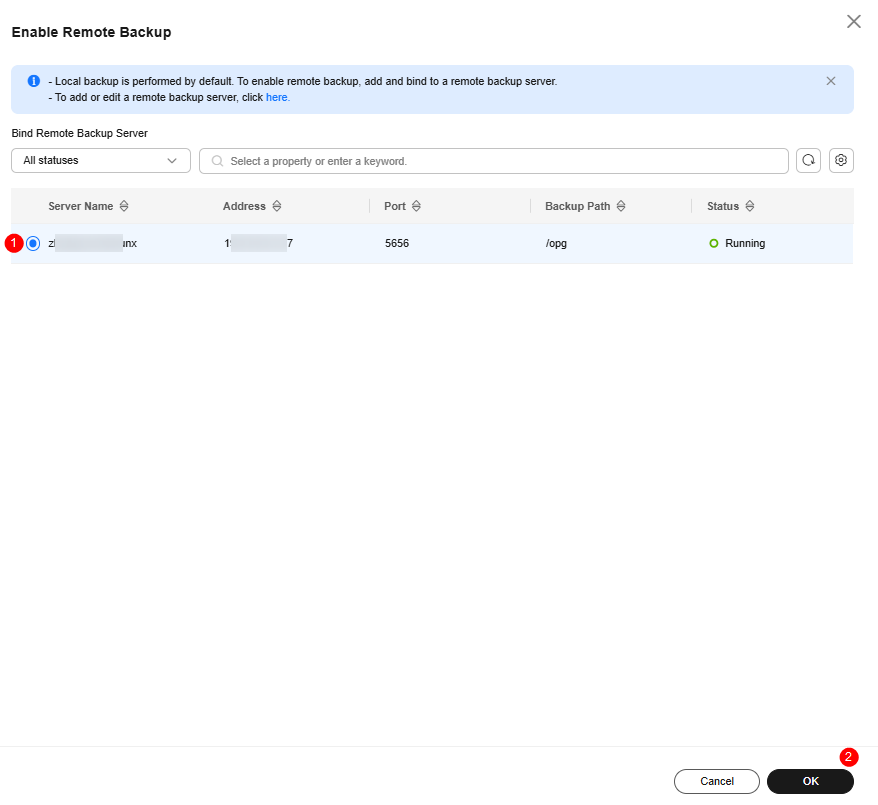

   Figure 9 Setting remote backup


7. Click OK to start remote backup.

Changing a Remote Backup Server

1. Log in to the management console.
2. In the upper left corner of the page, select a region, click , and choose Security & Compliance > Host Security Service.
   Figure 10 Accessing HSS


3. In the displayed dialog box, click Try the new edition to switch to the HSS (New) console.


   • Currently, HSS is available in the following regions: CN South-Guangzhou, CN-Hong Kong, AP-Bangkok, and AP-Singapore.
   • On the HSS (New) console, you can click Back to Old Console in the upper left corner to switch to the HSS (Old) console.

4. Choose Prevention > Web Tamper Protection, click Configure Protection.


   If your servers are managed by enterprise projects, you can select an enterprise project to view or operate the asset and scan information.

   Figure 11 Entering the page for protected directory settings


5. Click Settings under Protected Directory Settings.
   Figure 12 Page for setting a protected directory


6. Click Change Remote Backup Server. Select a remote backup server from the drop-down list.
   Figure 13 Changing a remote backup server


7. Click OK.

Follow-Up Procedure

Disabling remote backup

Exercise caution when performing this operation. If remote backup is disabled, HSS will no longer back up files in your protected directories.
