Changing the Security Group of a Graph

Change the security group for a created graph.

The procedure is as follows:

1. Log in to the GES management console. In the navigation pane on the left, choose Graph Management.
2. On the displayed page, select the graph for which you want to change the security group. The graph information is displayed in the lower part of the page.

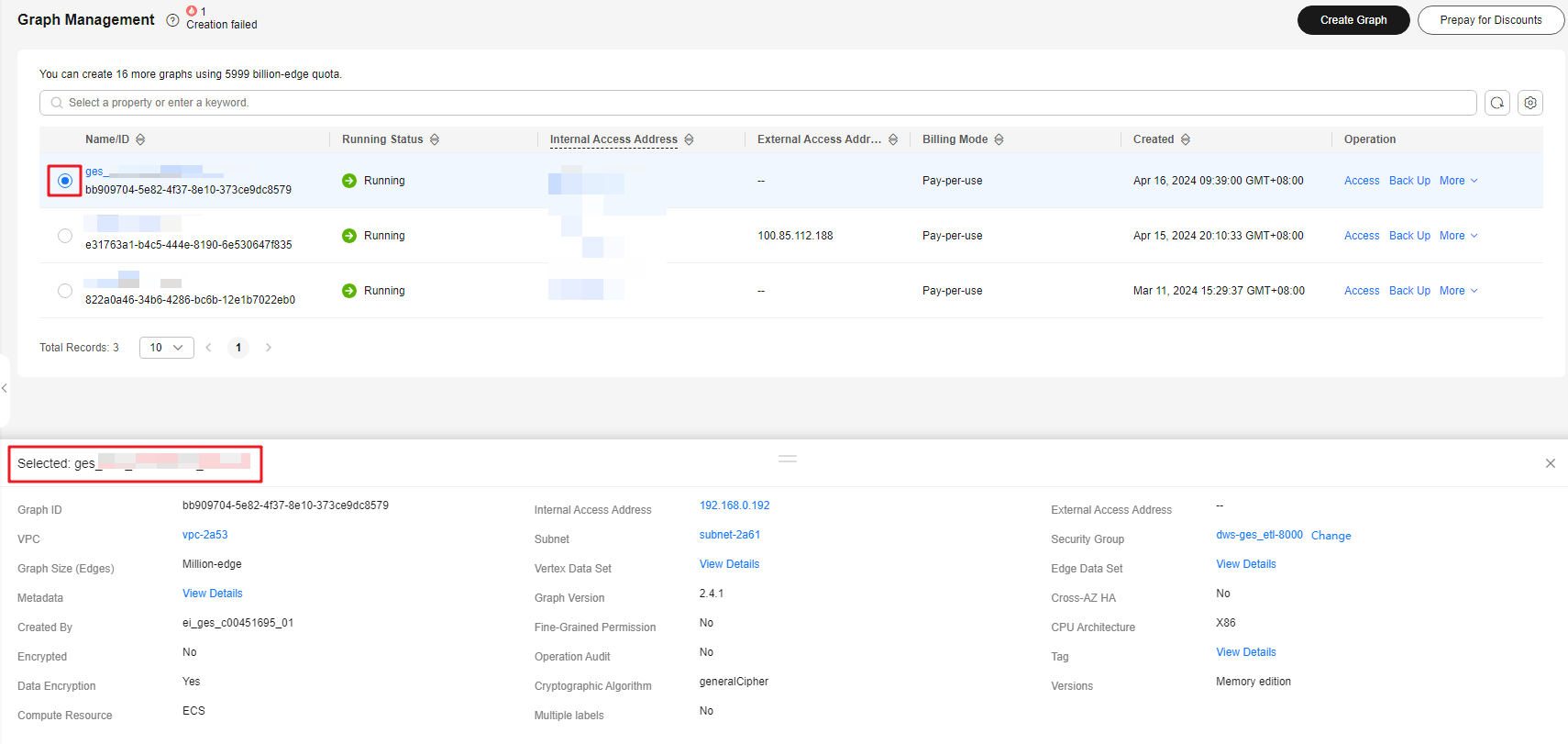

   Figure 1 Graph details page

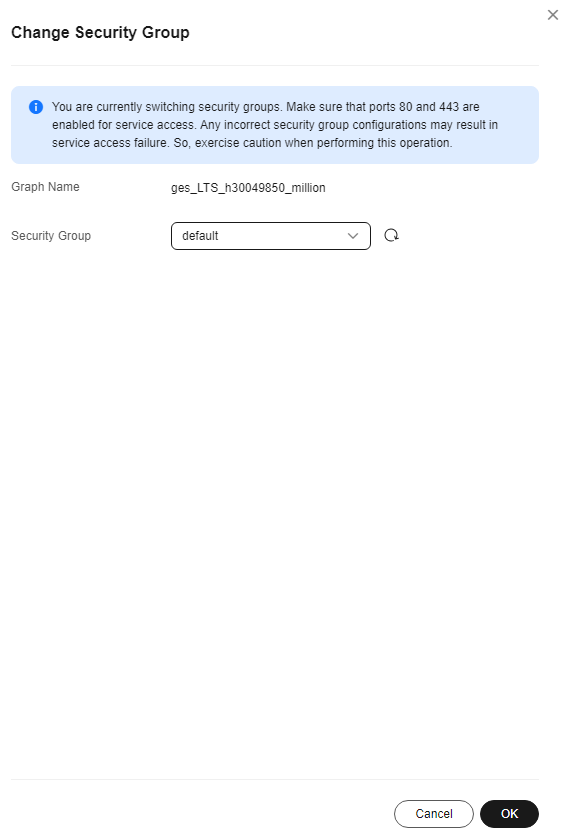

3. In the graph details, you can check the security group of the current graph. Click Change. In the displayed Change Security Group slide-out panel, select another security group.



4. Click OK.
