Data Storage Insights

Scenarios

GaussDB lets you monitor key storage metrics for your instance components, including used data disk space, disk usage rate, Xlog size, and detailed storage information for database tables.

Constraints

The DB engine version of GaussDB instances must be V2.0-3.208.0 or later.

Precautions

• Only one database can be selected at a time in the All Databases area to view table statistics.
• Statistics on tables of system users are not collected.
• Only schemas that contain at least one table are included in the collection.
• When you change the deployment model of an instance or add shards, data migration and redistribution will occur. Use this feature after those operations are fully completed.
• The value provided in the Available days of storage field is an estimate. Actual available days may vary due to workload changes.

Viewing the Instance Storage Overview

1. Log in to the management console.
2. Click in the upper left corner and select a region and project.
3. Click in the upper left corner of the page and choose Databases > GaussDB.
4. On the Instances page, click the name of the target instance to go to the Basic Information page.
5. Choose Diagnostics and Optimization > Data Storage Insights.

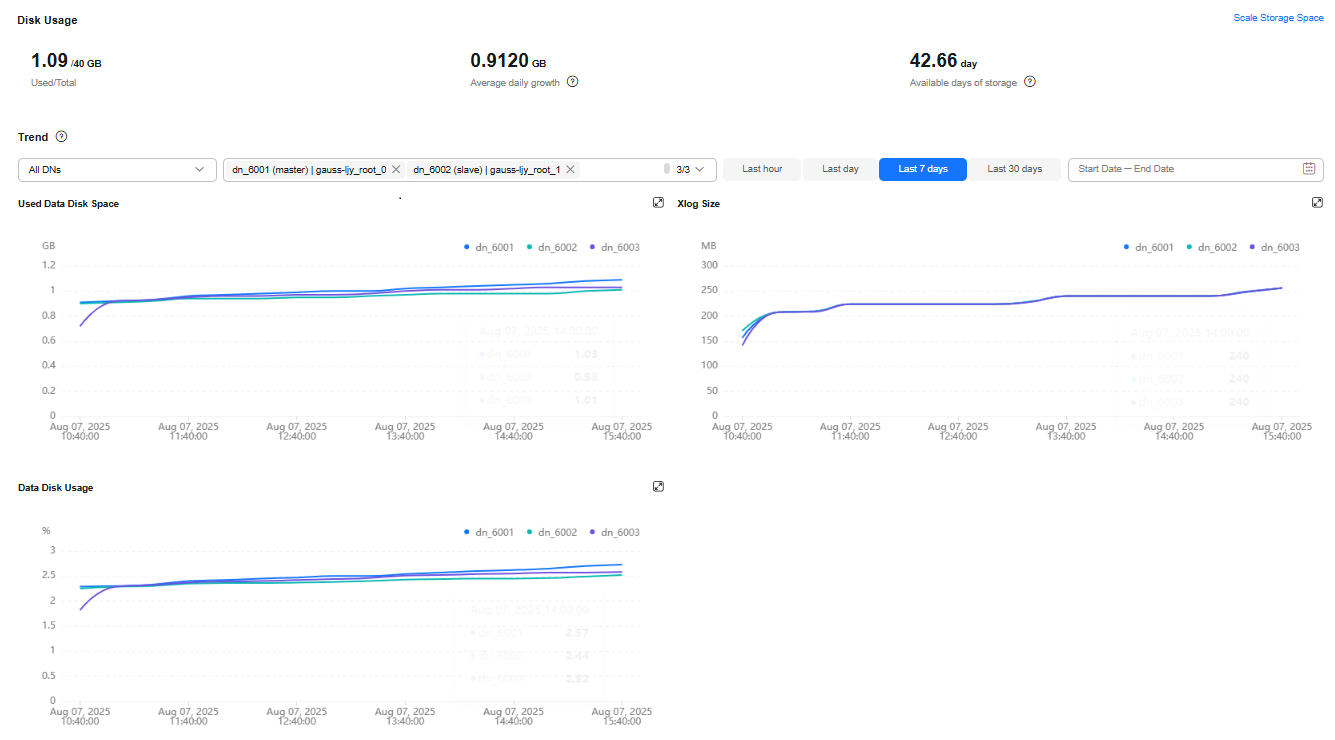

6. In the Disk Usage area, review the data disk usage of the instance.

   Table 1 Metric description

   Metric	Description
   Used/Total	This metric displays the amount of data disk space currently used and the total available capacity for the nodes of the monitored object.
   Average daily growth	This value indicates the average daily increase in stored data over the past 7 days.
   Available days of storage	The value provided here is an estimate. Actual available days may vary due to workload changes. Available days of storage = (Total instance storage – Used capacity)/Average daily growth

7. Select the instance components, nodes, and time range to view the metric data of the corresponding components and nodes.
   Figure 1 Trends


   Table 2 Metric description

   Metric	Description
   Used Data Disk Space	Real-time used data disk size of the selected nodes
   Data Disk Usage	Real-time data disk usage of the selected nodes
   Xlog Size	Real-time size of Xlogs in the data directory on a CN or DN

Viewing Database Table Data

1. Log in to the management console.
2. Click in the upper left corner and select a region and project.
3. Click in the upper left corner of the page and choose Databases > GaussDB.
4. On the Instances page, click the name of the target instance to go to the Basic Information page.
5. Choose Diagnostics and Optimization > Data Storage Insights.

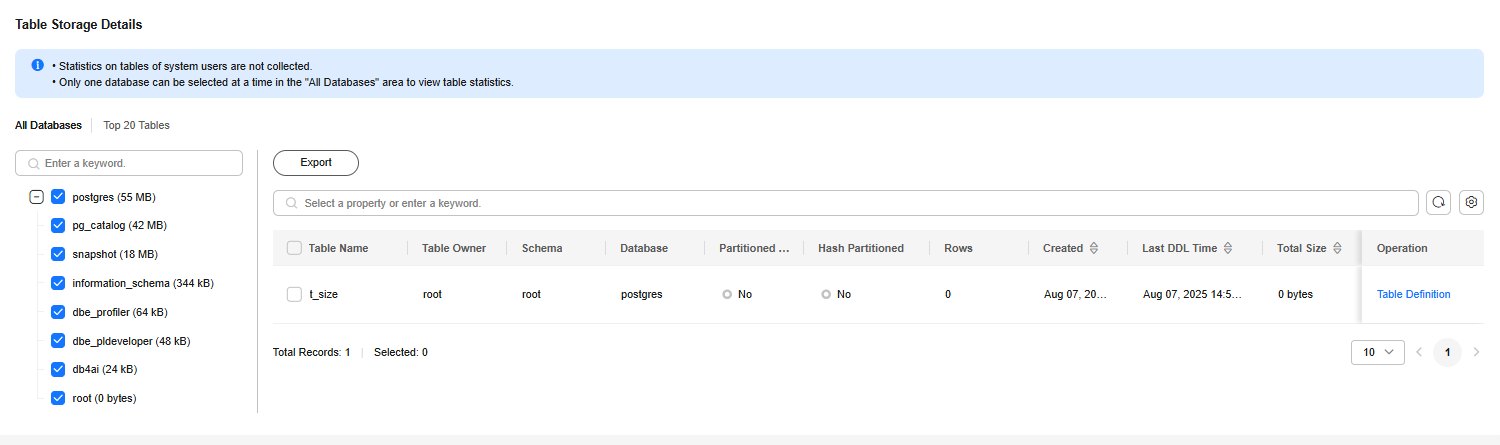

6. Scroll down to the Table Storage Details area. On the All Databases tab, click next to the target database to expand its schemas. Then, select one or more schemas to view corresponding table statistics on the right.
   Figure 2 Database table information


   You can also click Top 20 Tables to view statistics of the 20 largest tables among all databases.

   Table 3 Field description

   Field	Description
   Table Name	Table name.
   Table Owner	Owner of the table.
   Schema	Name of the schema the table belongs to.
   Database	Name of the database the table belongs to.
   Partitioned Table	Whether the table or index has the property of a partitioned table.
   Hash Partitioned	Whether the table contains a hash-partitioned column.
   Rows	Number of rows in the table.
   Created	Creation time.
   Last DDL Time	Last time when a DDL operation is performed.
   Total Size	Table size.
   Avg. Size per DN	The ideal evenly-distributed size of a table on each DN. Avg. Size per DN = Total table size/Number of DNs This field is only available for distributed instances.
   Max DN Size	Ratio of the maximum table size on a single DN to the total table size. Max DN Size = Maximum size occupied by a table on a single DN/Total table size This field is only available for distributed instances.
   Min DN Size	Ratio of the minimum table size on a single DN to the total table size. Min DN Size = Minimum size occupied by a table on a single DN/Total table size This field is only available for distributed instances.
   Total Data Skew	Table skew. Total Data Skew = Maximum size occupied by a table on a single DN – Minimum size occupied by a table on a single DN This field is only available for distributed instances.
   Data Skew Rate	Table skew rate. Data Skew Rate = Total data skew/Total table size This field is only available for distributed instances.
   Data Distribution Standard Deviation	Standard deviation of table distribution. (For two tables of the same size, a larger deviation indicates a more severe skew.) This field is only available for distributed instances.

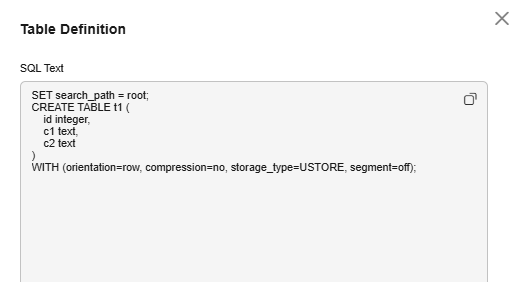

7. Click Table Definition in the Operation column to view the table definition.
   Figure 3 Table definition
