Creating Summary Tables

Prerequisites

A dimension, a dimension table, a fact table, and a derivative metric have been created, published, and reviewed.

Creating and Publishing a Summary Table

1. On the DataArts Studio console, locate an instance and click Access. On the displayed page, locate a workspace and click DataArts Architecture.
   Figure 1 DataArts Architecture


2. On the DataArts Architecture page, choose Models > Dimensional Modeling in the left navigation pane. On the displayed page, click the Summary Tables tab.
3. Select a subject from the subject tree on the left and click Create.
4. On the Create Summary Table page, perform the following operations:
   1. Set the parameters in the Basic Settings area.
      Figure 2 Basic Settings area


      Table 1 Parameters in the Basic Settings area

      Parameter	Description
      *Subject	Select a subject catalog (business domain group > business domain > business object) where you can place the summary table.
      *Table Name	The name of the table to create. It must start with letters. Only letters, digits, and the following special characters are allowed: ()-_
      *Table Code	The code of the table to create. Table codes must start with letters. Only letters, numbers, and underscores (_) are allowed.
      *Owner	You can enter an owner name or select an existing owner.
      Advanced Settings	Set custom items to describe the table. The custom items can be viewed in the table details. For example, if you want to identify the source of the table, you can add item source and set its value to the table source information. Then you can view the table source information in the table details.
      *Data Connection Type	The parameter value must be the same as that of the dimension table and fact table.
      *Data Connection Name	It is recommended that the same data connection be used for dimension modeling.
      *Database	The name of the database. Select a database from the drop-down list box.
      Queue	DLI queue. This parameter is available only for DLI data connections.
      Schema	DWS or POSTGRESQL mode. This parameter is displayed only for DWS and POSTGRESQL data connections.
      Table Type	DLI models support the following table types: MANAGED: Data is stored in a DLI table. EXTERNAL: Data is stored in an OBS table. When Table Type is set to EXTERNAL, you must set OBS Path. The OBS path format is /bucket_name/filepath. DWS models support the following table types: DWS_ROW: row-store table. Tables are stored to disk partitions by row. DWS_COLUMN: column-store table. Tables are stored to disk partitions by column. DWS_VIEW: view-store table. Tables are stored to disk partitions by view. The MRS Hive model supports HIVE_TABLE and HIVE_EXTERNAL_TABLE. The MRS Spark model supports HUDI_COW and HUDI_MOR. The PostgreSQL model supports only POSTGRESQL_TABLE. The MRS_CLICKHOUSE model supports only CLICKHOUSE_TABLE. The Oracle model supports only ORACLE_TABLE. The MySQL model supports only MYSQL_TABLE.
      Compression Level	This parameter is available when the data connection type is DWS. The following compression levels are available for different table types: DWS_ROW: NO and YES DWS_COLUMN: NO, LOW, MIDDLE, and HIGH. DWS_VIEW: The compression level is not supported.
      Distributed By	This parameter is displayed only for DWS data connections. Currently, only REPLICATION and HASH are supported. You can select multiple fields. REPLICATION: A full table is stored on each DN. The advantage of this option is that each DN has all the data of a table. During the join operation, data redistribution can be avoided, reducing network overhead. The disadvantage is that each DN retains the complete data of a table, resulting in data redundancy. Generally, this option is recommended for small dimension tables. HASH: If you select this option, you must specify a distribution key for the user table. When a record is inserted, the system performs hash computing based on values in the distribute keys and then stores data on the corresponding DN. In a Hash table, I/O resources on each node can be used during data read/write, which improves the read/write speed of a table. Generally, this option is recommended for large dimension tables (a large dimension table contains over 1 million records).
      * Description	A description of the summary table to create. It allows 1 to 600 characters.

   2. Click the Field Settings tab and configure attributes for the summary table.

      Click Add to add one or more associated attributes, for example, derivative metrics.

      Click Import Field and select From metrics, From dimension attributes, or Import from Data Standard.



      If you select From dimension attributes, you must associate fields with metrics or import fields from metrics before associating fields with dimension attributes or importing fields from dimension attributes.

      Click Audit Data Standard to audit the data standards of the attributes of the summary table. The audit status is .

      Click Associate to associate data standards or security levels with multiple attributes.

      Click Delete to delete data standards or security levels from multiple attributes.

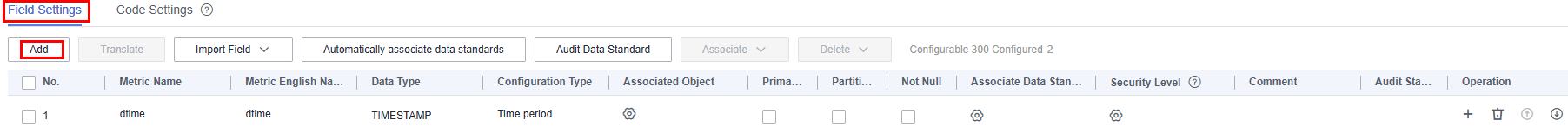

      Figure 3 Configuring attributes


      Table 2 Field parameters

      Parameter	Description
      Name	It must start with letters. Only letters, digits, and the following special characters are allowed: ()-_ The surrogate key name of the added dimension field is displayed automatically. Generally, you do not need to change the name.
      Name (EN)	It must start with letters. Only letters, numbers, and underscores (_) are allowed.
      Data Type	Data type of the field name
      Configuration Type	Configuration type corresponding to the field name, for example, derivative metric.
      Associated Object	Associated object corresponding to the configuration type of the field name, for example, the derivative metric name
      Primary Key	If this parameter is selected, the field is a primary key. NOTE: If an MRS Spark connection is used to connect to MRS Hudi data sources, data can be written to the database only if fields have primary keys. Otherwise, table synchronization fails.
      Partition	If this parameter is selected, the field is a partition field.
      Not Null	Whether the parameter value can be left empty.
      Data Standard	If you have created data standards, click to select one to associate with the field. If Create Data Quality Jobs is selected for Model Design Process on the Function Settings tab page in Configuration Center and a field is associated with a data standard, a quality job is automatically generated after a table is published. A quality rule is generated for each field associated with the data standard. The quality of the field is monitored based on the data standard. You can access the Quality Job page of DataArts Quality to view the job details. If no data standard is available, create one. See Creating Data Standards for details.
      Security Level	You can click to add a security level for the logical entity attribute. If you cannot find the security level you want, click go to to go to the DataArts Security console and create a security level. You can disable this function on the Models tab page on the Configuration Center page.
      Description	Description
      Audit Status	Whether to audit the data standard
      Operation	Related operations

   3. Click the Code Settings tab to view the code generated by the system and format the metric code.

      You can click Generate Code to refresh the generated code, click Copy to Metric Code to copy the code to the metric code, and click Format to format the metric code.

5. Click Publish. In the dialog box displayed, click OK.


   You can choose to publish the summary table to the production or development environment. By default, it is published to the production environment. If you do not choose an environment, the summary table cannot be published.

6. Select a reviewer to approve the summary table.

   After the summary table is approved, it is automatically created in the database.

7. Go back to the summary table list and locate the table just published. View its synchronization status in the Sync Status column. You can switch between the production environment and development environment to view the synchronization result.
   • If the synchronization is successful, the summary table is successfully published and created in the database.
   • If the synchronization failed, choose More > View History in the row where the summary table is located. On the page displayed, click the History tab to view logs. Troubleshoot the problem based on the logs. After the error is rectified, choose More > Synchronize above the summary table list to issue the synchronization command again. If the problem persists, contact technical support personnel.


     You can choose to synchronize the summary table to the production or development environment. By default, it is synchronized to the production environment. If you do not choose an environment, the summary table cannot be synchronized.

Managing a Summary Table

1. On the DataArts Architecture page, choose Models > Dimensional Modeling in the left navigation pane. On the displayed page, click the Summary Tables tab.
   Figure 4 Summary Tables page


2. Manage your summary tables as required. Refer to the following table for details.

   Operation	Helpful Link
   Create	Creating and Publishing a Summary Table
   Edit	3
   Publish	4
   View History	5
   Preview SQL	6
   Suspend	7
   Associate Rule	8
   Delete	9
   Import	10
   Export	11

3. Edit a summary table.
   1. Click Edit to the right of the target summary table.
   2. Edit the summary table as required.
   3. Click Publish.


      You can choose to publish the summary table to the production or development environment. By default, it is published to the production environment. If you do not choose an environment, the summary table cannot be published.

4. Publish a summary table.
   1. Click Publish to the right of the target summary table.
   2. In the Submit for Publication dialog box displayed, select a reviewer from the drop-down list box.


      You can choose to publish the summary table to the production or development environment. By default, it is published to the production environment. If you do not choose an environment, the summary table cannot be published.

   3. Click OK.
5. View the publish history.
   1. Select the target summary table in the list and choose More > View History on the right.
   2. On the page displayed, you can view the publish history and version comparison information of the summary table.

      If the publish log includes error logs, the publishing has failed. You can click Resynchronize to retry.

6. Previewing an SQL statement.
   1. Select the target summary table in the list and choose More > Preview SQL on the right.
   2. On the page displayed, you can view or copy the SQL statement.
7. Suspend a summary table.
   1. Click Suspend to the right of the target summary table.
   2. In the Submit for Suspension dialog box displayed, select a reviewer from the drop-down list box.
   3. Click OK.


      After a summary table is suspended, you can determine how to process APIs based on the actual situation in DataArts DataService. DataArts Architecture does not process the APIs.

8. Associate a summary table with a quality rule.
   1. Select the target summary table in the summary table list and click Associate Rule above the list.
   2. In the Associate Quality Rule dialog box, you can add rules to the fields in the summary table in batches and associate the rules with the fields.
   3. Click OK.
9. Delete a summary table.
   1. Select the target summary table and choose More > Delete above the list.
   2. In the dialog box displayed, click Yes.
10. Import

    You can import summary tables to the system quickly.

    1. Above the summary table list, choose More > Import.
       Figure 5 Import Summary Table

    2. Download the summary table template, and edit and save it.
    3. Choose whether to update existing data.


       If a code in the template already exists in the system, the data is considered duplicate.

       • No: If the data to be imported already exists in the system, the existing data in the system will not be replaced.
       • Yes: If the data to be imported already exists in the system:
         • If the existing data in the system is in draft state, the data will be replaced and new draft data will be generated.
         • If the existing data in the system is in published state, expanded data will be generated.
    4. Click Select File and select the edited template to import.
    5. Click Upload. When the template is uploaded, the Last Import page is displayed. You can view the imported data.
    6. Click Close.
11. Export summary tables.

    You can export summary tables to a local file.

    1. Select the summary tables to export on the Manually Created or Automatically Aggregated page.
    2. Above the summary table list, choose More > Export.


    • You can export all the summary tables of a subject by selecting the subject in the subject list on the left.
    • You can export all the summary tables of a workspace, as long as there are no more than 500 summary tables in the workspace.

Associating a Summary Table with a Quality Rule

1. On the DataArts Architecture page, choose Models > Dimensional Modeling in the left navigation pane.
2. Click the Summary Tables tab.
3. Select the target summary table in the list, and click Associate Rule.
   Figure 6 Associating a summary table with a quality rule

4. On the page displayed, set the parameters. After the configuration is complete, click OK.
   • Update Existing Rule: If this option is selected, the newly added rule will overwrite the old rule.
   • Table Field: This parameter applies to all fields by default. You can enter a regular expression to filter fields as required.
   • WHERE Clause: This parameter can be used to filter fields.
   • Generate Anomaly Data: If this option is selected, anomaly data is stored in the specified database based on the configured parameters.
   • Database/Schema: database or schema that stores anomaly data. This parameter is displayed when Generate Anomaly Data is enabled.
   • Table Prefix: prefix of the table that stores anomaly data. This parameter is displayed when Generate Anomaly Data is enabled.
   • Table Suffix: suffix of the table that stores anomaly data. This parameter is displayed when Generate Anomaly Data is enabled.
   • Add Rule: You can click Add Rule to add a rule. For example, add a rule named Unique value, select the rule, click OK, enter an alarm condition expression in the Alarm Condition text box, add other rules in the same way, and click OK. An example alarm expression is as follows:



   • An alarm condition expression consists of alarm parameters and logical operators. When a quality job is running, the system calculates the result of the alarm condition expression and determines whether to trigger the alarm based on the result of the expression. If the expression result is true, the alarm will be triggered. Otherwise, no quality alarm will be triggered. In the Associate Quality Rule dialog box, the alarm parameters of each quality rule are displayed as buttons.
   Figure 7 Associating a summary table with a quality rule


Associating a Summary Table Field with a Data Standard

1. On the DataArts Architecture page, choose Models > Dimensional Modeling in the left navigation pane.
2. Click the Summary Tables tab.
3. Click the name of the target summary table in the list.
4. In the table field list on the details page of the summary table, search for the target field, click corresponding to the field to configure the association between the field and the data standard.
   Figure 8 Associating a summary table field with a data standard

5. After the configuration is complete, click OK. For details on the sources of data standards, see Creating a Data Standard.
   Figure 9 Associating a data standard


Associating a Single Field with a Quality Rule

1. On the DataArts Architecture page, choose Models > Dimensional Modeling in the left navigation pane.
2. Click the Summary Tables tab.
3. In the summary table list, click the name of the target summary table.
4. In the table field list on the summary table details page, locate the target field and click to associate the field with a quality rule.
   Figure 10 Associating a single table field with a quality rule

5. After the configuration is complete, click OK.
   • Update Existing Rule: If this option is selected, the newly added rule will overwrite the old rule.
   • Add Rule: You can click Add Rule to add a rule. For example, add a rule named Unique value, select the rule, click OK, enter an alarm condition expression in the Alarm Condition text box, add other rules in the same way, and click OK.
   • An alarm condition expression consists of alarm parameters and logical operators. When a quality job is running, the system calculates the result of the alarm condition expression and determines whether to trigger the alarm based on the result of the expression. If the expression result is true, the alarm will be triggered. Otherwise, no quality alarm will be triggered. In the Associate Quality Rule dialog box, the alarm parameters of each quality rule are displayed as buttons.
   Figure 11 Associating a quality rule


Associating Table Fields with a Quality Rule in Batches

1. On the DataArts Architecture page, choose Models > Dimensional Modeling in the left navigation pane.
2. Click the Summary Tables tab.
3. In the summary table list, click the name of the target summary table.
4. In the table field list on the summary table details page, select the target table fields and click Associate Rule.
   Figure 12 Associating fields with a quality rule

5. On the page displayed, add a rule and set the rule parameters.
   • Update Existing Rule: If this option is selected, the newly added rule will overwrite the old rule.
   • Add Rule: You can click Add Rule to add a rule. For example, add a rule named Unique value, select the rule, click OK, enter an alarm condition expression in the Alarm Condition text box, add other rules in the same way, and click OK.
   • An alarm condition expression consists of alarm parameters and logical operators. When a quality job is running, the system calculates the result of the alarm condition expression and determines whether to trigger the alarm based on the result of the expression. If the expression result is true, the alarm will be triggered. Otherwise, no quality alarm will be triggered. In the Associate Quality Rule dialog box, the alarm parameters of each quality rule are displayed as buttons.
   Figure 13 Adding a rule

6. After the configuration is complete, click OK.
