Viewing Cloud Eye Logs

Scenarios

After CTS is enabled, CTS starts recording operations on cloud resources. The CTS management console stores the operation records of the last 7 days.

This section describes how to query or export the last seven days of operation records on the CTS console.

Procedure

1. Log in to the management console.
2. In the upper left corner, select a region and project.
3. Click Service List and choose Management & Deployment > Cloud Trace Service.
4. In the navigation pane on the left, choose Trace List.

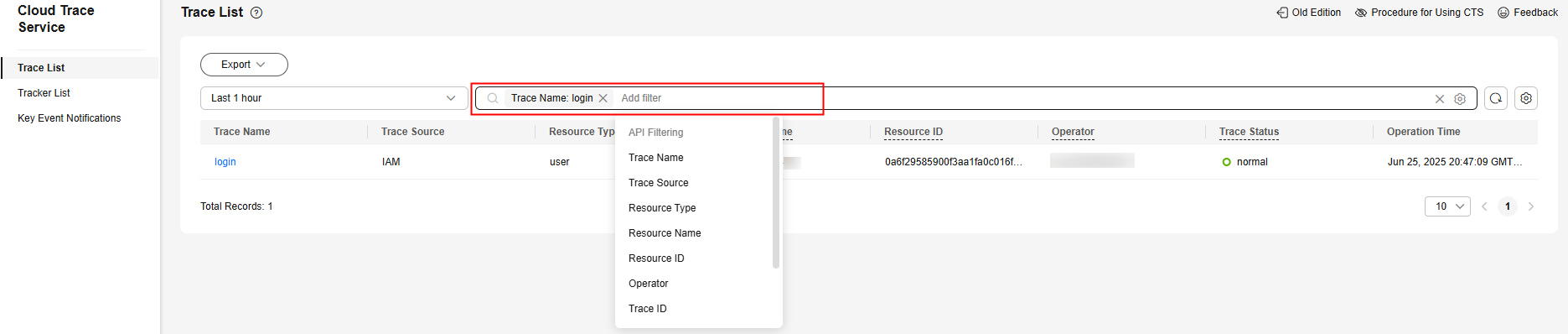

5. Click Filter and specify filters as needed. You can query traces by combining the following filters:
   • Trace Source, Resource Type, and Search By

     Select a filter from the drop-down list.

     After you select Trace name for Search By, you also need to select a trace name.

     After you select Resource ID for Search By, you also need to select or enter a resource ID.

     After you select Resource name for Search By, you also need to select or enter a resource name.

   • Operator: Select a specific operator.
   • Trace Status: Select only one from the four available options: All trace statuses, normal, warning, and incident.
   • Time range: You can select start and end time to query traces generated during the selected time range.
6. Click on the left of a trace to expand its details.

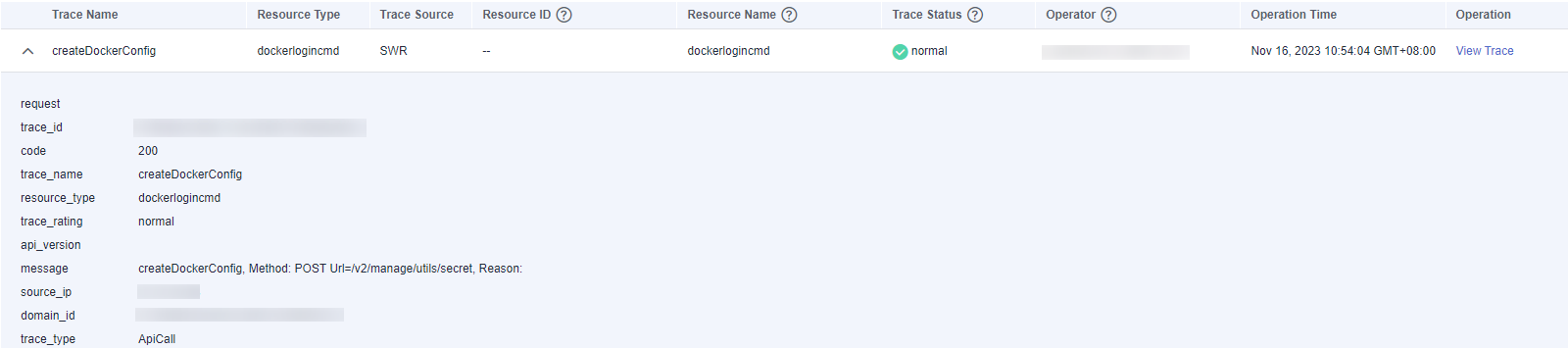

   Figure 1 Expanding trace details

7. Click View Trace in the Operation column. On the displayed View Trace dialog box, view details of the trace.

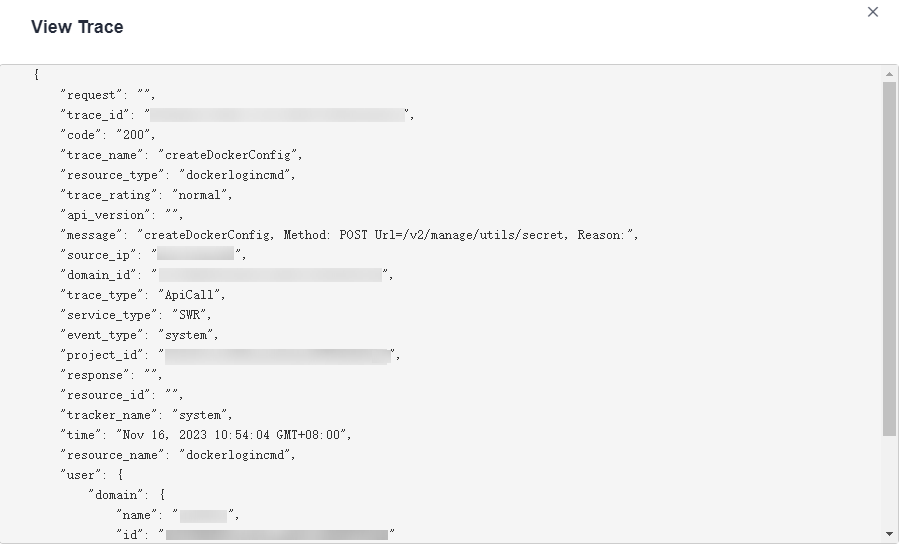

   Figure 2 View Trace
