CCE Secrets Manager for DEW

Introduction

The CCE Secrets Manager for DEW add-on is used to interconnect with Data Encryption Workshop (DEW). This add-on allows you to mount secrets stored outside a cluster (DEW for storing sensitive information) to service pods. In this way, sensitive information can be decoupled from the cluster environment, which prevents information leakage caused by program hardcoding or plaintext configuration. With this add-on, you can enjoy the following capabilities:

  • Mounting secrets: You can mount secrets in DEW to service pods, reducing information leakage risks.
  • Scheduled rotation: After a pod runs normally, if the secret declared in the SecretProviderClass object and stored in CSMS is updated, the latest secret values can be updated to the pod through scheduled rotation. When using this capability, set the secret version to latest.
  • Real-time detection of SecretProviderClass changes: After a pod runs normally, if a user modifies the secret declared in the SecretProviderClass object (for example, a secret is added or the version number is changed), the add-on can detect the change in real time and update the secret to the pod.

Constraints

  • DEW includes Key Management Service (KMS), Cloud Secret Management Service (CSMS), and Key Pair Service (KPS). Currently, the add-on can interconnect only with CSMS.
  • The cluster version must be 1.28.8-r0, 1.31.4-r0 or later. If the cluster version does not meet the requirements, you need to upgrade the cluster.
  • To install this add-on, you need to configure a VPC endpoint for accessing DEW in advance. For details, see Configuring a VPC Endpoint for Accessing DEW.
  • A maximum of 500 SecretProviderClass objects are allowed by this add-on.
  • When the add-on is uninstalled, related CRD resources are deleted accordingly. Even if the add-on is reinstalled, the original SecretProviderClass object is unavailable. If you want to use the original SecretProviderClass resources after the add-on is uninstalled and then reinstalled, manually create them again.

Billing

Operation

Billed Item

Billing Description

Reference

Installing the add-on

N/A

When the add-on is installed, pods for running it are not deployed. There are no expenditures for installing the add-on.

-

Using the add-on

Pod

When a secret in DEW is mounted to a service pod, a DaemonSet is automatically created for deploying the pods that are used to run the add-on. Each service pod is configured with a group of add-on pods. For details about the pod specifications for the add-on, see Table 1.

When a secret in DEW is no longer mounted to a service pod in the cluster, the pods for running the add-on are automatically deleted. The billing will stop when the service pod is stopped. If a secret in DEW is mounted again, the pods for running the add-on will be automatically redeployed.

For details about pod price, see Billing Items of CCE Autopilot Clusters.

Installing the Add-on

  1. Log in to the CCE console and click the cluster name to access the cluster console.
  2. In the navigation pane, choose Clusters > Add-ons. Locate the CCE Secrets Manager for DEW add-on and click Install.
  3. In the Install Add-on dialog box, set Secret Synchronization Period.

    Parameter

    Field in YAML

    Description

    Secret Synchronization Period

    rotation_poll_interval

    Rotation interval, in minutes. The unit is m (not min).

    This is the interval for sending a request to CSMS and obtaining the latest secret. The interval range is 1 to 1440. The default value is 2.

  4. Click Install in the lower right corner. If the status is Running, the add-on has been installed.

Components

Table 1 Add-on components

Component

Description

Resource Type

Resource specifications (single pod)

dew-provider

A component that obtains specified secrets from CSMS and mounts them to the pods

DaemonSet

  • vCPUs: 0.25
  • Memory: 0.5 GiB

csi-secrets-store

A component that maintains two CRDs, SecretProviderClass and SecretProviderClassPodStatus (spcPodStatus). SecretProviderClass is used to describe the required secret (such as the secret version and name). It is created by users and will be referenced in pods. spcPodStatus is used to trace the binding relationships between pods and secrets. It is automatically created by csi-driver and requires no manual operation. One pod corresponds to one spcPodStatus. After a pod is started, a spcPodStatus is generated for the pod. When the pod lifecycle ends, the spcPodStatus is deleted accordingly.

DaemonSet

  • vCPUs: 0.25
  • Memory: 0.5 GiB

Mounting Secrets

To mount a secret in DEW to a container, you need to take the following steps: First, create a ServiceAccount object as the secret for the cluster to access DEW. Then, create a SecretProviderClass object to define and obtain the secret in DEW. Finally, mount the ServiceAccount and SecretProviderClass objects to the service pod to ensure that the pod can securely access the secret. Currently, there are two methods to mount a secret to a pod:

  • Mounting a secret through a volume: Secrets are mounted to containers in the form of volumes. This method is suitable when there is a large amount of data.
  • Mounting a secret created from a secret in DEW: Secrets are mounted to containers as environment variables. This method is suitable when there is only a small amount of sensitive data.

The following describes the processes of the two methods.

  1. Create a ServiceAccount object to declare the name of the secret that can be used by the service pod. Before you take this step, ensure that the corresponding secret exists in CSMS. If the secret does not exist, an error occurs when the secret is obtained from CSMS. As a result, the pod cannot run normally. For details about how to create secrets in CSMS, see Creating a Secret.

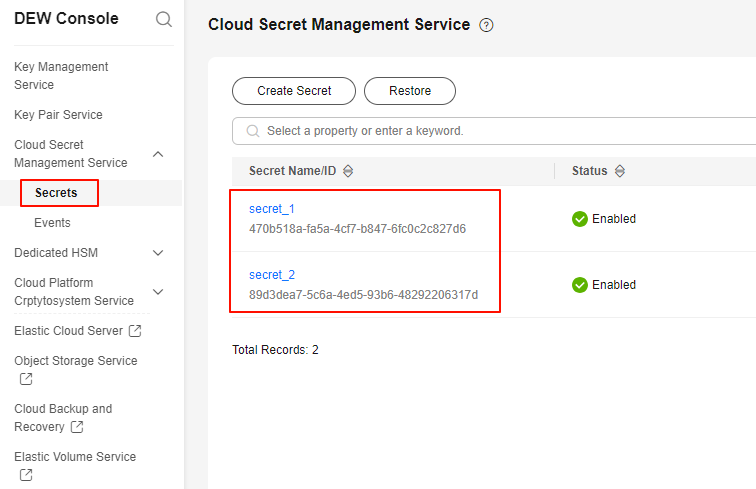

    Figure 1 Secrets in DEW

    1. Create a YAML file for the ServiceAccount object.
      vim serviceaccount.yaml

      The following is the file content. You can declare the secret names that can be used by the service pod in the cce.io/dew-resource field. In this example, secret_1 and secret_2 can be referenced in the service pod. If you reference a secret that is not declared here, the mounting will fail. As a result, the pod cannot run normally.

      apiVersion: v1
      kind: ServiceAccount
      metadata:
        name: nginx-spc-sa
        annotations:
          cce.io/dew-resource: "[\"secret_1\",\"secret_2\"]"  #secrets that allow pod to use
    2. Create the ServiceAccount object.
      kubectl apply -f serviceaccount.yaml

      Information similar to the following is displayed:

      serviceaccount/nginx-spc-sa created
    3. Check whether the ServiceAccount object has been created.
      kubectl get sa

      If the following information is displayed, the ServiceAccount object named nginx-spc-sa has been created and will be referenced in the service pods.

      NAME            SECRETS   AGE
      default         1         18d   # This is the default ServiceAccount object of the system.
      nginx-spc-sa    1         19s   # This is the newly created ServiceAccount object.

  2. Create a SecretProviderClass object to define and manage secrets from DEW so that secrets can be securely mounted to pods in the CCE cluster.

    1. Create a YAML file for the SecretProviderClass object.
      vim secretproviderclass.yaml

      The following is the file content. The parameters.objects field specifies the secrets to be mounted, in array format.

      apiVersion: secrets-store.csi.x-k8s.io/v1
      kind: SecretProviderClass
      metadata:
        name: spc-test
      spec:
        provider: cce     # The value is fixed at cce.
        parameters:
          objects: |
                - objectName: "secret_1"
                  objectAlias: "secret_test"
                  objectVersion: "v1"
                  objectType: "csms"
      Table 2 Parameters in objects

      Parameter

      Type

      Mandatory

      Description

      objectName

      String

      Yes

      Secret name. Set this parameter to the secrets referenced in ServiceAccount. If there are multiple object names defined in the same SecretProviderClass, each value of the objectName parameter must be unique. Otherwise, the mounting fails.

      objectAlias

      String

      No

      File name of the secret written into the container.

      • If this parameter is not specified, the name of the file that the secret is written to the container is objectName by default.
      • If this parameter is specified, the value of objectAlias must be different from that of objectName and of objectAlias of other secrets and its own objectName. Otherwise, the mounting fails.

      objectType

      String

      Yes

      Type of the secret. Only csms is supported. Any value other than csms is invalid.

      objectVersion

      String

      Yes

      Version of the secret.

      • Specify a version, for example, v1 or v2.
      • Use the latest version, for example, latest. If objectVersion is set to latest and the corresponding secret in CSMS is updated, periodic polling is automatically enabled, and the secret will be updated to the pod after the interval specified by rotation_poll_interval.
    2. Create the SecretProviderClass object.
      kubectl apply -f secretproviderclass.yaml

      Information similar to the following is displayed:

      secretproviderclass/spc-test created
    3. Check whether the SecretProviderClass object has been created.
      kubectl get spc

      If the following information is displayed, a SecretProviderClass object named spc-test has been created and will be referenced in subsequent pods.

      NAME   AGE
      spc-test   20h

  3. Create a service pod. In this example, this pod is used to run an Nginx application.

    1. Define a workload, reference the created ServiceAccount object in serviceAccountName, and reference the created SecretProviderClass object in secretProviderClass, specify the mount path of the container in mountPath. (Do not specify special directories such as / and /var/run. Otherwise, the container may fail to be started.)
      vim deployment.yaml

      Example file content:

      apiVersion: apps/v1
      kind: Deployment
      metadata:
        name: nginx-spc
        labels:
          app: nginx
      spec:
        replicas: 1
        selector:
          matchLabels:
            app: nginx
        template:
          metadata:
            labels:
              app: nginx
          spec:
            serviceAccountName: nginx-spc-sa  # Reference the created ServiceAccount for identity authentication of secrets.
            volumes:
              - name: secrets-store-inline
                csi:
                  driver: secrets-store.csi.k8s.io  # Specify the Secrets Store CSI driver. The value is fixed.
                  readOnly: true                       # Set the volume to read-only to ensure that the secret is not modified.
                  volumeAttributes:
                     secretProviderClass: "spc-test" # Reference the created SecretProviderClass.
            containers:
              - name: nginx-spc
                image: nginx:alpine
                imagePullPolicy: IfNotPresent
                volumeMounts:                            # Mount the volume defined above to the container.
                  - name: secrets-store-inline
                    mountPath: "/mnt/secrets-store"  # Define the mount path of secrets in the container.
                    readOnly: true                       # Read-only
            imagePullSecrets:
              - name: default-secret
    2. Create a service pod.
      kubectl apply -f deployment.yaml
      Information similar to the following is displayed:
      deployment/nginx-spc created
    3. Check whether the pod has been created.
      kubectl get pod

      Information similar to the following is displayed:

      NAME                     READY   STATUS   RESTARTS   AGE
      nginx-spc-67c9d5b594-642np     1/1     Running    0            20s
    4. Check whether the specified secret can be written.
      1. Enter the container.
        kubectl exec -ti nginx-spc-67c9d5b594-642np -- /bin/sh
      2. Search for the specified secret.
        cd /mnt/secrets-store/
        ls

        If the following information is displayed, secret_test declared in the SecretProviderClass object has been written to the pod.

        secret_test
      3. Obtain spcPodStatus to check whether the secret has been mounted to the pod.
        Exit the container using Ctrl+d and obtain the spcps resource name.
        kubectl get spcps
        Information similar to the following is displayed:
        NAME                                          AGE
        nginx-spc-67c9d5b594-642np-default-spc-test   103s

        Check whether the secret has been mounted to the pod.

        kubectl get spcps nginx-spc-67c9d5b594-642np-default-spc-test -o yaml

        If the following information is displayed, the secret has been mounted to the pod.

        ......
        status:
        mounted: true
        objects:    # Mounted secret
        - id: secret_test
        version: v1
        podName: nginx-spc-67c9d5b594-642np   # Pod that references the SecretProviderClass object
        secretProviderClassName: spc-test               # SecretProviderClass object
        targetPath: /mnt/paas/kubernetes/kubelet/pods/6dd29596-5b78-44fb-9d4c-a5027c420617/volumes/kubernetes.io~csi/secrets-store-inline/mount

  1. Create a ServiceAccount object to declare the name of the secret that can be used by the service pod. Before you take this step, ensure that the corresponding secret exists in CSMS. If the secret does not exist, an error occurs when the secret is obtained from CSMS. As a result, the pod cannot run normally. For details about how to create secrets in CSMS, see Creating a Secret.

    Figure 2 Secrets in DEW

    1. Create a YAML file for the ServiceAccount object.
      vim serviceaccount.yaml

      The following is the file content. You can declare the secret names that can be used by the service pod in the cce.io/dew-resource field. In this example, secret_1 and secret_2 can be referenced in the service pod. If you reference a secret that is not declared here, the mounting will fail. As a result, the pod cannot run normally.

      apiVersion: v1
      kind: ServiceAccount
      metadata:
        name: nginx-spc-sa
        annotations:
          cce.io/dew-resource: "[\"secret_1\",\"secret_2\"]"  #secrets that allow pod to use
    2. Create the ServiceAccount object.
      kubectl apply -f serviceaccount.yaml

      Information similar to the following is displayed:

      serviceaccount/nginx-spc-sa created
    3. Check whether the ServiceAccount object has been created.
      kubectl get sa

      If the following information is displayed, the ServiceAccount object named nginx-spc-sa has been created and will be referenced in the service pods.

      NAME            SECRETS   AGE
      default         1         18d   # This is the default ServiceAccount object of the system.
      nginx-spc-sa    1         19s   # This is the newly created ServiceAccount object.

  2. Create a SecretProviderClass to define and manage the secret from DEW so that the secret can be securely mounted to the pods in the CCE cluster. In a SecretProviderClass object, you can define the required secret information, such as the secret name and version.

    1. Create a YAML file for the SecretProviderClass object.
      vim secretproviderclass.yaml

      The following is the file content. The parameters.objects field specifies the secrets to be mounted, in array format.

      apiVersion: secrets-store.csi.x-k8s.io/v1
      kind: SecretProviderClass
      metadata:
        name: nginx-deployment-spc-k8s-secrets
      spec:
        provider: cce
        parameters:
          # Reference a secret in CSMS.
          objects: |
            - objectName: "secret_1"
              objectType: "csms"
              objectVersion: "latest"
              jmesPath:
                 - path: key1
                   objectAlias: dbusername01
                 - path: key2
                   objectAlias: dbusername02
        # Create a CCE secret based on the CSMS secret and mount the secret to a pod.
        secretObjects:
          - secretName: my-secret-01
            type: Opaque
            data:
              - objectName: dbusername01    # The value must be the same as that of objectAlias.
                key: db_username_01
              - objectName: dbusername02    # The value must be the same as that of objectAlias.
                key: db_username_02
      Table 3 Parameters in objects

      Parameter

      Type

      Mandatory

      Description

      objectName

      String

      Yes

      Secret name. Set this parameter to the secret referenced in ServiceAccount. If there are multiple object names defined in the same SecretProviderClass, each value of the objectName parameter must be unique. Otherwise, the mounting fails.

      objectType

      String

      Yes

      Type of the secret. Only csms is supported. Any value other than csms is invalid.

      objectVersion

      String

      Yes

      Version of the secret.

      • Specify a version, for example, v1 or v2.
      • Use the latest version, for example, latest. If objectVersion is set to latest and the corresponding secret in CSMS is updated, periodic polling is automatically enabled, and the secret will be updated to the pod after the interval specified by rotation_poll_interval.

      jmesPath

      Array of Object

      Yes

      jmesPath is used to extract key-value pairs from objects in JSON format. The CCE Secrets Manager for DEW add-on uses this tool to mount secrets to pods. If a secret has multiple keys, you need to enter multiple paths and object aliases.

      • path: Enter the key in DEW.
        NOTE:

        The key cannot contain backslashes (\). There are no restrictions on other special characters.

      • objectAlias is name of the file mounted to a pod. The value must be the same as the value of objectName defined in secretObjects.
      Table 4 Parameters in secretObjects

      Parameter

      Type

      Mandatory

      Description

      secretName

      String

      Yes

      Secret name.

      type

      String

      Yes

      Secret type.

      data

      Array of Object

      Yes

      • objectName: name of the file mounted to the pod. The value must be the same as the value of objectAlias specified in objects.
      • key: key of the secret. You can specify the key value as needed. The key value can be used to reference the encrypted content in the pod.
    2. Create the SecretProviderClass object.
      kubectl apply -f secretproviderclass.yaml

      Information similar to the following is displayed:

      secretproviderclass/nginx-deployment-spc-k8s-secrets created
    3. Check whether the SecretProviderClass object has been created.
      kubectl get spc

      If the following information is displayed, a SecretProviderClass object named nginx-deployment-spc-k8s-secrets has been created and will be referenced in subsequent pods.

      NAME                               AGE
      nginx-deployment-spc-k8s-secrets   20h

  3. Create a service pod. In this example, this pod is used to run an Nginx application.

    1. Define a workload, reference the created ServiceAccount object in serviceAccountName, and reference the created SecretProviderClass object in secretProviderClass, specify the mount path of the container in mountPath. (Do not specify special directories such as / and /var/run. Otherwise, the container may fail to be started.)
      vim deployment.yaml

      Example file content:

      apiVersion: apps/v1
      kind: Deployment
      metadata:
        name: nginx-deployment-k8s-secrets
        labels:
          app: nginx-k8s-secrets
      spec:
        replicas: 1
        selector:
          matchLabels:
            app: nginx-k8s-secrets
        template:
          metadata:
            labels:
              app: nginx-k8s-secrets
          spec:
            serviceAccountName: nginx-spc-sa # Reference the created ServiceAccount.
            containers:
            - name: nginx-deployment-k8s-secrets
              image: nginx
              volumeMounts: # Mount the SecretProviderClass to a container.
                - name: secrets-store-inline   # Name of the volume to be mounted
                  mountPath: "/mnt/secrets"    # Path of the container where the secret is to be mounted
                  readOnly: true
              env: # Set environment variables so that the container can reference the secret during running.
                - name: DB_USERNAME_01     # Name of the environment variable for the workload
                  valueFrom:
                    secretKeyRef:
                       name: my-secret-01   # Secret name specified in the SecretProviderClass
                      key: db_username_01   # The value of the key specified in the SecretProviderClass
                - name: DB_USERNAME_02
                  valueFrom:
                    secretKeyRef:
                      name: my-secret-01
                      key: db_username_02
            imagePullSecrets:
              - name: default-secret
            volumes:    # Use the secret specified in the SecretProviderClass to create a volume.
              - name: secrets-store-inline  # Custom volume name
                csi:
                  driver: secrets-store.csi.k8s.io
                  readOnly: true
                  volumeAttributes:
                    secretProviderClass: nginx-deployment-spc-k8s-secrets   # Name of the SecretProviderClass created in the previous step
    2. Create a service pod.
      kubectl apply -f deployment.yaml
      Information similar to the following is displayed:
      deployment/nginx-deployment-k8s-secrets created
    3. Check whether the pod has been created.
      kubectl get pod

      Information similar to the following is displayed:

      NAME                                              READY   STATUS     RESTARTS     AGE
      nginx-deployment-k8s-secrets-6c945565fb-s7smv     1/1     Running    0            20s

  4. Verify the result.

    kubectl get secrets

    The output shows that a secret named my-secret-01 has been created using secret_1 specified in the SecretProviderClass object.

    NAME             TYPE                             DATA   AGE
    default-secret   kubernetes.io/dockerconfigjson   1      33d
    my-secret-01     Opaque                           2      1h

Scheduled Rotation

After a pod runs normally, if the secret declared in the SecretProviderClass object and stored in CSMS is updated, the latest secret values can be updated to the pod through scheduled rotation. To use this capability, you need to set the secret version to latest. The following is an example:

apiVersion: secrets-store.csi.x-k8s.io/v1
kind: SecretProviderClass
metadata:
  name: spc-test
spec:
  provider: cce
  parameters:
    objects: |
          - objectName: "secret_1"
            objectVersion: "latest"  # change "v1"to "latest"
            objectType: "csms"

After the SecretProviderClass object is updated, the add-on periodically sends a request to CSMS to obtain the value of secret_1 of the latest version and updates the value to the pod that references the SecretProviderClass object. The interval for the add-on to periodically send requests is specified by rotation_poll_interval set in Installing the Add-on.

Real-Time Detection of SecretProviderClass Changes

After a pod runs normally, if a user modifies the secret declared in the SPC object (for example, a secret is added or the version number is changed), the add-on can detect the change in real time and update the secret to the pod. For example, add the secret_2 secret to the SecretProviderClass object. After the SecretProviderClass object is updated, secret_2 is quickly mounted to the pod that references the SecretProviderClass object.

apiVersion: secrets-store.csi.x-k8s.io/v1
kind: SecretProviderClass
metadata:
  name: spc-test
spec:
  provider: cce
  parameters:
    objects: |
          - objectName: "secret_1"
            objectVersion: "latest"
            objectType: "csms"
          - objectName: "secret_2"
            objectVersion: "v1"
            objectType: "csms"

Viewing Component Logs

You can use kubectl to view component logs.

  1. View the pods for running the add-on.
    kubectl get pod -n kube-system

    Information similar to the following is displayed:

    NAME                          READY   STATUS      RESTARTS   AGE
    csi-secrets-store-76tj2       3/3     Running     0           11h
    dew-provider-hm5fq            1/1     Running     0           11h
  2. View the logs of the dew-provider component.
    kubectl logs dew-provider-hm5fq -n kube-system

    The command output is the detailed log information.

    ...
    I0321 13:49:29.319708       1 dew_provider.go:43] object [secret_1]'s version [v1] doesn't change, read from local
    I0321 13:49:29.319735       1 server.go:108] Start writing into mount point
    I0321 13:49:29.319793       1 server.go:117] Write [secret_1/]'s value into file successfully
    I0321 13:49:29.319801       1 server.go:123] Write secret file finished
    I0321 13:49:29.320284       1 server.go:67] "Servicing mount request" Pod="nginx-deployment-k8s-secrets-6c945565fb-s7smv" Namespace="default" ServiceAccount="nginx-spc-sa"
    I0321 13:49:29.617666       1 dew_provider.go:107] "Get secret successfully" name="secret_1" version="v1"
    ...
  3. View the logs of the csi-secrets-store component. The pod of the csi-secrets-store component contains multiple containers. When viewing logs, run the -c command to specify a container. The secrets-store container is the major service container of the add-on and contains the majority of the logs.
    kubectl logs csi-secrets-store-76tj2 -c secrets-store -n kube-system

    The command output is the detailed log information.

    ...
    I0321 10:17:29.314888       1 secrets-store.go:46] "Initializing Secrets Store CSI Driver" driver="secrets-store.csi.k8s.io" version="local-dev" buildTime=""
    I0321 10:17:29.314987       1 reconciler.go:143] "starting rotation reconciler" rotationPollInterval="2m0s"
    I0321 10:17:29.315141       1 server.go:126] "Listening for connections" address="//mnt/paas/kubernetes/kubelet/plugins/csi.sock"
    I0321 10:17:30.933328       1 nodeserver.go:359] "node: getting default node info\n"
    I0321 10:19:19.269337       1 nodeserver.go:353] "Using gRPC client" provider="cce" pod="nginx-spc-744b4c57dc-x74xq"
    I0321 10:19:19.543221       1 secretproviderclasspodstatus_controller.go:224] "reconcile started" spcps="default/nginx-spc-744b4c57dc-x74xq-default-spc-test"
    ...

Configuring a VPC Endpoint for Accessing DEW

  1. Log in to the VPC Endpoint console.
  2. On the displayed page, click Buy VPC Endpoint.
  3. Configure mandatory parameters as prompted. For details about more parameters, see Buying a VPC Endpoint.

    Table 5 Parameters for creating a VPC endpoint

    Parameter

    Description

    Region

    Select the region where the VPC endpoint is located. The VPC endpoint must be in the same region as the CCE Autopilot cluster.

    Billing Mode

    Only pay-per-use billing is supported. Specifies the billing mode of the VPC endpoint.

    Service Category

    Select Find a service by name.

    VPC Endpoint Service Name

    Submit a service ticket to obtain the service name in the current region from DEW engineers.

    Create a Private Domain Name

    Select this parameter.

    After the endpoint is created, you can access the endpoint using the private domain name.

    VPC

    Select the VPC where the CCE Autopilot cluster is running.

    Subnet

    Select a subnet.

    IPv4 Address

    Specifies the IPv4 address of the VPC endpoint. You can select Automatically assign IP address or Manually specify IP address.

  4. Click Next to confirm the configuration.

    • If the configuration is correct, click Submit.
    • If any parameter is incorrect, click Previous to modify it as needed and then click Submit.

  5. Go back to the VPC endpoint list. If the status of the VPC endpoint changes to Accepted, the VPC endpoint is connected to the VPC endpoint service.

Change History

Table 6 Release history

Add-on Version

Supported Cluster Version

New Feature

1.0.0

1.28.8-r0, 1.31.4-r0, or later

CCE Autopilot clusters are supported.
