Configuring a Parallel File System

Parallel File System (PFS) is a high-performance system with access latency in milliseconds. Provided by OBS, PFS supports bandwidth up to the TB/s level and millions of IOPS for processing high-performance computing (HPC) workloads.

This section uses the parallel file system of the Nginx component as an example to describe how to configure cloud storage.

  • The cloud storage configuration path must be different from the log collection path.
  • Only parallel file systems with Standard storage type are supported.

Prerequisites

You have uploaded all files in the application path to be mounted to the OBS parallel file system.

For details, see Uploading an Object.

Procedure

  1. Log in to CAE.
  2. Choose Component Configurations.
  3. Select the target component from the drop-down list in the upper part of the page.

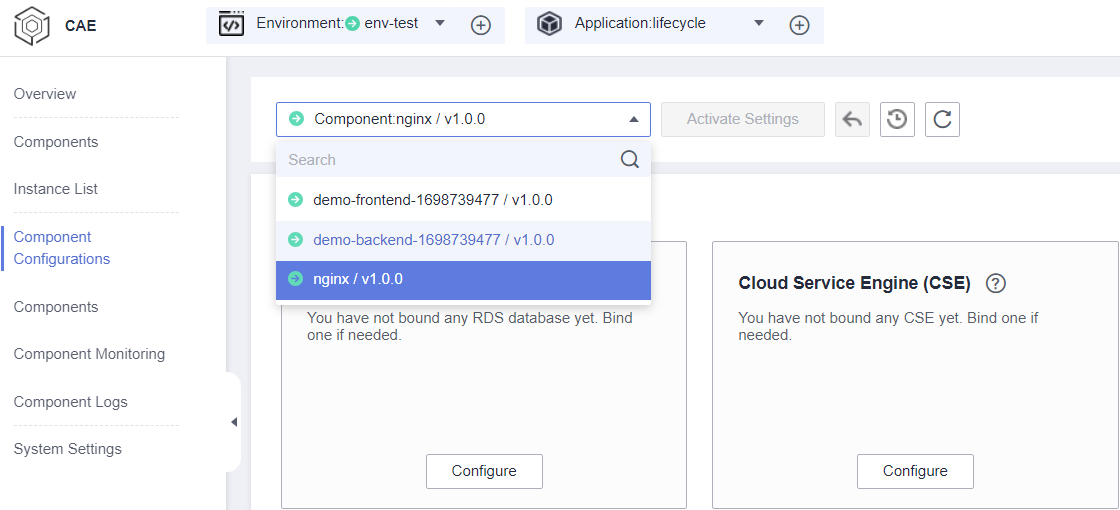

    Figure 1 Selecting a component

  4. Click Edit in the Cloud Storage module.
  5. Click Set Parallel File System.
  6. Select an authorized parallel file system from the drop-down list.

    To add an authorization, click Authorize Parallel File System. For details, see Authorizing a Parallel File System.

  7. Configure the path to which the container is mounted and the permissions on the path. For details, see Table 1.

    Table 1 Parameters

    Parameter

    Description

    File Mask (umask)

    File mask (umask) of the file to mount.

    Enter four digits (0 to 7).

    Default value: 0027.

    NOTE:

    A user file-creation mask (umask) is used to set permissions for newly created files.

    You can set a umask in the CAE cloud storage configuration to set permissions for the directories and files to mount. For example, 0027 indicates that the permission on the directory is 750 and that on the file is 640.

    Mount Path

    Component path to which the data storage is mounted.

    In this example, use the default path /usr/share/nignx/html of nginx.

    NOTE:
    • Do not mount the data storage to a system directory, such as / or /var/run. Otherwise, an exception occurs.
    • The mount path of the cloud storage must be unique.

    Sub-path

    Sub-path in the cloud storage referenced by data.

    For example, if the index.html file is stored in the test folder of the OBS parallel file system test-nginx, enter test/index.html to reference the file.

    NOTE:
    • A sub-path is used to mount a local volume so that the same data volume is used in a single pod.
    • If this parameter is left blank, the root path is used.
    • If a parallel file system is mounted to a sub-path that does not exist, an exception occurs. You need to create the corresponding file or folder in the mounted bucket first.

    Required Permissions

    Permissions on the mount path and files in the mount path. The value can be Read/Write or Read only.

    In this example, select Read/Write.

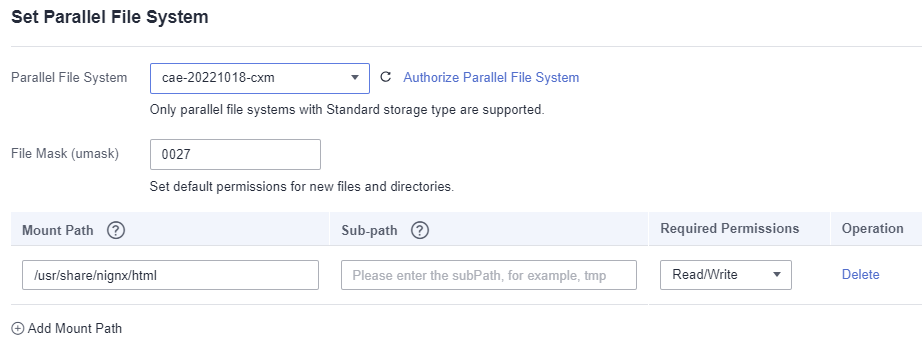

    Figure 2 Configuring a parallel file system

  8. (Optional) Click Add Mount Path to configure more mount paths.
  9. Click OK.

    You can view the configured parallel file systems on the Cloud Storage page.

  10. Make the configurations take effect.

    • If the component has been deployed, click Activate Settings in the upper part of the page. In the dialog box displayed on the right, confirm the configurations and click OK for the configurations to take effect.
    • If the component has not been deployed, click Set and Deploy Component in the upper part of the page. In the dialog box displayed on the right, click OK. After the deployment is complete, the configurations take effect.

      You can update the Nginx access page in real time by updating static files in the parallel file system.
