Configuring Network Bandwidth

CAE displays the public IP address (outbound IP address) of the worker node in the cluster and the IP address (inbound IP address) to be associated with the public IP address for accessing components in CAE.

You can view and modify both the outbound and inbound bandwidths. The default bandwidth is 20 Mbit/s.

Viewing System Network Configuration

  1. Log in to CAE.
  2. Choose System Settings.
  3. Click Edit in the System Network Configuration module.
  4. View the outbound IP address, outbound bandwidth, inbound IP address, and inbound bandwidth.

    Figure 1 Viewing system network configuration

Modifying Inbound and Outbound Bandwidths

  1. Log in to CAE.
  2. Choose System Settings.
  3. Click Edit in the System Network Configuration module.
  4. Click and change the inbound and outbound bandwidths as required. The value must be an integer ranging from 1 to 300.

    Figure 2 Modifying the bandwidths

  5. Click to confirm the modification. If "System network configurations modified" is displayed, the system network configuration is complete.

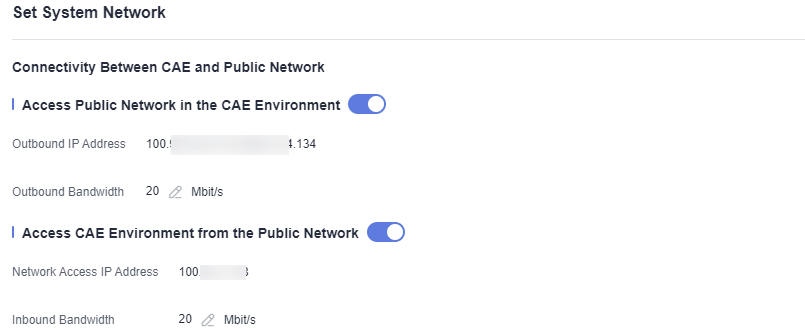

    Figure 3 Bandwidth modified
