Changing the Layer of a Widget

Scenario

You can move the layer of a widget up, down, or to the bottom layer for better widget arrangement.

• The higher the layer is, the higher the widget is.
• The lower the layer is, the lower the widget is.
• When two widgets overlap, the widget in the front covers the widget in the rear.

Changing the Layer in the Canvas

1. Develop a page by referring to Creating a Page.
2. On the design page, select the widget to be moved.
3. Right-click to select a move option: up, down, to top, or to bottom.

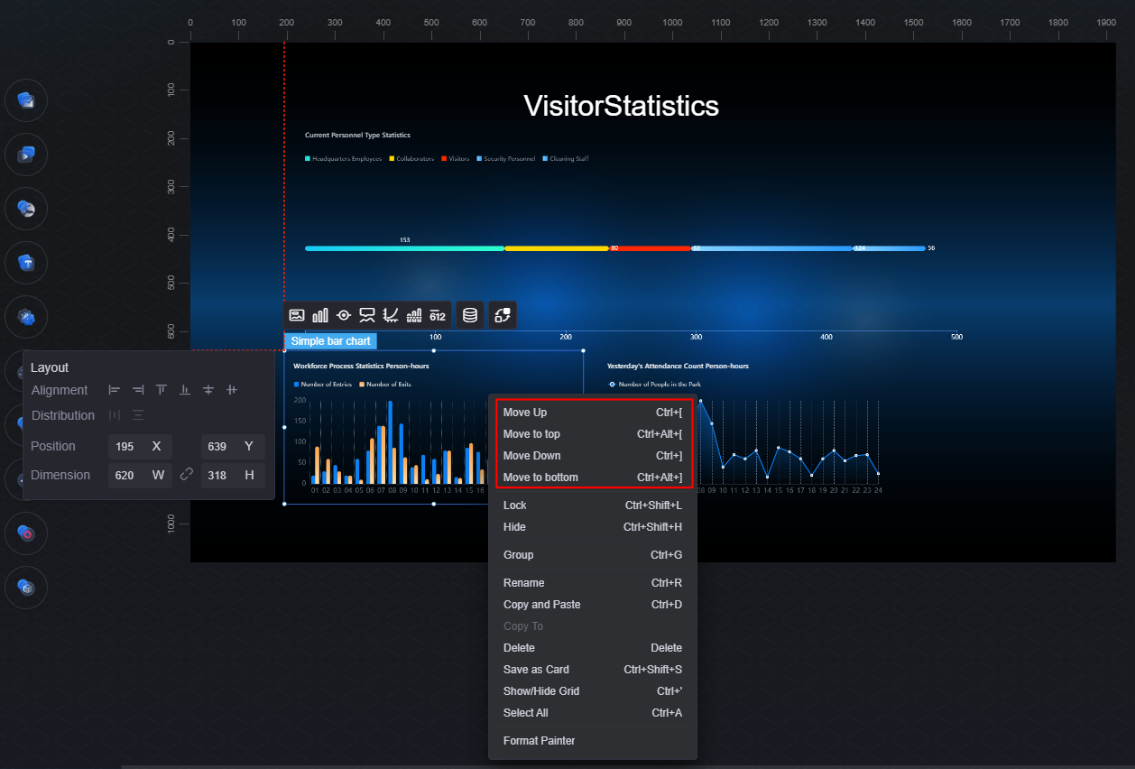

   Figure 1 Moving the layer of a widget in the canvas


Changing the Layer on the Layer Page

1. Develop a page by referring to Creating a Page.
2. Click the Layers tab.
3. Select the target widget, right-click, and choose a move option: up, down, to top, or to bottom.
   Alternatively, directly drag a widget to move it up, down, or to the top or bottom.

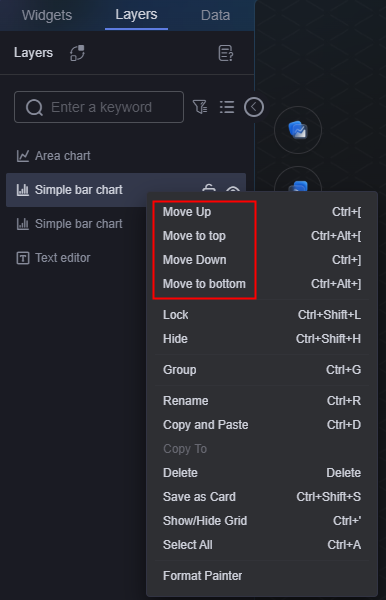

   Figure 2 Moving the layer of a widget on the Layer page
