Logging In to Huawei Cloud Astro Canvas

Logging In to Huawei Cloud Astro Canvas

  1. Log in to the Huawei Cloud official website. On the right of the top navigation menu, click Console to go to the management console.
  2. Click in the upper left corner and choose Developer Services > Huawei Cloud Astro Zero.
  3. On the displayed console, choose Huawei Cloud Astro Canvas in the navigation pane.

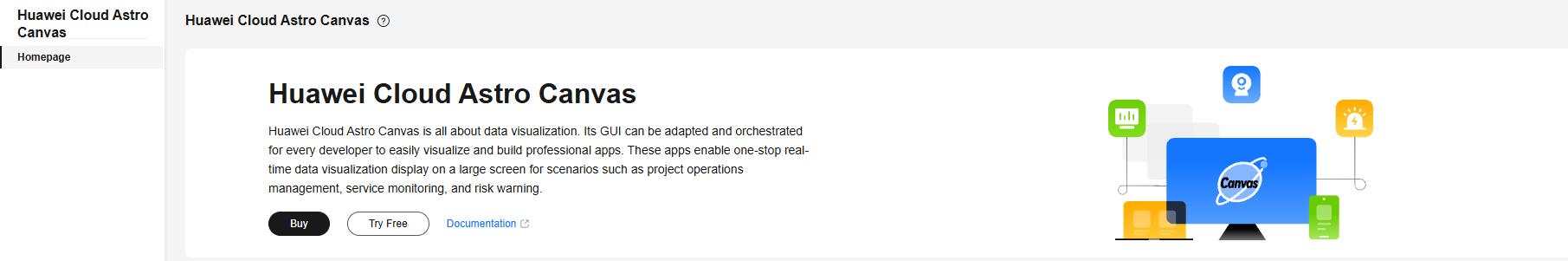

    Figure 1 Choosing Huawei Cloud Astro Canvas

  4. On the console, click Go to Homepage of a purchased instance.

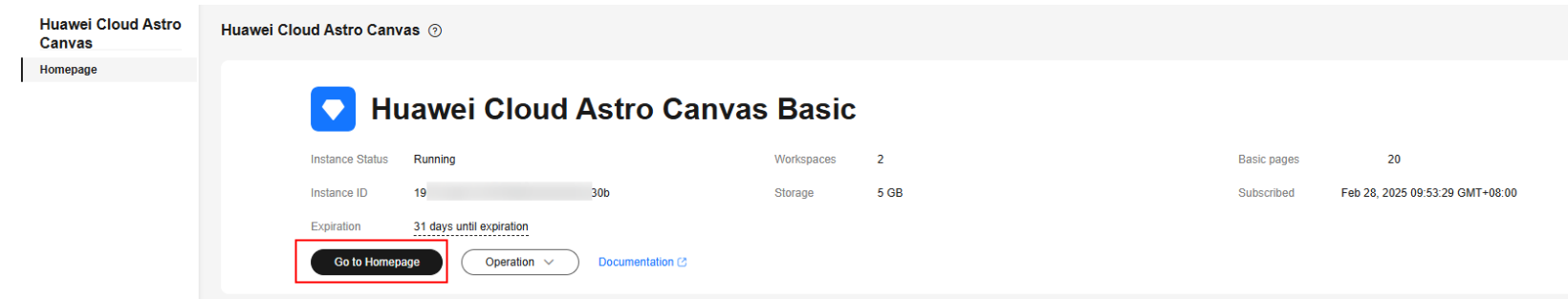

    Figure 2 Clicking Go to Homepage

    When accessing the Huawei Cloud Astro Canvas page for the first time, read and agree to the Huawei Cloud Astro Canvas service privacy agreement and service statement as prompted.

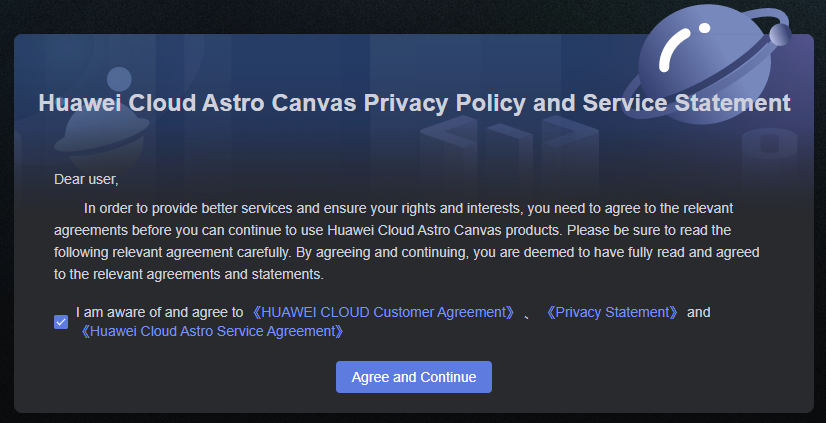

    Figure 3 Huawei Cloud Astro Canvas service privacy agreement and service statement
    Table 1 Huawei Cloud Astro Canvas page

    Feature

    Description

    Projects

    You can centrally manage projects by creating, deleting, and publishing them.

    • Creating a project

      A project can be regarded as a collection of service scenarios. A project can have multiple pages. For details, see Creating a Project.

    • Importing a project package

      Import a created project package from the local PC to implement offline migration and project deployment. For details, see Importing a Project.

    • Adding a project group

      You can create a group to centrally manage projects.

    • Templates

      You can quickly create a large screen using the recommended templates.

      • Click More to view all preset templates.
      • Move the cursor to a template and click to view the template details.
      • Click a template. In the displayed dialog box, create a project and a page.

    Data Center

    You can centrally configure and manage data sources for pages. Data Center supports various data sources, such as static data, Huawei Cloud Astro Zero API calls, and ROMA Connect API calls.

    • Data Source Management: You can add and manages data sources such as relational databases, DWS, DLI, and Huawei Cloud Astro Zero.
    • Dataset Management: You can add and manage datasets. After a dataset is added, you can select the dataset on the data tab page of a widget.
    • Connector Management: You can create an HTTP connector to introduce third-party APIs as the data source of a widget.
    • Converter Management: You can use a converter to reprocess dataset data to better combine data and widget for optimal display.

    My Assets

    You can find all source materials, widgets, libraries, and templates. For details, see Asset Management.

    Tutorials

    You can find video tutorials to quickly get started with this service.

    Default Workspace

    Huawei Cloud Astro Canvas supports resource isolation and authorization by workspace. For details, see Creating a Workspace.

    Resource Management

    You can manage users and page assets. For details, see Admin Console.

    EN

    Click this button to switch the system language.

    You can click this icon to change the theme color and log out of the platform. If you purchase an enterprise edition instance, you can deploy it locally. For details, see Private Deployment.
