Viewing the IP Address and Port Number

This section describes how to query the IP address and port number of an instance on the management console.

Viewing the Load Balancer IP Address and Port

  1. Log in to the management console.
  2. In the service list, choose Databases > GeminiDB Redis API.
  3. On the Instances page, locate the instance whose IP address and port you want to view and click its name.
  4. In the Connection Information area, view the load balancer IP address and corresponding port.

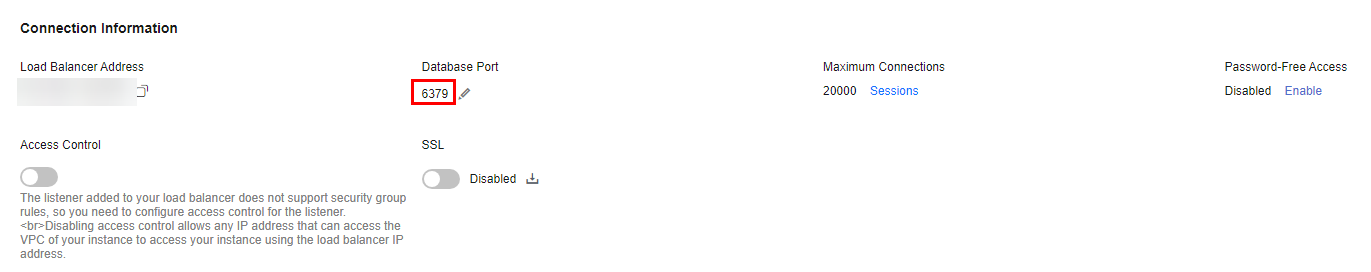

    Figure 1 Viewing the load balancer IP address and port

Viewing the Private IP Address or EIP

  1. Log in to the management console.
  2. In the service list, choose Databases > GeminiDB Redis API.
  3. On the Instances page, locate the instance whose node IP addresses you want to view and click its name.

    Method 1

    In the Node Information area on the Basic Information page, view the private IP address or EIP of each node.

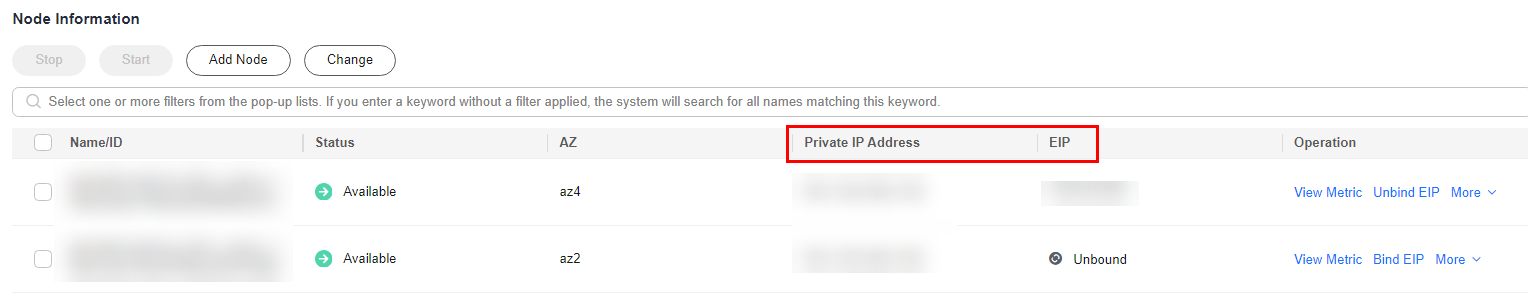

    Figure 2 Viewing the IP addresses

    Method 2

    In the navigation pane on the left, click Connections to view the private IP addresses and EIPs of the instance.

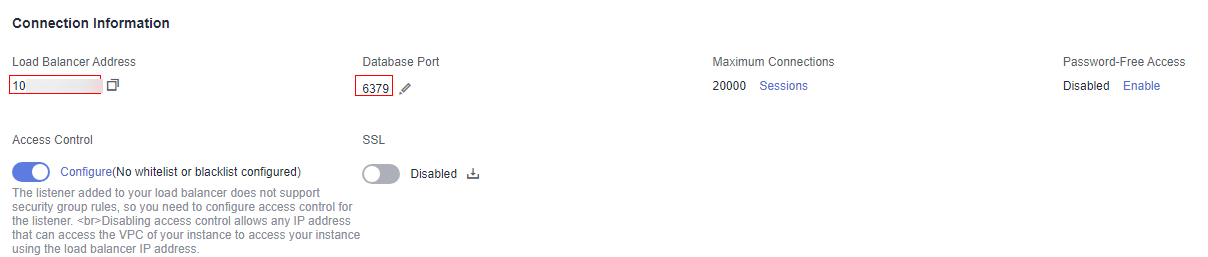

    Figure 3 Viewing IP addresses

Viewing the Port for Accessing Each Instance Node

  1. Log in to the management console.
  2. In the service list, choose Databases > GeminiDB Redis API.
  3. On the Instances page, locate the instance whose node access ports you to want view and click its name.

    Method 1

    In the Node Information area on the Basic Information page, view the port of each instance node.

    Figure 4 Viewing the access port

    Method 2

    In the navigation pane on the left, click Connections to view the access port of each instance node.

    Figure 5 Viewing the access port
