Enabling Capacity Risk Monitoring

Procedure

1. Go to the Architecture Design page and click the Architecture Design tab.
2. In the card view of Deployment Architecture, click the target traditional architecture. On its details page, click Architecture Drawings above the canvas to start drawing.
3. On the left pane, choose HUAWEI CLOUD > Deployed as Instances in the drawing toolbar, and drag a cloud service diagram element (for example, Elastic Cloud Server) to the canvas.

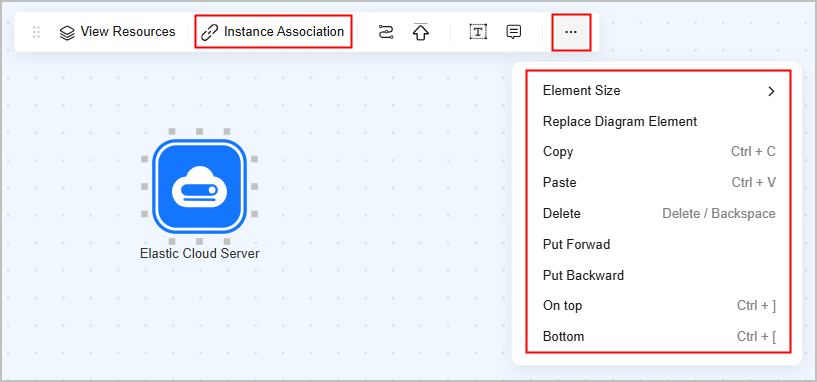

4. Click the cloud service diagram element. In the properties panel, you can modify its size, name, and remarks.

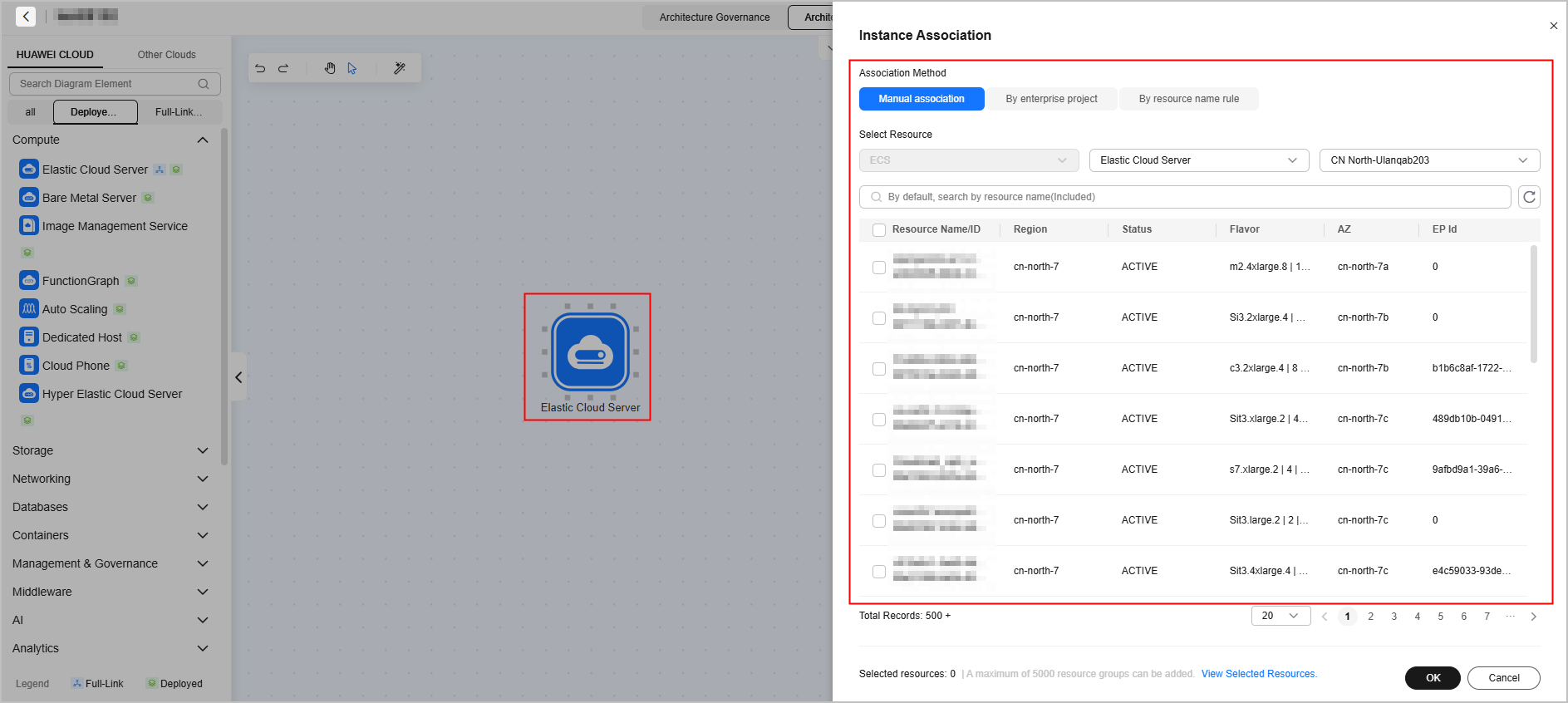

5. Click Instance Association in the properties panel. In the displayed dialog box on the right, select an association method and resources.

   Select the resources to be monitored and click OK. The capacity risk monitoring is enabled for these resources.



6. Click Architecture Governance above the canvas. Click Start Check in Resource Overview on the left. In the Configuring Capacity Monitoring Rules dialog box on the right, select an analysis scenario, for example, Routine risk analysis. Click Custom Risk Analysis.

   Configure monitoring rules. Set the monitoring interval, aggregation period, and triggering conditions. If a resource metric reaches the preset threshold, the resource is regarded as a risky resource.

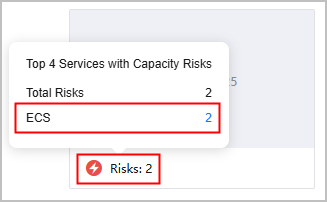

7. Click Start Check. The system analyzes the data and continuously monitors the check result. If risks are detected, the number of risks is displayed in the lower part of the deployment architecture card. Hover over the number to view the four cloud services with the most risks.

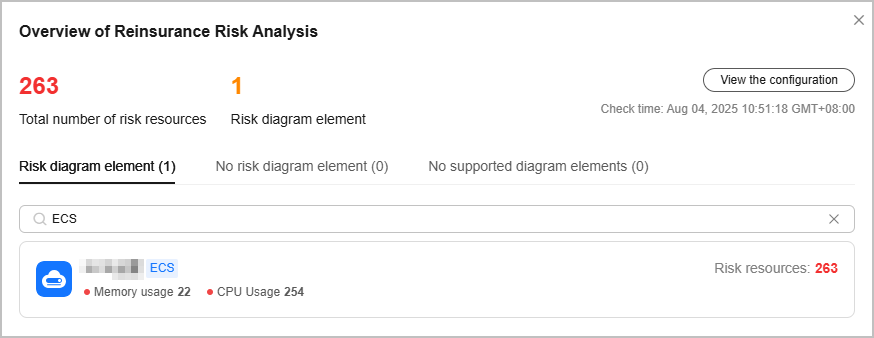

8. Click the number next to a cloud service to go to the risk identification result page.




   • The architecture highlights cloud services with capacity risks using a red number in the top-right corner of their diagram elements.
