Monitoring Clusters Using Cloud Eye

Function

This section describes how to check cluster metrics on Cloud Eye. By monitoring cluster running metrics, you can identify the time when the database cluster is abnormal and analyze potential activity problems based on the database logs, improving database performance. This section describes the metrics that can be monitored by Cloud Eye as well as their namespaces and dimensions. You can use the management console or APIs provided by Cloud Eye to query the monitoring metrics and alarms generated by GaussDB(DWS). For details, see the User Guide and API Reference of Cloud Eye.

This section is organized as follows:

Namespace

SYS.DWS

Cluster Monitoring Metrics

With the GaussDB(DWS) monitoring metrics provided by Cloud Eye, you can obtain information about the cluster running status and performance. This information will provide a better understanding of the node-level information.

Table 1 describes GaussDB(DWS) monitoring metrics.

**Table 1** GaussDB(DWS) monitoring metrics
Metric ID	Name	Description	Value Range	Monitored Object	Monitoring Period (Raw Data)
dws001_shared_buffer_hit_ratio	Cache Hit Ratio	Ratio of requested data that already exists in the cache. It the ratio of the amount of data that already exists in the cache to the total amount of requested data. A higher cache hit ratio means higher cache usage of the system, fewer times that data needs to be read from the disk or network, and faster system response speed. Unit: Percent	0% to 100%	Data warehouse cluster	4 minutes
dws002_in_memory_sort_ratio	In-memory Sort Ratio	Ratio of the extra memory space used by the sorting algorithm to the memory space occupied by the sorted data. In a merge sort, for example, the size of the merge buffer is often proportional to the size of the sorted data, so the in-memory ratio is usually between 10% and 50%. Unit: Percent	0% to 100%	Data warehouse cluster	4 minutes
dws003_physical_reads	File Reads	Total number of database file reads	> 0	Data warehouse cluster	4 minutes
dws004_physical_writes	File Writes	Total number of database file writes	> 0	Data warehouse cluster	4 minutes
dws005_physical_reads_per_second	File Reads per Second	Number of database file reads per second	≥ 0	Data warehouse cluster	4 minutes
dws006_physical_writes_per_second	File Writes per Second	Number of database file writes per second	≥ 0	Data warehouse cluster	4 minutes
dws007_db_size	Data Volume	Total data volume of the database Unit: MB	≥ 0 MB	Data warehouse cluster	4 minutes
dws008_active_sql_count	Active SQL Count	Number of active SQLs in the database	≥ 0	Data warehouse cluster	4 minutes
dws009_session_count	Session Count	Number of sessions that access the database	≥ 0	Data warehouse cluster	4 minutes
dws010_cpu_usage	CPU Usage	CPU usage of each node in a cluster, in percentage	0% to 100%	Data warehouse node	1 minute
dws011_mem_usage	Memory Usage	Memory usage of each node in a cluster, in percentage	0% to 100%	Data warehouse node	1 minute
dws012_iops	IOPS	Number of I/O requests processed by each node in the cluster per second	≥ 0	Data warehouse node	1 minute
dws013_bytes_in	Network Input Throughput	Data input to each node in the cluster per second over the network Unit: byte/s	≥ 0 bytes/s	Data warehouse node	1 minute
dws014_bytes_out	Network Output Throughput	Data sent to the network per second from each node in the cluster Unit: byte/s	≥ 0 bytes/s	Data warehouse node	1 minute
dws015_disk_usage	Disk Usage	Disk usage of each node in a cluster, in percentage	0% to 100%	Data warehouse node	1 minute
dws016_disk_total_size	Total Disk Size	Total disk space of each node in the cluster Unit: GB	100 to 2000 GB	Data warehouse node	1 minute
dws017_disk_used_size	Used Disk Space	Used disk space of each node in the cluster Unit: GB	0 to 3600 GB	Data warehouse node	1 minute
dws018_disk_read_throughput	Disk Read Throughput	Data volume read from each disk in the cluster per second Unit: byte/s	≥ 0 bytes/s	Data warehouse node	1 minute
dws019_disk_write_throughput	Disk Write Throughput	Data volume written to each disk in the cluster per second Unit: byte/s	≥ 0 bytes/s	Data warehouse node	1 minute
dws020_avg_disk_sec_per_read	Average Time per Disk Read	Average time used each time when a disk reads data Unit: second	> 0s	Data warehouse node	1 minute
dws021_avg_disk_sec_per_write	Average Time per Disk Write	Average time used each time when data is written to a disk Unit: second	> 0s	Data warehouse node	1 minute
dws022_avg_disk_queue_length	Average Disk Queue Length	Average I/O queue length of a disk	≥ 0	Data warehouse node	1 minute
dws_024_dn_diskio_util	DN I/O usage	Average disk I/O usage of DNs in a cluster	0% to 100%	Data warehouse instance	1 minute

Dimensions

Key	Value
datastore_id	Data warehouse cluster ID
dws_instance_id	Data warehouse node ID

Cluster and Node Monitoring Information

Log in to the GaussDB(DWS) management console and choose Clusters > Dedicated Clusters.
View the cluster information. In the cluster list, click View Metric in the Operation column where a specific cluster resides. The Cloud Eye management console is displayed. By default, the cluster monitoring information on the Cloud Eye management console is displayed.

Additionally, you can specify a specific monitoring metric and the time range to view the performance curve.
View the node information. Click to return to the Cloud Eye management console. On the Data Warehouse Nodes tab page in the right pane, you can view metrics of each node in the cluster.

Additionally, you can specify a specific monitoring metric and the time range to view the performance curve.

Cloud Eye also supports the ability to compare the monitoring metrics of multiple nodes. For details, see Comparing the Monitoring Metrics of Multiple Nodes.

Comparing the Monitoring Metrics of Multiple Nodes

In the left navigation pane of the Cloud Eye management console, choose Dashboard > Panels.
On the page that is displayed, click Create Panel. In the displayed dialog box, enter the name and click OK.
Click Add Graph in the upper right corner.

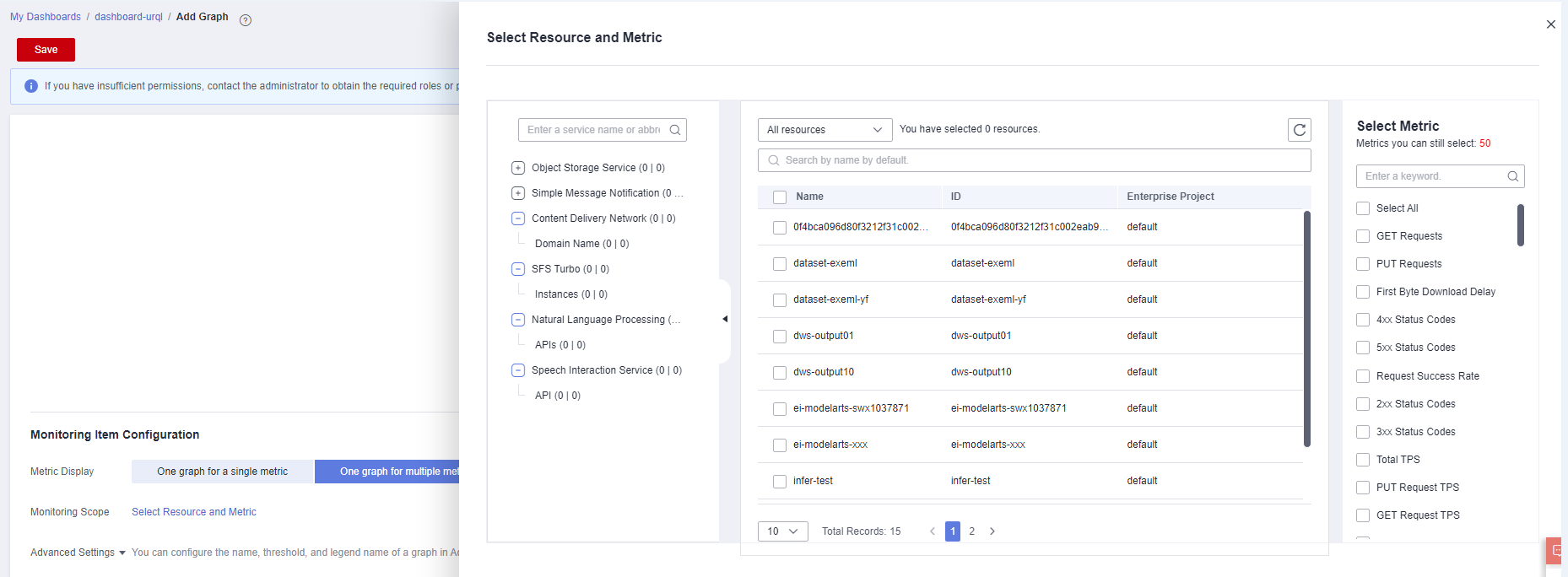

In the displayed dialog box, configure the title and monitoring metrics.

You can add multiple monitoring metrics by clicking Add Metric.

The following describes how to set parameters if you want to compare CPU usage of two nodes.

**Table 2** Configuration example
Parameter	Example Value
Resource Type	DWS
Dimension	Data Warehouse Node
Monitored Object	dws-demo-dws-cn-cn-2-1 dws-demo-dws-cn-cn-1-1 dws-demo-dws-dn-1-1
Metric	CPU Usage

Click OK.

Then you can view the corresponding monitoring graph on the Panels page. Move the cursor to the graph and click in the upper right corner to zoom in the graph and view detailed metric comparison data.
