CREATE FUNCTION

Function

CREATE FUNCTION creates a function.

Precautions

  • The precision values (if any) of the parameters or return values of a function are not checked.
  • When creating a function, you are advised to explicitly specify the schemas of tables in the function definition. Otherwise, the function may fail to be executed.
  • current_schema and search_path specified by SET during function creation are invalid. search_path and current_schema before and after function execution should be the same.
  • If a function has output parameters, the SELECT statement uses the default values of the output parameters when calling the function. When the CALL statement calls the function, it requires that the output parameter values are adapted to Oracle. When the CALL statement calls an overloaded PACKAGE function, it can use the default values of the output parameters. For details, see examples in CALL.
  • Only the functions compatible with PostgreSQL or those with the PACKAGE attribute can be overloaded. After REPLACE is specified, a new function is created instead of replacing a function if the number of parameters, parameter type, or return value is different.
  • You can use the SELECT statement to specify different parameters using identical functions, but cannot use the CALL statement to call identical functions without the PACKAGE attribute because CALL aligns with Oracle syntax.
  • When you create a function, you cannot insert other agg functions out of the avg function or other functions.
  • In non-logical cluster mode, return values, parameters, and variables cannot be set to the tables of the Node Groups that are not installed in the system by default. The internal statements of SQL functions cannot be executed on such tables.
  • In logical cluster mode, if return values and parameters of the function are user tables, all the tables must be in the same logical cluster. If the function body involves operations on multiple logical cluster tables, the function cannot be set to IMMUTABLE or SHIPPABLE, preventing the function from being pushed down to a DN.
  • In logical cluster mode, the parameters and return values of the function cannot use the %type to reference a table column type. Otherwise, the function will fail to be created.
  • By default, the permissions to execute new functions are granted to PUBLIC. For details, see GRANT. You can revoke the default execution permissions from PUBLIC and grant them to other users as needed. To avoid the time window during which new functions can be accessed by all users, create functions in transactions and set function execution permissions.

Syntax

  • Syntax (compatible with PostgreSQL) for creating a user-defined function:
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    CREATE [ OR REPLACE  ] FUNCTION function_name
        ( [  { argname [ argmode  ] argtype [  { DEFAULT  | :=  | =  } expression  ]}  [, ...]  ] )
        [ RETURNS rettype [ DETERMINISTIC  ]  | RETURNS TABLE (  { column_name column_type  }  [, ...] )]
        LANGUAGE lang_name
        [
           {IMMUTABLE  | STABLE  | VOLATILE }
            | {SHIPPABLE | NOT SHIPPABLE}
            | WINDOW
            | [ NOT  ] LEAKPROOF
            | {CALLED ON NULL INPUT  | RETURNS NULL ON NULL INPUT | STRICT }
            | {[ EXTERNAL  ] SECURITY INVOKER | [ EXTERNAL  ] SECURITY DEFINER | AUTHID DEFINER  | AUTHID CURRENT_USER}
            | {fenced | not fenced}
            | {PACKAGE}

            | COST execution_cost
            | ROWS result_rows
            | SET configuration_parameter { {TO | =} value | FROM CURRENT }}
         ][...]
        {
            AS 'definition'
            | AS 'obj_file', 'link_symbol'
        }

  • Oracle syntax of creating a customized function:
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    CREATE [ OR REPLACE  ] FUNCTION function_name
        ( [  { argname [ argmode  ] argtype [  { DEFAULT | := | =  } expression  ] }  [, ...]  ] )
        RETURN rettype [ DETERMINISTIC  ]
        [
            {IMMUTABLE  | STABLE  | VOLATILE }
            | {SHIPPABLE | NOT SHIPPABLE}
            | {PACKAGE}
            | {FENCED | NOT FENCED}
            | [ NOT  ] LEAKPROOF
            | {CALLED ON NULL INPUT | RETURNS NULL ON NULL INPUT | STRICT }
            | {[ EXTERNAL  ] SECURITY INVOKER  | [ EXTERNAL  ] SECURITY DEFINER |
    AUTHID DEFINER | AUTHID CURRENT_USER
    }
            | COST execution_cost
            | ROWS result_rows
            | SET configuration_parameter { {TO | =} value  | FROM CURRENT

        ][...]

        {
          IS  | AS
    } plsql_body
    /


Parameter Description

  • function_name

    Indicates the name of the function to create (optionally schema-qualified).

    Value range: a string. It must comply with the naming convention.

  • argname

    Indicates the name of a function parameter.

    Value range: a string. It must comply with the naming convention.

  • argmode

    Indicates the mode of a parameter.

    Value range: IN, OUT, IN OUT, INOUT, and VARIADIC. The default value is IN. Only the parameter of OUT mode can be followed by VARIADIC. The parameters of OUT and INOUT cannot be used in function definition of RETURNS TABLE.

    VARIADIC specifies parameters of array types.

  • argtype

    Indicates the data types of the function's parameters.

  • expression

    Indicates the default expression of a parameter.

  • rettype

    Indicates the return data type.

    When there is OUT or IN OUT parameter, the RETURNS clause can be omitted. If the clause exists, it must be the same as the result type indicated by the output parameter. If there are multiple output parameters, the value is RECORD. Otherwise, the value is the same as the type of a single output parameter.

    The SETOF modifier indicates that the function will return a set of items, rather than a single item.

  • DETERMINISTIC

    The adaptation oracle SQL syntax. You are not advised to use it.

  • column_name

    Specifies the column name.

  • column_type

    Specifies the column type.

  • definition

    Specifies a string constant defining the function; the meaning depends on the language. It can be an internal function name, a path pointing to a target file, a SQL query, or text in a procedural language.

  • LANGUAGE lang_name

    Indicates the name of the language that is used to implement the function. It can be SQL, internal, or the name of user-defined process language. To ensure downward compatibility, the name can use single quotation marks. Contents in single quotation marks must be capitalized.

  • WINDOW

    Indicates that the function is a window function. The WINDOW attribute cannot be changed when the function definition is replaced.

    For a user-defined window function, the value of LANGUAGE can only be internal, and the referenced internal function must be a window function.

  • IMMUTABLE

    Indicates that the function always returns the same result if the parameter values are the same.

    If the input argument of the function is a constant, the function value is calculated at the optimizer stage. The advantage is that the expression value can be obtained as early as possible, so the cost estimation is more accurate and the execution plan generated is better.

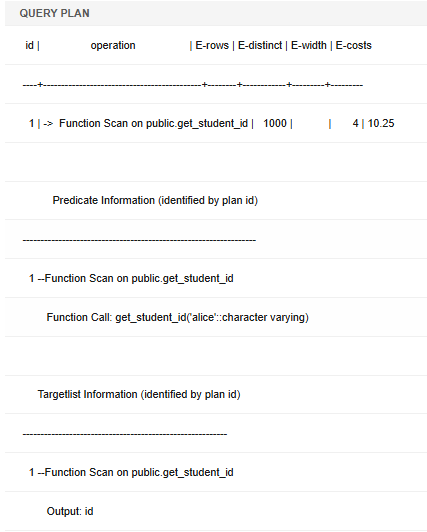

    A user-defined IMMUTABLE function is automatically pushed down to DNs for execution, which may cause potential risks. If a function is defined as IMMUTABLE but the function execution process is in fact not IMMUTABLE, serious problems such as result errors may occur. Therefore, exercise caution when defining the IMMUTABLE attribute for a function.

    Examples:

    1. If a user-defined function references objects such as tables and views, the function cannot be defined as IMMUTABLE, because the function may return different results when the data in a referenced table changes.
    2. If a user-defined function references a STABLE or VOLATILE function, the function cannot be defined as IMMUTABLE.
    3. If a user-defined function contains factors that cannot be pushed down, the function cannot be defined as IMMUTABLE, because the IMMUTABLE attribute conflicts with factors that cannot be pushed down. Typical scenarios include functions and syntax that cannot be pushed down.
    4. If a user-defined function contains an aggregation operation that will generate STREAM plans to complete the operation (meaning that DNs and CNs are involved for results calculation, such as the LISTAGG function), the function cannot be defined as IMMUTABLE.

    To prevent possible problems, you can set behavior_compat_options to check_function_conflicts in the database to check definition conflicts. This method can identify the 1 and 2 scenarios described above.

  • STABLE

    Indicates that the function cannot modify the database, and that within a single table scan it will consistently return the same result for the same parameter values, but that its result varies by SQL statements.

  • VOLATILE

    Indicates that the function value can change even within a single table scan, so no optimizations can be made.

  • SHIPPABLE

    NOT SHIPPABLE

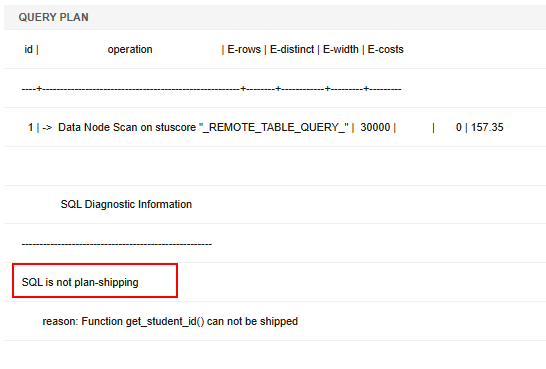

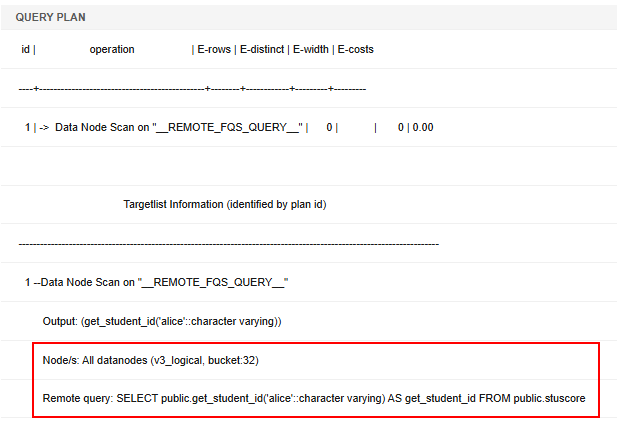

    Indicates whether the function can be pushed down to DNs for execution.

    • Functions of the IMMUTABLE type can always be pushed down to the DNs.
    • Functions of the STABLE or VOLATILE type can be pushed down to DNs only if their attribute is SHIPPABLE.

      Exercise caution when defining the SHIPPABLE attribute for a function. SHIPPABLE means that the entire function will be pushed down to DNs for execution. If the attribute is incorrectly set, serious problems such as result errors may occur.

      Similar to the IMMUTABLE attribute, the SHIPPABLE attribute has use restrictions. The function cannot contain factors that do not allow the function to be pushed down for execution. If a function is pushed down to a single DN for execution, the function's calculation logic will depend only on the data set of the DN.

      Examples:

      1. If a function references a hash table, you cannot define the function as SHIPPABLE.
      2. If a function contains factors, functions, or syntax that cannot be pushed down, the function cannot be defined as SHIPPABLE. For details, see Optimizing Statement Pushdown.
      3. If a function's calculation process involves data across DNs, the function cannot be defined as SHIPPABLE. For example, some aggregation operations involve data across DNs.
  • PACKAGE
    Indicates whether the function can be overloaded. PostgreSQL-style functions can be overloaded, and this parameter is designed for Oracle-style functions.
    • All PACKAGE and non-PACKAGE functions cannot be overloaded or replaced.
    • PACKAGE functions do not support parameters of the VARIADIC type.
    • The PACKAGE attribute of functions cannot be modified.
  • LEAKPROOF

    Indicates that the function has no side effects. LEAKPROOF can be set only by the system administrator.

  • CALLED ON NULL INPUT

    Declares that some parameters of the function can be invoked in normal mode if the parameter values are NULL. This parameter can be omitted.

  • RETURNS NULL ON NULL INPUT

    STRICT

    Indicates that the function always returns NULL whenever any of its parameters are NULL. If this parameter is specified, the function is not executed when there are NULL parameters; instead a NULL result is returned automatically.

    The usage of RETURNS NULL ON NULL INPUT is the same as that of STRICT.

  • EXTERNAL

    The keyword EXTERNAL is allowed for SQL conformance, but it is optional since, unlike in SQL, this feature applies to all functions not only external ones.

  • SECURITY INVOKER

    AUTHID CURRENT_USER

    Indicates that the function is to be executed with the permissions of the user that calls it. This parameter can be omitted.

    SECURITY INVOKER and AUTHID CURRENT_USER have the same functions.

  • SECURITY DEFINER

    AUTHID DEFINER

    Specifies that the function is to be executed with the permissions of the user that created it.

    The usage of AUTHID DEFINER is the same as that of SECURITY DEFINER.

  • FENCED

    NOT FENCED

    (Effective only for C functions) Specifies whether functions are executed in fenced mode. In NOT FENCED mode, a function is executed in a CN or DN process. In FENCED mode, a function is executed in a new fork process, which does not affect CN or DN processes.

    Application scenarios:

    • Develop or debug a function in FENCED mode and execute it in NOT FENCED mode. This reduces the cost of the fork process and communication.
    • Perform complex OS operations, such as open a file, process signals and threads, in FENCED mode so that GaussDB(DWS) running is not affected.
    • The default value is FENCED.
  • COST execution_cost

    A positive number giving the estimated execution cost for the function.

    The unit of execution_cost is cpu_operator_cost.

    Value range: A positive number.

  • ROWS result_rows

    Estimates the number of rows returned by the function. This is only allowed when the function is declared to return a set.

    Value range: A positive number. The default is 1000 rows.

  • configuration_parameter
    • value

      Sets a specified database session parameter to a specified value. If the value is DEFAULT or RESET, the default setting is used in the new session. OFF closes the setting.

      Value range: a string

      • DEFAULT
      • OFF
      • RESET

      Specifies the default value.

    • from current

      Uses the value of configuration_parameter of the current session.

  • obj_file, link_symbol

    (Used for C functions) Specifies the absolute path of the dynamic library using obj_file and the link symbol (function name in C programming language) of the function using link_symbol.

  • plsql_body

    Indicates the PL/SQL stored procedure body.

    When the function is creating users, the log will record unencrypted passwords. You are not advised to do it.

Examples

Define the function as SQL query.

1
2
3
4
5
CREATE FUNCTION func_add_sql(integer, integer) RETURNS integer
    AS 'select $1 + $2;'
    LANGUAGE SQL
    IMMUTABLE
    RETURNS NULL ON NULL INPUT;

Add an integer by parameter name using PL/pgSQL.

1
2
3
4
5
CREATE OR REPLACE FUNCTION func_increment_plsql(i integer) RETURNS integer AS $$
        BEGIN
                RETURN i + 1;
        END;
$$ LANGUAGE plpgsql;

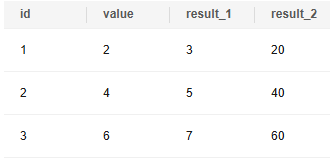

Return the RECORD type.

1
2
3
4
5
6
7
8
9
CREATE OR REPLACE FUNCTION compute(i int, out result_1 bigint, out result_2 bigint)
returns SETOF RECORD
as $$
begin
    result_1 = i + 1;
    result_2 = i * 10;
return next;
end;
$$language plpgsql;

Get a record containing multiple output parameters.

1
2
3
4
CREATE FUNCTION func_dup_sql(in int, out f1 int, out f2 text)
    AS $$ SELECT $1, CAST($1 AS text) || ' is text' $$
    LANGUAGE SQL;
SELECT * FROM func_dup_sql(42);

Calculate the sum of two integers and get the result. If the input is null, null will be returned.

1
2
3
4
5
6
CREATE FUNCTION func_add_sql2(num1 integer, num2 integer) RETURN integer
AS
BEGIN
RETURN num1 + num2;
END;
/

Create an overloaded function with the PACKAGE attribute.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
CREATE OR REPLACE FUNCTION package_func_overload(col int, col2  int)
return integer package
as
declare
    col_type text;
begin
     col := 122;
         dbms_output.put_line('two int parameters ' || col2);
         return 0;
end;
/

CREATE OR REPLACE FUNCTION package_func_overload(col int, col2 smallint)
return integer package
as
declare
    col_type text;
begin
     col := 122;
         dbms_output.put_line('two smallint parameters ' || col2);
         return 0;
end;
/

Helpful Links

ALTER FUNCTION, DROP FUNCTION
