Adding Links to Data in Standard Page Tables

Expected Results

On a standard page, hyperlinks can be added to data in tables to improve user experience and facilitate data interaction. For example, in the webName column of a table, you can move the cursor to WEB A to view the corresponding link address in the lower left corner of the page. You can click the link address to see the page.

Figure 1 Implementation results

Implementation Methods

1. Create a low-code application.
   1. Apply for a free trial or purchase a commercial instance by referring to Authorization of Users for Huawei Cloud Astro Zero Usage and Instance Purchases.
   2. After the instance is purchased, click Access Homepage on Homepage. The application development page is displayed.
   3. In the navigation pane, choose Applications. On the displayed page, click Low-Code or .

      When you create an application for the first time, create a namespace as prompted. Once it is created, you cannot change or delete it, so check the details carefully. Use your company or team's abbreviation for the namespace.

   4. In the displayed dialog box, choose Standard Applications and click Confirm.
   5. Enter a label and name of the application, and click the confirm button. The application designer is displayed.
      Figure 2 Creating a blank application


      Table 1 Parameters for creating a blank application

      Parameter	Description	Example
      Label	The label for the new application; Max. 80 characters. A label uniquely identifies an application in the system and cannot be modified after creation.	My first application
      Name	Name of the new application. After you enter the label value and click the text box of this parameter, the system automatically generates an application name and adds Namespace__ before the name. Naming rules: Max. characters: 31, including the prefix namespace. To prevent duplicate data names among different tenants, each tenant must define a unique namespace when first creating an application. A tenant can only create one namespace, and once it is created, it cannot be modified. Start with a letter and use only letters, digits, and underscores (_). Do not end with an underscore (_).	A

2. Create an object named websiteList and add fields to the object.
   1. In the navigation pane, choose Data, and click + next to Object.
   2. Set Object Name and Unique ID of the object to websiteList and click the confirm button.

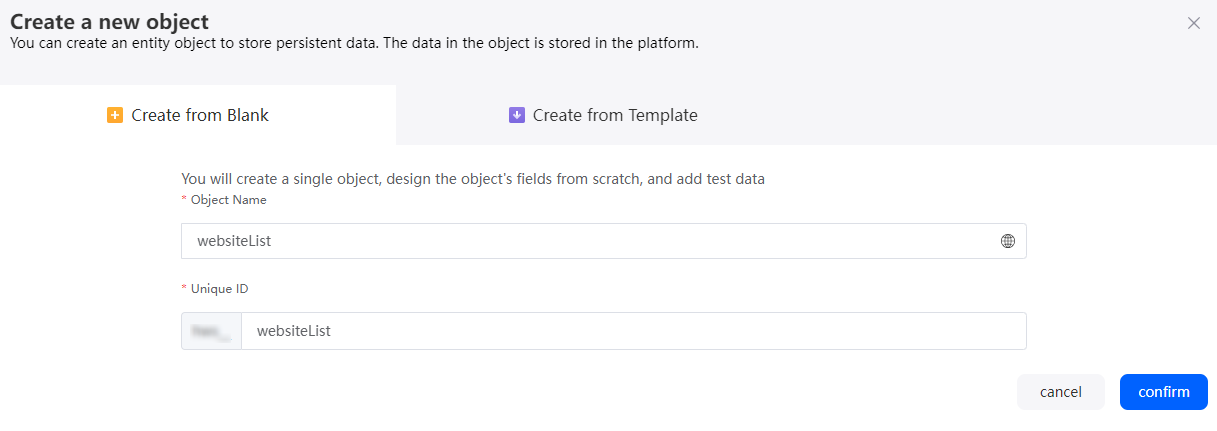

      Figure 3 Creating an object named websiteList


   Table 2 Parameters for the created object websiteList

   Parameter	Description	Example
   Object Name	Name of the new object, which can be changed after the object is created. Value: 1–80 characters.	websiteList
   Unique ID	ID of a new object in the system, which cannot be modified after being created. Naming rules: Max. 63 characters, including the prefix namespace. The content that is blurred in front of the ID is a namespace. To prevent duplicate data names among different tenants, each tenant must define a unique namespace when first creating an application. A tenant can only create one namespace, and once it is created, it cannot be modified. Start with a letter and use only letters, digits, and underscores (_). Do not end with an underscore (_).	websiteList

   3. Click to go to the object details page.
   4. On the Fields tab page, click Add and add the webName field to the object.

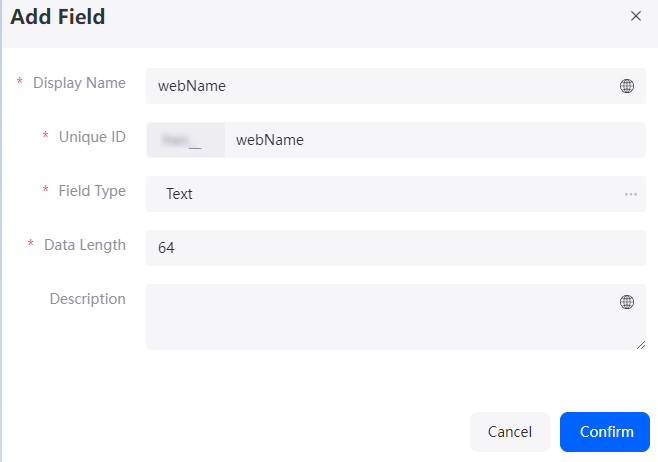

      Figure 4 Adding the webName field


      Table 3 Parameters for adding the webName field

      Parameter	Description	Example
      Display Name	Name of the new field, which can be changed after the field is created. Value: 1–63 characters.	webName
      Unique ID	ID of a new field in the system. The value cannot be changed after the field is created. Naming rules: Max. 63 characters, including the prefix namespace. Start with a letter and use only letters, digits, and an underscore (_). Do not end with an underscore (_).	webName
      Field Type	Click . On the page that is displayed, select the type of the new field based on the parameter description.	Text

   5. Repeat the preceding operations to add the webLink and webId fields to the object.

      Table 4 Adding the webLink and webId fields

      Display Name	Unique ID	Field Type
      webLink	webLink	Text area
      webId	webId	Text

   6. On the Data tab, click Add to add data in Figure 5 to the object.
      Figure 5 Adding data to an object


3. Create an object model.
   1. In the navigation pane, choose Page, and click + next to Standard Page.
   2. Enter the label and name of the page and click Add to create a standard page.
   3. At the bottom of the standard page, click Model View.
   4. Click New, specify Model Name (for example, link), select Objects for Source, and click Next.

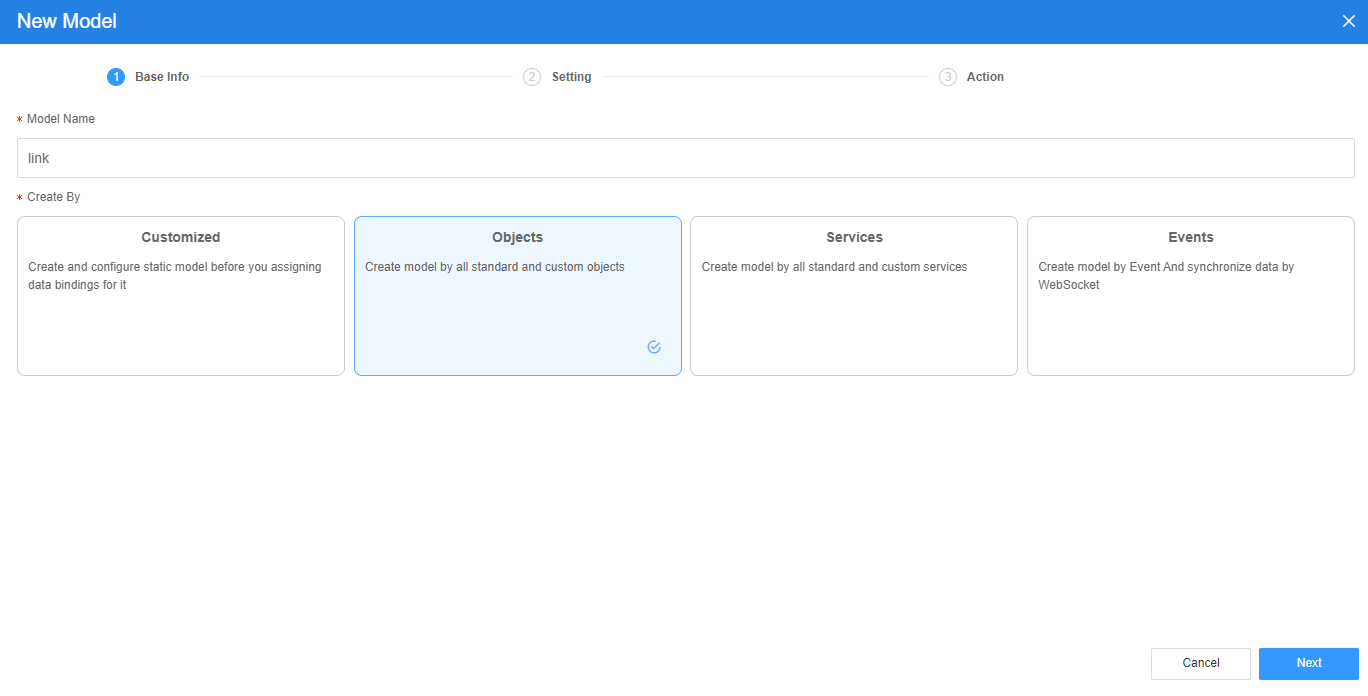

      Figure 6 Creating a model

   5. Select the object created and the fields added in 3, click Next, and click OK.

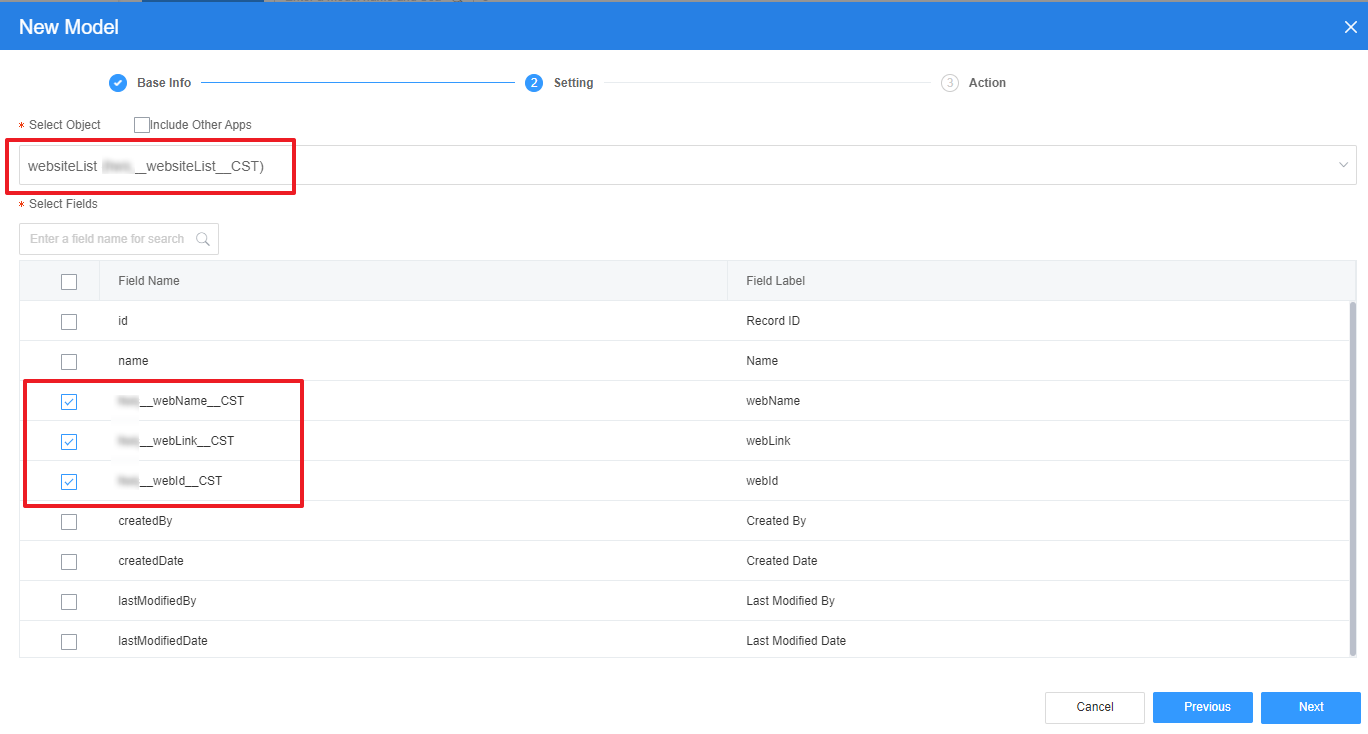

      Figure 7 Selecting objects and fields


4. Return to the Designer View page and bind the model with the widgets.
   1. Drag a table widget to the standard page.

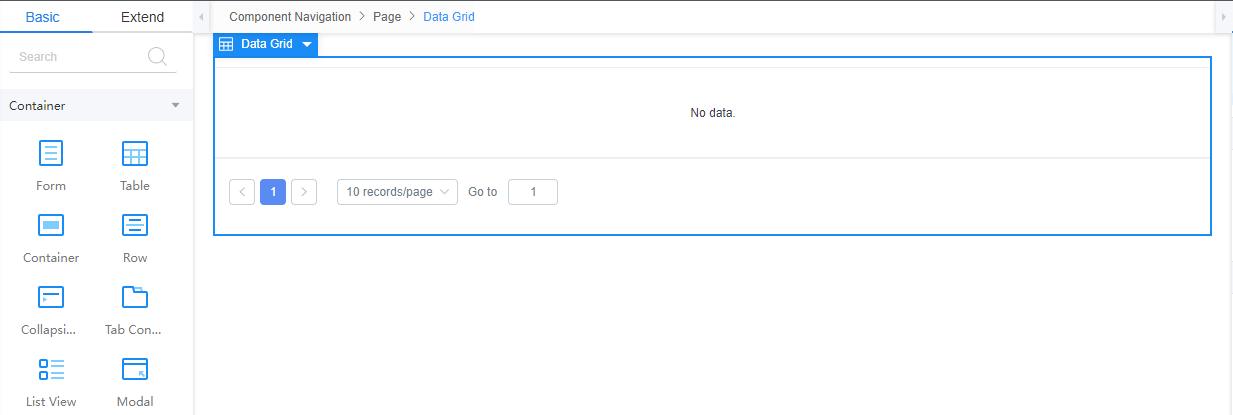

      Figure 8 Dragging a table widget

   2. Select the table widget, choose Properties > Data Binding and click next to Value Binding.
   3. Select the model created in 3 and click the confirm button.

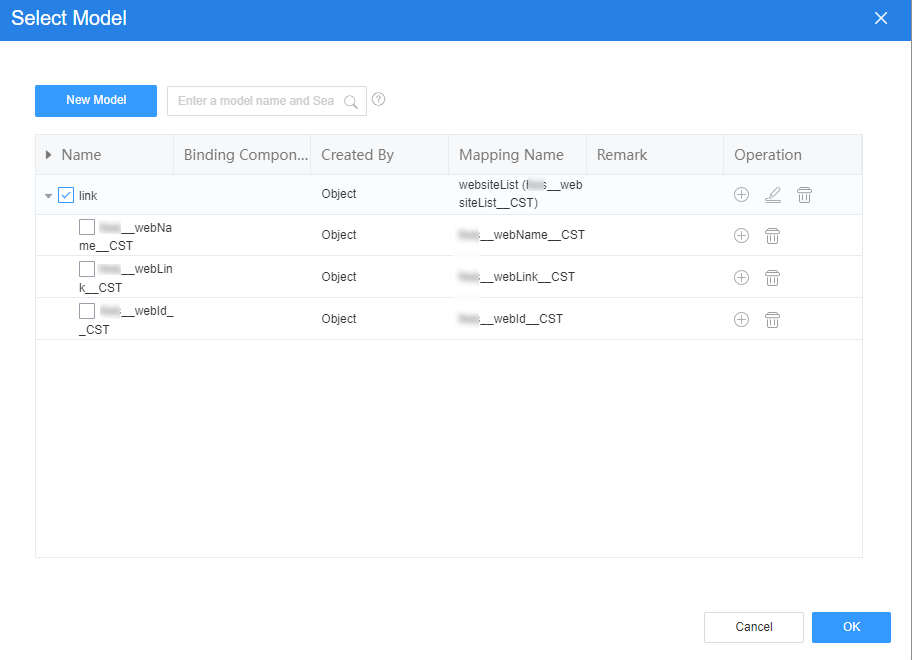

      Figure 9 Selecting the model


5. In Table Columns, click next to the webName column.
   Figure 10 Selecting the required column


6. In Property Settings > Function, add the URL information for the webName column.

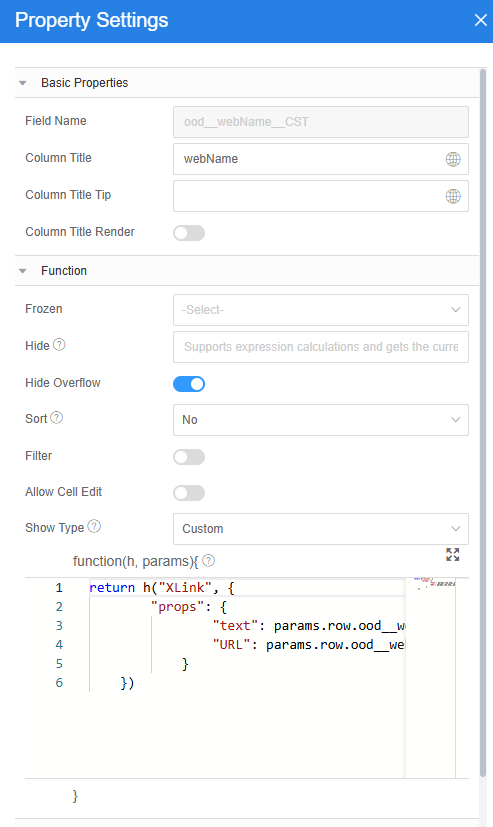

   Figure 11 Setting column properties

   Set Show Type to Custom and enter the following information.

   return h("XLink", {
           "props": {
                   "text": params.row.Namespace__webName__CST,
                   "URL": params.row.Namespace__webLink__CST
               }
       })

7. Click in the upper part of the page to save the page settings.
8. After the settings are saved, click in the upper part of the page to preview.
