Authentication Machine-Machine Interface (SaaS Integrated Deployment)

Prerequisites

In the integration environment, for example, in the public cloud environment, sign in to a tenant space as a tenant administrator and visit https://Domain name/baas/auth/v1.0/idp?client-name=Tenant administrator account name&redirect=/studio/index.html to switch to AppCube.

Procedure

1. Choose User and Profile > Users and click New to create a machine-machine user. Set User Type to Machine User and Profile to OpenApi, set other required parameters, and click Save.

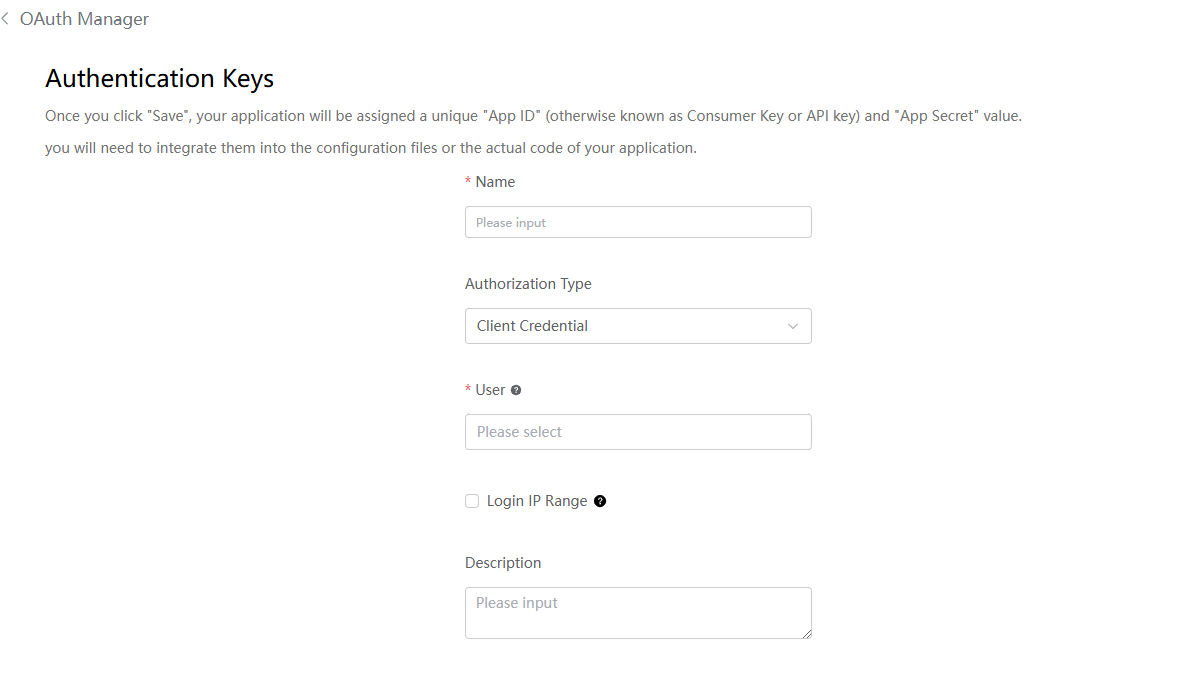

2. Choose System Management > OAuth, click New, set Name to a customized name and User to the user created in step 1, and click Save.

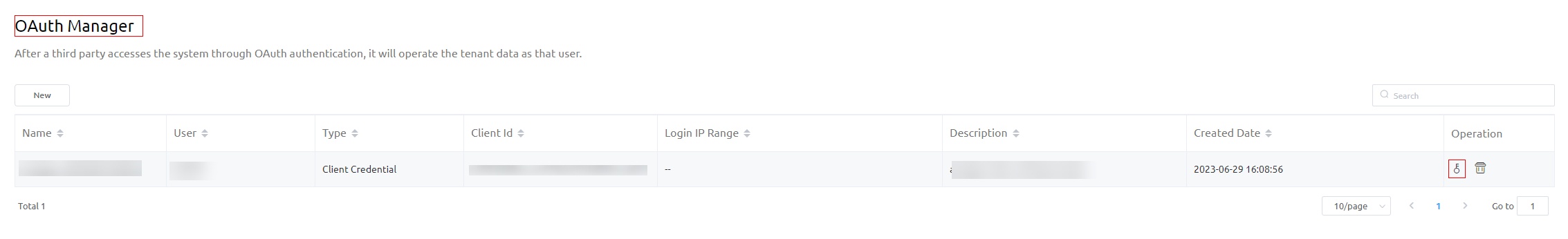

1. On the OAuth Manager page, click corresponding to the new authentication record, download the key file to the local PC, and obtain the authentication client ID and authentication key from the file.
   The name of the key file downloaded to the local PC is Authentication name.csv. The file contains the following parameters:

   • username: user created in step 1
   • client_id: authentication client ID
   • client_secret: authentication key



2. Invoke the authentication interface.
   Invoke the /baas/auth/v1.0/oauth2/token interface to obtain the value of access_token based on the authentication ID and key.

   Table 1 Basic interface information

   Interface	URL	Protocol	Method
   token	/baas/auth/v1.0/oauth2/token	HTTPS	POST

   Table 2 Request parameters

   Parameter	Type	Mandatory (M)/Optional (O)	Position	Description	Setting
   grant_type	String	M	Body	Authorization mode, which corresponds to the value of grant_type in OAuth 2.0.	Set this parameter to client_credentials, indicating the client mode.
   client_id	String	M	Body	Authentication client ID.	Set this parameter to the value obtained in step 4.
   client_secret	String	M	Body	Authentication key.	Set this parameter to the value obtained in step 4.

   Table 3 Response parameters

   Parameter	Type	Position	Description
   access_token	String	Body	Access token. The third-party system needs to use this access token to access business interfaces later.
   expires_in	Number	Body	Access token hold duration.
   token_type	String	Body	Access token type.

Example

Scenario: Obtain an access token to access machine-machine interfaces.

URL: https://Domain name/baas/auth/v1.0/oauth2/token

• Request header

{
    "grant_type":"client_credentials"
    "client_id":"************************"
    "client_secret":"**************************"
}

• Response

{
     "access_token": "ACCESS_TOKEN",
     "expires_in": 7200,
     "token_type": "Bearer"
}

The access token returned in the response is used to access machine-machine interfaces.
