Session Record Query Interface

Updated on 2023-09-27 GMT+08:00

View PDF

Description

This interface is invoked by a third-party system to query intelligent session information.

Prerequisites

Choose Configuration Center > Flow Configuration > Intelligent IVR.
Choose System Management > System Configuration. On the System Settings tab page, click Edit in the row containing FLOWRECORDFLAG, select Enable, and click Confirm to enable this parameter.

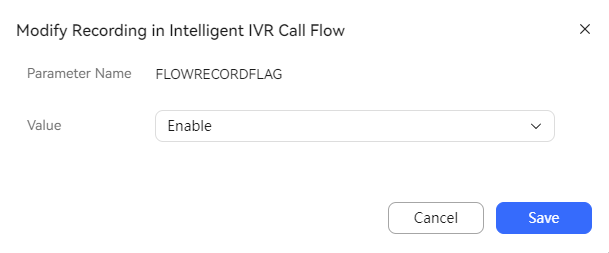

Figure 1 Enabling the FLOWRECORDFLAG parameter

Interface Method

POST

URL

https://IP:PORT/oifde/rest/api/queryRecordHistory

Request

**Table 1** Parameters in the request body
Parameter	Type	Position	Mandatory	Description
tenantId	String	Body	Yes	Tenant ID.
authToken	String	Body	Yes	Token
beginTime	String	Body	No	Start time. Format: yyyy-MM-dd HH:mm:ss
endTime	String	Body	No	End time. Format: yyyy-MM-dd HH:mm:ss
pageNum	String	Body	No	Page number. Number of the page to be queried. The value 1 is for the first page. If this parameter is not transferred, the default value of page number is 1.
pageSize	String	Body	No	Number of records on each page. The value can be 5, 10, 20, 50, or 100. If this parameter is not transferred, 100 records are displayed on each page by default.
callId	String	Body	No	Call ID. One of the userMobile, callId, and ctiCallId parameters must be transferred.
userMobile	String	Body	No	User number. One of the userMobile, callId, and ctiCallId parameters must be transferred.
ctiCallId	String	Body	No	CTI call ID. One of the userMobile, callId, and ctiCallId parameters must be transferred.

Response

Parameter	Type	Position	Mandatory	Description
errorCode	Integer	Body	No	Error code. A value other than 0 indicates failure.
errorMsg	String	Body	No	Error description.
total	Long	Body	Yes	Total number of records.
recordList	record[]	Body	Yes	Dialog binding relationship list in an array.

**Table 2** record
Parameter	Type	Position	Mandatory	Description
logId	String	Body	Yes	Unique ID of a session record.
tenantId	String	Body	Yes	Tenant ID.
callSorId	String	Body	Yes	User number.
callId	String	Body	Yes	Call ID.
ctiCallId	String	Body	No	CTI call ID.
callingNumber	String	Body	Yes	Calling number.
calledNumber	String	Body	Yes	Called number.
startTime	Long	Body	No	Start time of a call. The value is in timestamp format.
endTime	Long	Body	No	Call end time. The value is in timestamp format.
lastUpdateTime	Long	Body	No	Last update time. The value is in timestamp format.
flowInstId	String	Body	No	Flow instance ID.
dialogType	String	Body	No	Dialog type.
callData	String	Body	No	Call data.
locationId	Integer	Body	No	Recording node, which is used when the CTI pool is used.
flag	String	Body	No	Flag.
businessInfo	JSON string	Body	Yes	Recording file information.
businessInfoStr	JSON string	Body	Yes	Recording file information. The information includes yugaoFileName, locationId (node ID), and recordFileName (recording file path and name).
recordDetials	RecordDetials[]	Body	Yes	Call details.
qaRecords	qaRecords[]	Body	Yes	Q&A details.

**Table 3** RecordDetials
Parameter	Type	Position	Mandatory	Description
interNo	String	Body	Yes	Internal sequence number.
userSaying	String	Body	Yes	ASR result.
intention	String	Body	Yes	User intention.
systemReply	String	Body	Yes	System reply.
timestamp	Long	Body	Yes	System reply time.
requsetTime	Long	Body	Yes	User request time.
responseSource	Integer	Body	Yes	Whether the reply comes from a chatbot or a silent agent. The options are 0 (chatbot) and 1 (silent agent).
involveMode	Integer	Body	Yes	Flow access mode. The options are 0 (common mode), 1 (monitoring mode), and 2 (insertion mode).

**Table 4** qaRecords
Parameter	Type	Position	Mandatory	Description
interNo	String	Body	No	Internal sequence number.
seriesId	String	Body	No	Q&A series ID.
questionTitle	String	Body	No	Question title.
questionType	String	Body	No	Question type.
answerIntent	String	Body	No	Answer intention.
originalAnswer	String	Body	No	Original user answer.
createTime	Long	Body	No	Creation time.

Example

Request

{
   "tenantId": "tenant001",
   "authToken": "0dbe11892be840cf983453ea70b505de",
   "userMobile": "180****9999"
}

Response

{
    "errorCode": 0,
    "errorMsg": "Success",
    "total": 1,
    "recordList": [
        {
            "logId": "7343-4256-a659-c7fe7682ef03",
            "tenantId": "xxxxxx",
            "callSorId": "10086",
            "callId": "16185589414826353c2c0036c0292e43ca7a4",
            "ctiCallId": null,
            "callingNumber": "10086",
            "calledNumber": "899149138753490944",
            "startTime": 1618558942000,
            "endTime": 1618559267000,
            "lastUpdateTime": 1618559267000,
            "flowInstId": "1234567892021041615422158916185589414826353c2c0036c0292e43ca7a4",
            "businessInfo": null,
            "businessInfoStr": "{\"yugaoFileName\":\"null\",\"locationId\":\"0\",\"recordFileName\":\"Y:/135/odfsrecord/20220720/1658313131-85918321361224.wav\"}",
            "recordDetials": [
                {
                    "interNo": "1",
                    "userSaying": "How much call fee do I have?",
                    "intention": "Call fee query",
                    "systemReply": "Hello, your call fee of this month is CNY100. The call fee balance is CNY100.",
                    "timestamp": 1618558954000,
                    "requsetTime": 1618558954000,
                    "responseSource": 0,
                    "involveMode": 0
                }
            ],
            "qaRecords": [
                {
                    "interNo": "1",
                    "seriesId": "100",
                    "questionTitle": "Did you take a PCR test?",
                    "questionType": "2",
                    "answerIntent": "Yes.",
                    "originalAnswer": "I have taken the test.",
                    "createTime": 1650774697000
                }
            ]
        }
    ]
}
