Atlas 500 Product Form

The Atlas 500 has two models with different drive configurations:

• Figure 1 shows the Atlas 500 without a drive.

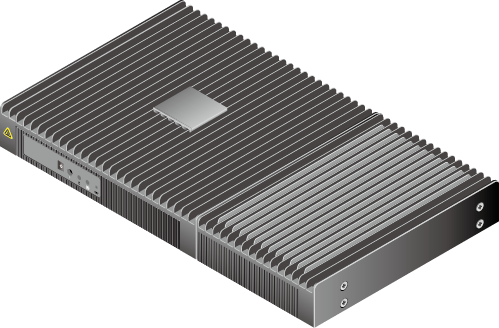

  Figure 1 Atlas 500 (without a drive)


• Figure 2 shows the Atlas 500 with a 3.5-inch drive configured in the drive tray on the right.
  Figure 2 Atlas 500 (with a drive)


Atlas 500 PSU specifications:

The Atlas 500 uses 12 V DC/5 A power supply units (PSUs). You are advised to use 60 W industrial AC PSUs. For details about cable connections and recommended PSU models, see the Atlas 500 AI Edge Station User Guide (Models 3000, 3010).
