Orchestrating Pipeline Stages

Pipeline Stage

A stage is a basic part of a pipeline. Each stage organizes jobs, processes inputs using specific logic, and produces outputs. Stages run in a defined order to create clear workflows. Refer to this section to configure stages.

Notes and Constraints

• Configure pass conditions:
  • Only the Pass-Conditions-of-Standard-Policies type is available. You can select a project- or tenant-level policy.
  • Pass conditions can be set exclusively for each stage of a pipeline and is valid only for the corresponding stage.
  • You can set multiple pass conditions for one stage.

Billing

To use rules and policies, upgrade the CodeArts package to the basic edition. For details, see CodeArts Billing Modes.

Prerequisites

• You have enabled and authorized CodeArts Pipeline.
• Your role is a project administrator or pipeline creator. For details about how to configure permissions, see Authorizing CodeArts Pipeline.

Configuring Stages

1. Access the CodeArts Pipeline homepage.
2. Locate the target pipeline from the pipeline list, click in the Operation column, and select Edit.
3. On the Task Orchestration tab page, click or Stage to add a stage to the pipeline. After the stage is added, you can edit, clone, delete, or move it, or configure its entry type.

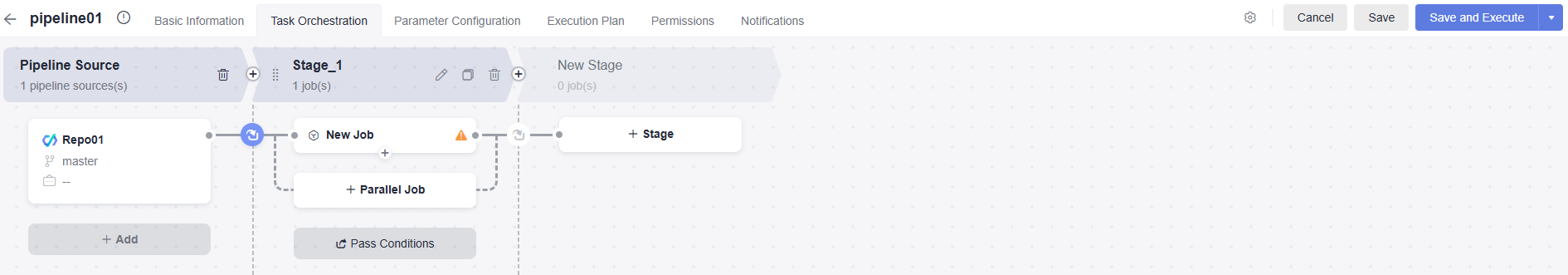

   Figure 1 Task orchestration



   Table 1 Stage management

   Operation	Description
   Editing a stage	Click . In the displayed window, configure the stage name and whether to always run jobs in the stage. If you select Yes for Always Run, jobs in this stage will be executed by default and cannot be canceled. If you select No for Always Run, jobs in this stage will be selected by default for execution but can be canceled.
   Cloning a stage	Click to clone a stage.
   Deleting a stage	Click and confirm the deletion as prompted.
   Sorting a stage	Click and drag to move a stage to adjust its sequence.
   Setting stage admission	Specify in what conditions a pipeline can proceed to the next stage. Click . In the displayed window, configure the admission type. Automatic (default): The pipeline automatically proceeds to the next stage. Manual: The pipeline proceeds only after manual confirmation. Time window: The pipeline proceeds to the next stage within a specified period.
   Pass conditions	Set rules and policies to decide in what conditions a pipeline can complete the current stage. A rule defines different comparison operators based on extension thresholds to determine whether to apply the extension output to stage pass conditions. Multiple such rules constitute a policy. For details, see Configuring a Rule. A policy is a set of rules defined as different condition templates for a step extension. Each policy can be applied to multiple pipelines. There are tenant-level policies and project-level policies. You can use them to control pipeline runs for high-quality delivery. Click Pass Conditions under a stage. In the displayed window, move the cursor to the pass conditions card and click Add. Enter a name and select a policy. Click OK.

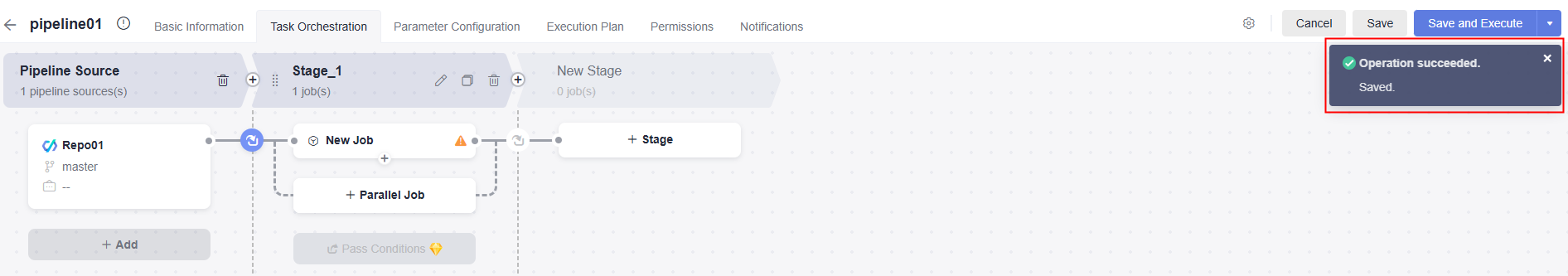

4. After the configuration, click Save. A message is displayed, indicating that the pipeline is saved successfully.



Configuring a Rule

Rules are tenant-level resources and can be used in all tenant- or project-level policies of the current tenant.

1. Access the CodeArts Pipeline homepage.
2. Click the username in the upper right corner and click All Account Settings.
3. In the navigation pane on the left, choose Policy Management > Rules.
4. Click Create Rule. On the displayed page, configure parameters.

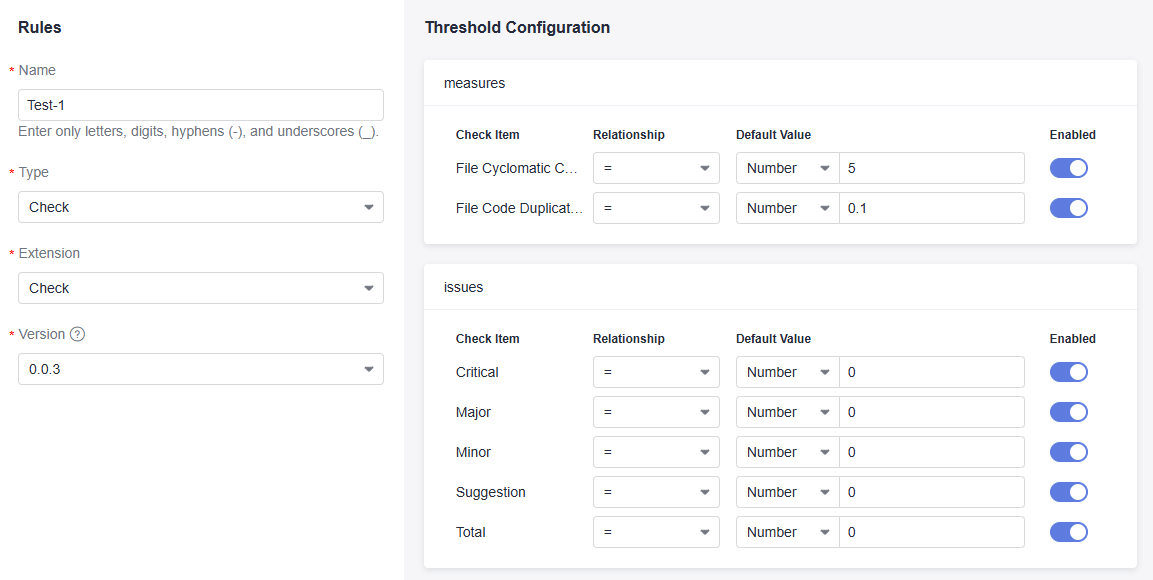

   Figure 2 Creating a rule



   Table 2 Rule parameters

   Parameter	Description	Example Value
   Name	Rule name, which is generated based on the current time. Enter a maximum of 128 characters, including only letters, digits, underscores (_), and hyphens (-).	Enter Test-1.
   Type	Rule type, which corresponds to the extension type. Supported extension types: Build, Check, and Test. Build: extensions for code build. Check: extensions for code check. Test: extensions for API tests.	Select Check.
   Extension	Select from all extensions of the selected type. Extensions of the Build type: Set build result thresholds. For example, you can select an official Build extension to set thresholds for Maven unit tests. Extensions of the Check type: Set code check result thresholds. For example, you can select an official Check extension to set thresholds for code checks. Extensions of the Test type: Set test result thresholds. For example, you can select an official TestPlan extension to set thresholds for determining the test case pass rate in test suites.	Select Check.
   Version	Select from all extension versions with threshold settings.	Select 0.0.3.
   Threshold Configuration	Set relational operators based on thresholds automatically obtained from the selected extension version. Note that if you changed threshold settings, the relevant rule and policy would also be changed. If you set the relational operator to Exclude or Include, the threshold can only be the Text type. For the check item Pass Ratio, the value ranges from 0 to 1.	-
   Code metrics	Reflect the quality of committed code. Metrics help you detect and fix issues in a timely manner and improve R&D efficiency. Code metrics cover the following two types of issues: Cyclomatic complexity. Duplication rate. CodeArts Check identifies duplicate lines, blocks, and rates. For details, see Viewing Check Results.	-

5. Click Confirm. A message is displayed, indicating that the rule is created successfully. You can also perform the following operations in the rule list.


   • On the rule list page, click in the Operation column to edit a rule.
     • The rule type cannot be edited.
     • After a rule is edited, all policies that reference the rule are automatically modified.
   • On the rule list page, click in the Operation column to delete a rule. On the displayed dialog box, click OK to confirm the deletion.
     • After a rule is deleted, all policies that reference the rule automatically cancel the reference.



Configuring a Pipeline Policy

There are tenant-level policies and project-level policies. Tenant-level policies are tenant-level resources and can be used in pass conditions for all pipelines of the current tenant. There is a system policy by default. You can check and use the policy, but cannot edit or delete it. Project-level policies are project-level resources and can be used in pass conditions for all pipelines of the current project. A maximum of 20 rules can be selected for a tenant-level or project-level policy.

Configuring the Tenant-level Policy

1. Access the CodeArts Pipeline homepage.
2. Click the username in the upper right corner and click All Account Settings.
3. In the navigation pane on the left, choose Policy Management > Policies. The policy list page is displayed.

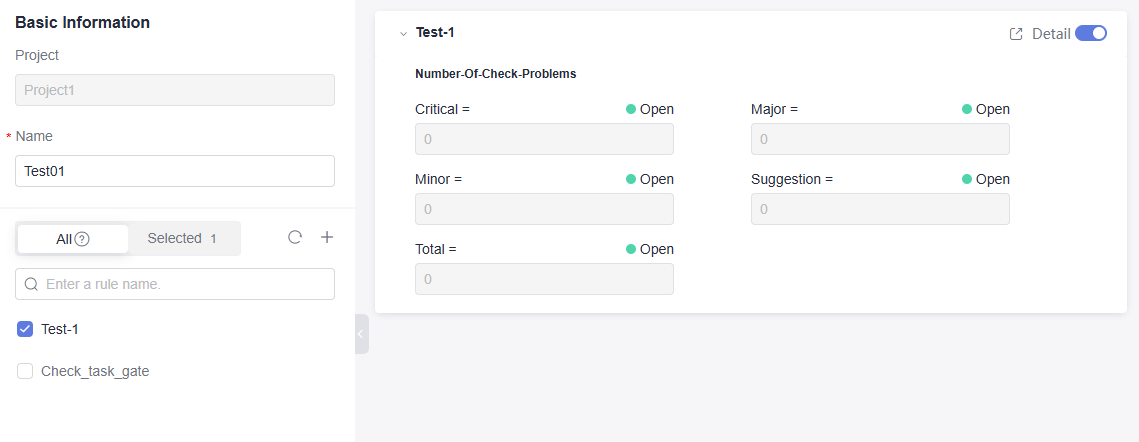

4. Click Create Policy. On the displayed page, configure parameters.


   Table 3 Policy parameters

   Parameter	Description	Example Value
   Name	Policy name, which is generated based on the current time by default. Enter a maximum of 128 characters, including only letters, digits, underscores (_), and hyphens (-).	Enter Test01.
   Rule	The selected rules will be displayed in the right part of the page. You can perform the following operations on each rule: Edit: Click Detail in the upper right corner of the rule to check details. Click Edit in the upper right corner to edit the rule. Enable/Disable: Click the toggle in the upper right corner to enable/disable the rule. After the rule is disabled, it will not take effect in the pass conditions where it is referenced.	Select Test-1.

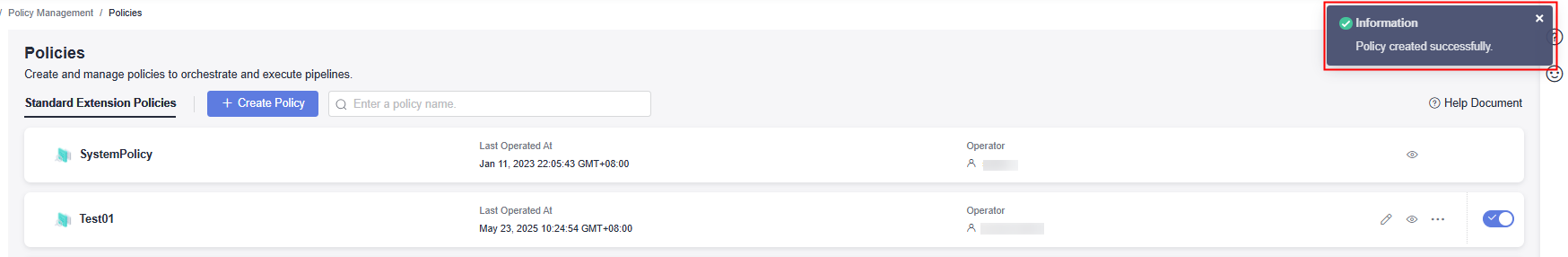

5. Click Confirm. A message is displayed, indicating that a policy is generated.


   • On the policy list page, click to edit a policy. You can also perform the following operations in the policy list.
   • Click to check a policy, and click Edit in the upper right corner to edit the policy.
   • Click and select Clone to clone a policy.
   • Click and select Delete. On the displayed dialog box, confirm the deletion. When you delete a policy, the system displays a message indicating the number of pipelines that use the policy. Once the policy is deleted, pipeline execution will fail.
   • Click the toggle on the right to enable or disable a policy. If a policy is disabled, the system displays a message indicating the number of pipelines that use the policy. Once the policy is disabled, it will not take effect in pass conditions.

Configuring Project-Level Policies

1. Access the CodeArts Pipeline homepage through a project.
2. Click the Policies tab. The policy list page is displayed.
3. Click Create Policy. On the displayed page, configure parameters.

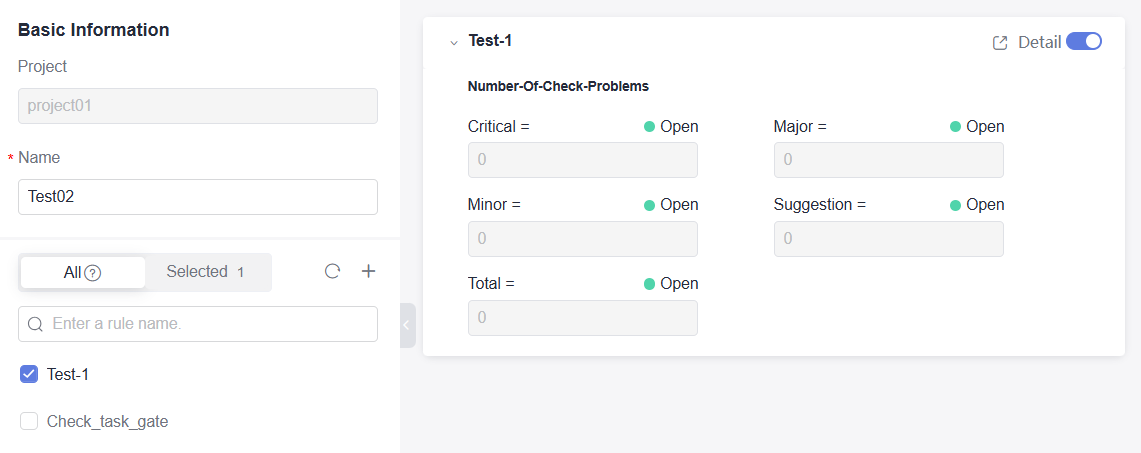

   Figure 3 Policy parameters


   Table 4 Policy parameters

   Parameter	Description	Example Value
   Name	Policy name, which is generated based on the current time by default. Enter a maximum of 128 characters, including letters, digits, underscores (_), and hyphens (-).	Enter Test02.
   Rule	The selected rules will be displayed in the right part of the page. You can perform the following operations on each rule: Edit: Click Detail in the upper right corner of the rule to view the details. Click Edit in the upper right corner to edit the rule. Enable/Disable: Click the toggle in the upper right corner to enable/disable the rule. After the rule is disabled, it will not take effect in the pass conditions.	Select Test-1.

4. Click Confirm. A message is displayed, indicating that the policy is created successfully.


   • On the policy list page, click to edit a policy. You can also perform the following operations in the policy list.
   • Click to check a policy. Click Edit in the upper right corner to edit the policy.
   • Click and select Clone to clone a policy.
   • Click and select Delete. On the displayed dialog box, confirm the deletion.

     When you delete a policy, the system displays a message indicating the number of pipelines that use the policy. Once the policy is deleted, pipeline execution will fail.

   • Click the toggle on the right to enable or disable a policy.

     If a policy is disabled, the system displays a message indicating the number of pipelines that use the policy. Once the policy is disabled, it will not take effect in pass conditions.

   • On the policy list page, click Tenant Policies in the upper right corner. In the displayed window, you can view, clone, or inherit a tenant-level policy.
     • View: Click in the Operation column to check the tenant-level policy. Click Edit in the upper right corner to edit the tenant-level policy.
     • Clone: Click in the Operation column to clone the selected tenant-level policy to create a project-level policy.
     • Inherit: Click in the Operation column to inherit a project-level policy from the tenant-level policy. The inherited rules are always consistent with rules of the tenant-level policy.
