What Should I Do If a Pod Startup Fails?

Fault Locating

On the details page of a workload, if an event is displayed indicating that the pod fails to be started, perform the following operations to locate the fault:

Log in to the node where the abnormal workload is located.
Check the ID of the container where the workload pod exits abnormally.

If the node uses Docker, run the following command:
```
docker ps -a | grep $podName
```
If the node uses containerd, run the following command:
```
crictl ps -a | grep $podName
```
View the container logs.

If the node uses Docker, run the following command:
```
docker logs $containerID
```
If the node uses containerd, run the following command:
```
crictl logs $containerID
```
Rectify the fault of the workload based on logs.
Check the error logs of the OS. For example, check whether the logs contain any OOM errors.
```
cat /var/log/messages | grep $containerID  | grep oom
```
Check whether a system OOM is triggered based on the logs.

Troubleshooting

Determine the cause based on the logs or events, as listed in Table 1.

**Table 1** Pod startup failure
Log or Event	Possible Cause	Fault Locating and Solution
Pod logs: exit code 0	There is no process in the pod.	Check whether the pod can run properly. For details, see No Process in the Pod (Exit Code: 0).
Kubernetes event: Liveness probe failed: Get http… Pod logs: exit code 137	The health check fails.	Check whether the liveness probe for the pod is properly configured. For details, see Health Check Failed (Exit Code: 137).
Kubernetes event: Thin Pool has 15991 free data blocks which is less than minimum required 16383 free data blocks. Create more free space in thin pool or use dm.min_free_space option to change behavior Pod logs: no left space	The disk space is insufficient.	Expand the disk space or clear unneeded files. For details, see Insufficient Disk Space of the Pod.
Pod logs: oom	The pod memory is insufficient.	Check whether the pod has proper resource settings. For details, see Insufficient Container Resources.
Pod logs: Address already in use	A conflict occurs between container ports in the pod.	Check whether there is a container port conflict in the pod. For details, see Container Port Conflict in the Pod.
Kubernetes event: Error: failed to start container "filebeat": Error response from daemon: OCI runtime create failed: container_linux.go:330: starting container process caused "process_linux.go:381: container init caused \"setenv: invalid argument\"": unknown	A secret is mounted to the workload, and the value of the secret is not encrypted using Base64.	For details about the solution, see Improper Value of the Secret Mounted to the Workload.
Kubernetes event: the failed container exited with ExitCode: 255	The x86 container image may run on an Arm node.	For details about the solution, see Unmatched Container Image Tag with the Node Architecture.
Kubernetes event: the failed container exited with ExitCode: 141	The containerd version is incompatible with the tail version.	For details about the solution, see Exit of tail -f xx in the Container Startup Command (Exit Code: 141).
Kubernetes event: Created container init-pinpoint	The Java probe version is incompatible.	For details about the solution, see Incompatible Java Probe Version with the Container.
Other pod logs	Locate the fault based on services.	For details about the fault locating, see Service Setting Checks.

No Process in the Pod (Exit Code: 0)

Log in to the node where the abnormal workload is located.
View the pod status.

If the node uses Docker, run the following command:
```
docker ps -a | grep $podName
```
If the node uses containerd, run the following command:
```
crictl ps -a | grep $podName
```

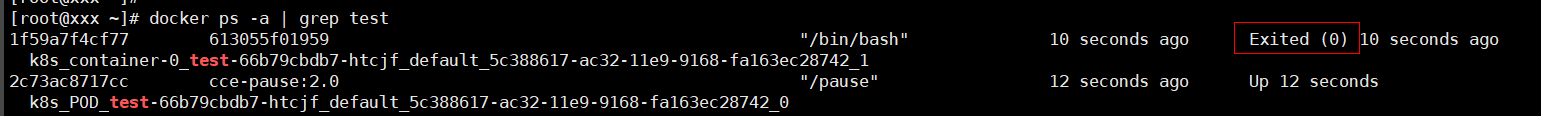

Below shows an example.

If there is no process in the pod, the status code Exited (0) is displayed.

Health Check Failed (Exit Code: 137)

The health checks configured for a workload are performed on services periodically. If an exception occurs, there will be an event that indicates an unhealthy pod, and the pod restarts will fail.

If a liveness probe is configured for the workload and the number of health check failures exceeds the threshold, the pod will be restarted. On the workload details page, if Kubernetes events contain Liveness probe failed: Get http..., the health check fails.

Solution

Click the workload name to go to the workload details page, click the Containers tab. Then select Health Check to check whether the policy is proper or whether services are running properly.

Insufficient Disk Space of the Pod

The following message refers to the thin pool disk that is allocated from the Docker disk selected during node creation. You can run the lvs command as user root to view the current disk usage.

Thin Pool has 15991 free data blocks which is less than minimum required 16383 free data blocks. Create more free space in thin pool or use dm.min_free_space option to change behavior

Click to enlarge

Solution

Solution 1: Clearing images

Perform the following operations to clear unused images:

Nodes that use containerd
1. Obtain local images on the node.
```
crictl images -v
```
2. Delete the unnecessary images by image ID.
```
crictl rmi {Image ID}
```
Nodes that use Docker
1. Obtain local images on the node.
```
docker images
```
2. Delete the unnecessary images by image ID.
```
docker rmi {}Image ID}
```

Do not delete system images such as the cce-pause image. Otherwise, the pod creation may fail.

Solution 2: Expanding the disk capacity

To expand a disk capacity, perform the following operations:

Expand the capacity of a data disk on the EVS console. For details, see Expanding EVS Disk Capacity.

Only the storage capacity of EVS disks can be expanded. You need to perform the following operations to expand the capacity of logical volumes and file systems.
Log in to the CCE console and click the cluster name to access the cluster console. In the navigation pane, choose Nodes. In the right pane, click the Nodes tab, locate the row containing the target node, and choose More > Sync Server Data in the Operation column.
Log in to the target node.

Run lsblk to view the block device information of the node.

A data disk is divided depending on the container storage Rootfs:

Overlayfs: No independent thin pool is allocated. Image data is stored in dockersys.

Check the disk and partition space of the device.

# lsblk
NAME                MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
sda                   8:0    0   50G  0 disk
└─sda1                8:1    0   50G  0 part /
sdb                   8:16   0  150G  0 disk      # The data disk has been expanded to 150 GiB, but 50 GiB space is free.
├─vgpaas-dockersys  253:0    0   90G  0 lvm  /var/lib/containerd
└─vgpaas-kubernetes 253:1    0   10G  0 lvm  /mnt/paas/kubernetes/kubelet

Expand the disk capacity.
Add the new disk capacity to the dockersys logical volume used by the container engine.
1. Expand the PV capacity so that LVM can identify the new EVS capacity. /dev/sdb specifies the physical volume where dockersys is located.
```
pvresize /dev/sdb
```
  Information similar to the following is displayed:
```
Physical volume "/dev/sdb" changed
1 physical volume(s) resized or updated / 0 physical volume(s) not resized
```
2. Expand 100% of the free capacity to the logical volume. vgpaas/dockersys specifies the logical volume used by the container engine.
```
lvextend -l+100%FREE -n vgpaas/dockersys
```
  Information similar to the following is displayed:
```
Size of logical volume vgpaas/dockersys changed from <90.00 GiB (23039 extents) to 140.00 GiB (35840 extents).
Logical volume vgpaas/dockersys successfully resized.
```
3. Adjust the size of the file system. /dev/vgpaas/dockersys specifies the file system path of the container engine.
```
resize2fs /dev/vgpaas/dockersys
```
  Information similar to the following is displayed:
```
Filesystem at /dev/vgpaas/dockersys is mounted on /var/lib/containerd; on-line resizing required
old_desc_blocks = 12, new_desc_blocks = 18
The filesystem on /dev/vgpaas/dockersys is now 36700160 blocks long.
```

Check whether the capacity has been expanded.

# lsblk
NAME                MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
sda                   8:0    0   50G  0 disk
└─sda1                8:1    0   50G  0 part /
sdb                   8:16   0  150G  0 disk
├─vgpaas-dockersys  253:0    0   140G  0 lvm  /var/lib/containerd
└─vgpaas-kubernetes 253:1    0   10G  0 lvm  /mnt/paas/kubernetes/kubelet

Device Mapper: A thin pool is allocated to store image data.

Check the disk and partition space of the device.

# lsblk
NAME                                MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
vda                                   8:0    0   50G  0 disk
└─vda1                                8:1    0   50G  0 part /
vdb                                   8:16   0  200G  0 disk
├─vgpaas-dockersys                  253:0    0   18G  0 lvm  /var/lib/docker
├─vgpaas-thinpool_tmeta             253:1    0    3G  0 lvm
│ └─vgpaas-thinpool                 253:3    0   67G  0 lvm                   # Space used by thin pool
│   ...
├─vgpaas-thinpool_tdata             253:2    0   67G  0 lvm
│ └─vgpaas-thinpool                 253:3    0   67G  0 lvm
│   ...
└─vgpaas-kubernetes                 253:4    0   10G  0 lvm  /mnt/paas/kubernetes/kubelet

Expand the disk capacity.

Option 1: Add the new disk capacity to the thin pool.

Expand the PV capacity so that LVM can identify the new EVS capacity. /dev/vdb specifies the physical volume where thin pool is located.
```
pvresize /dev/vdb
```
Information similar to the following is displayed:
```
Physical volume "/dev/vdb" changed
1 physical volume(s) resized or updated / 0 physical volume(s) not resized
```

Expand 100% of the free capacity to the logical volume. vgpaas/thinpool specifies the logical volume used by the container engine.

lvextend -l+100%FREE -n vgpaas/thinpool

Information similar to the following is displayed:

Size of logical volume vgpaas/thinpool changed from <67.00 GiB (23039 extents) to <167.00 GiB (48639 extents).
Logical volume vgpaas/thinpool successfully resized.

Do not need to adjust the size of the file system, because the thin pool is not mounted to any devices.

Run the lsblk command to check the disk and partition space of the device and check whether the capacity has been expanded. If the new disk capacity was added to the thin pool, the capacity has been expanded.

# lsblk
NAME                                MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
vda                                   8:0    0   50G  0 disk
└─vda1                                8:1    0   50G  0 part /
vdb                                   8:16   0  200G  0 disk
├─vgpaas-dockersys                  253:0    0   18G  0 lvm  /var/lib/docker
├─vgpaas-thinpool_tmeta             253:1    0    3G  0 lvm
│ └─vgpaas-thinpool                 253:3    0   167G  0 lvm             # Thin pool space after capacity expansion
│   ...
├─vgpaas-thinpool_tdata             253:2    0   67G  0 lvm
│ └─vgpaas-thinpool                 253:3    0   67G  0 lvm
│   ...
└─vgpaas-kubernetes                 253:4    0   10G  0 lvm  /mnt/paas/kubernetes/kubelet

Option 2: Add the new disk capacity to the dockersys disk.

Expand the PV capacity so that LVM can identify the new EVS capacity. /dev/vdb specifies the physical volume where dockersys is located.
```
pvresize /dev/vdb
```
Information similar to the following is displayed:
```
Physical volume "/dev/vdb" changed
1 physical volume(s) resized or updated / 0 physical volume(s) not resized
```

Expand 100% of the free capacity to the logical volume. vgpaas/dockersys specifies the logical volume used by the container engine.

lvextend -l+100%FREE -n vgpaas/dockersys

Information similar to the following is displayed:

Size of logical volume vgpaas/dockersys changed from <18.00 GiB (4607 extents) to <118.00 GiB (30208 extents).
Logical volume vgpaas/dockersys successfully resized.

Adjust the size of the file system. /dev/vgpaas/dockersys specifies the file system path of the container engine.

resize2fs /dev/vgpaas/dockersys

Information similar to the following is displayed:

Filesystem at /dev/vgpaas/dockersys is mounted on /var/lib/docker; on-line resizing required
old_desc_blocks = 3, new_desc_blocks = 15
The filesystem on /dev/vgpaas/dockersys is now 30932992 blocks long.

Run the lsblk command to check the disk and partition space of the device and check whether the capacity has been expanded. If the new disk capacity was added to the dockersys, the capacity has been expanded.

# lsblk
NAME                                MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
vda                                   8:0    0   50G  0 disk
└─vda1                                8:1    0   50G  0 part /
vdb                                   8:16   0  200G  0 disk
├─vgpaas-dockersys                  253:0    0   118G  0 lvm  /var/lib/docker     # dockersys after capacity expansion
├─vgpaas-thinpool_tmeta             253:1    0    3G  0 lvm
│ └─vgpaas-thinpool                 253:3    0   67G  0 lvm
│   ...
├─vgpaas-thinpool_tdata             253:2    0   67G  0 lvm
│ └─vgpaas-thinpool                 253:3    0   67G  0 lvm
│   ...
└─vgpaas-kubernetes                 253:4    0   10G  0 lvm  /mnt/paas/kubernetes/kubelet

Insufficient Container Resources

If the upper limit of container resources has been reached, OOM will be displayed in the event details as well as in the log:

cat /var/log/messages | grep 96feb0a425d6 | grep oom

Click to enlarge

When a workload is created, if the requested resources exceed the configured upper limit, the system OOM is triggered and the container exits unexpectedly.

Container Port Conflict in the Pod

Log in to the node where the abnormal workload is located.
Check the ID of the container where the workload pod exits abnormally.

If the node uses Docker, run the following command:
```
docker ps -a | grep $podName
```
If the node uses containerd, run the following command:
```
crictl ps -a | grep $podName
```
View the container logs.

If the node uses Docker, run the following command:
```
docker logs $containerID
```
If the node uses containerd, run the following command:
```
crictl logs $containerID
```
Rectify the fault of the workload based on logs. As shown in the following figure, container ports in the same pod conflict. As a result, the container fails to be started.

Figure 1 Pod restart failure due to a container port conflict

Solution

Configure proper container ports that do not conflict with each other. Then, create the workload again.

If a pod uses the host network (with hostNetwork: true configured), there may be a container port conflict. This is because containers in the pod share the network interface and port range with the host node. Multiple pods using the same port cannot run on the same node.

Improper Value of the Secret Mounted to the Workload

Information similar to the following is displayed in the event:

Error: failed to start container "filebeat": Error response from daemon: OCI runtime create failed: container_linux.go:330: starting container process caused "process_linux.go:381: container init caused \"setenv: invalid argument\"": unknown

The root cause is that a secret is mounted to the workload, but the value of the secret is not encrypted using Base64.

Solution

Create a secret on the console. The value of the secret is automatically encrypted using Base64.

If you use YAML to create a secret, you need to manually encrypt its value using Base64.

echo -n "Content to be encoded" | base64

Unmatched Container Image Tag with the Node Architecture

The proper image tag is not used during the workload creation on an Arm node. To resolve this issue, use the proper image tag.

For details about how to create an image in dual-architecture (x86 and Arm), see Using Dual-Architecture Images (x86 and Arm) in CCE.

Exit of tail -f xx in the Container Startup Command (Exit Code: 141)

The Kubernetes event is as follows:

the failed container exited with ExitCode: 141

Possible Cause

The legacy version of containerd is incompatible with the tail version (≥ 8.28) in the container image. As a result, executing the tail -f command leads to an unexpected exit, returning exit code 141.

Temporary Workaround

Change tail -f xx in the startup parameters to sleep 2 && tail -f xx and create a workload again.

Solution

Upgrade the cluster to v1.25.16-r20, v1.27.16-r20, v1.28.15-r10, v1.29.10-r10, v1.30.6-r10, v1.31.4-r0, or later.
Reset the node and use the Docker container engine instead.

Incompatible Java Probe Version with the Container

The Kubernetes event is as follows:

Created container init-pinpoint

Solution

When creating a workload, select the specific latest Java probe version (for example, 1.0.36, not the latest option) on the APM Settings tab in the Advanced Settings area.
If you selected latest for the Java probe during workload creation, you can upgrade the workload and change it to the specific latest version (for example, 1.0.36).

Service Setting Checks

Check whether the workload startup command is correctly executed or whether the workload has a bug.

Log in to the node where the abnormal workload is located.
Check the ID of the container where the workload pod exits abnormally.

If the node uses Docker, run the following command:
```
docker ps -a | grep $podName
```
If the node uses containerd, run the following command:
```
crictl ps -a | grep $podName
```
View the container logs.

If the node uses Docker, run the following command:
```
docker logs $containerID
```
If the node uses containerd, run the following command:
```
crictl logs $containerID
```
Note: In the preceding command, containerID indicates the ID of the container that has exited.

Figure 2 Incorrect startup command of the container

As shown in the figure above, the container fails to be started due to an incorrect startup command. For other errors, rectify the bugs based on the logs.
