Generating Alarms by Tag

Scenario

O&M personnel of an e-commerce platform need to manage cloud resources and generate alarms by tag.

Solution

Create Prometheus instances for cloud services and connect cloud services and tags. Then check the connected cloud service metrics and tags on the Metric Browsing page and set alarm rules for these metrics. If a metric is abnormal, an alarm will be triggered immediately and a notification will be sent.

Step 1: Add a Tag to a Cloud Service

Log in to the Tag Management Service (TMS) console and add a tag to DCS. For details, see Adding Tags to Cloud Resources.

For example, set the tag key to Ihn and the tag value to OPEN.

Step 2: Connect the Cloud Service to a Prometheus Instance

1. Log in to the AOM 2.0 console.
2. In the navigation pane on the left, choose Prometheus Monitoring > Instances.
3. Click Add Prometheus Instance and set an instance name, enterprise project, and instance type.

   For Instance Type, select Prometheus for Cloud Services.

4. Click OK. A Prometheus instance is created.
5. On the Prometheus instance list page, click the Prometheus instance for cloud services.
6. Click DCS in the Unconnected Cloud Services area on the right. On the displayed dialog box, enable Add Tag to Dimension under Connect Cloud Service Tags, and then click Connect Now.
   As shown in Figure 1, the DCS service and tag can be connected.

   Figure 1 Connecting the cloud service and tag


Step 3: Set the Tag to Be an Alarm Condition

1. Check whether the cloud service metric and tag have been connected.
   1. In the navigation pane, choose Metric Browsing.
   2. On the Metric Sources tab page, select the Prometheus instance created in 3.
   3. Select the metric to be monitored from the Metric drop-down list and select the tag added in step 1 from the Conditions drop-down list to check whether the cloud service metric and tag have been connected. As shown in Figure 2, the CPU Usage metric and Ihn tag of the DCS service have been connected.

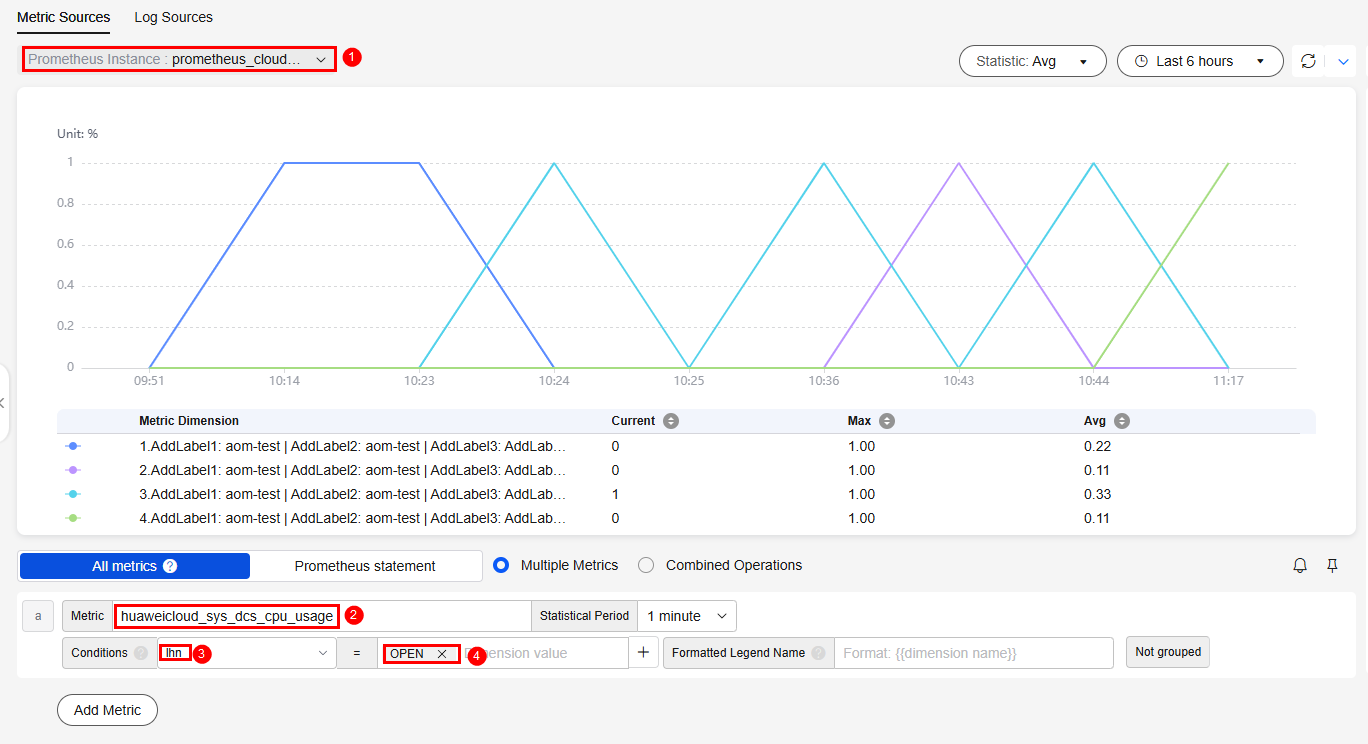

      Figure 2 Checking the metric


2. Click in the upper right corner of the metric list to add an alarm rule for the selected metric.
3. Set the basic information about the alarm rule, such as the rule name.

   Table 1 Basic information

   Parameter	Description	Example Value
   Original Rule Name	Original name of the alarm rule. Enter a maximum of 256 characters and do not start or end with any special character. Only letters, digits, underscores (_), and hyphens (-) are allowed.	Ihn
   Rule Name	Name of a rule. Max.: 256 characters. Only letters, digits, hyphens (-), and underscores (_) are allowed. Do not start or end with a hyphen or underscore. In this example, leave this parameter blank.	-
   Enterprise Project	Select the required enterprise project. The default value is default.	default
   Description	Description of the rule. Enter up to 1,024 characters. In this example, leave this parameter blank.	-

4. Set the detailed information about the alarm rule.
   1. By default, the rule type, configuration mode, and Prometheus instance in the alarm rule settings are the same as those on the Metric Browsing page.
   2. Set alarm rule details. The metric and its conditions are consistent with those configured on the Metric Browsing page. Set parameters such as the statistical period and detection rule as required.
      As shown in Figure 3, in a 1-minute statistical period, if the average value of the monitored object is greater than 0.5 for three consecutive periods, a critical alarm () will be generated.

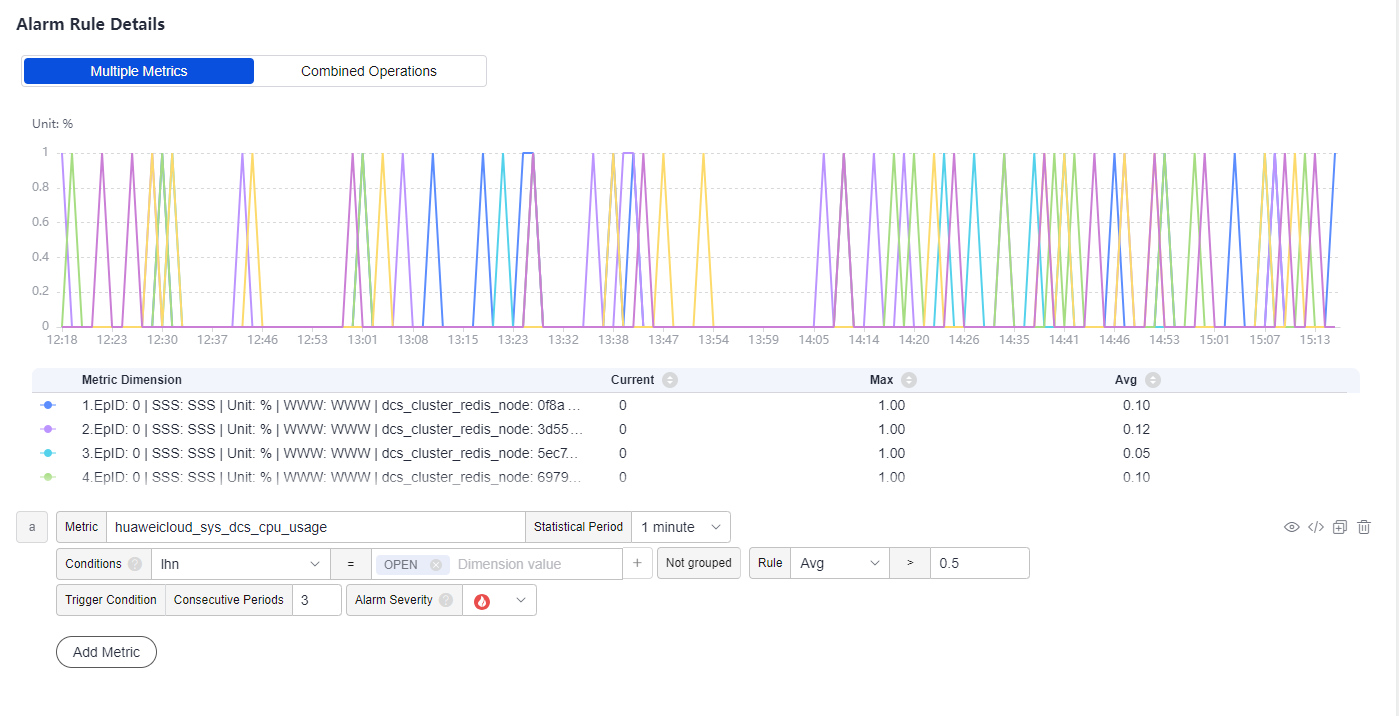

      Figure 3 Setting alarm rule details

   3. Under Advanced Settings, set information such as Check Interval and Alarm Clearance. In this example, retain the default settings.
   4. Set an alarm notification policy. There are two alarm notification modes. As shown in Figure 4, the direct alarm reporting mode is selected.
      Direct alarm reporting: An alarm is directly sent when the alarm condition is met. If you select this mode, set an interval for notification and specify whether to enable a notification rule.

      1. Set the frequency for sending alarm notifications.
      2. Determine whether to enable the notification rule. After the rule is enabled, the system sends notifications based on the associated SMN topic and message template.

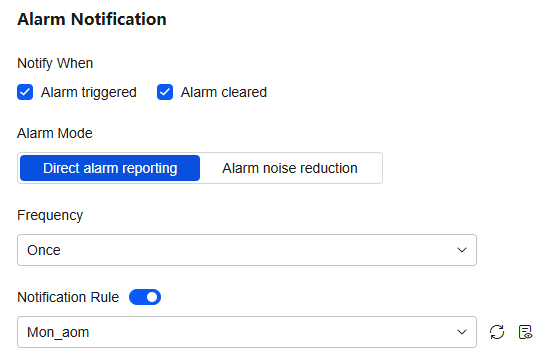

      Figure 4 Alarm notification


5. Click Confirm. Then click View Rule to view the created rule.

   As shown in Figure 5, click a rule name to view the rule details.

   In the expanded list, if a monitored object meets the configured alarm condition, a metric alarm is generated on the alarm list page. To view the alarm, choose Alarm Center > Alarm List in the navigation pane. In this example, if the CPU usage of the DCS instance meets the preset notification policy, the system will send an alarm notification to the specified personnel by email, SMS, or WeCom.

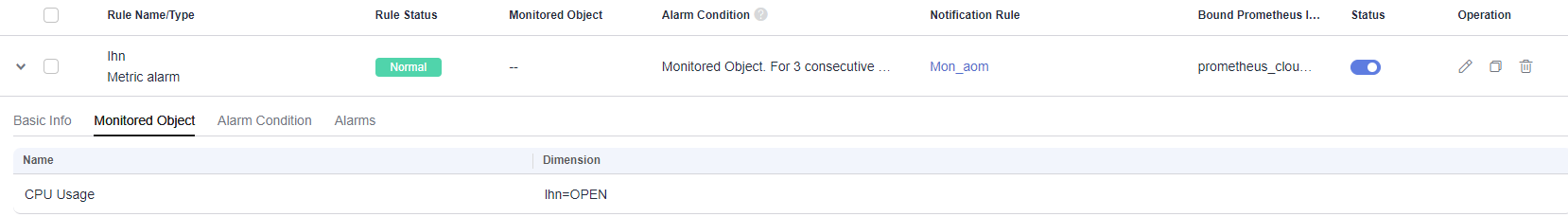

   Figure 5 Checking the alarm rule
