Dashboard

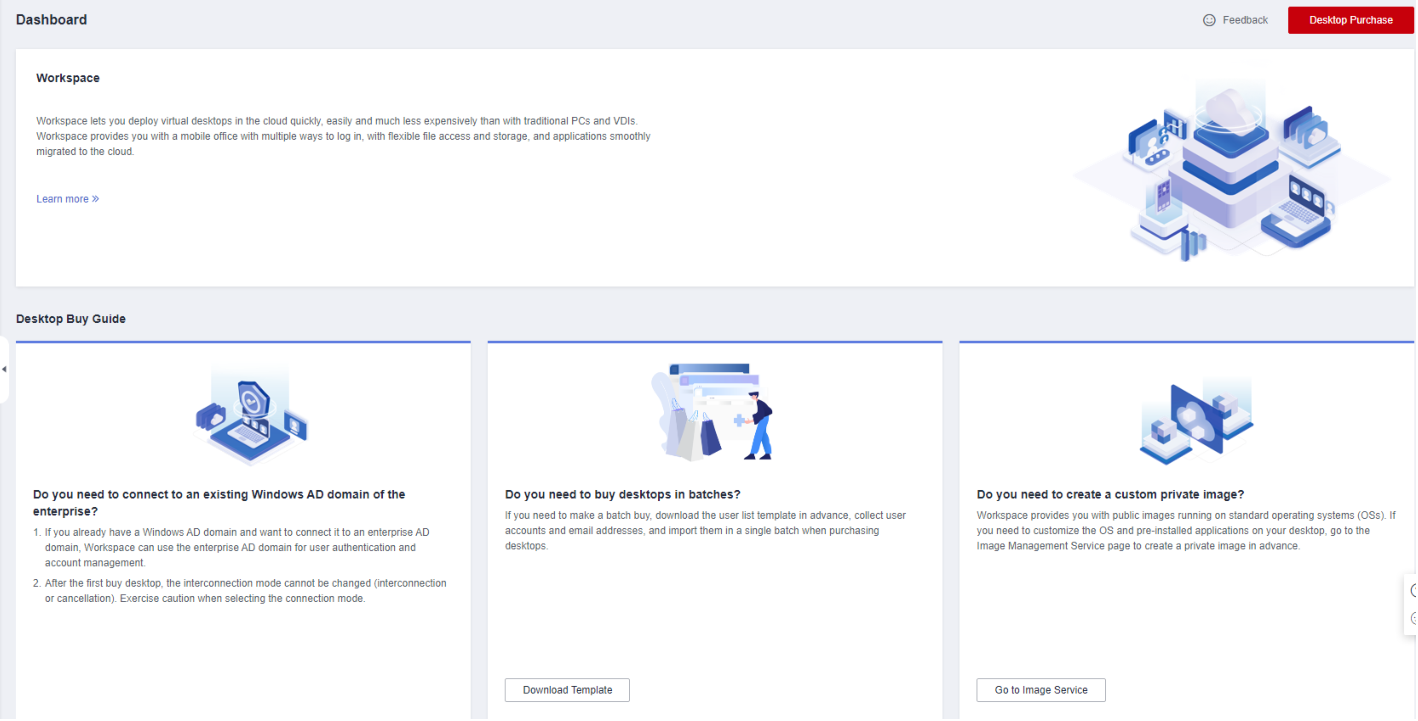

Having Not Purchased a Desktop
Having Purchased a Desktop

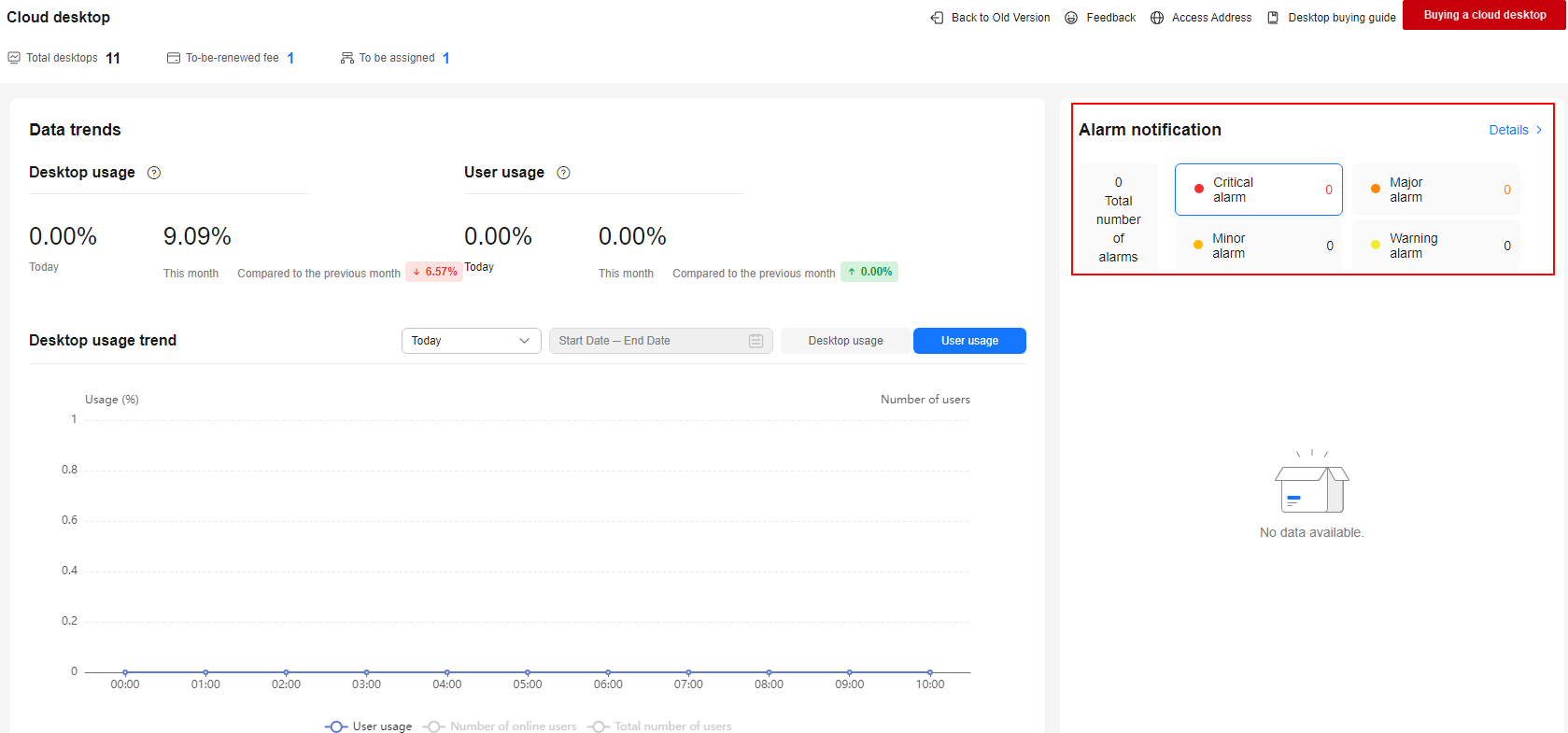

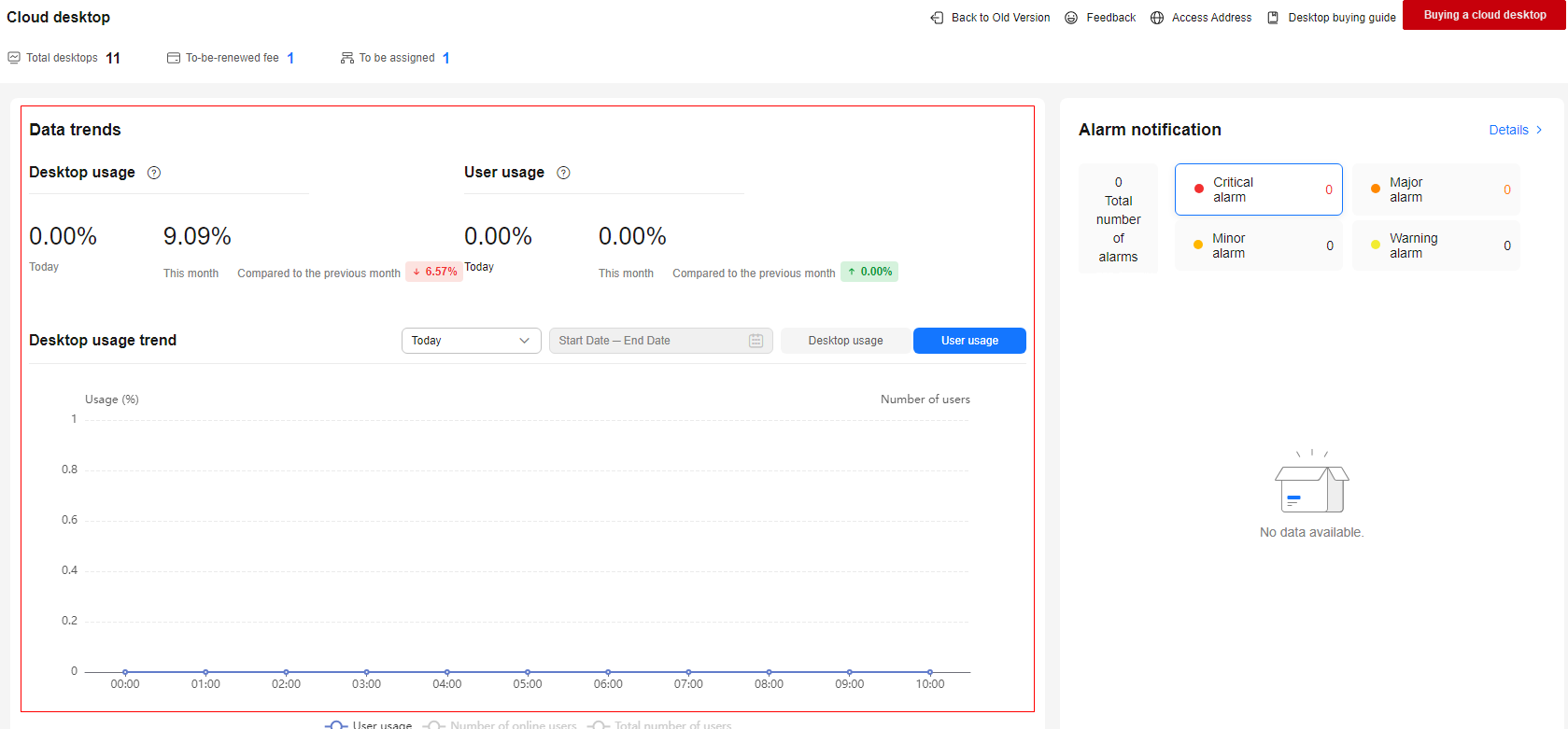

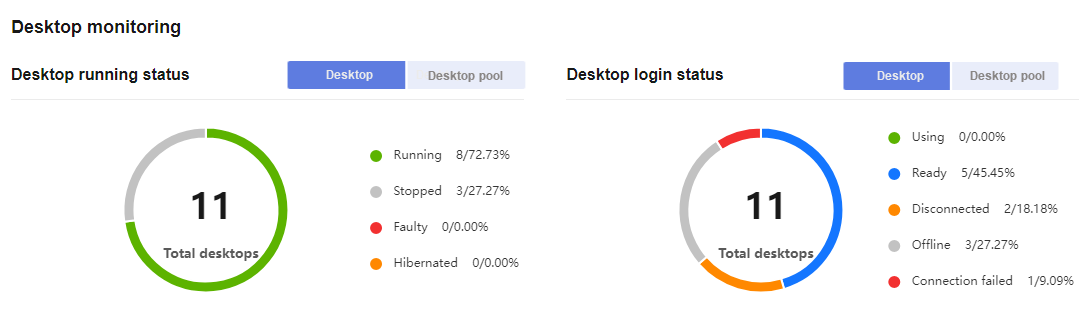

After purchasing a desktop, you can view the monitoring status of the desktop, such as the running status, login status, and online user count, on the Dashboard page, as shown in Figure 2. For details, see Table 1 Status description.
|
Status Type |
Status |
Description |
|---|---|---|
|
Login status |
Using |
Indicates that a user has logged in to the desktop and is using the desktop. |
|
Disconnected |
Indicates that the user has logged out of the desktop and is disconnected. |
|
|
Ready |
Indicates that the desktop has been registered with and connected to the infrastructure server and is waiting for the user to log in. |
|
|
Offline |
Indicates that the desktop is stopped. |
|
|
Failed to connect |
Indicates that the desktop is in an abnormal network or the infrastructure server has not been registered for a long time. |
|
|
Status |
Running |
Indicates that the desktop is working. |
|
Stopped |
Indicates that the desktop is stopped. |
|
|
Faulty |
Indicates that the desktop is faulty. |
|
|
Online user count |
Online user statistics |
Displays the number of online users in a specific time range. You can view the number of online users in the last 1 hour, last 24 hours, last 7 days, last 30 days, or a custom time interval.
NOTE:
The data is not real-time. If you query the number of online users by hour, the data may be delayed for 0 to 10 minutes. That is, the actual number is the number in the hour before 0 to 10 minutes. If you query by day, the data may be delayed for 0 to 1 hour. That is, the actual number is the number in the last day before 0 to 1 hour. |
