Creating a Security Group

Scenarios

A security group consists of inbound and outbound rules. You can add security group rules to allow or deny the traffic to reach and leave the instances (such as ECSs) in the security group.

When creating an instance (for example, an ECS), you must associate it with a security group. If no security group has been created yet, a default security group will be created and associated with the instance. You can also create a security group and add inbound and outbound rules to allow specific traffic. For more information about security groups and rules, see Security Group and Security Group Rule Overview.

Security Group Templates

Several security group templates are provided for you to create a security group. A security group template has preconfigured inbound and outbound rules. You can select a template based on your service requirements. Table 1 describes the security group templates.

Procedure

1. Go to the security group list page.
2. In the upper right corner, click Create Security Group.

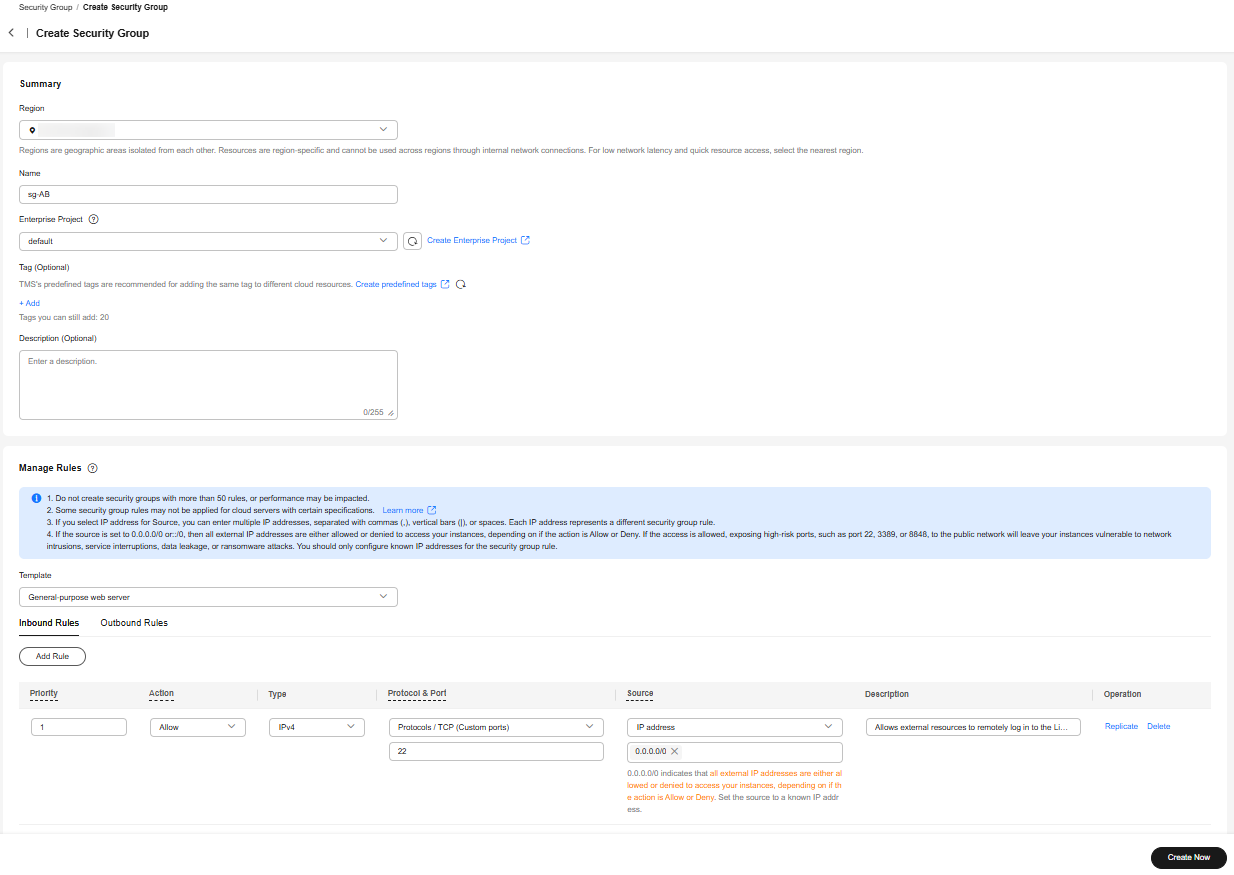

   The Create Security Group page is displayed.

3. Configure the parameters as prompted.

   Table 2 Parameter description

   Parameter	Description	Example Value
   Name	Mandatory The name of the security group. The name: Can contain 1 to 64 characters. Can contain letters, digits, underscores (_), hyphens (-), and periods (.). NOTE: You can change the security group name after a security group is created. It is recommended that you give each security group a different name.	sg-AB
   Enterprise Project	Mandatory When creating a security group, you can add the security group to an enabled enterprise project. An enterprise project facilitates project-level management and grouping of cloud resources and users. The name of the default project is default. For details about creating and managing enterprise projects, see the Enterprise Management User Guide.	default
   Template	Mandatory The system provides several security group templates for you to create a security group. A security group template has preconfigured inbound and outbound rules. You can select a template based on your service requirements. Table 1 describes the security group templates.	General-purpose web server
   Description (Optional)	Optional Supplementary information about the security group. The security group description can contain a maximum of 255 characters and cannot contain angle brackets (< or >).	N/A

4. Confirm the inbound and outbound rules of the template and click OK.

Related Operations

• After a security group is created, if its rules cannot meet your service requirements, you can add new rules to the security group or modify original rules. For details, see Adding a Security Group Rule.
• Each ECS must be associated with at least one security group. You can add an ECS to multiple security groups based on service requirements. For details, see Adding an Instance to or Removing an Instance from a Security Group.
