Viewing Collection Nodes

Scenario

This topic describes how to view collection nodes details.

Viewing Collection Nodes

1. Log in to the management console.
2. Click in the upper left corner of the management console and select a region or project.
3. Click in the upper left corner of the page and choose Security & Compliance > SecMaster.
4. In the navigation pane on the left, choose Workspaces > Management. In the workspace list, click the name of the target workspace.
   Figure 1 Workspace management page


5. In the navigation pane on the left, choose Settings > Collections. Then, select the Collection Nodes tab.

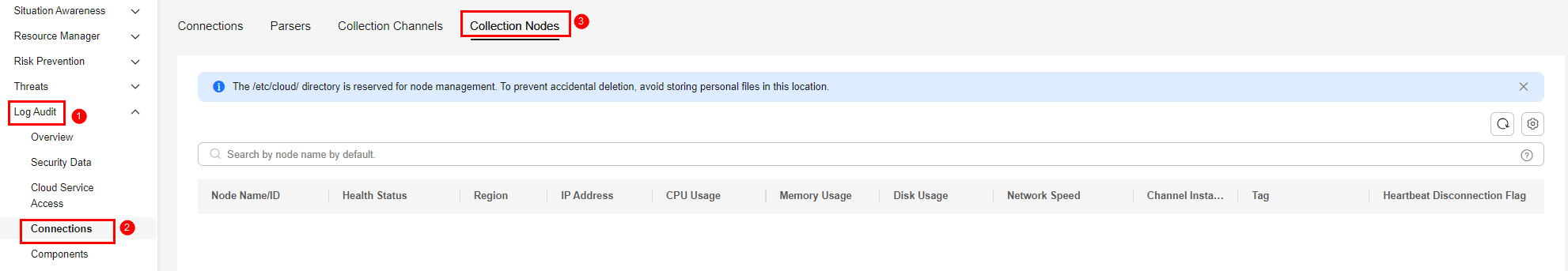

   Figure 2 Accessing the Collection Nodes page


6. On the Collection Nodes page, view the detailed information about collection nodes.

   If there are many nodes displayed, use filters to search for a specific one.

   To view details about a node, click its name to go to its details page.

   Table 1 Collection node parameters

   Parameter	Description
   Node Name/ID	Name or ID of a node
   Health Status	Node health status
   Region	Region where the node is located
   IP Address	Node IP address
   CPU Usage	CPU usage of the node
   Memory Usage	Memory usage of the node
   Disk Usage	Node disk usage
   Network Speed	Network rate of a node
   Label	Label information of a node
   Heartbeat Expiration Mark	Indicates whether the node is disconnected due to heartbeat expiration. If no heartbeat message is sent within 15 minutes, the node is marked as Disconnected.
