Managing Data Delivery

Scenario

This section describes how to manage delivery tasks.

• Viewing a Data Delivery Task
• Suspending a Delivery Task
• Starting a Delivery Task
• Deleting a Delivery Task

Prerequisites

A data delivery task has been added.

Viewing a Data Delivery Task

1. Log in to the management console.
2. Click in the upper left corner of the management console and select a region or project.
3. Click in the upper left corner of the page and choose Security & Compliance > SecMaster.
4. In the navigation pane on the left, choose Workspaces > Management. In the workspace list, click the name of the target workspace.
   Figure 1 Workspace management page


5. In the navigation pane on the left, choose Threat Operations > Security Analysis. On the page displayed, click the Data Delivery Management tab.

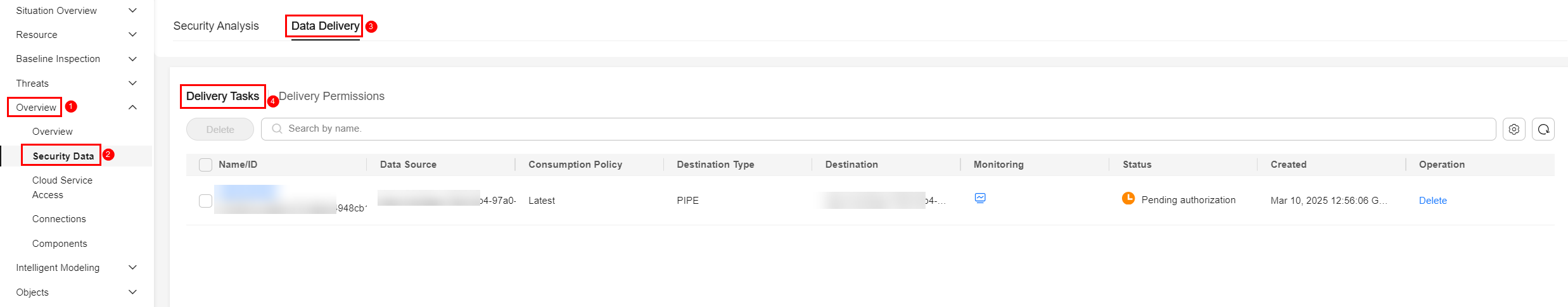

   Figure 2 Accessing the data delivery page


6. On the delivery task list page, view existing delivery tasks.

   Table 1 Delivery task parameters

   Operation	Description
   Name/ID	Delivery task name and ID
   Data Source	Pipeline where the data source is located
   Consumption Policy	Consumption policy of a delivery task
   Destination Type	Type of the data delivery destination
   Destination	Data delivery destination
   Monitoring	Data delivery monitoring status. You can click the monitoring icon to view the data consumption information.
   Status	Status of a delivery task
   Created	Time when a delivery task is created
   Operation	You can delete or suspend a data delivery task.

Suspending a Delivery Task

After a data delivery task is added and authorized, the delivery task status changes to Delivering. To stop the delivery, you can suspend the target delivery task.

1. Log in to the management console.
2. Click in the upper left corner of the management console and select a region or project.
3. Click in the upper left corner of the page and choose Security & Compliance > SecMaster.
4. In the navigation pane on the left, choose Workspaces > Management. In the workspace list, click the name of the target workspace.
   Figure 3 Workspace management page


5. In the navigation pane on the left, choose Threat Operations > Security Analysis. On the page displayed, click the Data Delivery Management tab.
   Figure 4 Accessing the data delivery page


6. On the Data Delivery tab page, locate the row of the target delivery task and click Suspend in the Operation column.

   After a delivery task is suspended, the delivery task status changes to Suspended, indicating that the delivery task is suspended successfully.

Starting a Delivery Task

You can restart a suspended delivery task.

1. Log in to the management console.
2. Click in the upper left corner of the management console and select a region or project.
3. Click in the upper left corner of the page and choose Security & Compliance > SecMaster.
4. In the navigation pane on the left, choose Workspaces > Management. In the workspace list, click the name of the target workspace.
   Figure 5 Workspace management page


5. In the navigation pane on the left, choose Threat Operations > Security Analysis. On the page displayed, click the Data Delivery Management tab.
   Figure 6 Accessing the data delivery page


6. On the Data Delivery tab page, locate the row of the target delivery task and click Start in the Operation column.

   After a delivery task is restarted, the delivery task status changes to Delivering, indicating that the delivery task is successfully started.

Deleting a Delivery Task

If a data delivery task is no longer needed, you can delete it.

1. Log in to the management console.
2. Click in the upper left corner of the management console and select a region or project.
3. Click in the upper left corner of the page and choose Security & Compliance > SecMaster.
4. In the navigation pane on the left, choose Workspaces > Management. In the workspace list, click the name of the target workspace.
   Figure 7 Workspace management page


5. In the navigation pane on the left, choose Threat Operations > Security Analysis. On the page displayed, click the Data Delivery Management tab.
   Figure 8 Accessing the data delivery page


6. On the Data Delivery tab page, locate the row of the target delivery task and click Delete in the Operation column and click OK in the displayed dialog box.
