Performing Rolling Restart

After modifying the configuration items of a big data component, you need to restart the corresponding service to make new configurations take effect. If you use a normal restart mode, all services or instances are restarted concurrently, which may cause service interruption. To ensure that services are not affected during service restart, you can restart services or instances in batches by rolling restart. For instances in active/standby mode, a standby instance is restarted first and then an active instance is restarted. Rolling restart takes longer than normal restart.

Table 1 provides services and instances that support or do not support rolling restart in the MRS cluster.
Table 1 Services and instances that support or do not support rolling restart

Service

Instance

Support Rolling Restart

Alluxio

AlluxioJobMaster

Yes

AlluxioMaster

ClickHouse

ClickHouseServer

Yes

ClickHouseBalancer

CDL

CDLConnector

Yes

CDLService

Flink

FlinkResource

No

FlinkServer

Flume

Flume

Yes

MonitorServer

Guardian

TokenServer

Yes

HBase

HMaster

Yes

RegionServer

ThriftServer

RESTServer

HetuEngine

HSBroker

Yes

HSConsole

HSFabric

QAS

HDFS

NameNode

Yes

Zkfc

JournalNode

HttpFS

DataNode

Hive

MetaStore

Yes

WebHCat

HiveServer

Hue

Hue

No

Impala

Impalad

No

StateStore

Catalog

IoTDB

IoTDBServer

Yes

Kafka

Broker

Yes

KafkaUI

No

Kudu

KuduTserver

Yes

KuduMaster

Loader

Sqoop

No

MapReduce

JobHistoryServer

Yes

Oozie

oozie

No

Presto

Coordinator

Yes

Worker

Ranger

RangerAdmin

Yes

UserSync

TagSync

Spark

JobHistory

Yes

JDBCServer

SparkResource

Storm

Nimbus

Yes

UI

Supervisor

Logviewer

Tez

TezUI

No

Yarn

ResourceManager

Yes

NodeManager

Zookeeper

Quorumpeer

Yes

Restrictions

  • Perform a rolling restart during off-peak hours.
    • Otherwise, a rolling restart failure may occur. For example, if the throughput of Kafka is high (over 100 MB/s) during the Kafka rolling restart, the Kafka rolling restart may fail.
    • For example, if the requests per second of each RegionServer on the native interface exceed 10,000 during the HBase rolling restart, you need to increase the number of handles to prevent a RegionServer restart failure caused by heavy loads during the restart.
  • Before the restart, check the number of current requests of HBase. If the number of requests of each RegionServer on the native interface exceeds 10,000, increase the number of handles to prevent a failure.
  • If the number of Core nodes in a cluster is less than six, services may be affected for a short period of time.
  • Preferentially perform a rolling instance or service restart and select Only restart instances whose configurations have expired.

Performing a Rolling Service Restart

  1. Choose Clusters > Active Clusters and click a cluster name to go to the cluster details page.
  2. Click Components and select a service for which you want to perform a rolling restart.
  3. On the Service Status tab page, click More and select Rolling-restart Service.

    Figure 1 Service status (MRS 1.9.2 is used as an example)

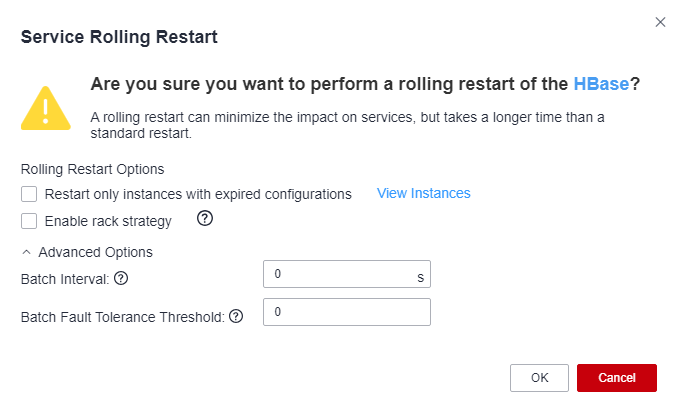

  4. The Rolling-restart Service page is displayed. Select Only restart instances whose configurations have expired and click OK to perform rolling restart for the service.

    Figure 2 Performing a rolling service restart

  5. After the rolling restart task is complete, click Finish.

    Figure 3 Finishing the rolling service restart

Performing a Rolling Instance Restart

  1. Choose Clusters > Active Clusters and click a cluster name to go to the cluster details page.
  2. Click Components and select a service for which you want to perform a rolling restart.
  3. On the Instance tab page, select the instance to be restarted. Click More and select Rolling-restart Instance.

    Figure 4 Performing a rolling instance restart

  4. After you enter the administrator password, the Rolling-restart Instance page is displayed. Select Only restart instances whose configurations have expired and click OK to perform rolling restart for the instance.
  5. After the rolling restart task is complete, click Finish.

Perform a Rolling Cluster Restart

  1. Choose Clusters > Active Clusters and click a cluster name to go to the cluster details page.
  2. In the upper right corner of the page, choose Management Operations > Perform Rolling Cluster Restart.

    Figure 5 Performing a Rolling Restart of a Cluster (Using MRS 1.9.2 as an Example)

  3. The Rolling-restart Cluster page is displayed. Select Only restart instances whose configurations have expired and click OK to perform rolling restart for the cluster.
  4. After the rolling restart task is complete, click Finish.

Rolling Restart Parameter Description

Table 2 describes rolling restart parameters.

Table 2 Rolling restart parameter description

Parameter

Description

Only restart instances whose configurations have expired

Specifies whether to restart only the modified instances in a cluster.

Enable rack strategy

Whether to enable the concurrent rack rolling restart strategy. This parameter takes effect only for roles that meet the rack rolling restart strategy. (The roles support rack awareness, and instances of the roles belong to two or more racks.)

NOTE:

This parameter is configurable only when a rolling restart is performed on HDFS and YARN in MRS 3.x or later.

Data Node Instances to Be Batch Restarted

Specifies the number of instances that are restarted in each batch when the batch rolling restart strategy is used. The default value is 1. The value ranges from 1 to 20. This parameter is valid only for data nodes.

Batch Interval

Specifies the interval between two batches of instances for rolling restart. The default value is 0. The value ranges from 0 to 2147483647. The unit is second.

Note: Setting the batch interval parameter can increase the stability of the big data component process during the rolling restart. You are advised to set this parameter to a non-default value, for example, 10.

Decommissioning Timeout Interval

Decommissioning interval for role instances during a rolling restart.

Batch Fault Tolerance Threshold

Specifies the tolerance times when the rolling restart of instances fails to be executed in batches. The default value is 0, which indicates that the rolling restart task ends after any batch of instances fails to be restarted. The value ranges from 0 to 2147483647.

Procedure in a Typical Scenario

  1. Choose Clusters > Active Clusters and click a cluster name to go to the cluster details page.
  2. Click Components and select HBase. The HBase service page is displayed.
  3. Click the Service Configuration tab, modify an HBase parameter, and save the configuration as prompted.

    In versions earlier than MRS 3.x, do not select Restart the affected services or instances. This option indicates a normal restart. If you select this option, all services or instances will be restarted, which may cause service interruption.

  4. After saving the configurations, click Finish.
  5. Click the Service Status tab.
  6. On the Service Status tab page, click More and select Rolling-restart Service.

    Figure 6 Service status - rolling restart (using MRS 1.9.2 as an example)

  7. After you enter the administrator password, the Rolling-restart Service page is displayed. Select Only restart instances whose configurations have expired and click OK to perform rolling restart.

    Figure 7 Configuring the rolling service restart

  8. After the rolling restart task is complete, click Finish.

    Figure 8 Finishing the rolling service restart
