Viewing Kafka Topic Details
On the Kafka console, you can view basic information, partition and producer information, and subscriptions of a topic.
Notes and Constraints
- If an instance contains more than 10,000 consumer groups, the subscribed topics cannot be queried.
- The producer information is displayed only when a producer is producing messages into topics.
Procedure
- Log in to the console.
- Click
in the upper left corner to select the region where your instance is located.
- Click
and choose Application > Distributed Message Service (for Kafka) to open the console of DMS for Kafka.
- Click the desired instance to go to the instance details page.
- In the navigation pane, choose Topics.
- Click a topic to view its details.
The general information, subscriptions, partitions, and producers are displayed.
- General information: topic name, brokers, partitions, and creation time
The topic creation time is not displayed on the topic details page in any of the following cases:
- The topics were created much earlier. See the console.
- The topics were created automatically, or by commands or code on the client.
- Subscriptions: consumer group name and status, Coordinator (ID), and accumulated messages
Click the name of a consumer group name.
If an instance contains more than 10,000 consumer groups, the subscribed topics cannot be queried.

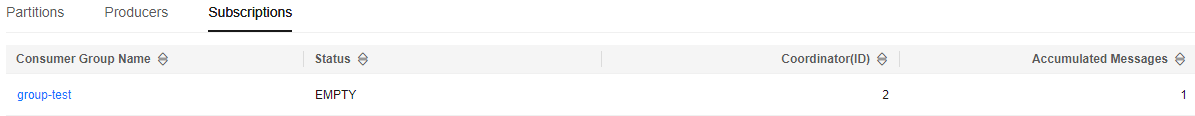

Figure 1 Subscriptions - Partitions: partition ID, minimum offset, maximum offset, number of messages, and message update time
- Producers: broker address, producer address, and producer connected time
For topics created much earlier, Producer tab page is not displayed on the topic details page. See the console.

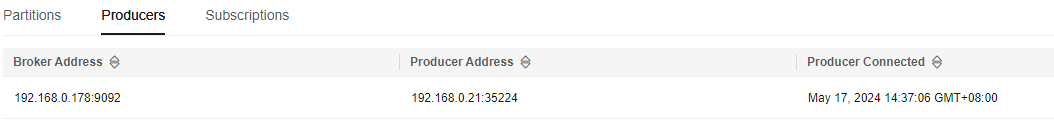

Figure 2 Producers
- General information: topic name, brokers, partitions, and creation time
