Deploying an Application with a Custom Kubernetes Cluster

Prerequisites

A custom cluster is available.

Procedure

1. Obtain the kubeconfig file.
   • Your Kubernetes cluster is used as an example.
   • Example of a CCE cluster

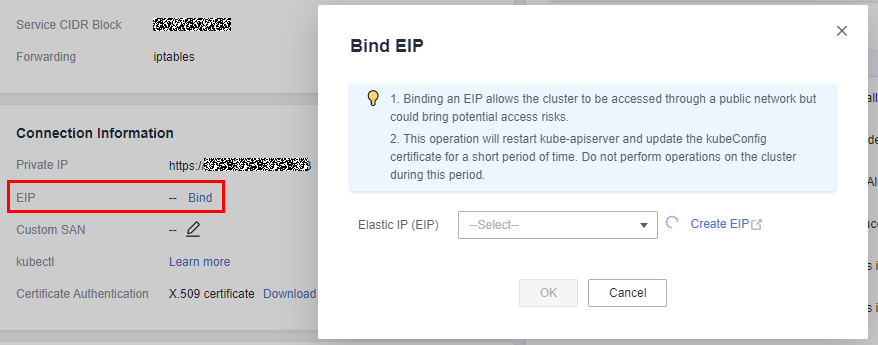

     1. Go to the console. In the upper left corner of the page, choose Service List > > Cloud Container Engine. Click the target cluster and click Bind next to EIP to bind the public IP address.





        The CodeArts Deploy official resource pool and your Kubernetes cluster are not in the same VPC. Therefore, you can access the Kubernetes cluster only through an EIP.

     2. Click Configure next to kubectl in the Connection Information area. On the displayed page, click Download under Download the kubeconfig file to download the configuration file.


        After the download is complete, a kubeconfig.json file is available.

2. Create a Kubernetes endpoint.
   1. Log in to CodeArts Deploy.
   2. Click Create Application, enter basic information, click Next, select Blank Template, and click OK. The Deployment Actions tab page is displayed.
   3. Click All, search for Deploy a Custom Kubernetes Cluster, and click Add.
   4. Create an endpoint for accessing the Kubernetes cluster.

      Click Create to create a Kubernetes access point.

      After entering the information, click Verify and OK to check whether the endpoint is configured successfully.

      Table 1 Parameters

      Parameter	Description
      Service Endpoint Name	Name of the service endpoint.
      Kubernetes URL	Set this parameter to the public API Server address in the custom cluster.
      Kubeconfig	Copy all content in the kubeconfig.json file.

   5. Configure other required parameters as prompted to complete deployment over the public network with Kubernetes.

      Table 2 Parameters

      Parameter	Description
      Region	Select the region for deployment.
      Kubernetes Service Endpoint	Select the target Kubernetes access point. You can create and manage Kubernetes access points.
      kubectl Command	Select the target kubectl command.
      Use YAML files	If this parameter is selected, you need to select the target YML file for deployment.
      kubectl Parameters	kubectl command parameters to be executed.
      Control Options	Continue the task even if this action fails.
