Using Direct Connect to Enable Network Communications

Notes and Constraints

• The migration resource group uses a private network segment that cannot overlap with the network segment of the data source. Otherwise, the network cannot be connected.
• The migration resource group does not have a public network segment and can only connect to the private network of the data source.

Prerequisites

• You have purchased a migration resource group. For details, see Buying a DataArts Migration Resource Group Incremental Package.
• You have purchased and configured a Direct Connect connection which connects to at least one VPC on the cloud. To enable Direct Connect and configure a direction, see and the documentation on the official website of another cloud.

Preparations

Obtain the network segments of the related objects (including the data source, transit VPC, and migration resource group).

Table 1 Network segment planning for resources

Resource	Description	Example Private Network Segment
Data source network segment	Private network segment of the data source of another cloud. Obtain the value based on the site requirements.	192.168.0.0/24

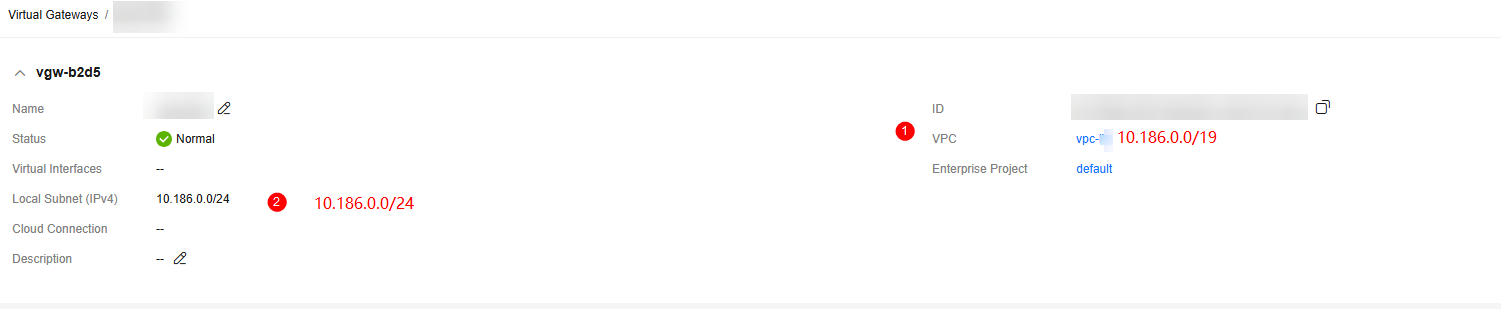

Transit VPC and its subnet	Used for the communications between the data source and migration resource group. In this solution, a VPC configured for the virtual gateway of Direct Connect and the corresponding subnet are used. To obtain the VPC and subnet, perform the following operations: Log in to the Direct Connect console. In the navigation pane on the left, choose Direct Connect > Virtual Gateways. In the gateway list, locate the virtual gateway used by another cloud and click its name to view the associated VPC and subnet. Figure 2 Viewing the virtual gateway	VPC: 10.186.0.0/19 Subnet: 10.186.0.0/24
Migration resource group VPC	VPC to which the real-time computing resource group belongs. The migration resource group is created under the resource tenant of the user account and uses the VPC network segment of the resource tenant. To obtain the VPC, perform the following operations: Log in to the DataArts Studio console, access an instance, and click the Resources tab. On the Real-Time Resources page, expand the target migration resource group to view its VPC network segment. Figure 3 Obtaining the migration resource group network segment	172.16.0.0/19

Network Configuration Process

1. Configure a whitelist and security group rules for the database of another cloud.
   • Allow the VPC network segment (for example, 172.16.0.0/19) of the migration resource group to access the database of another cloud. The method of configuring a whitelist varies depending on the database type. For details, see the official documentation of each database.
   • If a security group has been configured for the database on another cloud, you need to add an inbound rule to allow the VPC network segment (for example, 172.16.0.0/19) of the resource group to access the database listening port.


   The ports used by different data sources vary. Configure the ports for security group rules by referring to .

2. (Optional) Add a route to the network of the database on another cloud and add a remote subnet to the Direct Connect connection.
   • If necessary, add a route for the network of the database on another cloud, set the destination to the VPC network segment (for example, 172.16.0.0/19) of the resource group, and set the next hop to the Direct Connect connection. For details, see the documentation on the official website of another cloud.
   • If necessary, add the VPC network segment (for example, 172.16.0.0/19) of the resource group to the remote subnet of the Direct Connect connection of another cloud to ensure that the route is reachable. For details, see the documentation on the official website of another cloud.

3. Add the migration resource group network segment to the local subnet of the Direct Connect connection.

   To allow Direct Connect to access the migration resource group network segment, perform the following operations: Log in to the Direct Connect console. In the navigation pane on the left, choose Direct Connect > Virtual Gateways. In the list, locate the virtual gateway used for connecting to another cloud and click Modify in the Operation column. In the displayed dialog box, enter the VPC network segment (for example, 172.16.0.0/19) of the migration resource group for Local Subnet.

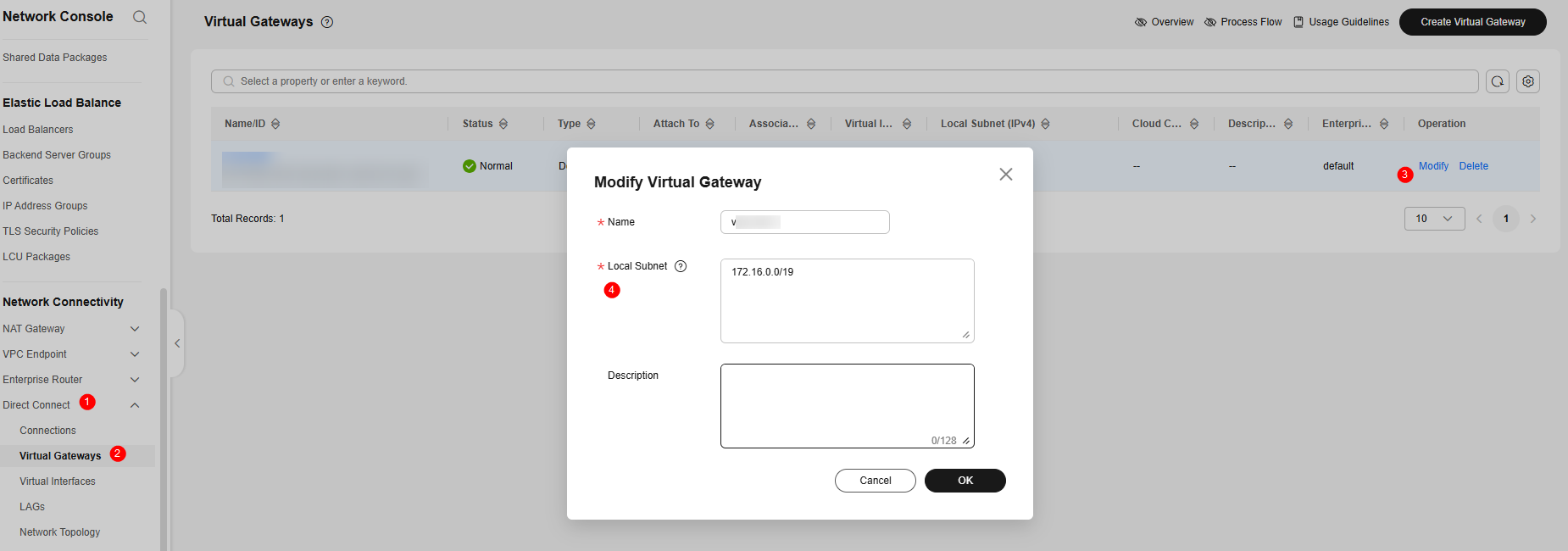

   Figure 4 Adding a local subnet

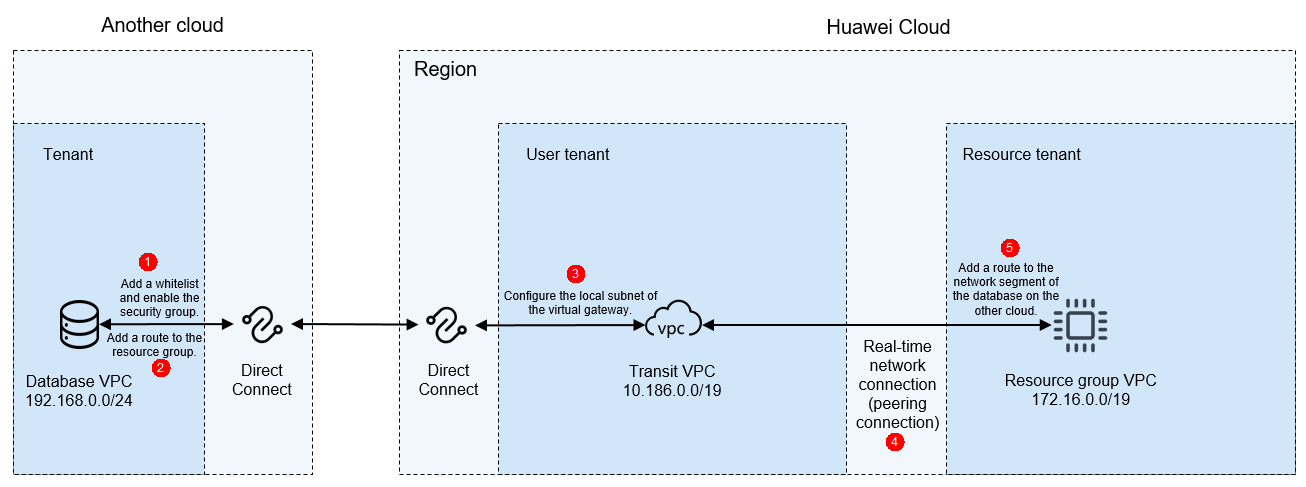

4. Create a real-time network connection (VPC peering connection) for migration.

   To connect the transit VPC to the real-time migration resource group VPC, you can create a VPC peering connection between the two VPCs using the resource management function provided of DataArts Studio.

   Log in to the DataArts Studio console, access an instance, and click the Resources tab.

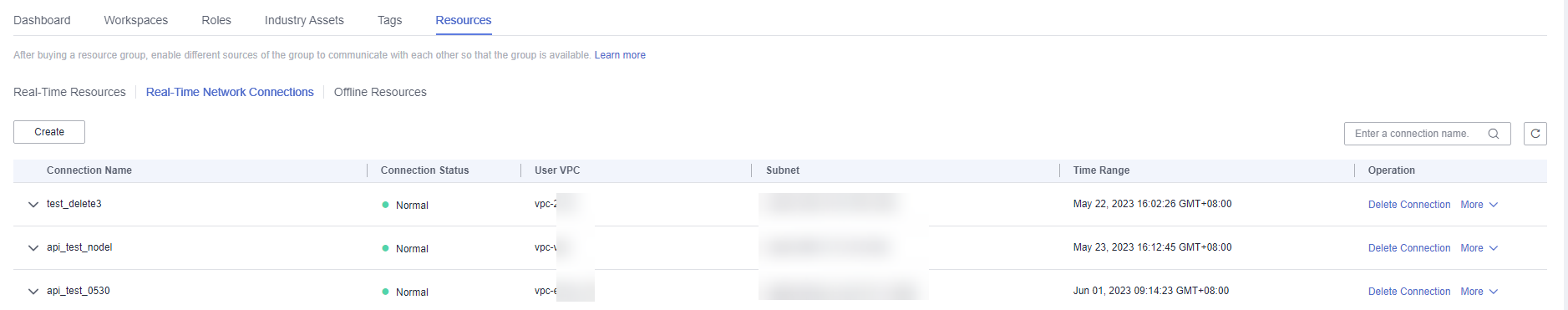

   Figure 5 Creating a network connection


   On the Real-Time Network Connections tab page, click Create. In the displayed Create Network Connection dialog box, set required parameters.

   Table 2 Parameters for creating a network connection

   Parameter	Description
   Connection Name	Name of the network connection Only letters, digits, and underscores (_) are allowed.
   Resource Group	Migration resource group that can communicate with the specified VPC. If you do not select a migration resource group, you can bind migration resource groups to the connection after the connection is created by clicking More in the Operation column and selecting Bind Resource Group.
   VPC	VPC that can communicate with the migration resource group In this solution, the migration resource group network segment and the transit VPC are connected through a VPC peering connection. Therefore, you must select a transit VPC (for example, 10.186.0.0/19).
   Subnet	Subnet of the transit VPC, for example, 10.186.0.0/24
   Routing Table	Routing table associated with the subnet. When the connection is bound to a migration resource group, routing information of the migration resource group is added to the routing table. You do not need to set this parameter. When the connection is bound to a migration resource group, a route to the migration resource group VPC network segment is added to the routing table. The route connects the migration resource group network segment to the transit VPC.

5. Add a route to the data source network segment for the real-time network connection (VPC peering connection).

   Locate the real-time network connection created in step 4, click More in the Operation column and select Add Route. In the displayed dialog box, enter the private network address of the database of the on-premises IDC, for example, 192.168.0.0/24.

   Figure 6 Adding route 1

   Figure 7 Adding route 2


6. (Optional) For MRS data sources, perform the following extra operations to enable network communications:

   After creating a real-time network connection and binding it to a migration resource group, click More in the Operation column and select Modify Host Information. In the displayed dialog box, enter the IP addresses and domain names of all nodes in the MRS cluster as prompted.

   Figure 8 Modifying host information



   To obtain the IP addresses and domain names of the nodes in an MRS cluster, perform the following steps:

   • Open the MRS page, access the MRS cluster, click the Nodes tab, and expand all node groups to view the IP address and name (domain name) of each node.

     Add the IP addresses (1 in the figure) and domain names (2 in the figure) of all nodes and separate them by pressing Enter.

     Figure 9 Obtaining the IP addresses and domain names of the nodes in the MRS cluster

   • Log in to an MRS cluster node by referring to and run the cat /etc/hosts command to list the IP addresses and domain names of all nodes.

7. Test the network connectivity.

   In a DataArts Studio workspace, create a data connection and a real-time migration job, and select the corresponding data connection and migration resource group to test the connectivity. For details, see Creating a Real-Time Migration Job.
